Microscopy > Microscopes > Upright microscopes > Bright field microscopes > Euromex > EcoBlue > Euromex Microscope EC.1653, trino, LED, 40x, 100x, 400x, 600x
Product no.: 49887

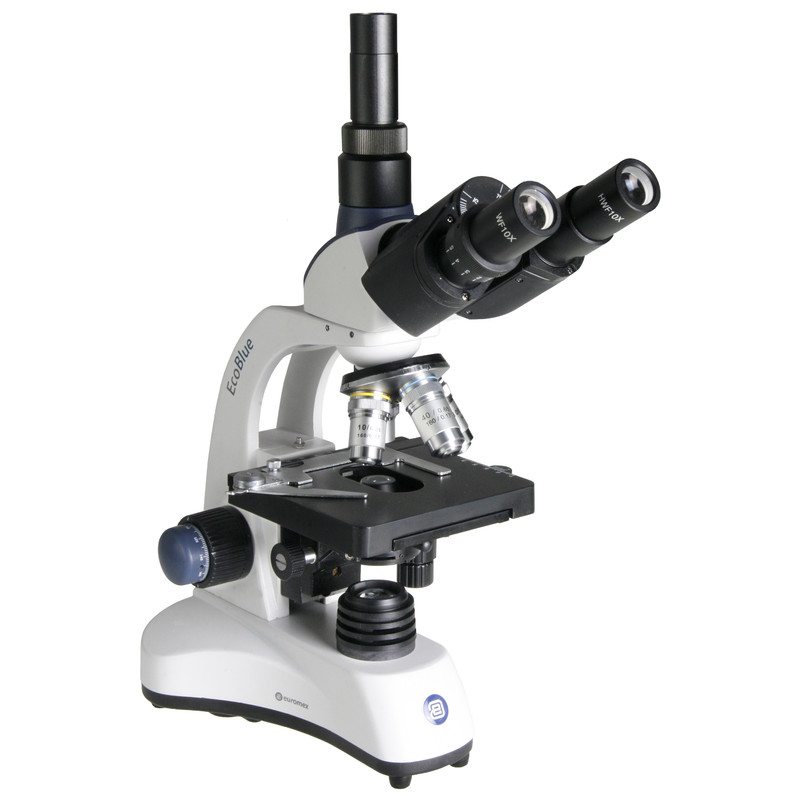

Microscope EC.1653, trino, LED, 40x, 100x, 400x, 600x

$ 600.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

More about the series EcoBlue...

EcoBlue

Specifications:

Eyepiece: Secured DIN WF 10x/18 mm with pointer

Head: Monocular 45° inclined tube and binocular 30° inclined tubes. The digital versions are equipped with a 1.3 Mpixel 1/3 inch CMOS Color USB2 camera @ 1280x 1024 pixels

Nosepiece: Revolving quadruple forwarded nosepiece on ball-bearings. Polarization models equipped with swing-in analyzer

Objectives: All models are standard equipped with achromatic corrected 4x/0.13, 10x/0.25, S40x/0.65 objectives. The 20x/40, S60x/0.85 and S100x/1.25 objectives are also available. All optical parts are antifungus treated and are anti-reflection coated

Stage: Plain 123 x 119 mm stage with 2 object clamps except for the EC.1x5x models which are equipped with an integrated mechanical X-Y stage. Polarization model s with a 360° rotatable 129 mm round stage and 2 object clamps

Condenser: In height adjustable Abbe condenser

Focusing adjustment: axial coarse and 200 µm fine adjustments, 2 µm precision. Friction adjustment

Illumination: 1 W intensity adjustable LED illumination with internal power supply. The models with an integrated mechanical stage are equipped with internal batteries. Polarization models come standard with halogen illumination, LED polarization versions are available on request

Software: ImageFocus 4 capture & analysis software is supplied with each digital microscope model. The software is compatible with Windows XP, Vista, Windows 7 & 8, both 32 and 64 bits platforms

EC.1653 Spezifikation

  • Secured DIN WF 10x/18 mm eyepieces
  • Trinocular head Siedentopf type, 30° inclined, 360° rotating
  • Forwarded quadruple revolving nosepiece on ball-bearings
  • Achromatic 4x, 10x, S40x, S60x objectives
  • All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
  • Coaxial coarse and fine adjustments with 200 graduations. Precision 12.5 ìm,
  • 2.5 mm per rotation. Total travel approximately 15 mm. Friction adjustment
  • Plain 130 x 125 mm stage with integrated 70 x 27 mm X-Y mechanical stage
  • Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
  • 1 W NeoLED™ illumination with built-in 3 rechargeable batteries
  • External power supply 100-240 V (CE)
  • Supplied with power cord and dust cover in styrofoam case

Specifications

Optics


Image scale
40-1000 (20 (N.A. 0.40) achromatic, 40 (N.A. 0.65 with slide contact protection))
Condensor
NA 1.25 Abbe condenser with iris diaphragm and filter holder, height-adjustable
Lamp type
LED
Lens type
Achromatic
Eyepiece
10x/18 (Widefield)
Power supply
85-240V, built-in battery charger, detachable power cord
Magnification
40-1000 (10, 40, 100, 400)
Optical system
DIN (160mm)

Capacity


Brightness control
yes
brightfield
yes

Mechanics


Viewing posture (°)
45° oblique viewing
Specimen stage
Cross table (123 x 119 mm)
Focusing
Coarse and fine movement (coaxial, with 0.002 mm division)
Type of build
Trinocular

Special features


Rechargeable battery operation
yes
Filter holder
yes
Dust cover bag
yes

General


Series
EcoBlue

Suitable for


Beginners
yes

Field of application


Education
yes

Area of application


school
yes
