Microscopy > Microscopes > Upright microscopes > Bright field microscopes > Novex > B > Novex Microscope BTS 86.041
Product no.: 9773

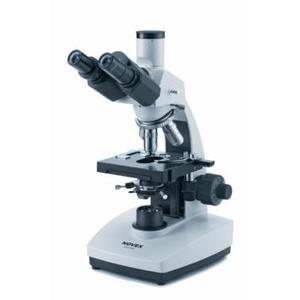

Microscope BTS 86.041

$ 820.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

Novex B-series trinocular microscope BTS for Bright field contrast

  • DIN widefield eyepieces WF10x/18
  • Trinocular head with 30° inclined tube, fully rotatable over 360°. Tube length 160 mm
    Interpupillary distance adjustable between 55 and 75 mm. One eyepiece with diopter adjustment
  • Revolving inward facing nosepiece, ball-bearing mechanism, for 4 objectives
  • Semi-plan achromatic DIN-objectives SMP 4x N.A.0.10, SMP 10x N.A.0.25, SMP S40x N.A.0.65 and SMP S100x N.A.1.25, oil-immersion. The 40x and 100x objectives are spring-mounted. All optical parts are coated
  • Heavy alloy stand is enameled with a stove-hardened off-white and black lacquer. Focus control by means of coaxial coarse and fine adjustment knobs; fine adjustment knob is graduated for 0.002 mm per interval
  • Large mechanical stage, 120 x 135 mm, ball-bearing mechanism, with X and Y adjustment 75 x 35 mm. Double nonius, readable in 0.1 mm. Detachable slide holder.
  • Abbe condenser N.A. 1.25 in centrable holder, with iris diaphragm and filter holder with neutral filter and blue filter. Vertical adjustment by means of control knob
  • Built-in halogen 6 volt 20 watt illuminator with neutral filter. Light intensity adjustable with thyristor control. Built-in 230 volt transformer
  • Packed with dust cover, filters, tools, immersion oil and tools in styrofoam case

  • Built-in halogen 6 volt 20 watt illuminator with neutral filter. Light intensity adjustable with thyristor control. Built-in 230 volt transformer

Specifications

Optics


Magnification
1000 (50, 100, 500, 1000)
Eyepiece
10 (Wide-angle eyepiece)
Condensor
Abbe (N.A. 1.25, height adjustable, centerable)
Lighting
Transmitted light
Lens type
Semi-Plan Achromatic
Lamp type
Halogen (6V/20W, continuously adjustable)
Image scale
4 (N.A. 0.10), 10 (N.A. 0.25), 40 (N.A. 0.65 with specimen protection), 100 (N.A. 1.25 oil immersion, with specimen protection)
Power supply
Power plug
Optical system
DIN (160mm)

Capacity


brightfield
yes

Mechanics


Type of build
Trinocular
Specimen stage
Cross table (75 x 35 mm, on stage: 120 x 135 mm, with double vernier scale, 0.1 mm division)
Viewing posture (°)
30° oblique viewing, 360° rotating head
Focusing
Coarse and fine movement (coaxial)

Special features


Built-in digital camera
-
Centering stage
-
Rechargeable battery operation
-
Filter holder
yes
Luminous field diaphragm
yes
Dust cover bag
yes

General


Series
B
Colour
black-white
Weight (g)
6800
Suitable from
14

Suitable for


Beginners
-
Advanced
yes
Pros
yes

Field of application


Medicine
yes

Area of application


Interference contrast
-
Phase contrast
-
Polarization
-
Fluorescence
-
Metallurgy
-
Dark field
-
Cell culture
yes
Mineralogy
yes
Biology, zoology & botany
yes
Forensic science
yes
