Product no.: 9746

Microscope FL-100

$ 196.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

More about the series FL-Serie...

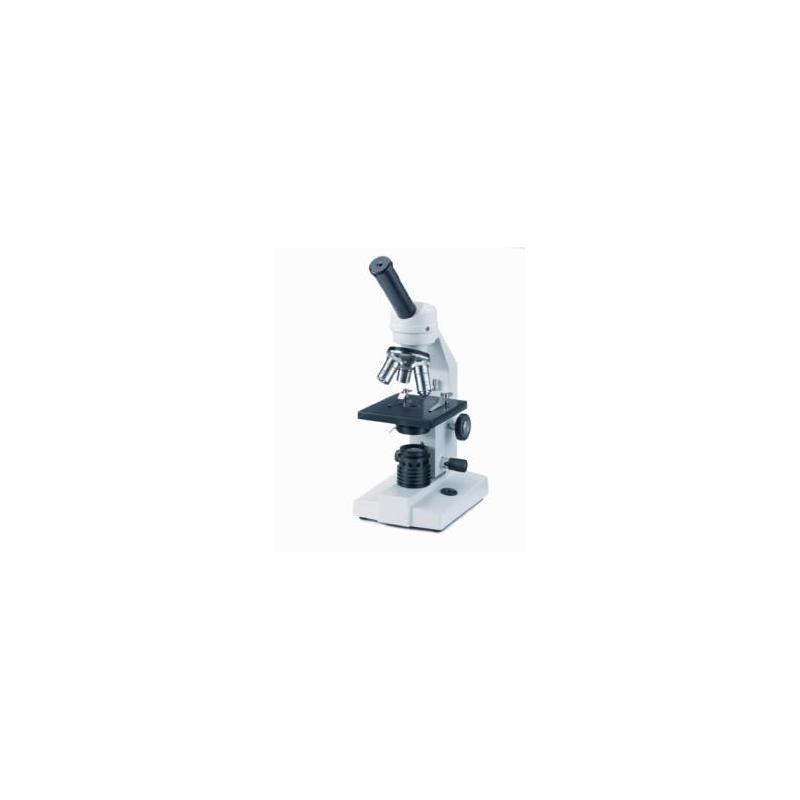

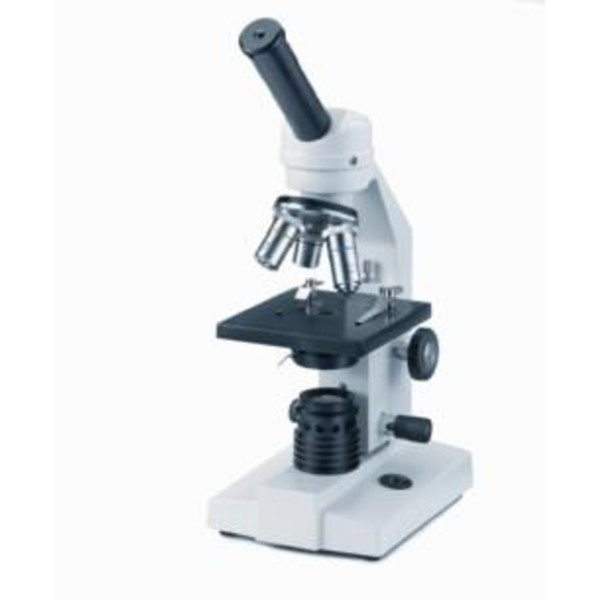

Novex school/student microscope FL-100

  • WF 10x/18 eyepiece with fixed pointer, secured
  • Monocular 45° inclined tube, 360° rotatable. Tube length 160 mm
  • Triple revolving nosepiece
  • DIN achromatic objectives 4x N.A. 0.10, 10x N.A. 0.25 and S40x N.A. 0.65.
    All objectives anti-reflection coated. The 40x is spring-loaded. Magnification 40x, 100x and 400x
  • Coaxial coarse- and fine adjustment knobs on both sides with 0.002 mm graduationsare equipped with slip clutch mechanism. Friction of the ball beard focus control can be adjusted.The metal stand is enameled with an off-white stove-hardened lacquer. Specimen protection: height of the stage can be blocked to prevent damage to objectives and slides
  • Square stage 110 x 120 mm, with 2 spring-mounted and locked-on object clamps
    A mechanical stage is optionally available(part number 80.973)
  • Fixed condenser N.A. 0.65 and iris diaphragm with filter holder and blue filter
  • Integrated Tungsten illumination 230 Volt, 20 Watt. With detachable mains cable for 230 Volt operation
  • Packed with dust cover, tools and manual in styrofoam case

Specifications

Optics


Eyepiece
10 (Wide-angle eyepiece)
Condensor
einlinsiger Kondensor (N.A. 0.65, fixed)
Lighting
Transmitted light
Image scale
4 (N.A. 0.10), 10 (N.A. 0.25), 40 (N.A. 0.65 with specimen protection)
Lamp type
Halogen (Tungsten illumination)
Lens type
Achromatic
Power supply
Power plug
Magnification
40, 100, 400

Mechanics


Specimen stage
Specimen stage (110 x 120 mm)
Viewing posture
45° oblique viewing, 360° rotating head
Focusing
Coarse and fine movement
Type of build
Monocular

Special features


Built-in digital camera
-
Centering stage
-
Rechargeable battery operation
-
Filter holder
yes
Luminous field diaphragm
yes
Dust cover bag
yes

General


Series
FL-Serie
Colour
black-white
Weight (g)
3800
Suitable from
12

Suitable for


Pros
-
Beginners
yes
Advanced
yes

Field of application


Hobby - Amateur
yes

Area of application


Interference contrast
-
Dark field
-
Metallurgy
-
Phase contrast
-
Polarization
-
Fluorescence
-
Novex Microscope FL-100
