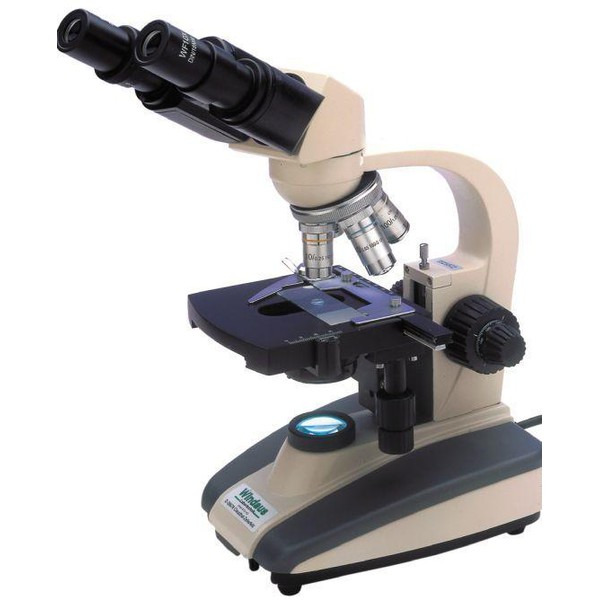

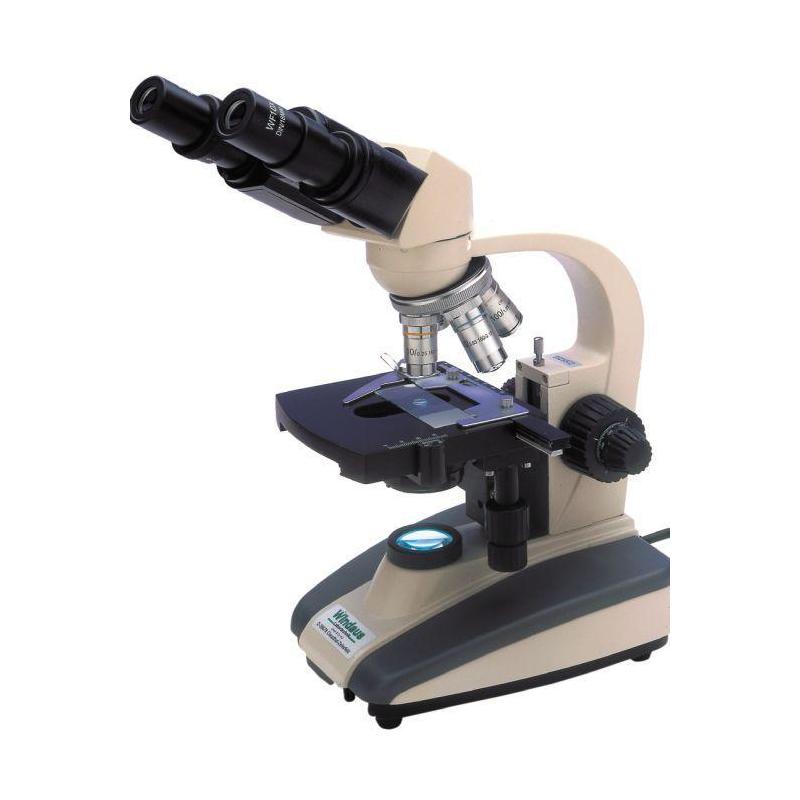

Microscope HPM 220

The upper element of a microscope. An eyepiece consists of several lenses and is used for visually observing the object. In microscopy, the magnification power is expressed as -x.

The light source illuminates the object and is available in various forms.

This refers to the magnification factor of a single microscope lens. A lens with the number 40 is referred to as a scale of 1:40 or simply a factor of 40 times. If you multiply the lens factor by the eyepiece factor, you get the magnification.

Describes the position in which you look through the eyepiece, for example at 45° or straight.

The object or specimen slide is positioned and centred on this.

The cross table has a clamping device for the specimen holder. The object can be precisely centred over two axes with fine adjustments.

Used to hold colour filters for contrast enhancement.
