Starlight Xpress Lodestar autoguider camera

Product no.: 12425
Manufacturer: Starlight Xpress

EUR 624,-

Now only: EUR 499,-

You save: EUR 125,-

incl. VAT plus shipping costs

too expensive?

usually ready for shipping in 3-5 weeks


Product description
Specifications
Customer reviews
Recommended accessories

Product description:

The Lodestar autoguider

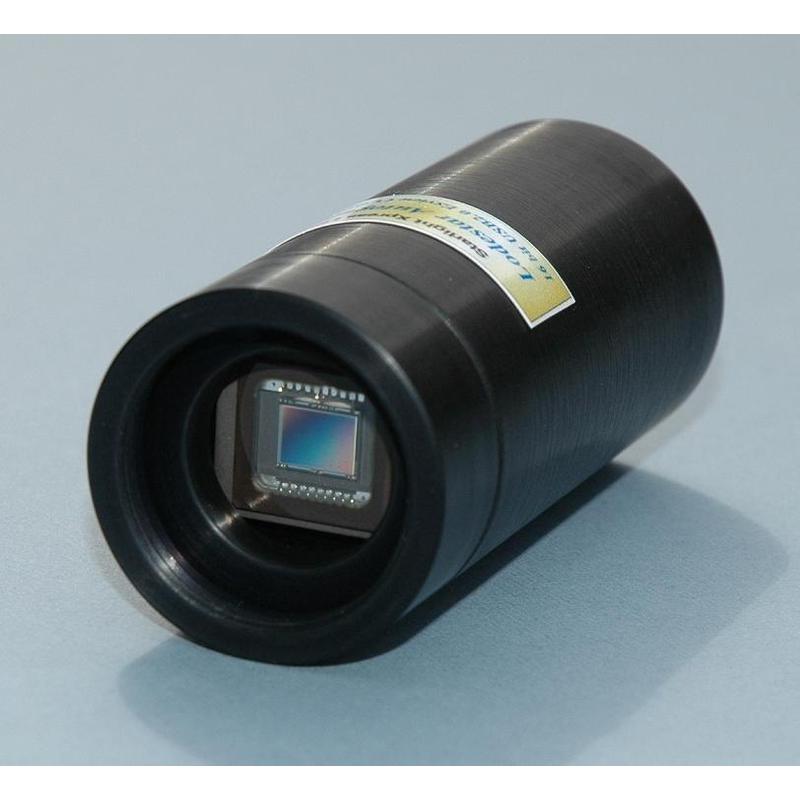

  • CCD type: ICX429AL Sony Exview interline CCD with low dark current and vertical anti-blooming.
  • CCD Full resolution Pixel data: Pixel size: 8.2uM x 8.4uM, Image format: 752 x 580 pixels
  • CCD Image area: 6.4mm (Horizontal) x 4.75mm (Vertical).
  • CCD quality: Grade 1

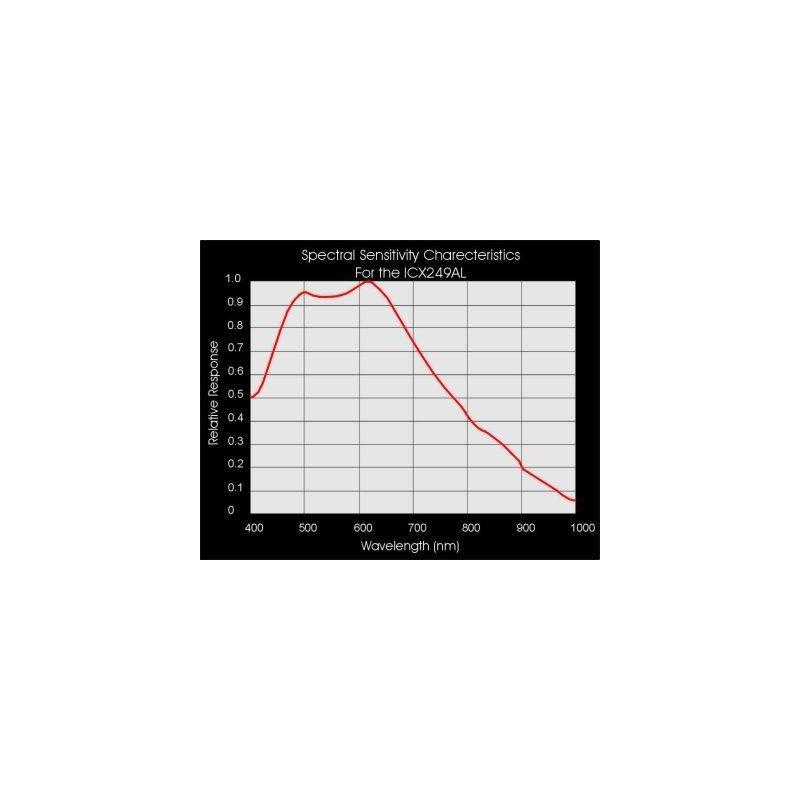

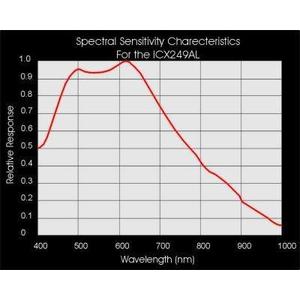

  • Spectral Response: QE max at 620nM (~65%), 35% at 400nM and 770nM.
  • Readout Noise: Less than 15 electrons RMS - typically only 10 electrons.
  • Full-well capacity: Greater than 50,000 e- (unbinned)
  • Anti-blooming: Overload margin greater than 1000x.
  • Dark current: Dark frame saturation time greater than 1 hour. Less than 0.1 electrons/second @ + 10C ambient.
  • Data format: 16 bits.
  • System gain: 0.9 electrons per ADU
  • Computer Interface: Built-in USB 2.0 compatible interface.
  • Image download time: Typically 0.2 seconds at full resolution using USB 2.0.
  • Power requirements: USB powered.
  • Cooling system: Ambient air cooling.

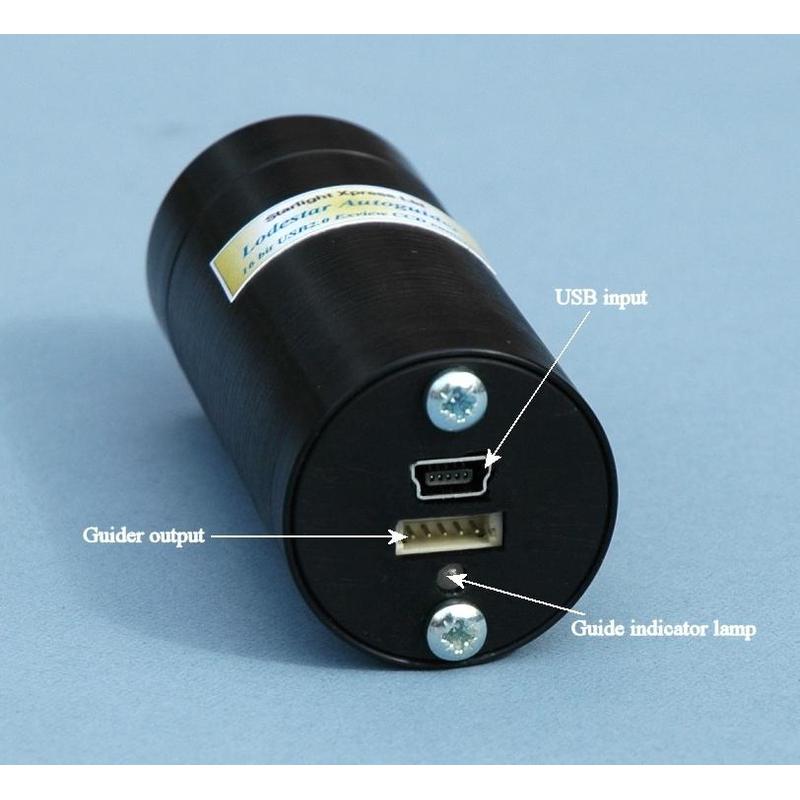

  • Size: 32 x 72mm black anodised aluminium barrel with 25 x 0.75mm 'C mount' thread at the CCD window end & input/output plugs at rear.
  • Weight: approx. 50g.
