Product description

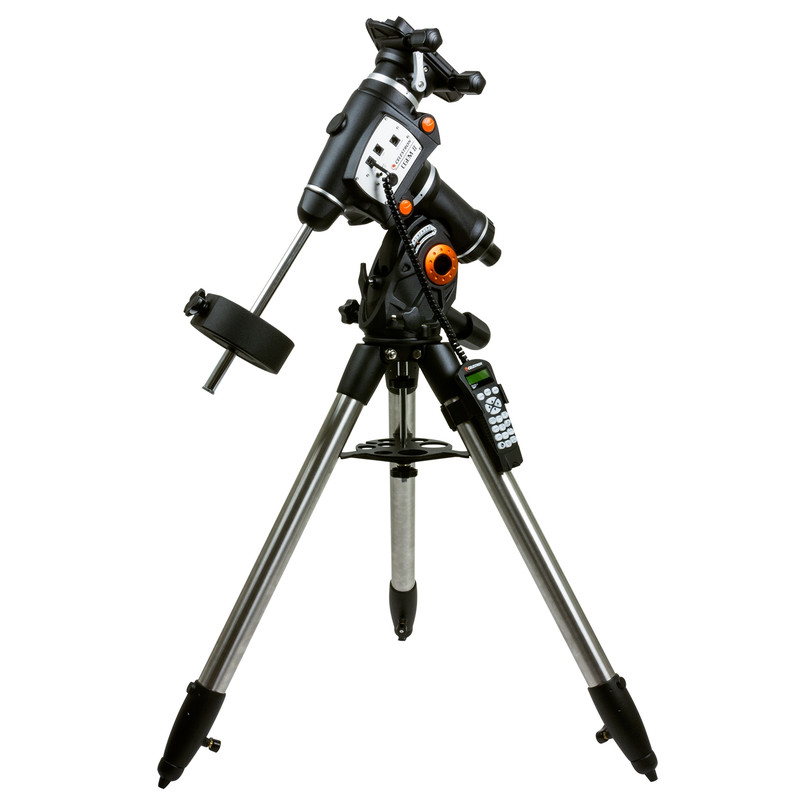

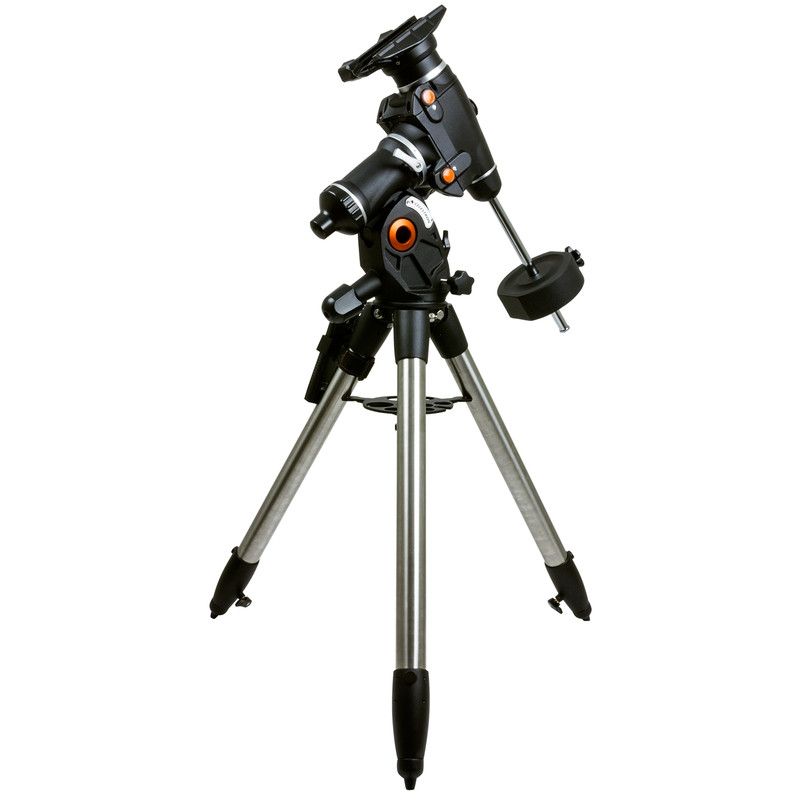

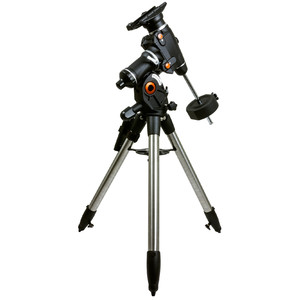

CGEM II mount

Celestron has updated its popular CGEM mount. Version 2 features a sturdier tripod, USB port, dual dovetail clamp for Losmandy and Vixen standards, improved ergonomics and firmware!

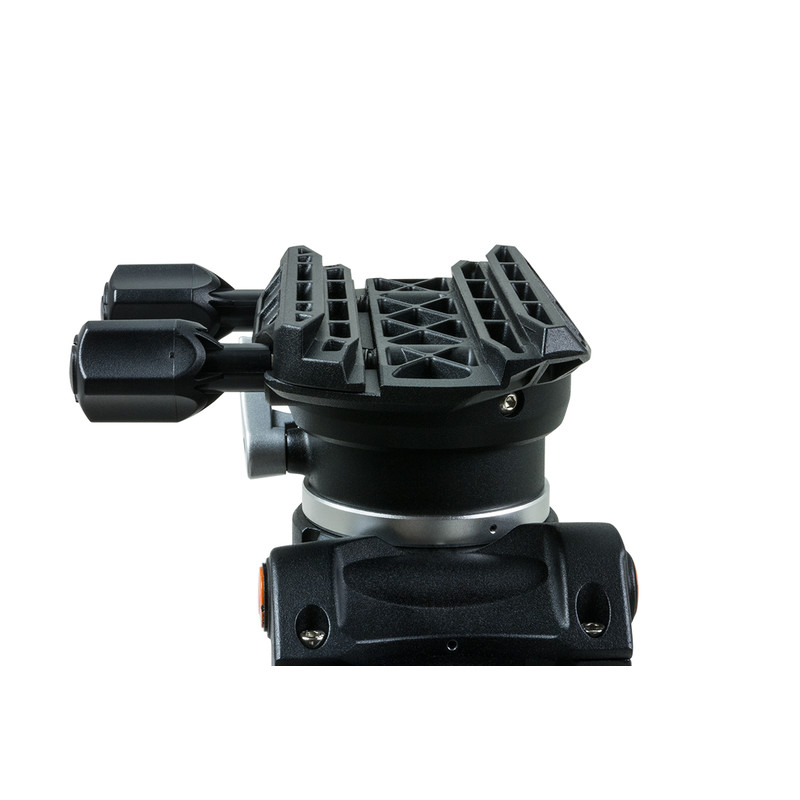

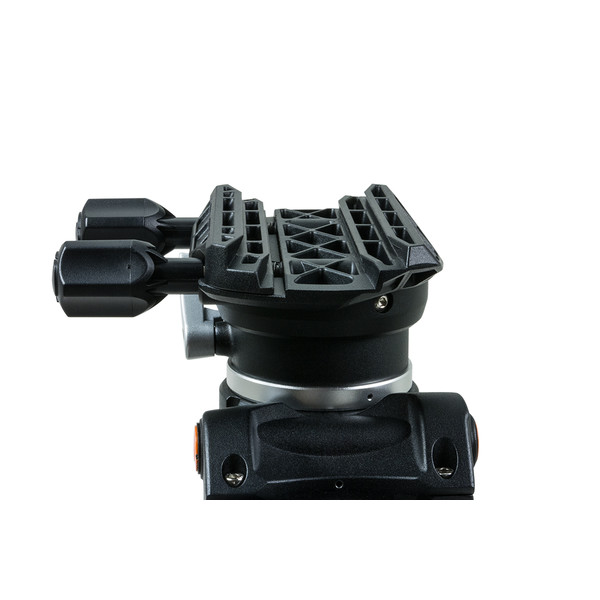

But it has not changed the tried and tested features of the CGEM, which continues to be a highly reputable mount for astrophotography - safely carrying Celestron SC OTAs of up to 11-inch (279mm) aperture for astrophotography purposes. Of course, you can also use the CGEM with telescopes from other brands, whether refractors or medium-sized Newtonian telescopes. The dual saddle clamp is suitable for the two common prism rail formats (also known as dovetail rails). The saddle clamp has two large, handy screws that can even be easily operated when wearing gloves. Since the clamp engages over its entire width with the prism rail and not just the screws themselves, no damage to the rail can occur during setting up.

Additional advantages of the CGEM II

  • the tripod legs are marked, allowing you to extend the legs to a consistent length and easily remember your preferred length.
  • built-in All-Star Polar Alignment by Celestron to align the mount using any star. So you do not need a polar finder and do not have to separately north align. You do not even need a clear view of the Pole Star! The screw for adjusting the polar height is large and convenient. This is an important advantage, as the polar height adjustment must be done with the weight of the OTA present.
  • large database of all popular deep sky objects, catalogued by name and catalogue number; the most famous double, triple and quadruple stars as well as variable stars and objects within the solar system.
  • Permanently Programmable Periodic Error Correction (PPEC)

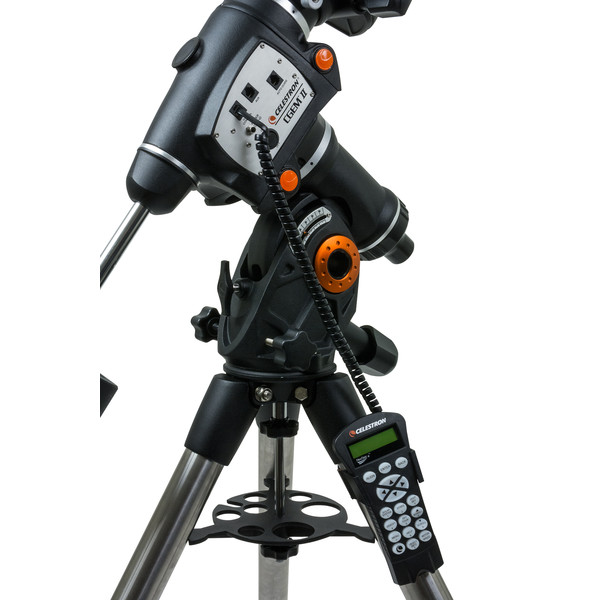

  • double-line, 16-character LCD hand control with backlit buttons. The hand controller has a USB port for easy connection to the PC for firmware updates of the mount and hand controller.
  • tracking beyond the meridian by up to 30° - so that long-term exposure astrophotography does not have to be suddenly interrupted.

The CGEM II is between the AVX and CGX mounts in Celestron's range of modern equatorial GoTo mounts. For beginners, we recommend the low-priced AVX - which has all the advantages of NexStar + electronics, but is not mechanically designed to carry large OTAs. The CGX mount meets the highest demands of astrophotographers, even when carrying heavy equipment. Finally, the CGEM II is an excellent compromise between carrying capacity, performance and price. It is the workhorse of sophisticated astrophotographers.

Specifications

Capacity


Max. additional load capacity (kg)
18
Counterweight(s) (piece)
1
Polar elevation setting (°)
15 - 70
Input voltage
12
Mounting saddle
Losmandy & Vixen
Motor type
Servomotors

Special features


Handcontroller
yes
Updateable via web
yes
PEC correction
yes
PC interface
yes (USB 2.0)
Controllable via PC
Celestron PWI
GoTo system
yes

Equipment


Accessory plate
yes
Transport cases
no
Motor-powered
yes
cigarette lighter socket
yes
Power pack
no
Tripod <p>
Tripod
Pole finder
no

Tripod


Tripod leg diameter (mm)
51
Tripod material
Steel

General


Series
CGEM II
Type
Mount
Type of build
Equatorial

GoTo control


Database
40.000
GPS
optional
Software
Nexstar+
GoTo Language
German, English, French, Spanish, Italian
Alignment method
2-Star Align, Quick Align, 1-Star Align, Last Alignment, Solar System Align
