Product no.: 48503

Mount CEM25 GoTo

$ 1,260.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

In the case that this article currently is not available from the warehouse, please note the following: we order from this supplier in regular intervals. Please place your order now, so that we may take into account your order and deliver the article to you by the above-mentioned date. If you need the article earlier, we can rush it for you for an additional price. In this case, please contact our customer service department.

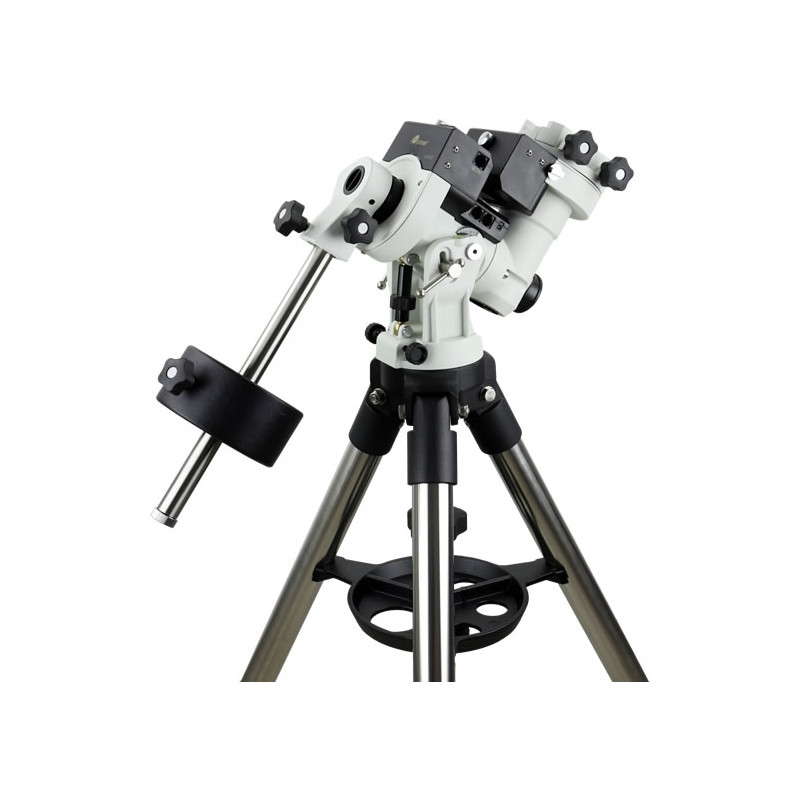

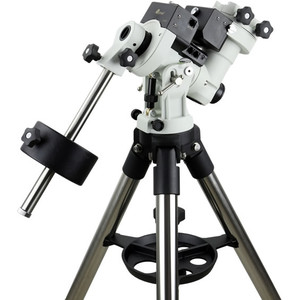

Center-balanced Equatorial Mount, whisper quiet and light weight!

The "Z" design mount puts the weight of the payload at the center of gravity allowing for greater natural stability. Given its payload capacity, this means the "Z" designed mount is unusually light. A nice benefit when setting up at a remote site. Other features include an adjustable counterweight bar to prevent obstruction with the tripod. And polar aligning is quick and accessible all the time since the polar scope is not blocked by the declination shaft.

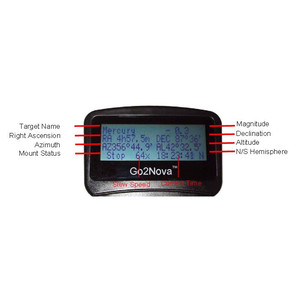

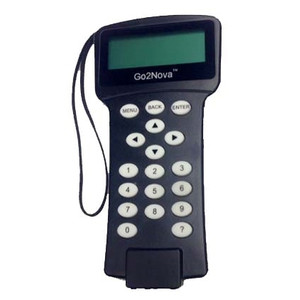

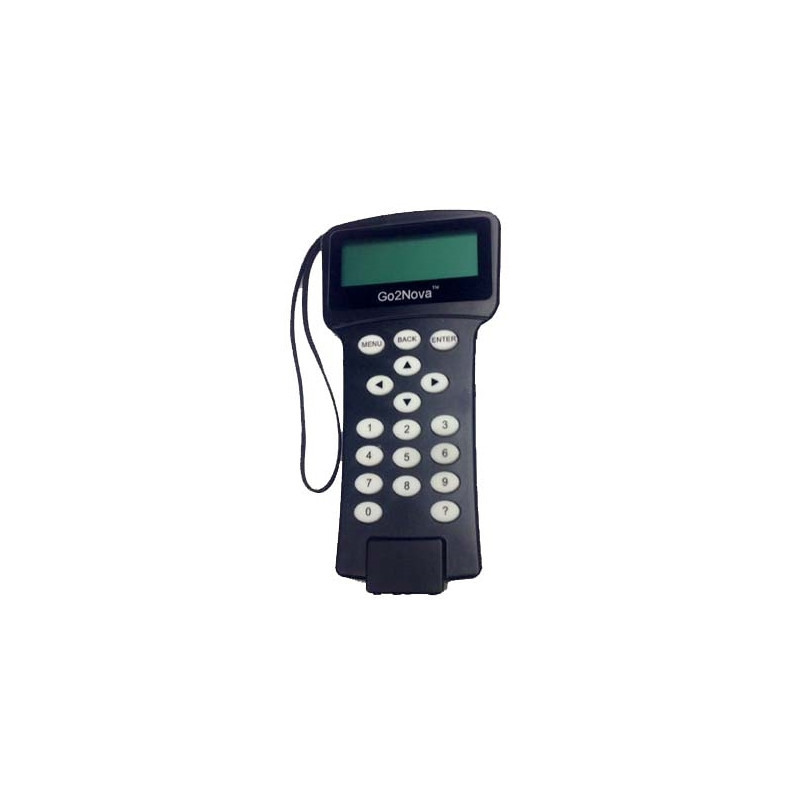

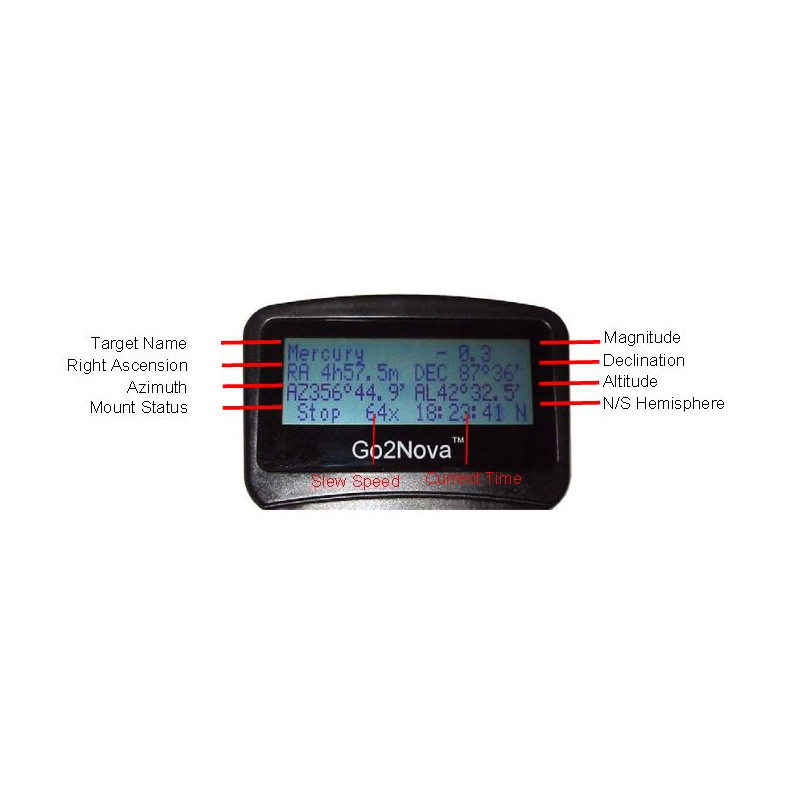

The CEM25 is equipped with the latest advanced Go2Nova-technology, making it one of the most powerful and accurate mounts available. Its database includes over 59,000 objects. The Go2Nova-Hand Controller is intuitive to use and its large 4-line LCD screen simplifies the process of setting telescopes and locating objects.

Features:

  • Specialized astrophotography mount ideal for entry-level and intermediate Astrophotographers
  • Spring loaded gear system with customer adjustable loading force
  • Gear switches on both R.A. and DEC axes for easy balancing when disengaged
  • iOptron AccuAlignTM calibrated polar scope with dark-field illumination and easy polar alignment procedure, allowing for fast and accurate polar alignment
  • Polar alignment routine for those who can’t see the Pole Star
  • Integrated ST-4 autoguiding port
  • Built-in 32-channel Global Positioning System (GPS)

Stepper motor with low power consumption: The mount uses up to 60% less GoTo power consumption then other mounts in category.

Specifications

Capacity


Type
Equatorial with GoTo
Max. additional load capacity (kg)
12.3
Motor type
Stepper motors
Weight (g)
4700
Counterweight(s) (piece)
1
Diameter of counterweight bar (mm)
20
Polar elevation setting (°)
0° - 60°
Precision of tracking
0,14
Power supply
12
DEC ball bearings diameter (mm)
55
RA ball bearings diameter (mm)
55
RA axis diameter (mm)
35
DEC axis diameter (mm)
35
DEC worm gear diameter (mm)
88
RA worm gear diameter (mm)
88
Worm gear teeth (DEC) (piece)
144
Worm gear teeth (RA) (piece)
144
Material of worm wheel
Aluminium
Material of worm gear
Brass

Special features


GoTo system
yes
Pole finder
yes (illuminated)
Controllable via PC
yes
PEC correction
yes
Level
yes

Equipment


Accessory plate
yes
Carrying cases
no

Tripod


Durchmesser der Stativbeine (mm)
38,1
Tripod material
Steel
Tripod weight (kg)
5

General


Series
CEM25
Total weight (kg)
9,7

GoTo control


Database
59000
GPS
yes
Software
Go2Nova 8408
GoTo Language
English
iOptron Mount CEM25 GoTo
iOptron Mount CEM25 GoTo
iOptron Mount CEM25 GoTo
