Mountings & accessories > Mountings > Equatorial with GoTo > Vixen > Vixen SPHINX mount (tripod version SXW)
Product no.: 1483

SPHINX mount (tripod version SXW)

$ 1,730.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

SPHINX-MOUNT:

The SPHINX equatorial mount and STARBOOK controller have been intelligently engineered for high-speed automatic location of celestial objects. It is now possible to explore the beauty of the night sky with greater ease and stability. The SPHINX comes standard with built in motors and the world's first star chart go-to controller, STARBOOK, with a large full color LCD display. The Sphinx’s design is exceptional and the exterior styling is equally attractive.

The mount comes with a table top stand.

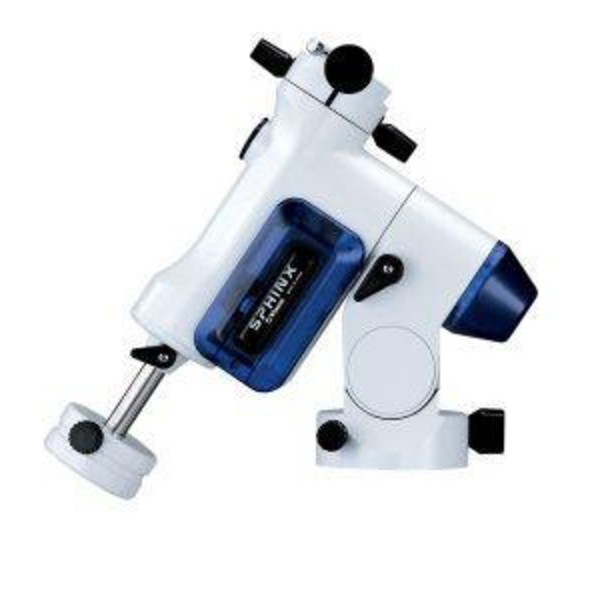

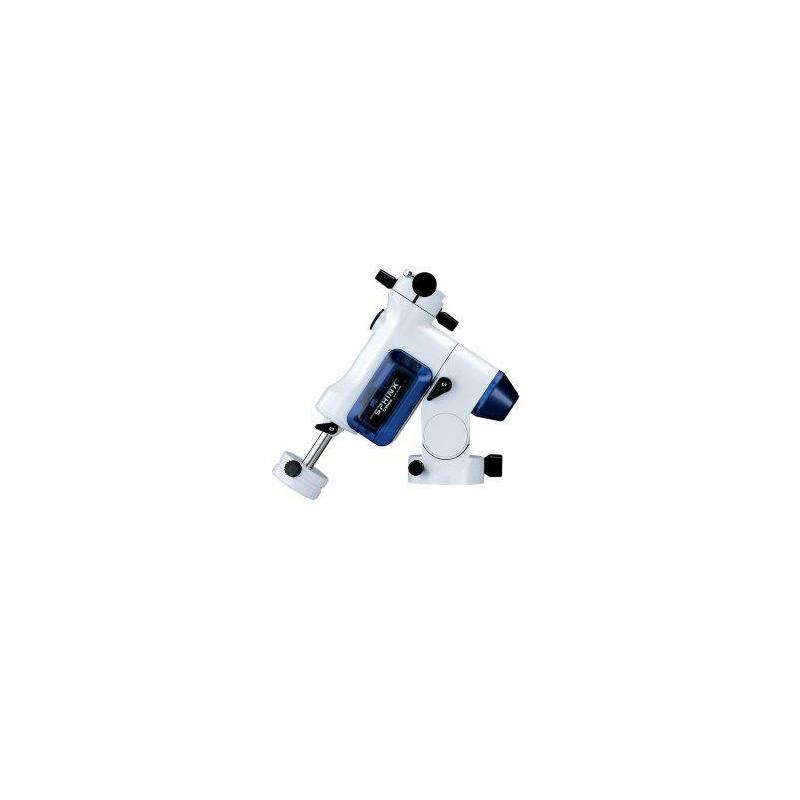

Sphinx SX Mount Features:

  • the mount uses a 180-tooth worm gear for fine full circle motion
  • built in motors allow for improved motion of the polar axis rotation and reduces the need for heavy counterweights; counterweight shaft is stored inside the mount for convenience
  • optional internally illuminated polar axis scope can be easily threaded into the mount body
  • SX mount easily handles Vixen’s 8 inch aperture optical tubes and utilizes the standard Vixen dovetail bracket
  • recommended loading capacity of the SPHINX mount: 10 kg
  • weight of the SPHINX mount head (without counterweight): 15 lbs
  • a Half Pillar accessory option adds height adjustment and viewing location versatility

STARBOOK:

Features and menu options are displayed on the large color screen and are navigated with simple buttons on the controller. The STARBOOK is easy to use and makes the SPHINX available to a wide range of ages and experience levels. A large astronomical database with 22.725 celestial objects is stored. A

LAN-Port within the controller allows for computer control and network connectivity. The STARBOOK is also compatible with an auto guider (including SBIG ST). The auto-guider port comes standard on all controllers.

The SPHINX mount and STAR BOOK controller with the counterweight shaft and 1.9kg weight included. This will allow for use and balance with a wide range of optical tubes. For using the mount with heavier optical tubes, additional counterweights are available.

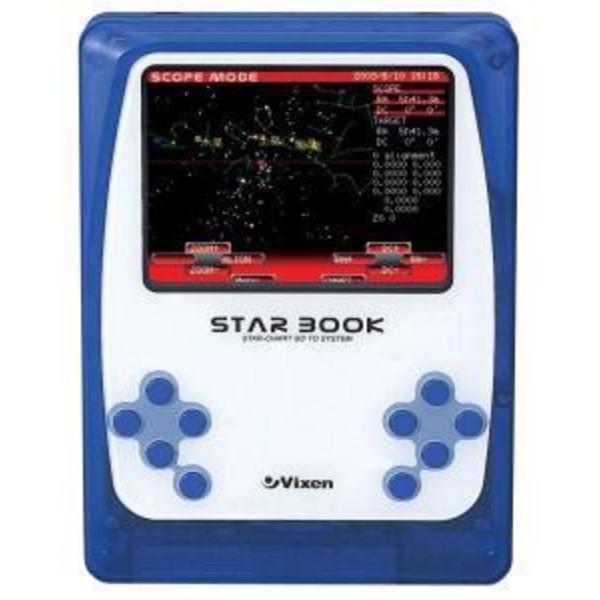

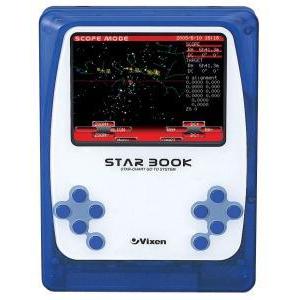

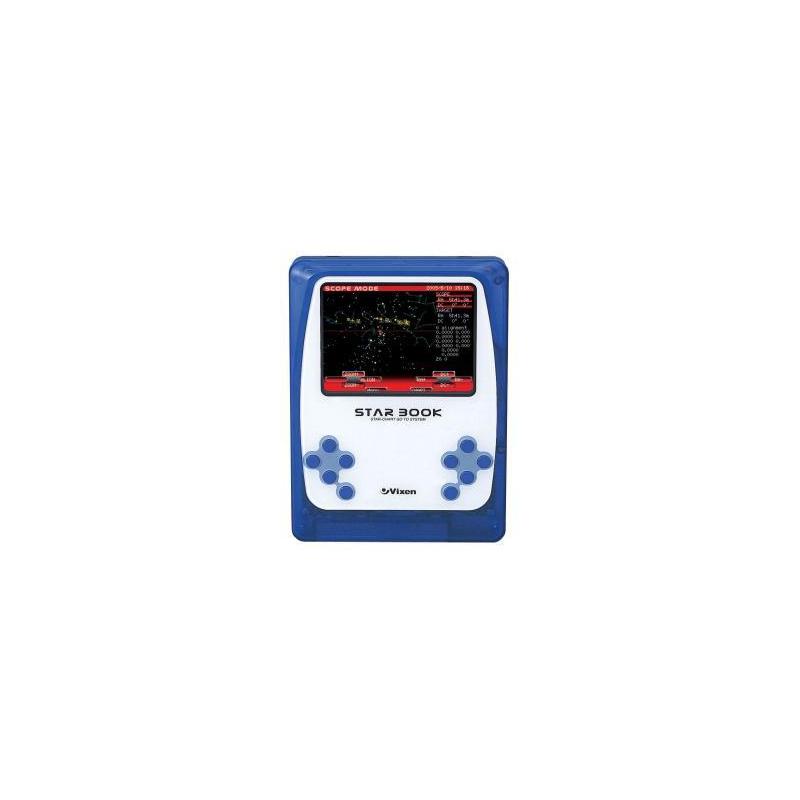

Starbook Hand Controller Features:

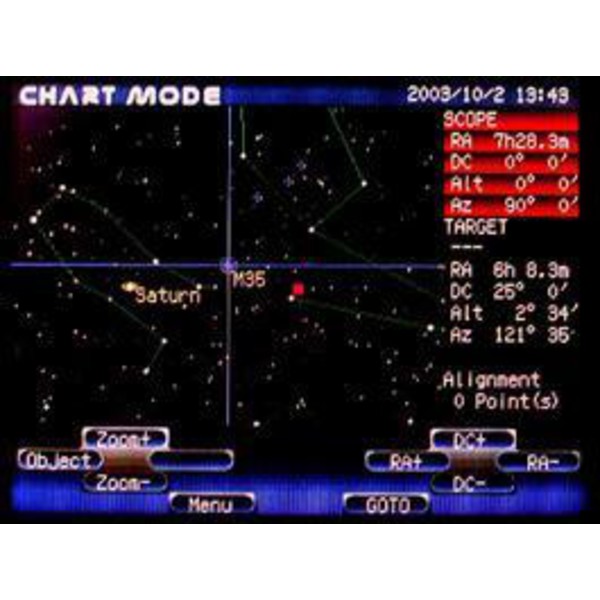

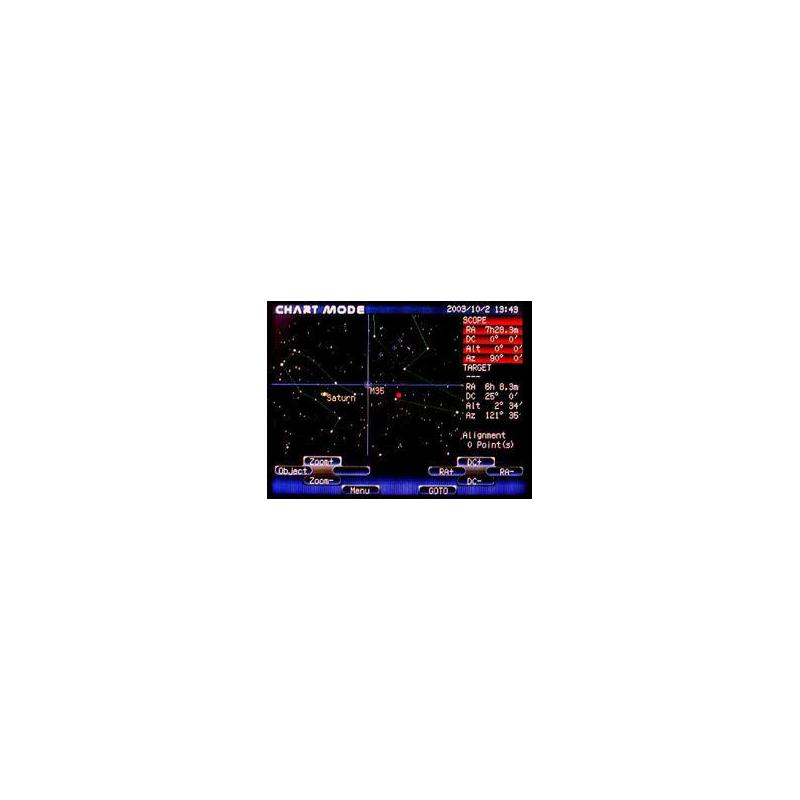

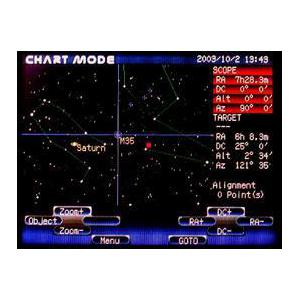

  • large color liquid crystal display (4.7 inch, 320x420 pixels, STN, 4096 colors)
  • High Speed Internal CPU (32 bit RISC processor, 75MHz, 8MB SDRAM, 4MB Flash ROM upgradeable)
  • Zoom-In/Out buttons for the color star chart display also control the motor speed
  • features and menu options are displayed on the large color screen
  • STARBOOK is amazingly easy to use & makes the SPHINX available to a wide range of ages and experience levels
  • large astronomical database with 22.725 celestial objects is stored
  • LAN Port within the controller will allow for computer control and network connectivity once downloads are available from Vixen; Vixen will offer flash upgrade downloads from their website
  • future flash ROM download will allow for compatibility with a variety of auto guiders (including SBIG); auto-guider port is standard on all controllers
  • STARBOOK controller can be used as a stand alone star atlas from anywhere, anytime

Specifications

Capacity


Designation
SPHINX SXW
Max. additional load capacity (kg)
11
Polar elevation setting (°)
0-70
Worm gear teeth (RA) (piece)
180
Counterweight(s) (piece)
1
Software
Star Book
Display screen
4,7
Language
German
Database
22725
NGC
4980
Messier
110
Interfaces
LAN
Power supply
12
Power consumption in open circuit (mA)
-

Special features


Manual tracking
-
GoTo system
yes
Updateable via web
yes
Accessory tray
-
Traveling mount
-
Size suitable for hand luggage
-

Equipment


Tripod <p>
without tripod

Tripod


Stand column
-
Max. tripod height (cm)
-
Tripod weight (kg)
-
Tripod material
- (Tripod optionally available)

General


Colour
white
Length (mm)
360
Width (mm)
360
Height (mm)
120
Total weight (kg)
6,8 (ohne Stativ)
