Microscopy > Microscopes > Upright microscopes > Fluorescence microscopes > Euromex > iScope > Euromex Microscope iScope, IS.3152-PLFi/3, bino
Product no.: 51469

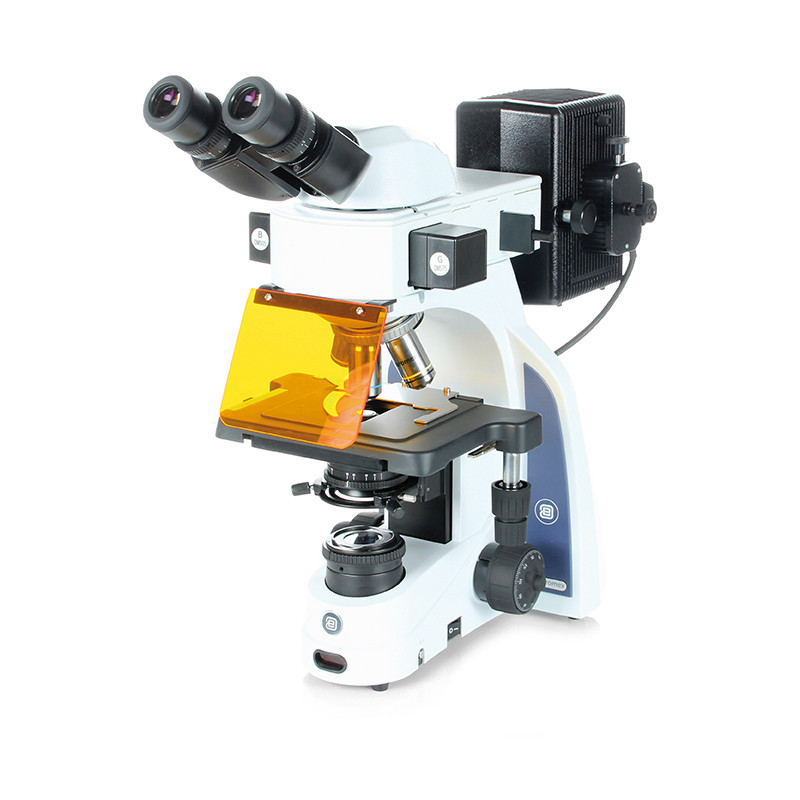

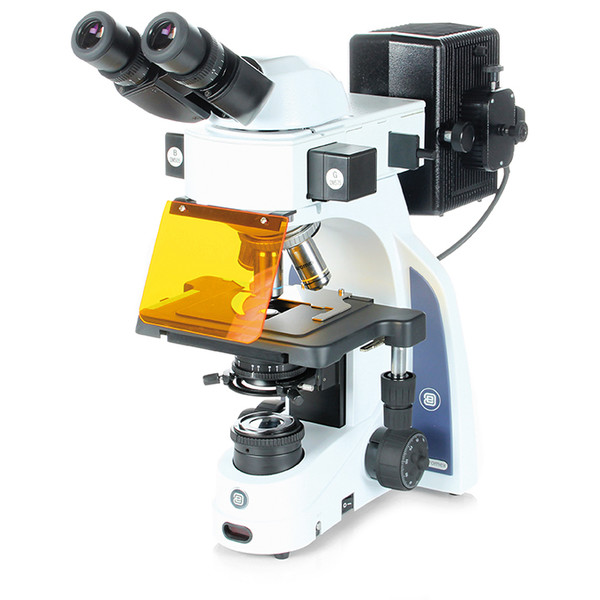

Microscope iScope, IS.3152-PLFi/3, bino

$ 5,600.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

More about the series iScope...

iScope Fluorescence Microscopes

Eyepieces

• Extended EWF 10x/22 mm eyepieces, Ø 30 mm tubes.

• Eyepieces can be secured to the tubes

Heads

• Binocular and trinocular Siedentopf type heads are with 30° inclined tubes, interpupillary distance from 48 to 76 mm and is equipped with diopter adjustment(s).

• An unique rotating system allows the ergonomical positioning of both tubes in a high (431 mm) and in a low position (397 mm).

• The trinocular head comes with a Ø 23.2 mm photo port.

• An optional ergonomic titling head and corresponding Ø 23.2 mm photo tube attachment are also available (only infinity corrected models)

Nosepiece

• Revolving and reversed nosepiece for maximum 5 objectives

Stages

• 216 x 150 mm rackless stage equipped with double slide holder and integrated 79 x 52 mm mechanical stage. The iScope® rackless stage has no protruding parts, enabling more smooth movements and is safer

• 220 x 157 mm ceramic stage with integrated 75 x 50 mm mechanical stage protects with a very tough ceramic surface, against marks and scratches. The surface also ensures stray light not to be reflected from the stage into the objective

Condenser For Brightfield

• The standard height adjustable Abbe N.A. 1.25 condenser for brightfield accepts sliders with phase annuli suitable for plan phase 10x/20x or S40x/S100x oil immersion IOS objectives for economical phase contrast.

• With magnification indication.

• A slider with a simple dark stop for dark field up to 400x magnification is also available

Condenser for Phase Contrast

• An optional height adjustable Zernike NA. 1.25 phase contrast disc condenser with plan phase 10/20/S40x and S100x oil immersion objectives and dark field stop position for dark field contrast up to 400x magnification

Focusing

• Coaxial coarse and fine adjustments, 200 graduations, 1 µm per graduation, 200 µm per rotation, total travel approximately 24 mm.

• Supplied with an adjustable rack stop to prevent damage to sample and objectives.

• The coarse adjustments are equipped with friction control

Illumination

• 3 W adjustable Köhler NeoLED™ diascopic illumination with internal 100-240 V power supply

• The innovative NeoLED™ design offer larger apertures, allowing the optical system of the iScope® microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics. Other benefits of the NeoLED™ is the low energy consumption, no heating and a long operating lifetime

• The Köhler illumination on models with IOS plan and plan phase infinity corrected system provides high contrast and a maximum achievable resolving power of the optics. Also available for other models as an option

Illumination Fluorescence

• The 6-positions rotating or 3-positions slider fluorescence attachments are supplied with standard 100 W HBO mercury vapor light source for broad powerful light spectrum and 100-240 V external power supply with indication of the life time of 100 W HBO lamp. Supplied with standard fluorescence filters sets for blue and green excitation and a UV protection shield

• The iScope® fluorescence microscopes equipped with a 100 W mercury vapor light source can be supplied with more specific, optimized and application related fluorescence filters sets

• Two single position fluorescence attachments are supplied with 460-495 nm 3 W LED for blue excitation or 510-550 nm 3 W LED light source for green excitation and 100-240 Vac/7.5 Vdc external power supply. Supplied with standard fluorescence filters sets for blue and green excitation 6 blocks

I Care Sensor

• The unique iCare Sensor is developed to avoid unnecessary loss of energy

• The illumination of the microscope automatically switches off shortly after microscopists step away from their position

Css - Cable Storage System

• iScope® allows users to easily insert the power cable into the backside of the instrument, which enables easy storage

• The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope

Packaging

• Supplied with power cord, dust cover, a spare fuse, user manual and 5 ml immersion oil for models with S100x objective.

• Models with 100 W mercury vapor light source have a UV protection shield.

• All packed in polystyrene boxes

Specification IS.3152_PLFi/3

  • HWF 10x/22 mm eyepieces
  • Binocular
  • Optional ergonomic tilting head
  • Quintuple revolving nosepiece
  • 3-position slider fluorescence attachment
  • Standard fluorescence filter sets for blue and green excitation
  • UV protection shield
  • Plan flouride infinity corrected IOS flouride objectives
  • 216 mm x 150 mm rackless stage with integrated X-Y stage
  • Height adjustable Abbe condenser N.A. 1.25
  • Coarse and fine adjustment
  • Diascopic intensity adjustable 3 W NeoLED™ Köhler illumination
  • Epi-fluorescence 100 W HBO mercury vapor
  • iCare sensor for energy saving
  • CSS - Cable Storage System

Similar to illustration.

Specifications

Optics


Image scale
4-100
Number of objectives
4
Lighting
Incident light and transmitted light
Field curvature
Plan
Colour correction
achromatic
Suspension
yes
Immersion lens
yes
Condensor
Abbe N.A.1.25
Lamp type
LED
Objective 1
Plan PLFi 4x / 0.10 IOS (Fluoride)
Objective 2
Plan PLFi 10x / 0.25 IOS (Fluoride)
Objective 3
Plan PLFi S40x / 0.65 IOS (Fluoride)
Objective 4
Plan PLFi S100x / 1.25 IOS (Fluoride)
Eyepiece
WF 10x / 22 mm (Ø 30mm)
infinity corrected
yes
Magnification
40-1000

Capacity


Brightness control
yes
Fluorescence
yes
brightfield
yes

Mechanics


Type of build
binocular
Viewing posture (°)
30° angled eyepiece
Specimen stage
Cross table (216 x 150 mm, (x/y 79 x 52mm) rackless)
Revolver
5
Focusing
Coarse and fine movement (2 µm precision, 20mm)

General


Weight (g)
11300
Height (mm)
407
Width (mm)
210
Length (mm)
255
Series
iScope

Contrast methods


Fluorescence
yes

Field of application


Medicine
yes

Area of application


Fluorescence
yes
Biology, zoology & botany
-
Pathology and histopathology
yes

Miscellaneous


supplier product number
IS.3152-PLFi/3
