More about the series AE31E...
AE31E trino, infinity, 40x-400x, phase, Hal, 30W
Observation tube: Trinocular head, Siedentopf type, 360º swiveling
Trinocular light split: 100:0/20:80 (optional 100:0/0:100)
Transmitted Illumination: Halogen 30W
- Optical system: Colour Corrected Infinity Optical System (CCIS®)
- Inclination: 45º inclined
- Interpupillary distance: 48-75mm
- Diopter adjustment: On both eyepieces, +/- 5 diopter
- Eyepieces: Widefield WF10X/22mm with diopter adjustment
- Nosepiece: Left side facing quintuple
- Objective: classification CCIS® Plan Achromatic, DIN

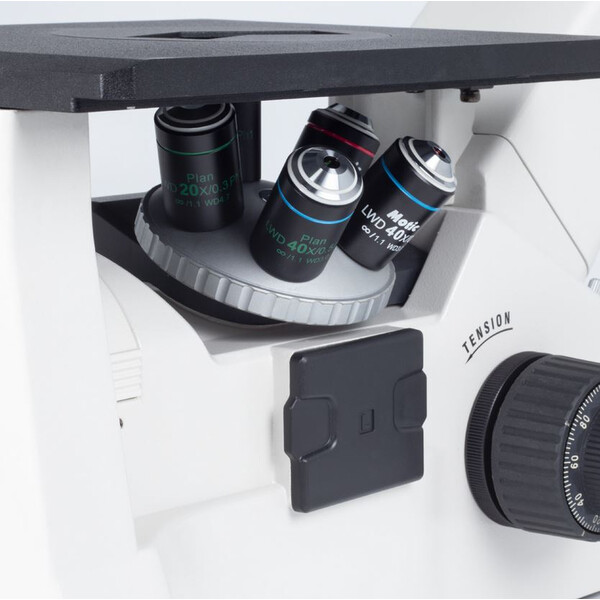

- Objectives:
- 4X/0.10 (WD 12.6mm)
- PH10X/0.25 (WD 4.1mm)
- LWD PH20X/0.30 (WD 4.7mm)
- LWD PH40X/0.50 (WD 3.0mm)
- Objective mounting thread: W 4/5"x1/36" (RMS standard)

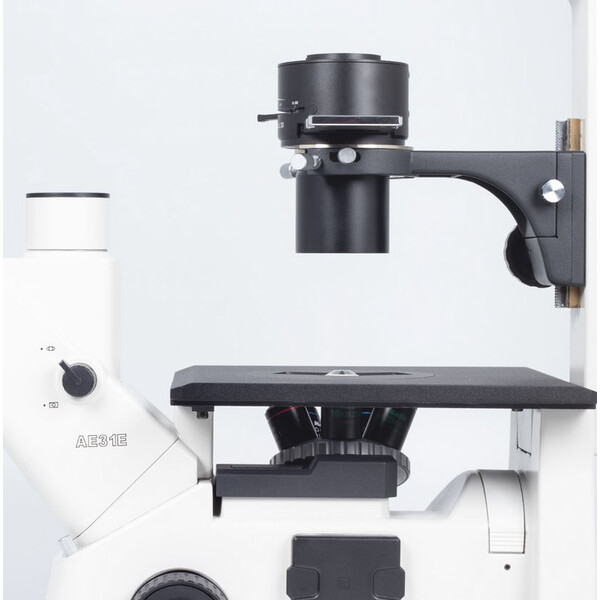

- Stand type: Inverted
- Stage: Plain stage with metal and glass stage inserts
- Stage size: 200x239mm

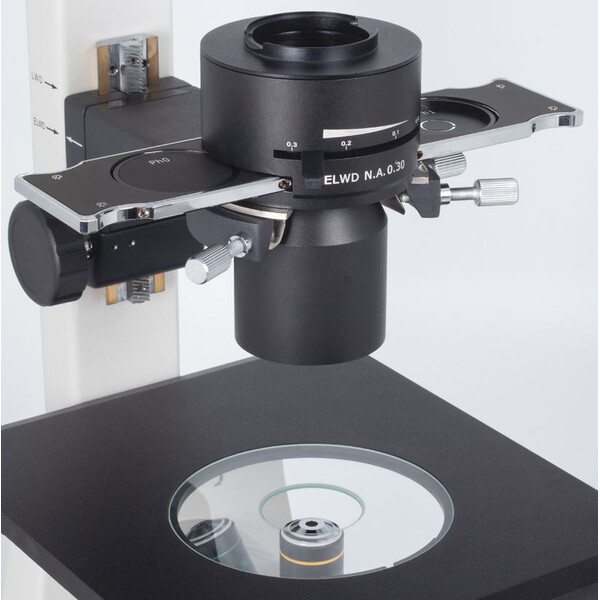

- Condenser: Focusable and centerable ELWD condenser N.A. 0.30 (WD 72mm)
- Diaphragm: Iris diaphragm
- Focus mechanism: Coaxial coarse and fine focusing system with tension adjustment
- Fine focus: precision 2µm
- Focusing stroke: 10mm
- Free working distance: Working distance without condenser 231mm
- Transmitted illumination: Koehler Quartz halogen 12V/100W with intensity control

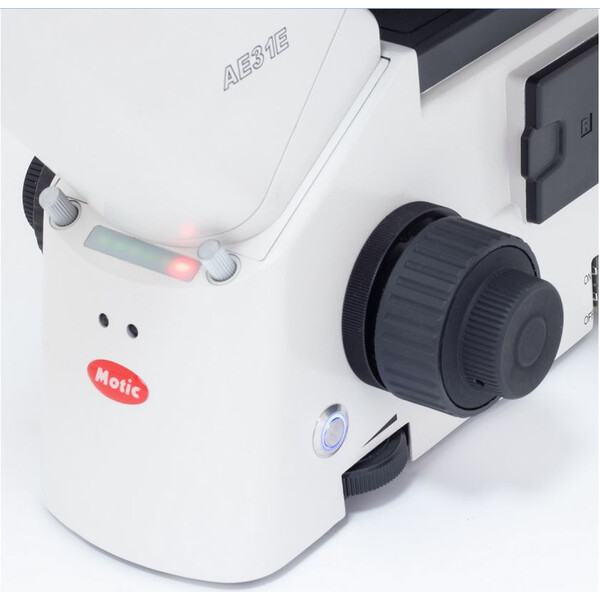

- Illumination features: Auto-OFF and Light Memory function
- Transformer: External
- Power supply: 100-240V (CE)
- Accessories included:
- Dust cover
- power cord
- Hex key
- blue
- green interference
- round glass filters
- phase ring Ph1
- centering telescope
- centering keys
- spare fuse
- Dimensions: LxWxH 629x200x595mm
- Net weight: 13.2kg
