The optics Orion MN 190/1000 Astrograph:

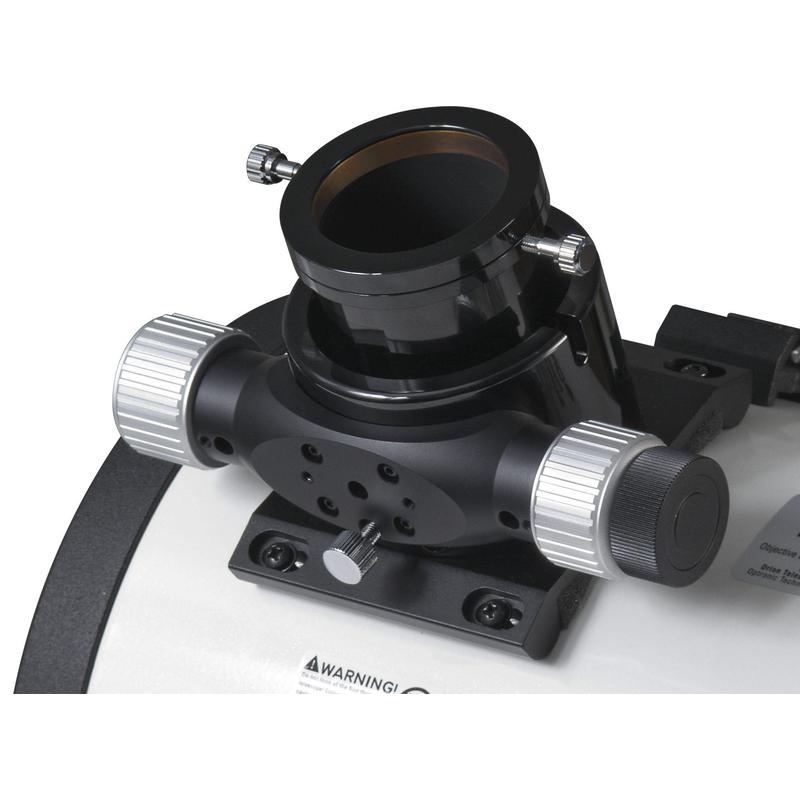

The improved 190 "Mak-Newt" Astrograph Telescope, with complete flat-field, coma-suppressed optics, will deliver stunningly crisp and colorful images of deep-sky phenomena to the eyepiece. From there, an all-machined dual-speed 2" Crayford-style focuser with 11:1 fine focus control will provide smooth motion and secure support for cameras and other heavy visual accessories. The focuser includes 2" and 1.25" compression ring adapters and is now compatible Orion AccuFocus Electronic Focuser when used with special bracket. A T-thread adapter for direct attachment of a camera body (may require appropriate T-ring, sold separately) to the telescope's focuser, is also included.
The 190mm Maksutov-Newtonian Astrograph optics provide tremendous resolution in a fast f/5.3 design. The impressive 7.5" aperture ensures plenty of light-gathering ability in order to capture superb images of even the faintest of deep-sky gems. Attach a camera, such as the StarShoot Pro Deep Space Color Imager, and you're ready to start producing top-notch astrophotos in no time!
The primary mirror is made of high-grade, low-expansion optical glass with enhanced reflectivity coatings. This and the fully multi-coated BK7 meniscus lens combine to render truly spectacular images, with pinpoint stars across the entire field of view. The primary mirror and meniscus lens are now held in place even more securely, by three radially positioned nylon-tip set screws, to prevent any possibility of slippage or shifting. The 37.5"-long metal tube contains five knife-edge baffles for exceptional contrast.
The diameter of the secondary mirror has been enlarged from 58mm to 64mm, substantially increasing the field illumination to take full advantage of larger CCD chips, found in DSLR cameras and the Orion StarShoot Pro. The 100% fully illuminated field diameter increases from 14mm to over 22mm, producing brighter images with less vignetting.
The Premium Mak-Newt Astrograph performs just as admirably visually. The included focuser extension adapter allows visual astronomers to enjoy the sharp, high-contrast views that only a well-made instrument can deliver. "Push the envelope" of your own imaging capabilities affordably with the improved Orion Premium 190mm Mak-Newt Astrograph Telescope. Optical tube only.
