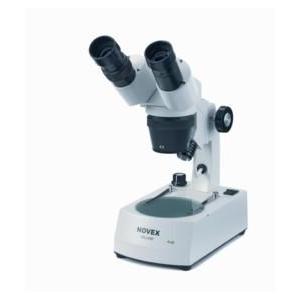

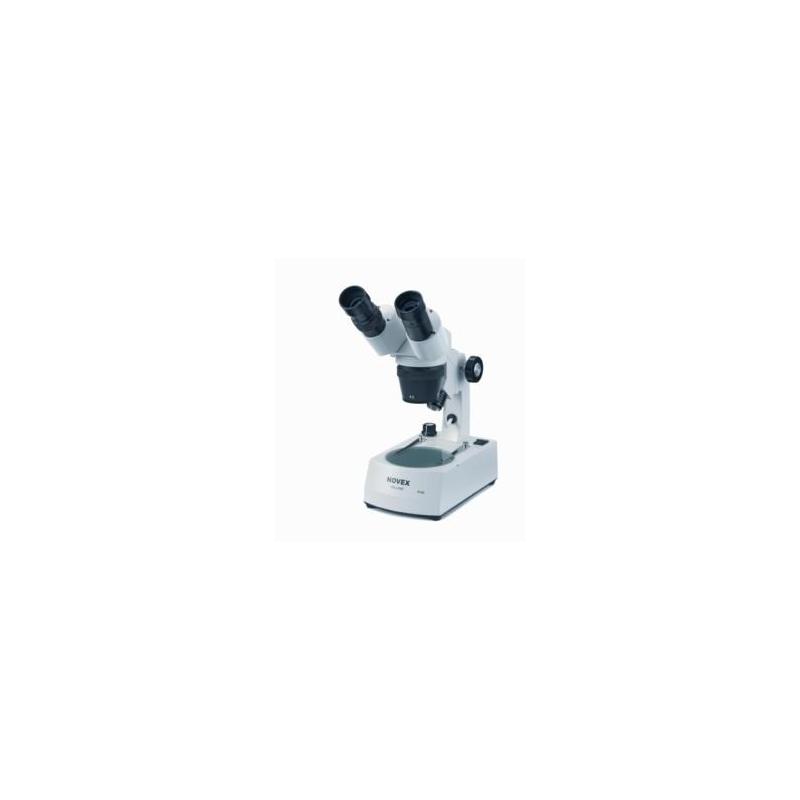

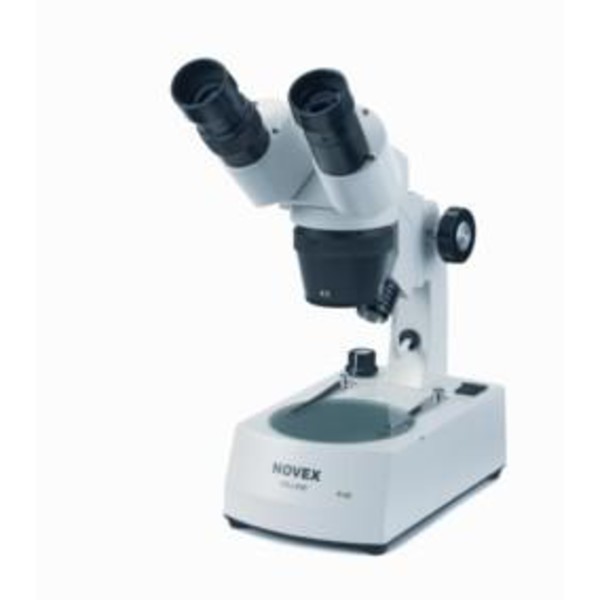

Novex stereomicroscope P-20

• paired exchangeable wide field eyepieces WF10x/20 with eyeshades
• binocular 45° inclined tubes and 360° rotatable. One tube with diopter adjustment
  interpupillary distance adjustable between 55 and 75 mm
• two objective pair 2x and 4x objectives, mounted in a revolvable nosepiece
  Magnifications 20 and 40x and a field of view 10/5 mm (*)
• alloy metal stand with stove-hardened off-white lacquer. Focusing by means of two macro-knobs. In the stand the transparent object plate can be exchanged with a black/white one. With two object-clips. Maximum object height is 30 mm
• transmitted and incident halogen illumination 12Volt 10 Watt which can be used simultaneously. Built-in transformer, 3-way switch. Connection for 230 Volt
• complete with dust cover in styrofoam case

* With the optional eyepieces WF 5x (50.805),WF 15x(50.815)and WF 20x(50.820)you can reach magnifications of 5 to 60 times for P-1 and 10 to 80 times for the P-20
