Microscopy > Microscopes > Upright microscopes > Bright field microscopes > Euromex > G-Serie > Euromex Microscope GE.3030
Product no.: 9332

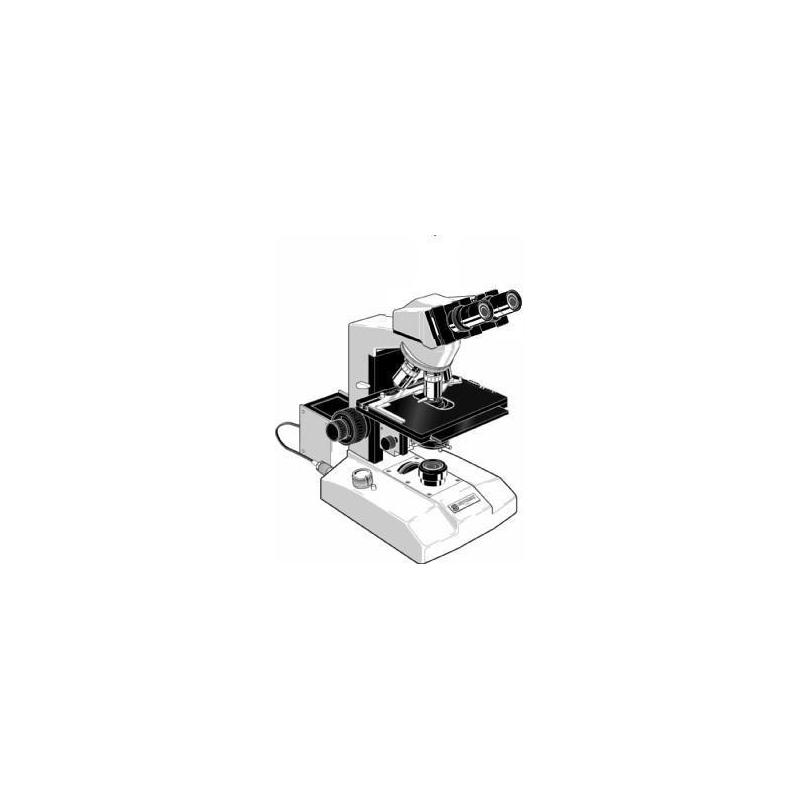

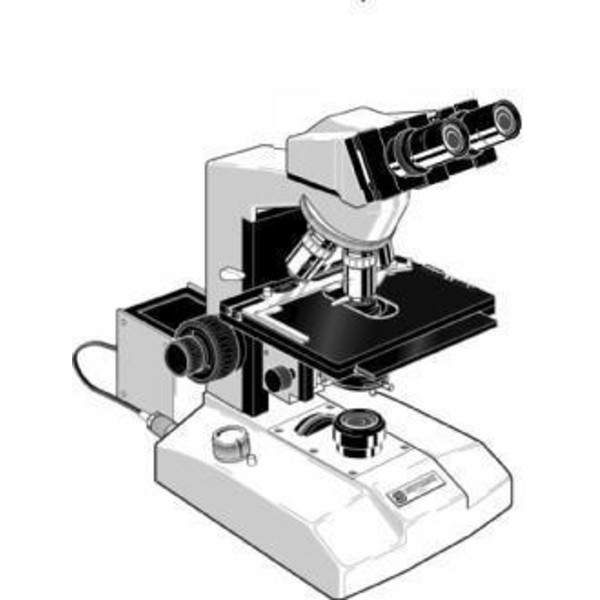

Microscope GE.3030

$ 4,990.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time
Product questions?
advice for Microscopy

Product description

The G Series offers with its turret turned inward an additional convenience. In addition, the microscope in this series with a stronger lighting, especially at high magnifications produced a clear image, are provided. This is especially important when used with a camera.

The GE.3030

This model comes with a DIN eyepieces KHWF with 10 times magnification and 4 semi-plan lenses with 4-fold, 10-fold, 40-fold and 100-fold magnification. The 40 and 100-fold objective has a spring version of the product to protect against damage. Thus a maximum of a 1000-fold magnification is possible.

The built-in mechanical stage has an area of 17x14 cm.

Specifications

Optics

Magnification
1000 (40, 100, 400, 1000)
Eyepiece
10 (HWF compensation eyepiece)
Condensor
Abbe (N.A. 1.25, height adjustable)
Lighting
Transmitted light
Lamp type
Halogen (12V/50W, continuously adjustable, Köhler illumination)
Lens type
Plan Achromatic
Image scale
4 (N.A. 0.10), 10 (N.A. 0.25), 40 (N.A. 0.65 with specimen protection), 100 (N.A. 1.25 oil immersion, with specimen protection)
Power supply
Power plug

Mechanics

Focusing
Coarse and fine movement (coaxial, with 0.0025 mm division)
Type of build
binocular
Specimen stage
Cross table (80 x 52 mm, on specimen stage: 171 x 140 mm, with vernier scale, 0.1 mm division)
Viewing posture
30° oblique viewing, 360° rotating head

Special features

Built-in digital camera
-
Centering stage
-
Rechargeable battery operation
-
Filter holder
yes
Luminous field diaphragm
yes
Dust cover bag
yes

General

Series
G-Serie
Colour
black-white
Weight (g)
9400
Suitable from
16

Suitable for

Beginners
-
Advanced
-
Pros
yes

Field of application

Industry and Materieals
yes

Area of application

Phase contrast
-
Polarization
-
Fluorescence
-
Interference contrast
-
Metallurgy
yes (-)
Dark field
-
Mineralogy
yes
Pathology and histopathology
yes
Forensic science
yes
show more...

Product safety

Manufacturer: Euromex Microscopen bv, Papenkamp 20, 6836 BD Arnhem, NL, http://www.euromex.com (neu), http://www.euromex.nl/de
