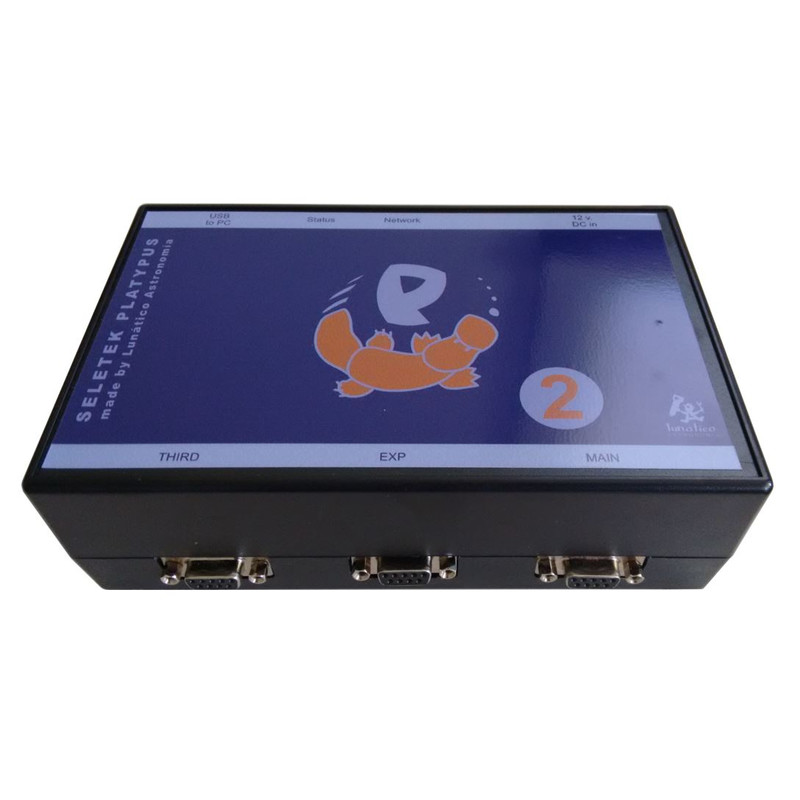

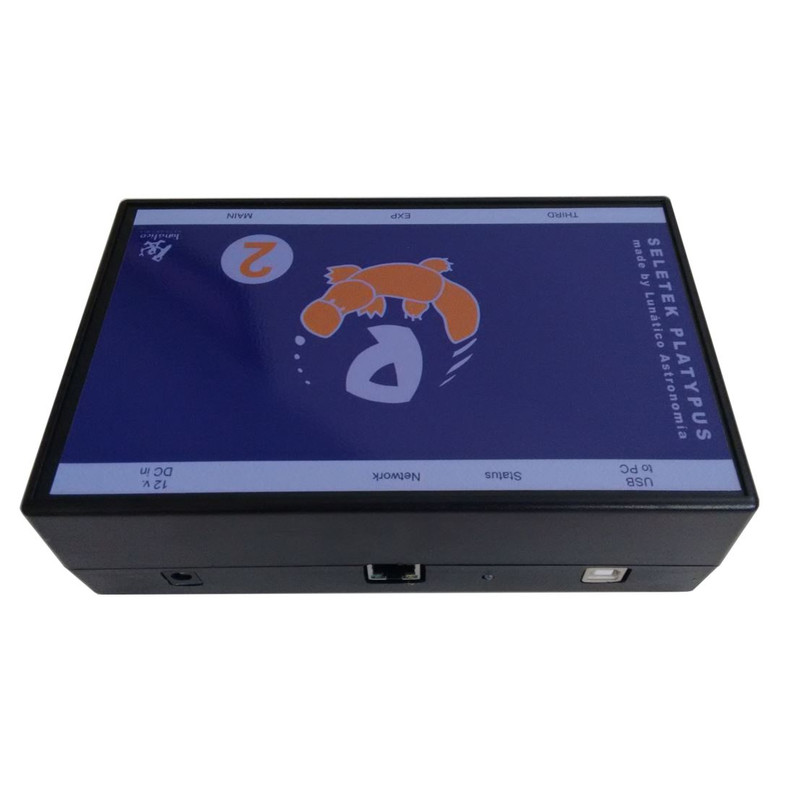

The Platypus has all the features of the Armadillo plus network connection (ethernet) and a third peripheral port. It is the best controller to automate your observatory.
Technical specifications:
- CPU: Atmel AT91SAM7X256
- Inputs: 6 analog-digital inputs + 5 digital inputs
- Outputs: 12 power digital outputs (up to 1A/port), 4 in each port
- 10 bit (0-1024) ADC
- PC connection through USB and Ethernet (internet)
- Size: 185 * 124 * 60 mm (including DB9 connectors)
Power supply:
- 12 to 24 V dc (depending on the motor used), typically 12 V dc
- Standard 5.2 jack power connector

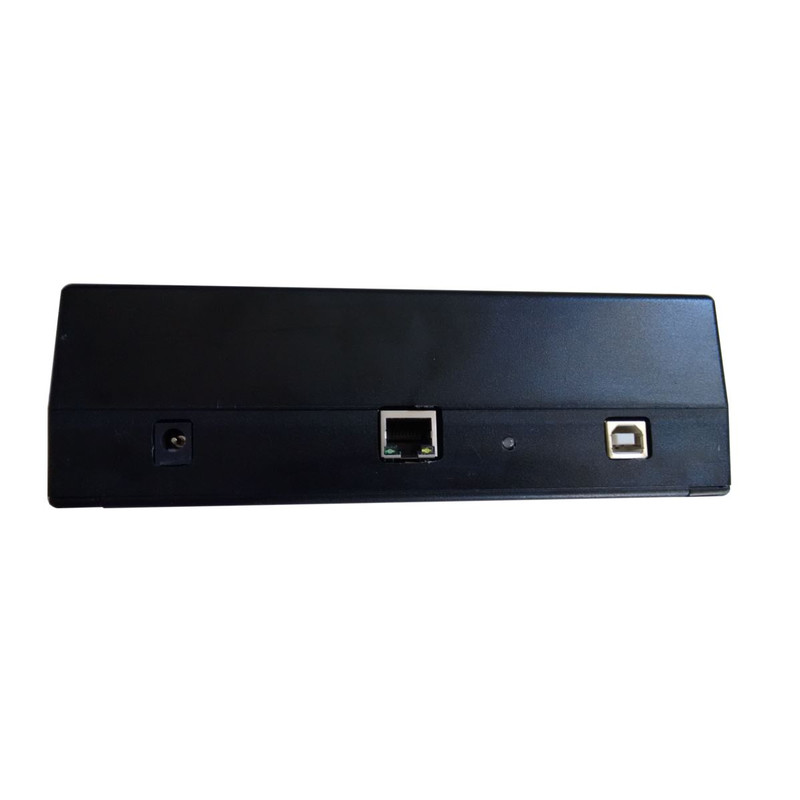

It can be accessed by local network and USB, and with concurrent connections: one or more computers via network and another via local USB.
