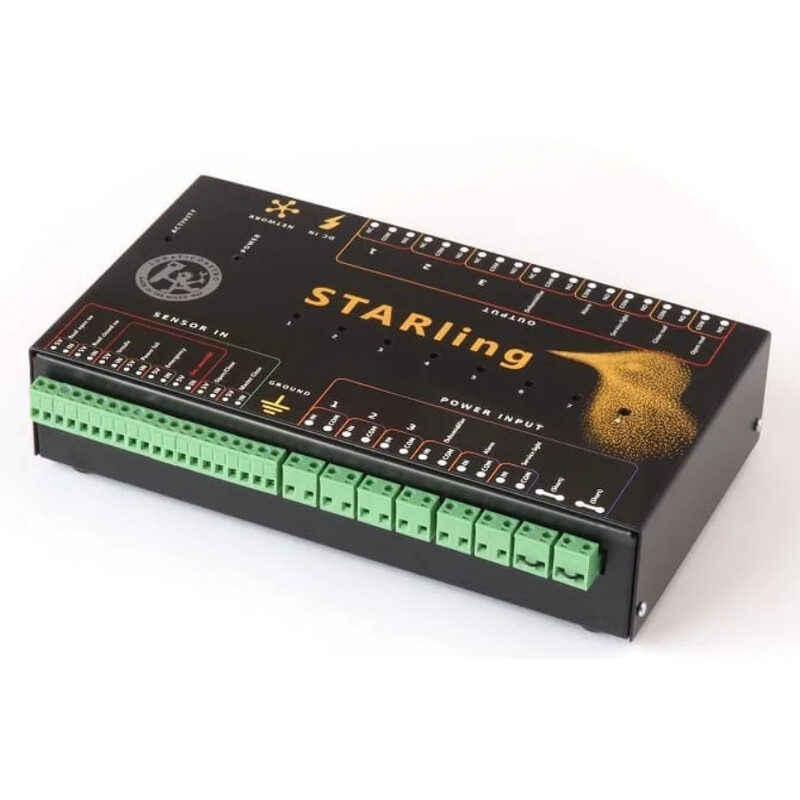

The Starling Shared Observatory Controller is a central automation and control controller for observatories. Designed for professional and semi-professional users, it combines roof control, security monitoring and automation in one device – ideal for observatories with multiple users!
Main functions:
- Multi-user access: Role-based system with Sentinel (observatory manager) and clients (users) ensures conflict-free control.
- Safety integration: The Sentinel can take over at any time and monitor safety conditions.
- Dome support: Integrates automated dome systems with Caterpillar SSR, third-party motors, VFD motors or linear actuators.
- Access & operation: Web interface optimised for desktop, tablet and mobile devices – no separate app required.
- API & ASCOM: Easy API integration and ASCOM compatibility enable use with popular astronomy software.
- Local controls: Physical buttons or switches can be connected for manual operation on site.
Technical features:

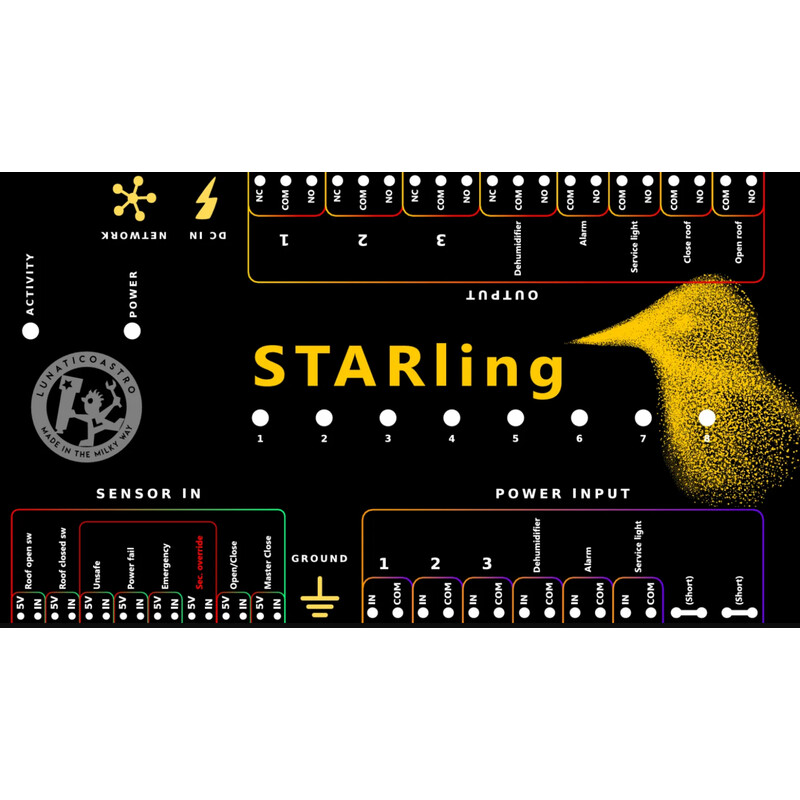

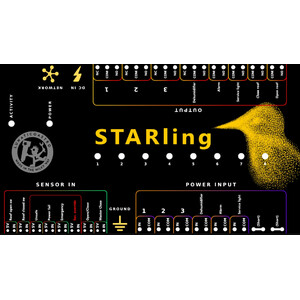

- 8 relay-controlled outputs and 8 sensor inputs.

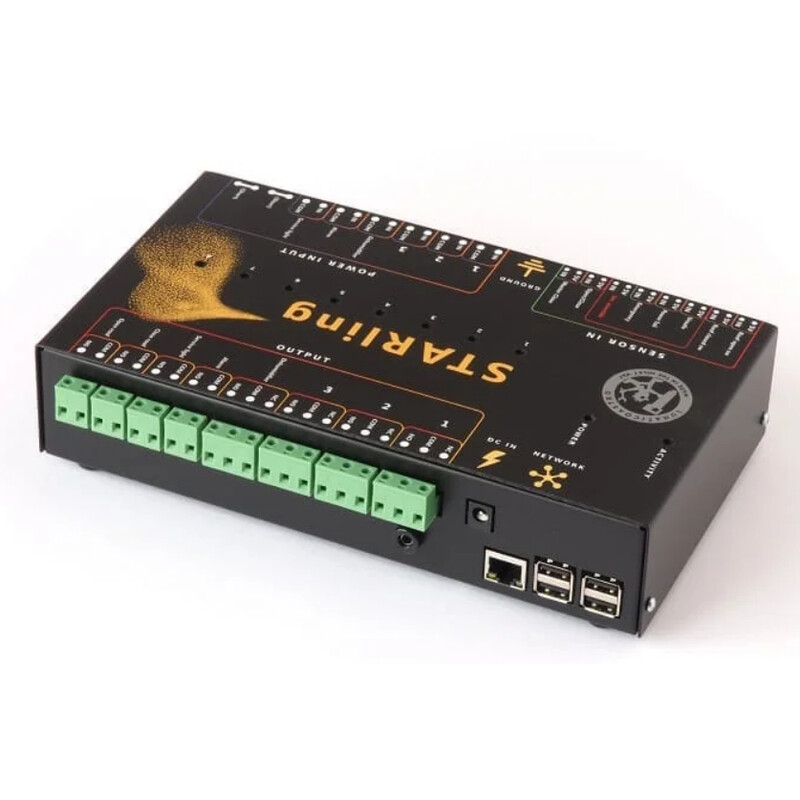

- Ethernet network connection; 12–24 V DC power supply, < 1 ampere. Standard 5.5 / 2.1 mm jack, positive inside.
- Robust interference protection electronics; compact design with optional DIN rail mounting.
- Dimensions: 145 x 60 x 245 millimetres
Area of application: Control and automation of shared observatories, coordination of users, secure roof and equipment management, and integration into existing astronomical software ecosystems.
