Mountings & accessories > Mountings > Alt-azimuth with GoTo > iOptron > HAE > iOptron Mount HAE69 Dual AZ/EQ iPolar
Product no.: 79172

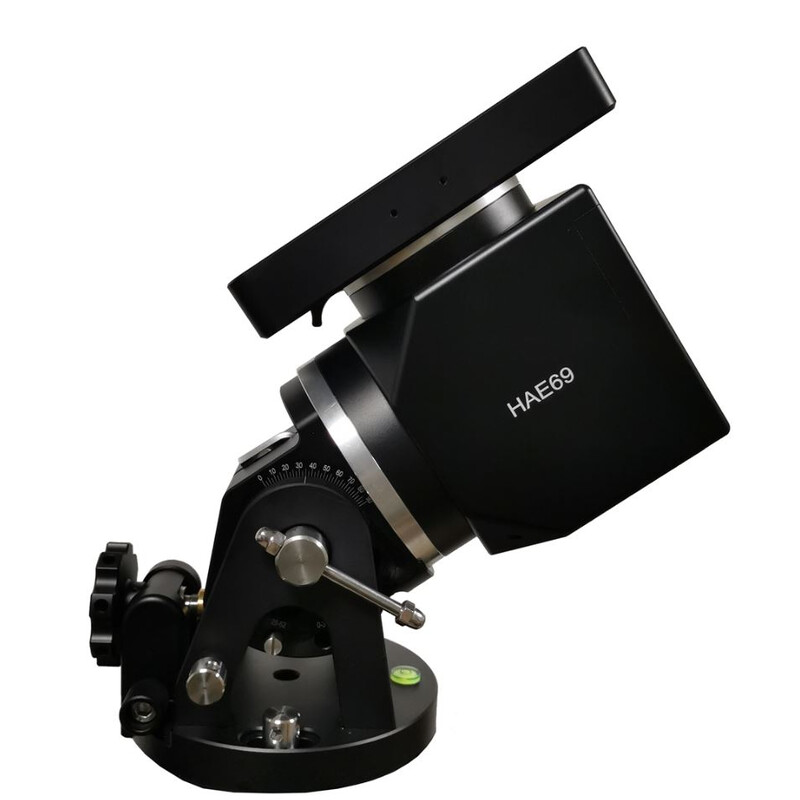

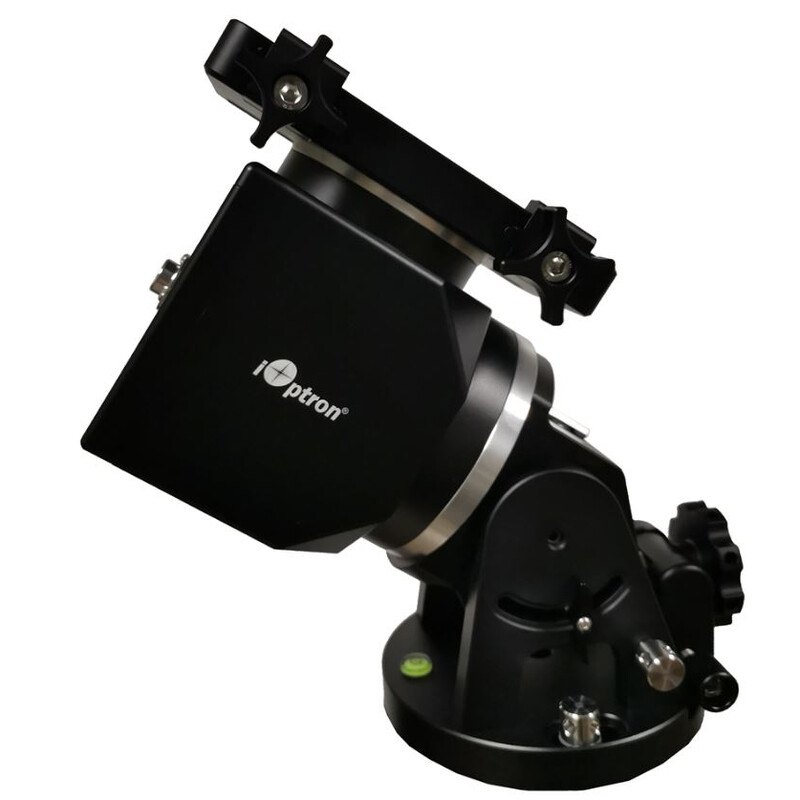

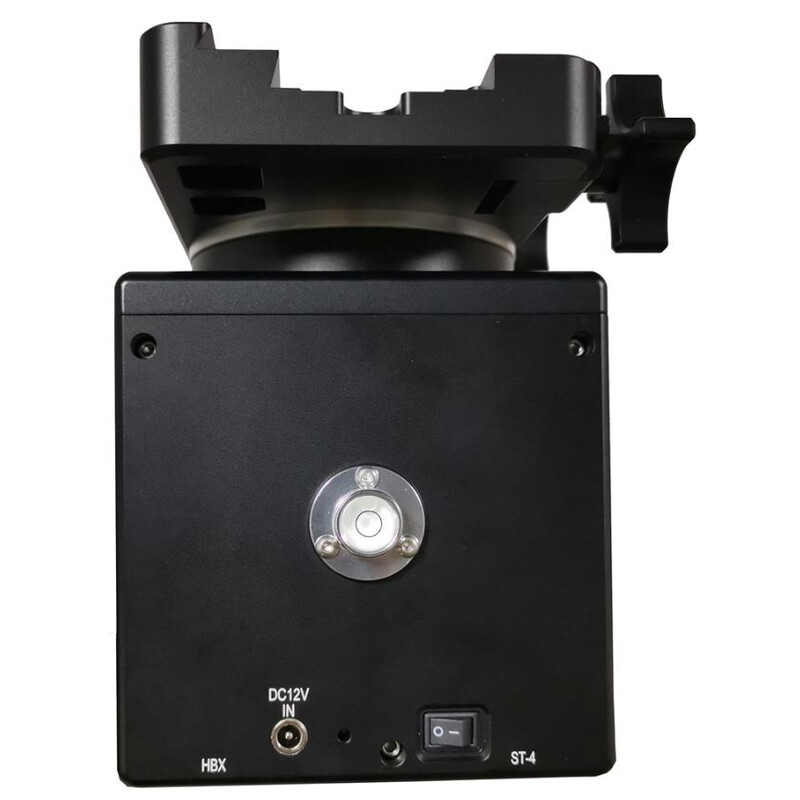

Mount HAE69 Dual AZ/EQ iPolar

$ 4,580.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time
  • Dual AZ and EQ mounts
  • Low weight with high load capacity
  • GoTo function with 212,000 objects
  • Individual, external cable management possible
  • iPolar included

Product description

With the HAE69, iOptron offers a compact, transportable dual mount with azimuthal or equatorial operation and a load capacity of up to 31kg without counterweights (counterweight and tripod available separately and not included) .

iOptron's popular Go2Nova® technology also provides this mount with a database of 212,000 objects, as well as ASCOM compatibility and, thanks to the integrated WiFi, the ability to control it via tablet or smartphone using SkySafari, Raspberry Pi or INDI. The dual Vixen/Losmandy head and its sturdy construction enables even medium-sized telescopes to be mounted and used.

Our expert comment:

The iPolar is built in a way that the virtual pole on your screen will move towards the left / right direction, while the adjustment of the Azimuth screws is being done during polar alignment. This does not affect accuracy at all.

(Jan Ströher)

Specifications

Capacity


Max. additional load capacity (kg)
31
Interfaces
WiFi, USB, HC
Language
English
Mounting saddle
Losmandy & Vixen
Weight mount head only (kg)
8,6
Input voltage
12
Amperage (A)
5
Cable-guide
extern möglich
Encoder
no
declination axis material
Aluminium
right ascension axis material
Aluminium
Motor type
Stepper motors

Special features


GoTo system
yes
Handcontroller
yes
Level
yes

Equipment


Tripod <p>
without tripod
Transport cases
yes
Pole finder
no
Other contents
Power pack
Counterweights (piece)
0

General


Series
HAE
Type
Mount

GoTo control


GPS
yes
WIFI
yes
PEC correction
no
Polar Alignment
iPolar
GoTo Language
English
Software
Go2Nova 8409
Autoguiding
yes
Interfaces
AutoGuider, Aux, RS232
Database
212.000
