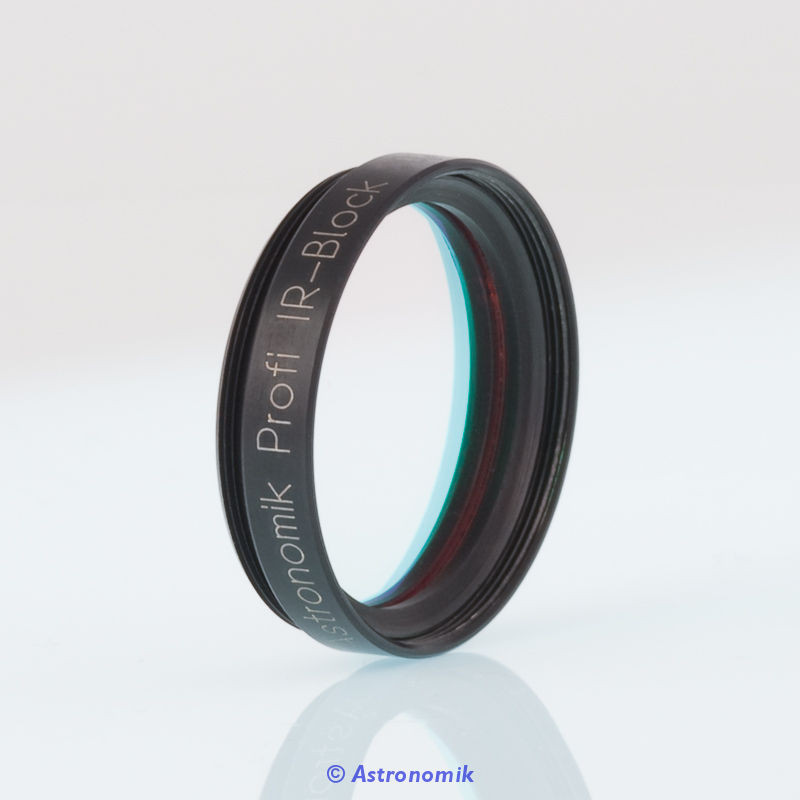

Astronomik 1.25" IR blocking filter

Product no.: 16754
Manufacturer: Astronomik

$ 43.90

incl. VAT
plus shipping costs

Express shipment possible for delivery tomorrow, 23.05.2019!

too expensive?

ready for shipping in 24 h + lead time
This product is available in the following variants:
Connection Price
1,25" $ 43.90
2" $ 89.00
SC $ 100.00
T2 $ 84.00
Astronomik 1.25" IR blocking filter
Product description
Specifications
Customer reviews

Product description:

Astronomik IR Blocker

Infrared-blocking filter for digital photography.

The filter should be used as a standard at all imaging applications with sensors having a low sensitivity in the UV, e.g. Webcam, DSI and LPI from Meade or most video systems. Put this filter in front of your camera and you will get rid of all problems caused by IR like bright halos around all objects and a very soft overall image.

If you compare the transmission data of the Astronomik IR-blocker with the data from other sources, you will notice, that most other manufacturers would call this already an UV-IR blocker. The filter WE call an "UV-IR blocker" is superior to any UV-IR blocker from other manufacturers worldwide!

The IR-blocker is optimized for systems with focal ratios between f/0.5 and f/50. The typical transmission is higher than 99%.

Main use

The IR Blocker gives you a perfect parfocal filter. It blocks all IR light without modifying the visual part of the spectrum. It is also great as a dust protection for your telescope and camera.

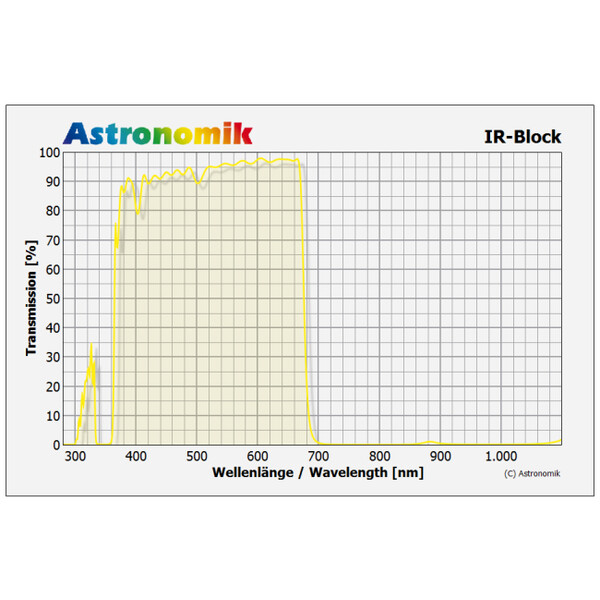

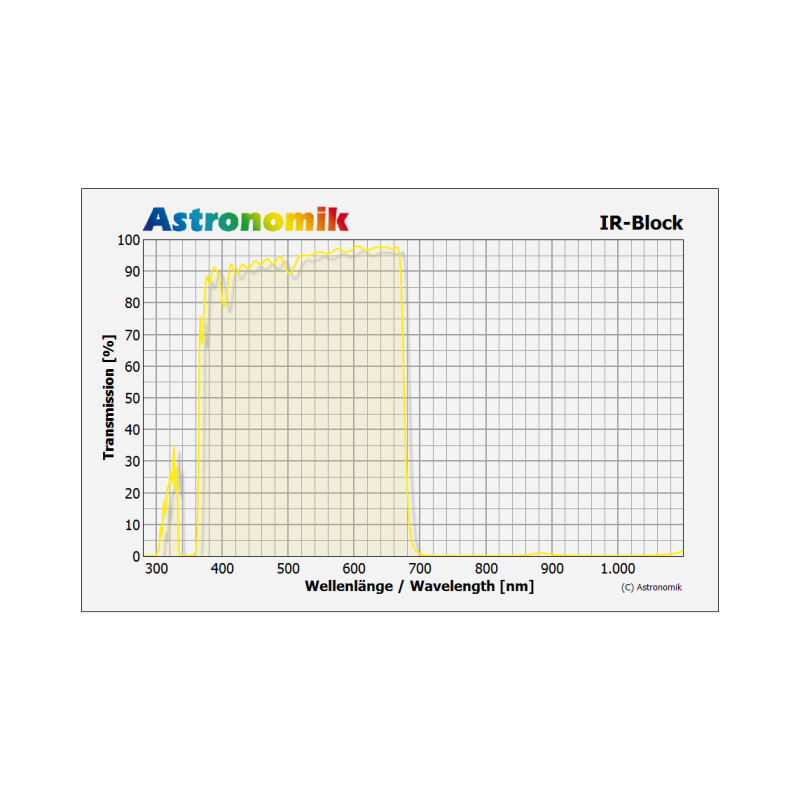

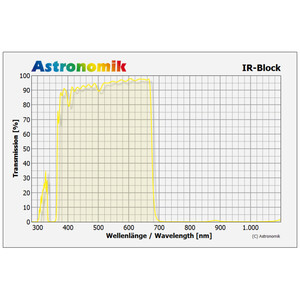

How do I interpret these transmission curves?

  • the wavelength is plotted in nanometers on the horizontal axis. 400nm corresponds to deep blue, 520nm to green and at 600nm to red
  • transmission, in %, is plotted on the vertical axis
  • visual filters: The gray curve shows the relative sensitivity of the dark adapted human eye at night
  • photographic filters: The gray curve shows the relative sensitivity of a typical CCD sensor
  • orange: the main emission lines which contribute to artificial sky glow, e.g lines from mercury (Hg) and sodium (Na)
  • green: the most important emission lines from nebulae, such as the lines from hydrogen (H-alpha and H-beta) and the lines from oxygen (OIII)
