Mountings & accessories > Mountings > Camera Mounts > iOptron > SkyGuider > iOptron Mount SkyGuider Pro
( 4 / 5 )
Product no.: 53948

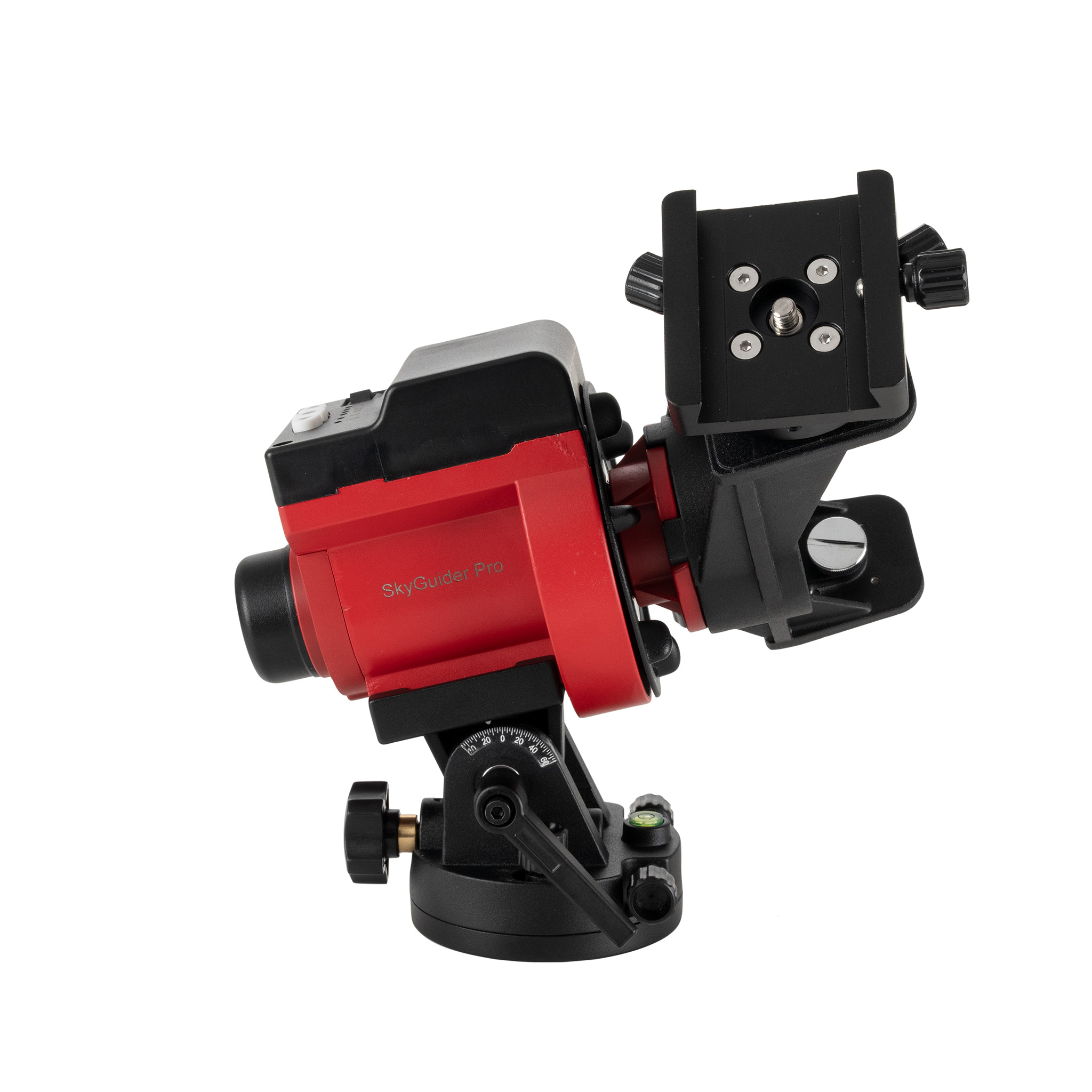

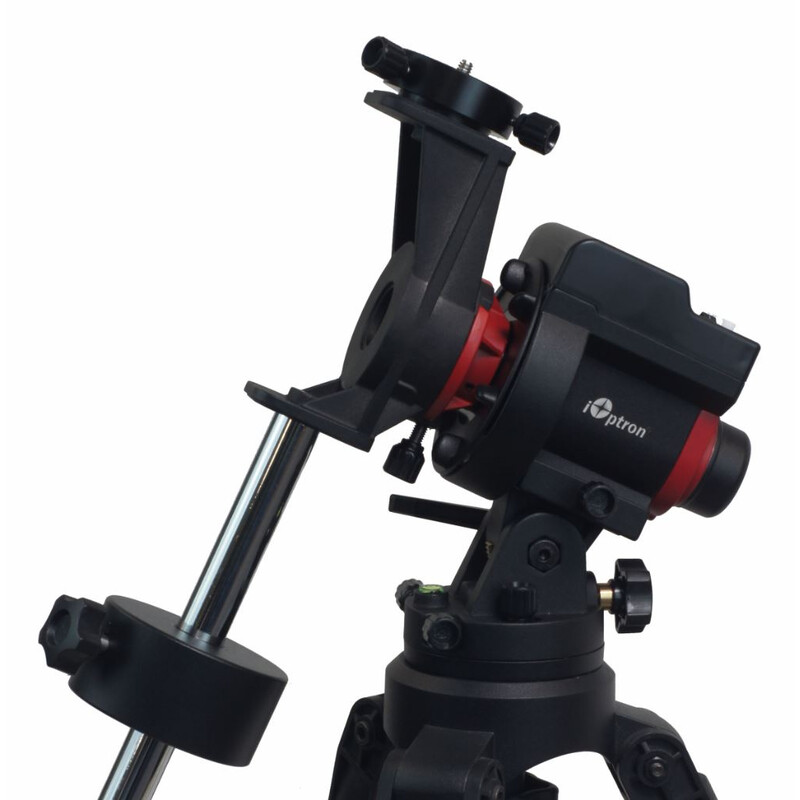

Mount SkyGuider Pro

RRP: $ 780.00 Our price:
$ 740.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

Product description

The SkyGuider Pro is a very lightweight mount that allows you to track a camera with interchangeable lenses or a small telescope to the rotation of the sky. This allows longer exposure times. This way you can take fascinating wide-angle shots of the night sky.

The SkyGuider Pro is the big brother of the very popular iOptron Mount SkyTracker Pro. The SkyGuider Pro lets you use cameras with heavy lenses weighing up to five kilograms. This is made possible by the SkyGuider Pro's thicker right ascension axis, larger worm gears and a counterweight that allows you to balance the camera.

Instead of the counterweight, you can also mount a second camera so that you can shoot a section of the sky with two different focal lengths. This second camera can weigh up to three kilograms.

Optionally, you can use the Go2Nova hand controller and even track automatically via the ST-4 input.

The SkyGuider Pro has a built-in Li-polymer battery. You can recharge it via USB.

For the mount to track your camera correctly with the rotation of the sky, the axis of rotation of the SkyGuider Pro must match the axis of rotation of the earth. To do this, simply take aim at Polaris, which marks pretty much exactly the position of the axis of rotation in the sky. The SkyGuider Pro has a small telescope built into its axis for alignment. This so-called polarscope has an engraving with which you can aim at the pole star. The engraving itself is illuminated. This makes correct alignment very easy.

Most of the time you will probably use the standard speed at which the camera keeps the stars in view. However, it is also possible to select the speed of the Sun or the Moon. A very interesting option for the speed allows you to photograph stars as well as the landscape or buildings in the foreground. To do this, select half the star speed. This way, the stars remain in focus without the foreground objects becoming blurred.

You can also reverse the direction of rotation for all four possible speed settings, so that the SkyGuider Pro also works in the Southern Hemisphere of the Earth. This is important because, after all, the SkyGuider Pro is also a very good travel mount!

Specifications

Capacity


Max. additional load capacity (kg)
5
Polar elevation setting (°)
(-30°) - (+65°)
Material of worm gear
Brass
Material of worm wheel
Aluminium
Worm gear teeth (RA) (piece)
144
Motor type
Servomotors
RA axis diameter (mm)
35
RA worm shaft diameter (mm)
15
RA worm gear diameter (mm)
88
Axle bearings
4 pieces
Battery-powered
yes
Battery durability (h)
20
Battery type
Li-Polymer, 3.7V, 2000mAh
Power supply
5 (USB)
Operating temperature
(-10°) - (+40°)
Slow-motion azimuth adjustment (°)
+/- 5°
Diameter of counterweight bar (mm)
20
Long counterweight rod (mm)
200
Counterweight(s) (piece)
1 x 1,35kg
Connection
Vixen, 3/8", 1/4"
Tracking speeds
solar, lunar, sideral
Tracking modes
Equatorial
Autoguider
yes

Special features


Tracking on RA axis
yes
Tracking on DEC axis
no
Level
yes

Equipment


Carry case
yes
Motor-powered
yes
Tripod <p>
without tripod
Power pack
no
Other contents
Micro-USB
Pole finder
yes

General


Colour
black/red
Series
SkyGuider
Overall size LxWxH (cm)
13 x 11,5 x 9,5
Weight (g)
1450
Type
Mount
Type of build
Camera mount

Recommended accessories

Telescope accessories > Focusers (4)

Wega Telescopes EAF Motoranbaukit mit Schelle, Schiene und Sucherschuh für Samyang 135 mm Objektiv

$ 195.00*
Telescope accessories > Other (1)

iOptron Lithium-Poly 3.7V

$ 27.90*
Astrophotography (1)

iOptron Nikon MC-DC1 Shutter

$ 65.00*
Mountings & accessories > Mounting plates and rails (3)

William Optics Montageplatte für iOptron SkyGuider Pro

$ 55.00*
Mountings & accessories > Equatorial wedges (3)
Polar wedge

William Optics Polar wedge High Latitude SkyGuider Pro

$ 370.00*
Mountings & accessories > Counterweights (3)
Counterweight

iOptron Counterweight Counterweigt 1.35kg

$ 65.00*
Mountings & accessories > Other (3)
Tripod

iOptron Tripod for iPANO/SkyTracker/SmartEQ

$ 152.00*
Photo Tripods (1)
Tripod ball-head

iOptron Tripod ball-head SkyTracker

$ 79.00*

*All prices include VAT plus shipping costs.

iOptron Mount SkyGuider Pro

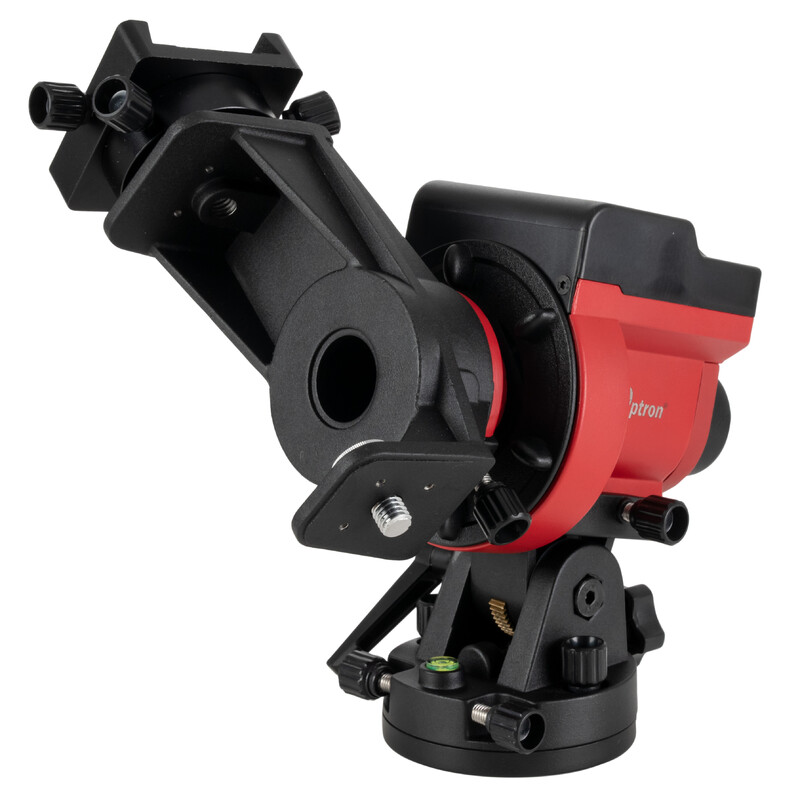

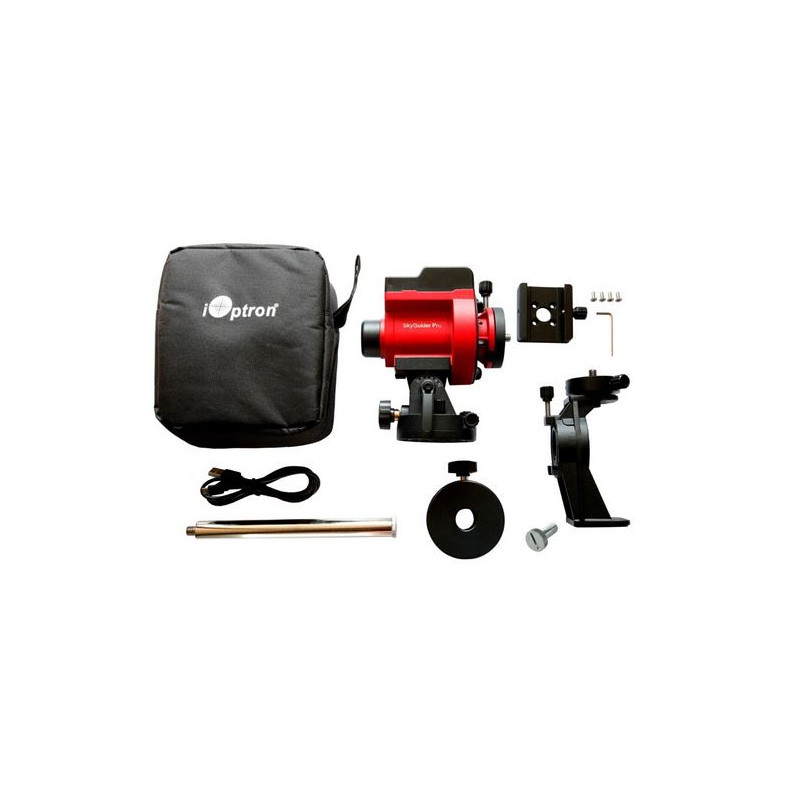

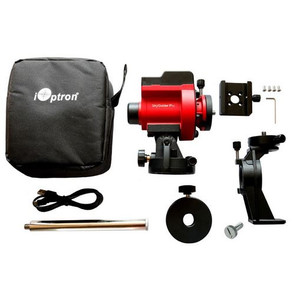

Includes
iOptron Mount SkyGuider Pro

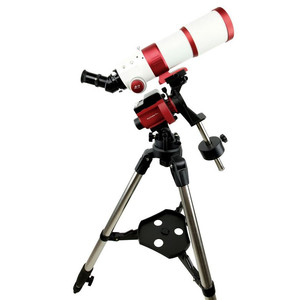

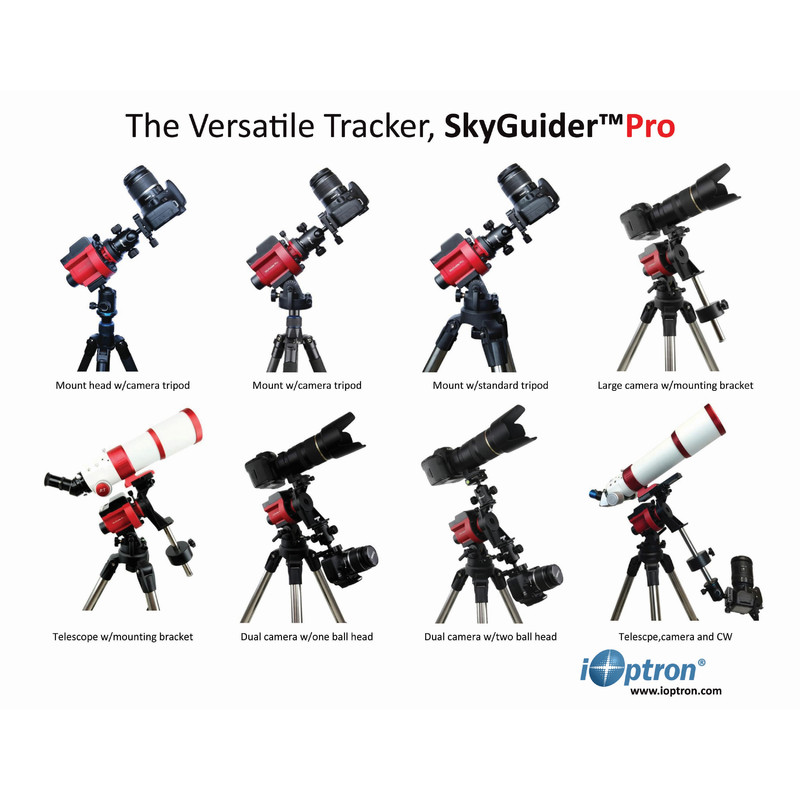

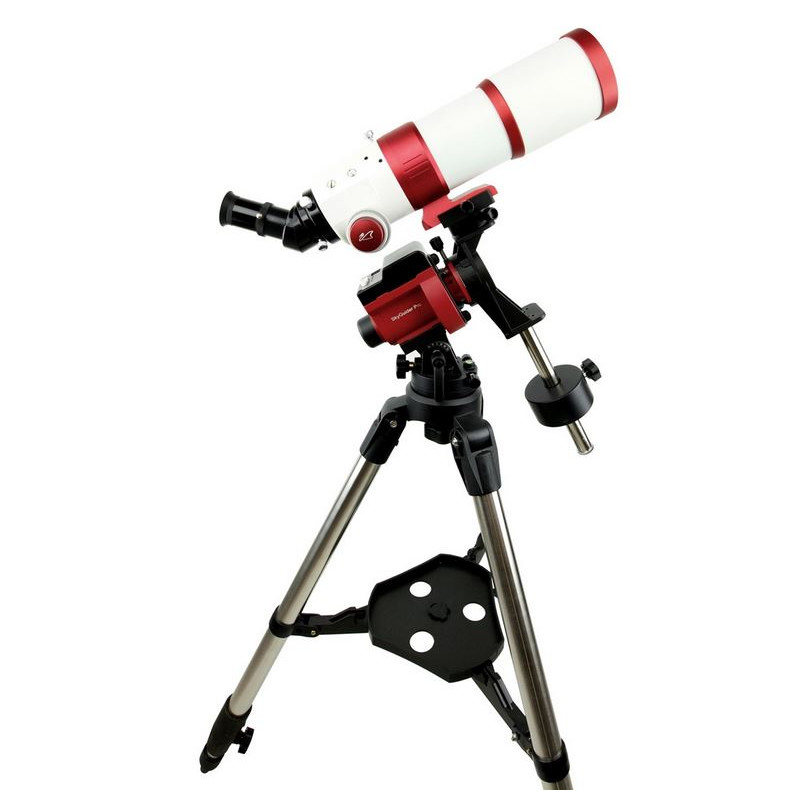

Typical application 1

iOptron Mount SkyGuider Pro

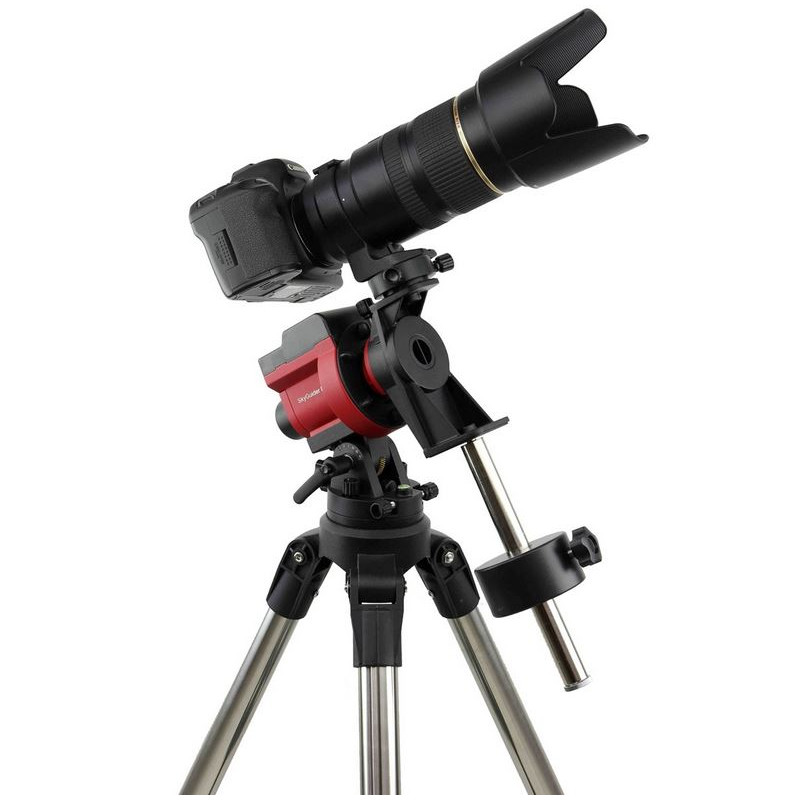

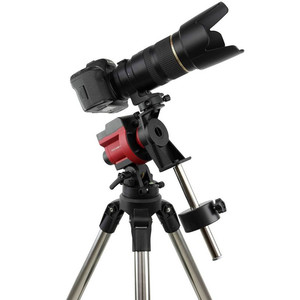

Typical application example 2

iOptron Mount SkyGuider Pro

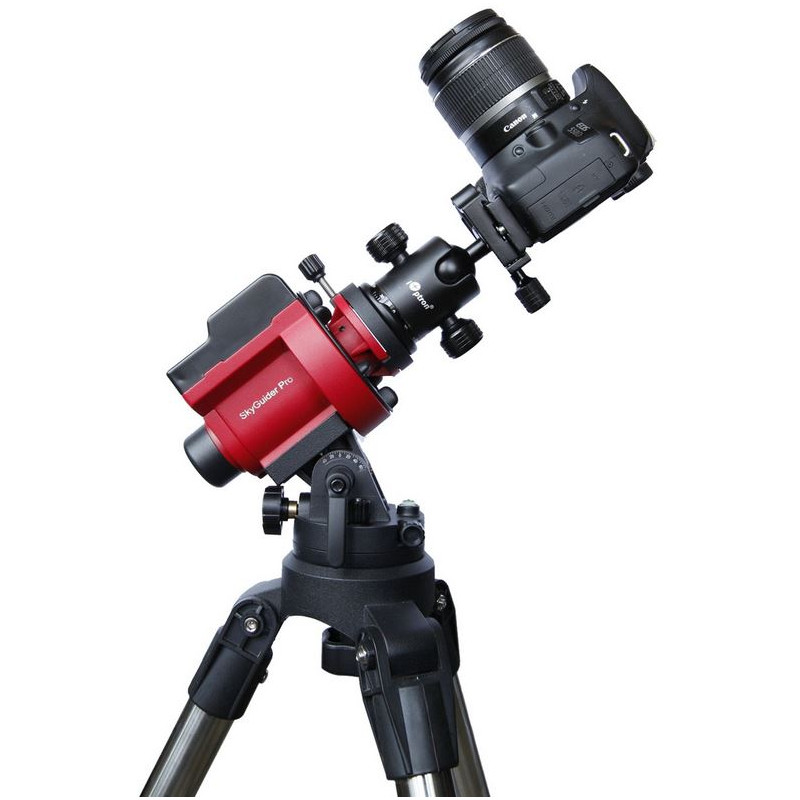

Example of use 3

Customer reviews

Very nice, small and robust

Review by M. O. on 04.10.2021 13:26:17

( 4 / 5 )

I bought the IOptron Skyguider Pro about 5 months ago and had some opportunities to take it out and field test this. I felt it was worth providing a review some time after it so I had time to get used to the equipment and offer my assessment.

I would firstly like to point out that this was my first dive into Astrophotography and my only guiding mount.
My goal as an ameteur photographer is to photograph Galaxies and Nebula's.

Due to limited space, a general unwillingness to carry exessive weight I wanted something that was small, light and robust and after watching reviews of the Skyguider pro on youtube channels like AstroBackyard and Peter Zelinka I believe that the Skyguider Pro was the answer.

I have given this a 4 / 5 stars review, this in no way reflects on astroshop.eu and their service, it only focuses on my interpretation of the SkyGuider Pro.

In regards to the Skyguider Pro:
The pros:
- It is light weight
- It is compact
- It does its job

The cons:
- The wedge is not the best (where the actual mount / motor rests on and connects to the tripod) I will explain this further
- You will likely have to buy more accessories such as a counter weight extension bar or an extra counterweight if you plan on using heavier equipment example: a Canon 700d and William Optics Redcat 51.


Guiding;
- Once you have correctly polar aligned, set up the correct settings, the SkyGuider Pro tracks the stars quite accurately, admittedly I have not achieved greater that a 50 second exposure with my Camera, this could be down to my alignment more than the guiding itself

The Set up process:
- Set up is reasonably straight forward, once you have the mount out of the packaging, set up on a tripod (sold separately), you need to polar align (as mentioned above) you then add the DEC mounting plate to the front and then add the Counterweight shaft + weight you are ready to go.




The Wedge:
- 1 star is lost from the Skyguider Pro due to its wedge.
- The Wedge has screws that you turn to move the mount left or right or up and down, this enable you to align the SkyGuider Pro to the correct star for polar alignment. I found that these screws particularly the left to right swivel to be challenging and unreliable,
the threading for it is not great either meaning that it takes longer to accurately adjust the mounts position correctly with Polaris or the Southern star, since the SkyGuider Pro and a successful photography session requires careful and precise polar alignment it is really important for accuracy.
I am aware that William Optics have made their own Wedge for the SkyGuider Pro (https://www.astroshop.eu/equatorial-wedges/william-optics-polar-wedge-high-latitude-skyguider-pro/p,64967) I have yet to buy this as I have not reached that point yet.


The Counterweight and bar:
- The point of the counterweight and bar is to take some pressure off the motor when a camera, lens / telescope is added. I found that after adding a William Optics RedCat 51 with Canon 700d attached to the mount caused the mount to be not balanced properly i.e. the Redcat and camera weigh too much.
This means that I will have to add more weight to insure that the balance is even, otherwise I risk causing too much strain on the motors which will likely cause further issues later on.


Unrelated to the actual Skyguider Pro itself, but worth mentioning:
The packaging, purchase and shipping process:
- The box arrived intact and its contents were very secure in the foam included in the box on delivery, so my thanks to the delivery group for that.
- The delivery of the item was shipped out on time and arrived on time, my thanks to .astroshop.eu for that
- The process to buy the items was simple and straight forward, once again thanks to .astroshop.eu for that



Recommended extras:
- You may want to consider the iPolar, if you are stuck in an area where Polaris is not visible due to obstructions or you simply struggle to find Polaris for some reason, the iPolar can be bought separately or you can buy it preassembled with the other Skyguider pro package, the difference between the two
is that if you buy iPolar separately you will need to remove the original eyepiece for polar alignment with the iPolar, if you are concerned with tinkering with a brand new mount you may be better off buying the package that includes the iPolar instead.
- As mentioned the wedge isn't great when you need to fine tune polar alignment, as such you may want to consider the William Optics Wedge as a replacement / substitute.
- Counterweight shaft extension and additional counter weight, this is an option if you plan on adding heavy equipment, since the box comes with a 1.35kg counterweight you may feel that the extra counter weight and extension may be help to take some pressure off the motor.

Very useful

Review by arasorhun on 13.05.2020 11:59:13

( 4 / 5 )

It is very useful. I love pole finder, it is very easy. I cannot try auto guider. But I'm disappointed about camera trigger, because it is not operational unless you have hand controller. Also I expected that it is compatible to telescope tripods, it is not.
