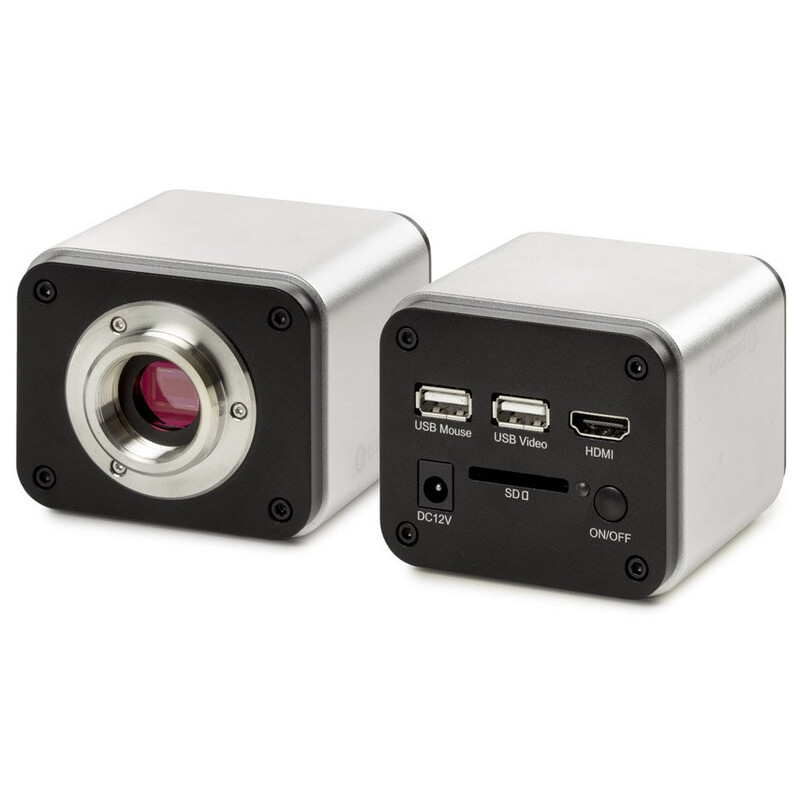

High-resolution 4K UHD 2160p CMOS colour camera from Euromex with HDMI and USB 2 interface
The Euromex 4K Sony Ultra HD camera with the latest horizontal screen resolution of 3,840 pixels (2160p) offers a perfect solution for modern microscopy in industry and laboratories. This 4K UHD camera can be used for biological, metallurgical or stereo microscopes. The real-time images produced by this standalone camera offer excellent colour reproduction at high frame rates of up to 30 frames per second. The 4K UHD Ultra High Definition camera can be used in two modes. In a stand-alone mode with the integrated mouse-controlled software, or in a computer-controlled mode. Images and videos are stored on the integrated 16 GB SD card.
Specification:
Sensor: Sony IMX334 CMOS
Sensor size: 1/1.8 inch, (7.68x4.23)
Pixels: 3840 x 2160 pixels (capture mode), 3840 x 2160 pixels (live mode) 30 fps
Scan mode: Progressive scan, rolling shutter
Pixel size: 2.0 x 2.0 μm
Noise: Standard noise reduction
Sensitivity: 505 mv/lux-sec
Colour reproduction (bits): 36
Signal/noise (db): 40.5
Dynamic range (db): 60
White balance: Automatic / manual / ROI
Interface: HDMI, USB-2
Memory: 16 GB SD memory card
Mounts: C-mount
Power supply: 100-240 Vac ~ 12Vdc / 1A
Operating conditions: -10/+50°; 30/80%RH
Storage conditions: -20/+60°; 10/60%RH
Scope of delivery VC.3042 / VC.3042-HDS:
- USB mouse
- C-mount adaptor (0.5x)
- Conversion adaptors (30.0 mm and 30.5 mm, for use with stereo microscopes)
- 12V 1A power supply
- USB 2 synchronisation cable (1.5 m)
- Calibration slide 76 x 24 mm (1 mm / 100)
- 16 GB SD memory card
- HDMI cable
- CD-ROM with ImageFocus Alpha software
- Operating instructions
