Astrophotography > Cameras > ToupTek > ToupTek Camera E3CMOS02300KPA DeepSky Color
Product no.: 48167

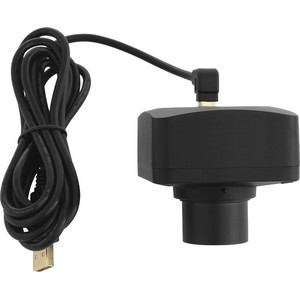

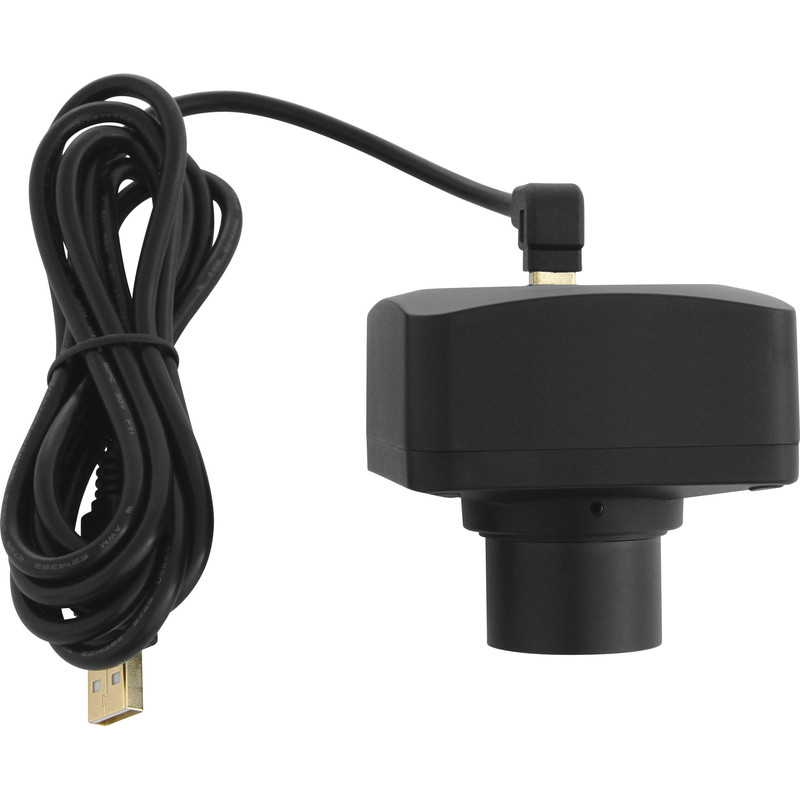

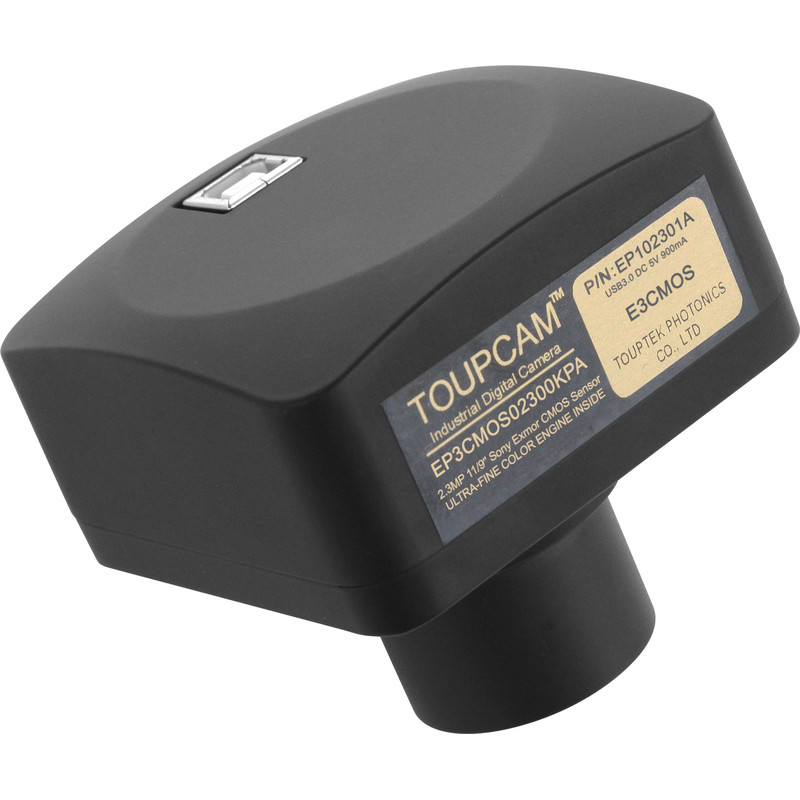

Camera E3CMOS02300KPA DeepSky Color

$ 449.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

No delivery possible before christmas
Check alternatives on stock or order a voucher!


Product description

The next generation high-speed camera for planetary and deep sky photography

The Touptek 2300KPA is a highly sensitive camera for video astronomy and deep-sky images. Sharply detailed planetary images are possible thanks to a new Sony CMOS sensor. Galaxies and nebulae can be seen with this camera after only a few seconds of exposure time. You do not even need to align your mount completely accurately. "Astrophotography has never been so easy!"

The advantages in a nutshell:

  • highly sensitive CMOS IMX185 sensor
  • for telescopes with focal lengths between 500mm and 800mm
  • fast image transfer: 90 frames per second
  • no clutter: only one USB 3.0 cable required - does not need an additional power supply
  • software: CD-Rom with image recording software and drivers for Win 7/8/10
  • C-mount connection
  • safely protected in a rugged metal casing

90fps: sharp planetary images thanks to the high speed

What do a camera and a freezer have in common? Simple - this camera acquires images so rapidly that the seeing simply has no chance. It is simply frozen. The big advantage is that this technique means you catch the moments of perfectly still air. Your planetary images are hence particularly sharp. The Touptek camera transmits up to 90 frames per second. This frame rate is perceived by the human like a film.

You might be wondering whether planets are still bright enough at this high frame rate? The answer is yes - thanks to the newly developed sensor.

The heart of the camera - the CMOS sensor

Highly sensitive - optical window of 350-1050 nm

The new CMOS IMX185 image sensor from Sony is highly sensitive, with a wide spectral range of 350-1050nm. This means that, in addition to visible light, you have the chance of exploring the infrared range. This range is more sensitive compared to many other sensors.

Extremely low noise for better images

One particular advantage is an extremely low readout noise of less than RMS 3.3e-. This means that the number of noise pixels is reduced to a minimum. Image information is no longer lost. Your astronomy photos will have a noise-free black background and hence your astronomical subjects will look simply beautiful.

Ideal for small to medium focal lengths

The sensor has a chip size of 1950x1200 pixels, with a pixel size of 3.75x3.75 microns. This means the camera is ideally suited for use with telescopes of between 500 and 800mm focal length.

Included in the package - image acquisition and image editing software

Extensive software is included - with virtually everything an astrophotographer could wish for:

  • Live Image function
  • exposure settings
  • histogram
  • image acquisition and video functions
  • automatic Dark Subtraction
  • time-lapse image acquisition
  • image processing - stacking

  1. Virtually everything you need is included in just one program, allowing you control of most of the image processing.
  2. System requirements:

  • Windows 7, 8 or 10
  • Intel Core 2, 2.8GHz, 2GB memory, USB 2.0, 17" display

Along with the camera, the drivers and cables required are included - to complete this convenient package.

External cooling of the camera is not required as the software includes automatic Dark Field correction. The result is a low-noise, perfect image.

Included in delivery:

  • camera
  • C-mount and 1.25" adapter with filter thread
  • CD-ROM with software and drivers
  • USB cable
  • Metal casing

Our expert comment:

Drivers:

http://www.mediafire.com/download/8ocgv8ei2v3gw0g/TOUPTEK+DRIVERS20160615-ASTRO.zip"Treiber"

Support 8 & 12bits FITS formats images capture in ToupSky (RAW image capture);
Histogram in ToupSky can be extended. Use histogram lines to show overlapping clearly;
The ASCOM driver enables RGB and RAW mode to be selectable in third party software;
Bug fix in ASCOM driver;"

Specifications

Capacity


Sensor type
CMOS Chip (Sony IMX185)
Size of chip (mm)
7,2x4,5
Megapixel
2,3
Pixel size
3,75
Colour camera
yes
Resolution Photograph (Pixel)
1950x1200
Bit depth (Bit)
8
Active cooling
no
Power supply
- (USB)
Interfaces
USB 2.0
Autoguider
no
Supported operating systems
Windows 7/8/10
Connection (to the telescope)
C-Mount
Images per second
90
Reading noise
3,3 e-
Software
included in product contents
Operating temperature
-10°C - +50°C/30-80%RH

Equipment


Filter wheel
no

General


Length (mm)
68
Width (mm)
68
Height (mm)
43
Weight (g)
385

Area of application


Autoguider
no
Moon & Planets
yes
Nebulae & galaxies
yes
AllSky, Meteore
no
