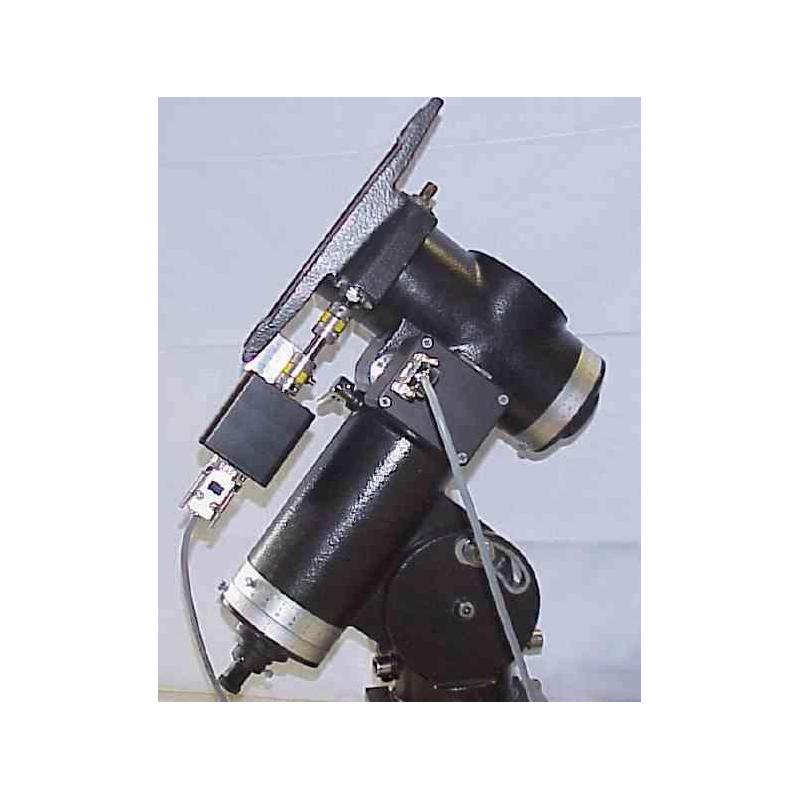

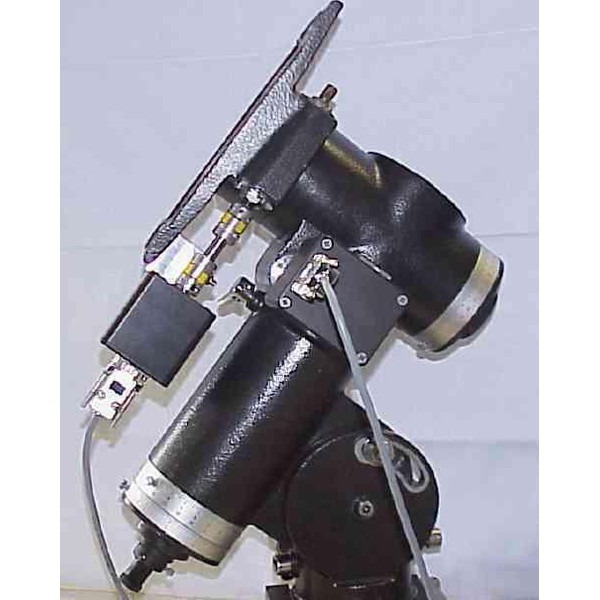

Motor set for Vixen Saturn mount

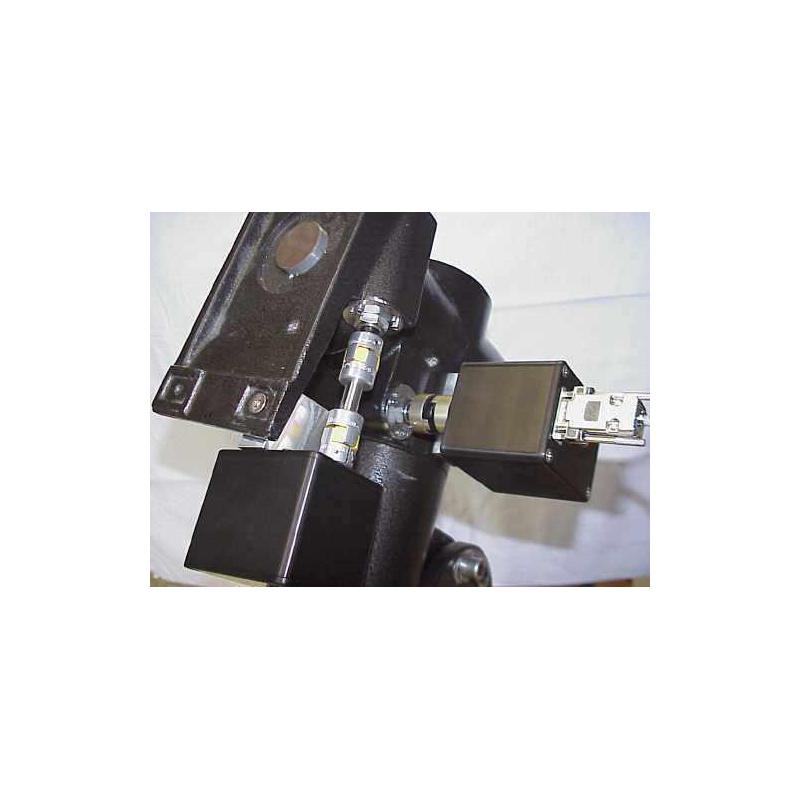

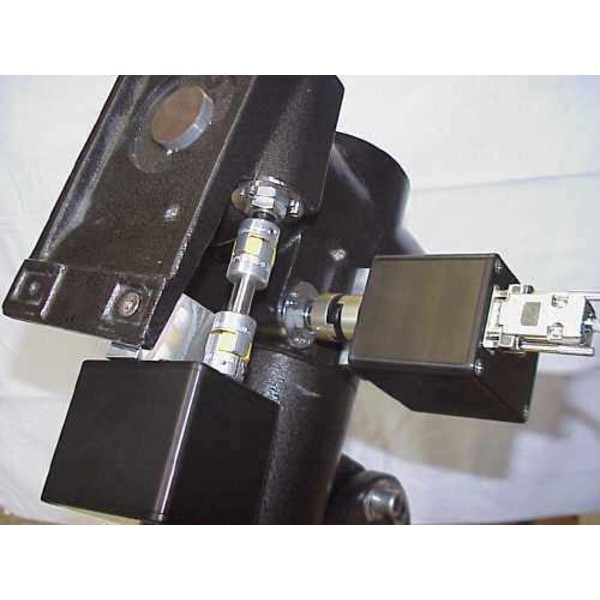

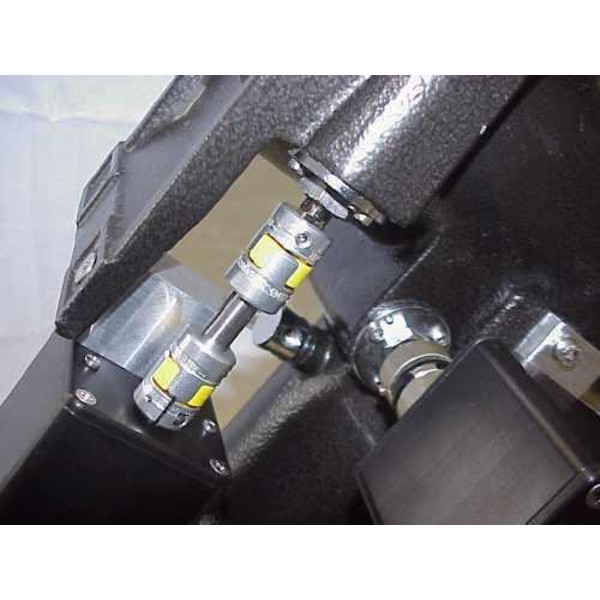

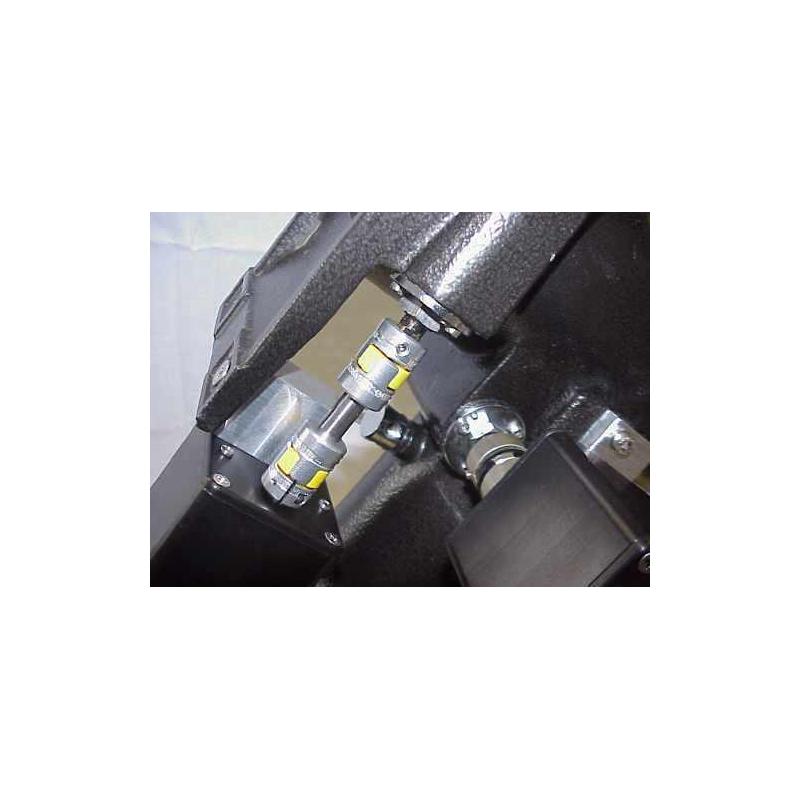

The motors do not restrict the mount's range of motion. Both motors are positioned so that they cannot collide with anything. A backlash-free Oldham coupling is used on the right ascension motor. Two backlash-free claw couplings with elastomer elements are used on the declination motor.

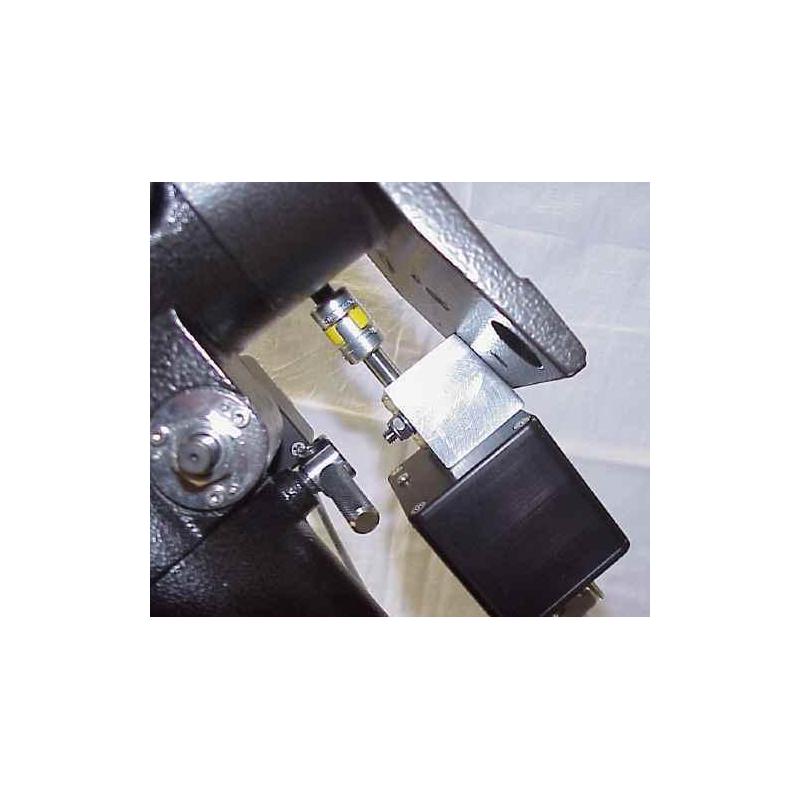

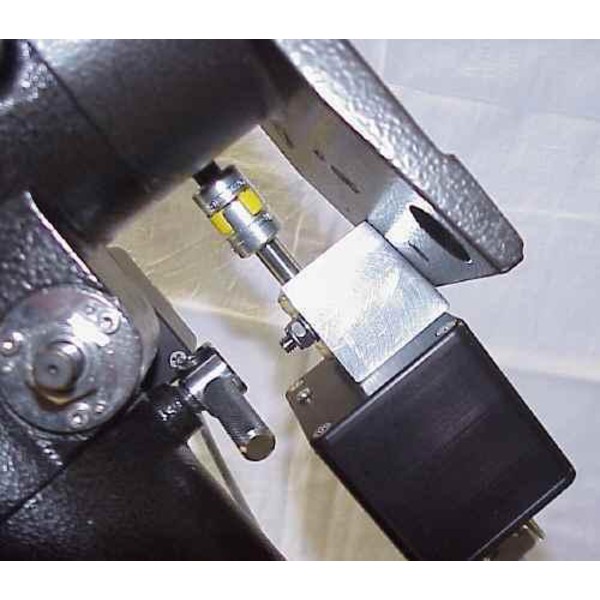

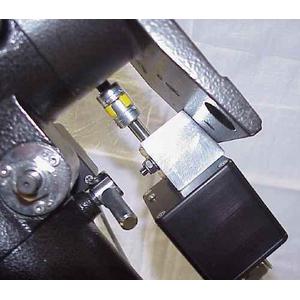

One of the existing holes in the terrestrial viewing scope mounting plate is used to attach the declination motor. If this hole is needed to screw a tube clamp or the telescope in place, you can simply use a longer M6 screw.
Contents:
- 2 ESCAP P530 motors with 12:1 gearbox
- 2 CNC-milled aluminium housings, black anodised
- 2 mounting parts for the motors
- 6 shaft couplings
- 2 cables for FS2
