Mountings & accessories > Mountings > Equatorial with GoTo > iOptron > iEQ45 > iOptron iEQ45 Pro Dual EQ/AZ mount with 48" portable pier
Product no.: 50051

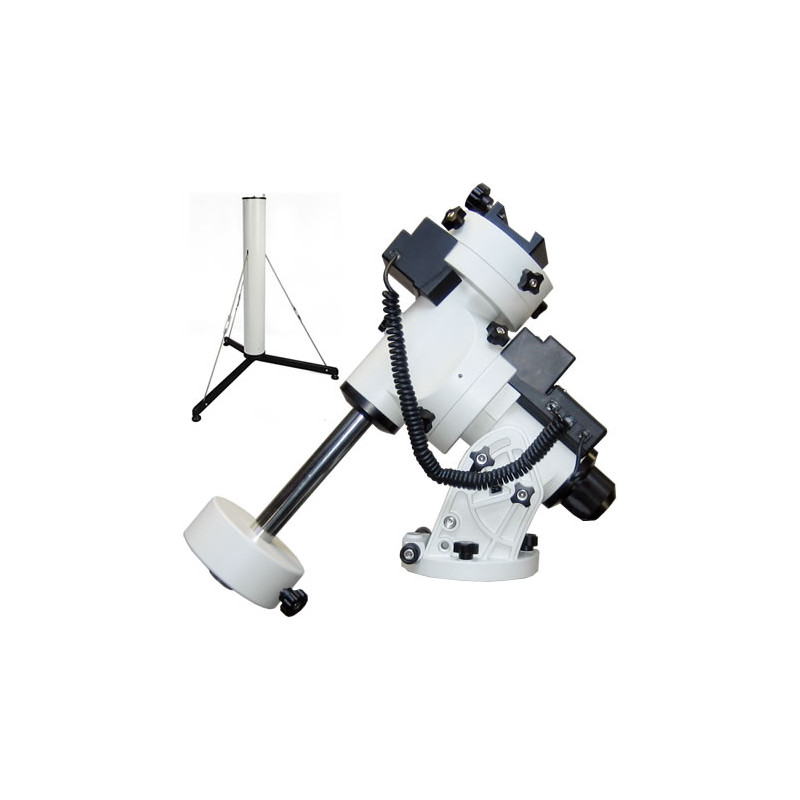

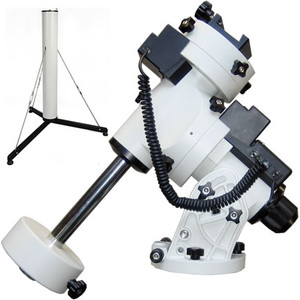

iEQ45 Pro Dual EQ/AZ mount with 48" portable pier

RRP: $ 2,090.00 Our price:
$ 2,070.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

More about the series iEQ45...

This version of the iEQ45 mount series allows either alt-azimuth or equatorial operation.
No polar alignment is required when mounting the telescope alt-azimuthally, meaning it is very quickly ready for action when observing visually or doing planetary photography. The mount can also carry a heavier load when used in alt-azimuthal mode, namely up to 25kg.
Equatorial mode allows you to use all the power of the iEQ45 series for your astrophotography.

The new iEQ45 Pro GOTO German equatorial mount is the next generation premium astro-imaging mounts!

iOptron made a few changes on the iEQ45 including:

  • Stepper motor (instead of servo)
  • Higher gear ratio
  • A number of visual changes (ex. plugs moved to sides, motor covers are singular piece, and more)

The iEQ45TM mount offers the next generation GoTo technology from iOptron — not to mention built-in 32-bit GPS. With a payload of 20kg balanced – it comes standard with a calibrated dark field illumination polar scope. It also fits both Vixen and Losmandy-type mounting plates. Its lighter weight (only 11kg) makes it much easier to carry.

Included Accessories:

  • 12V Car Re-charger and Cable
  • 2 amp AC Adaptor
  • Controller Cable-6P6C
  • RS232-RJ9 cable
  • Go2Nova Hand Controller 8407
  • Counterweight

The 48" pier tripod consists of a lightweight aluminium alloy pier with retractable steel legs.

  • pier diameter -144mm
  • pier height - 1220mm
  • length of legs - 570mm
  • weight - 11.3kg

This relatively tall pier is especially recommended when using lens telescopes (refractors).

Specifications

Capacity


Designation
iEQ45 Pro
Max. additional load capacity (kg)
20
Counterweight(s) (piece)
2 (5kg)
Interfaces
RS232
Power consumption (mA)
750
Power supply
12
Power consumption in open circuit (mA)
450
Language
English
Polar elevation setting (°)
5 - 70
Operating temperature
(-20) - (+45)
Diameter of counterweight bar (mm)
28
Material of worm gear
Brass
Material of worm wheel
Aluminium
Worm gear teeth (RA) (piece)
256
Motor type
Stepper motors
Mounting saddle
Losmandy & Vixen
Slow-motion azimuth adjustment (°)
+/- 6°
Worm gear teeth (DEC) (piece)
228
DEC ball bearings diameter (mm)
68
RA ball bearings diameter (mm)
80
RA axis diameter (mm)
50
DEC worm gear diameter (mm)
116
RA worm gear diameter (mm)
130
DEC worm shaft diameter (mm)
17
RA worm shaft diameter (mm)
17
DEC axis diameter (mm)
40

Special features


GoTo system
yes
GPS
yes
Updateable via web
yes
Controllable via PC
yes (ASCOM)
Handcontroller
yes
PEC correction
yes (permanent)
Level
yes
Autoguider interface
yes (ST-4 interface)
Accessory tray
yes

Equipment


Accessory plate
yes
Tripod <p>
Stand column

Tripod


Tripod material
Aluminium
Tripod weight (kg)
11,3
Max. tripod height (cm)
122
Stand column
yes

General


Total weight (kg)
18,9
Series
iEQ45

Area of application


Useful for photographs
yes

GoTo control


GPS
yes
GoTo Language
English

Recommended accessories

Telescope accessories > Cables & power supplies (3)

Omegon Powerbank 38k 144Wh 12V

$ 189.00*
Telescope accessories > Other (1)
Transport cases

iOptron Transport cases Hard Case for iEQ45

$ 259.00*
Mountings & accessories (3)
Column

iOptron Column Tri-Pier portable pier on tripod

$ 1,030.00*
Astronomy (1)

iOptron StarFi Wi-Fi Adapter

$ 158.00*

*All prices include VAT plus shipping costs.

iOptron iEQ45 Pro Dual EQ/AZ mount with 48" portable pier

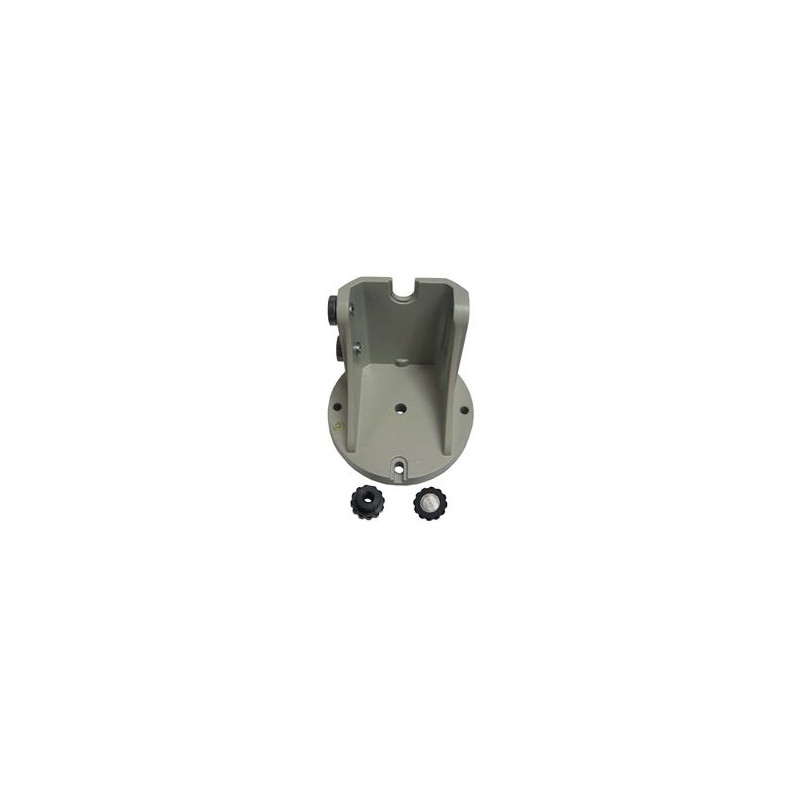

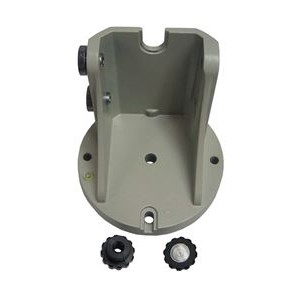

This accessory allows you to operate the equatorial iEQ45 Pro mount in alt-azimuth.

iOptron iEQ45 Pro Dual EQ/AZ mount with 48" portable pier

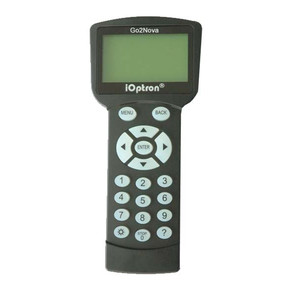

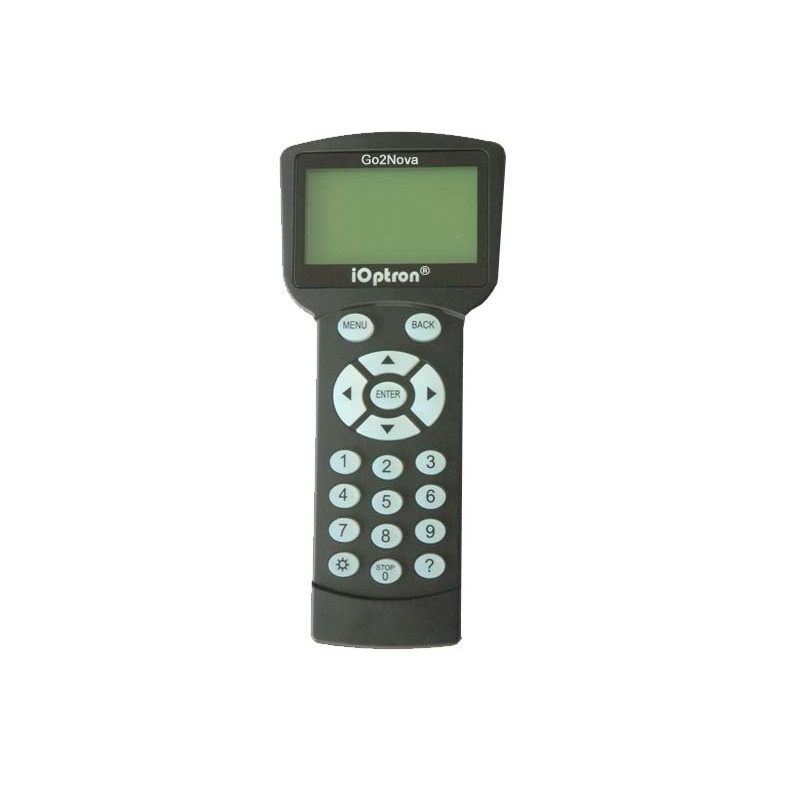

Hand control box

iOptron iEQ45 Pro Dual EQ/AZ mount with 48" portable pier

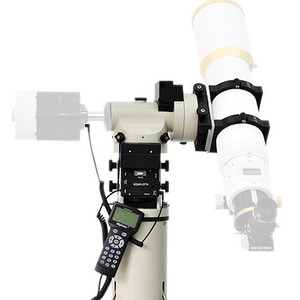

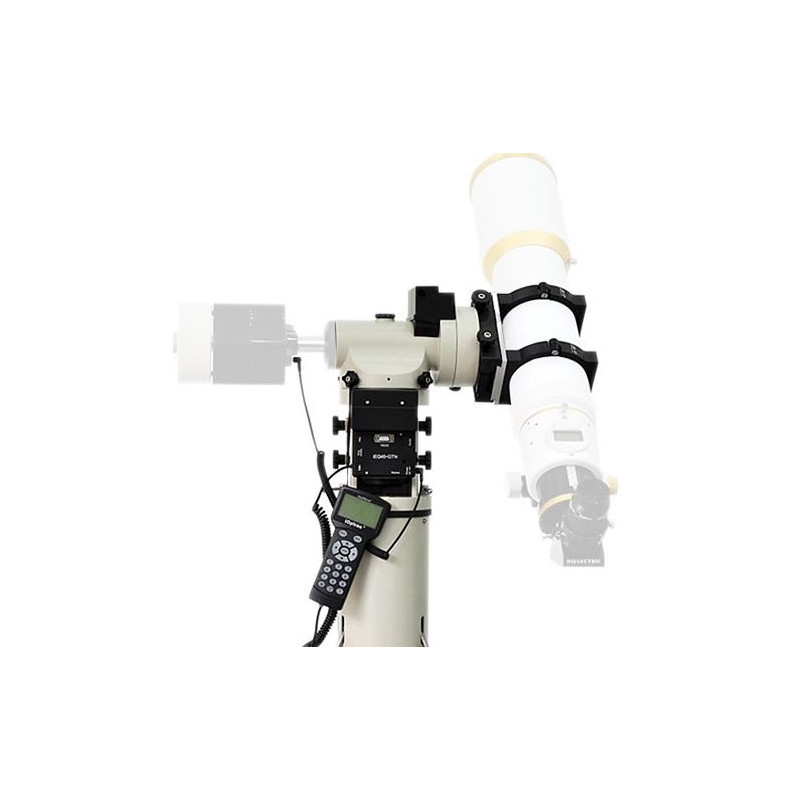

Thanks to this special bracket, you can also operate the iEQ45 alt-azimuthally.
