Mountings & accessories > Mountings > Equatorial with GoTo > iOptron > CEM > iOptron Mount CEM70 EC2W iPolar
Product no.: 76359

Mount CEM70 EC2W iPolar

$ 7,300.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

Product description

More about the series CEM...

The advantages at a glance:

  • A new design, center-balanced equatorial mount (CEM) for maximum payload with natural stability
  • Ideal for both visual observation and astrophotography
  • Payload of 70 lbs (31.8 kg) with the mount weight of 30 lbs (13.6 kg)
  • Easy to use and reliable gear clutches
  • Precision altitude and azimuth adjustment.
  • Precision stepper motor with 0.07 arcsec accuracy for precise GOTO and accurate tracking
  • iPolar electronic polar scope
  • Go2Nova® 8410 controller with advanced GOTONOVA® technology and a built-in heater
  • High precision tracking with low periodic error (PE <0.3 arcsec rms)
  • realtime periodic error correction (RPEC)
  • 32-channel Global Positioning System (GPS)
  • USB 3.0 powered connection
  • Integrated ST-4 autoguiding port
  • Advanced cable management system with more choices
  • Spring loaded 8" Vixen/Losmandy dual saddle
  • Built-in Wi-Fi connectivity

Following up on the success of the iOptron CEM60 center balance equatorial mount, iOptron is introducing two new medium payload center balance mounts. The CEM70 series mounts are new standard bearers for equatorial mounts in the 70lb payload segment. The mounts are packed with advanced features, while streamlining the components resulting in a more portable imaging setup.

Retaining the inherent properties of the center balance design, these relatively compact medium payload mounts deliver what astronomers expect in an efficient, accurate and portable mount. With precise GOTO pointing and accurate tracking, the CEM70EC is a solid performer for observers and imagers alike. Innovative operational features such as the internal iPolar electronic polar scope, easy lock drive gear engagement (levers large enough to use with gloves), an advanced cable management system for the mount, iPolar, guider, and camera assure users that the CEM70 was designed with their needs in mind.

Our expert comment:

The CEM70 ECW has a high precision encoder on the RA axis.

The CEM70 ECW2 has precision encoders on both, the Dec and RA axis. Both versions have an iPolar.

(Jan Stroeher)

If there are small discrepancies when the “zero position” is first activated, iOptron has provided advice to resolve this:

"Search zero position is a function to bring the mount to a rough zero, a few degrees off is possible. At the end of Search Zero, it will ask calibration. Use arrow keys to move RA and DEC to adjust the positions to physical zero position. When done, set zero position. This position will be memorized in the controller as Zero Position.

One may further refine zero position by the following steps:

Search zero -> goto a bright star and center it ->sync to target -> goto zero position ->set zero position.

This is a true (accurate) zero position."

(Jan Ströher)

Specifications

Capacity


Designation
CEM70 EC2W
Max. additional load capacity (kg)
31.8
Weight mount head only (kg)
13,6

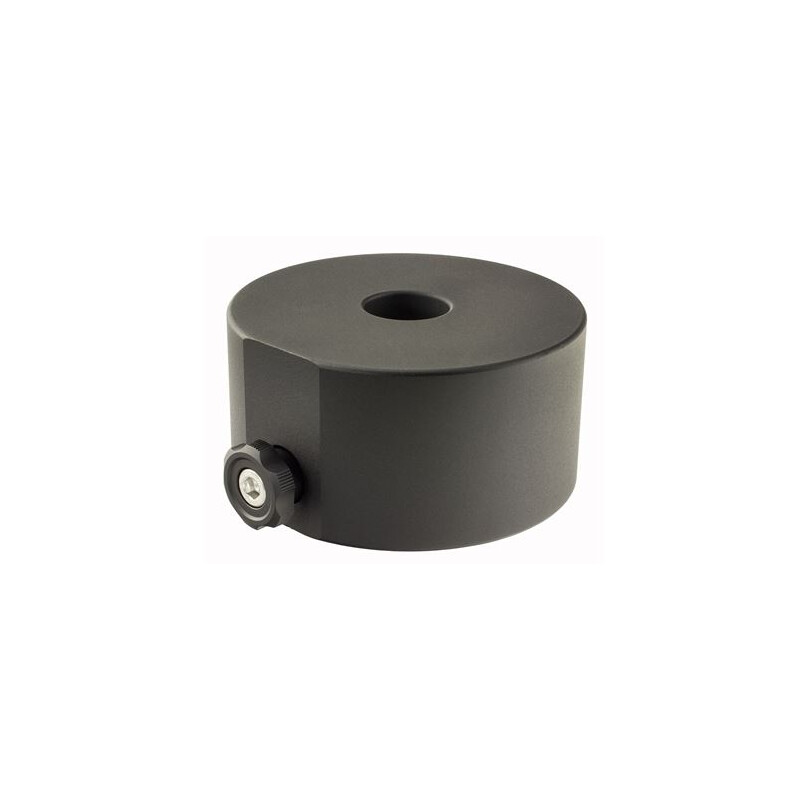

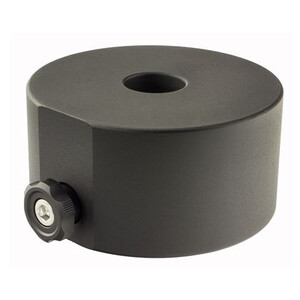

Counterweight(s) (piece)
1 (9,5kg)
Interfaces
ST-4 & USB 3.0
Power supply
12
Language
English
Polar elevation setting (°)
0-65
Slow-motion azimuth adjustment (°)
+/- 4
Operating temperature
-10 bis +40
Motor speeds
1x, 2x, 8x, 16x, 64x, 128x, 256x, 512x, max ~3.75º/sec
Mounting saddle
Losmandy & Vixen
DEC ball bearings diameter (mm)
80
RA ball bearings diameter (mm)
80
DEC worm gear diameter (mm)
151
RA worm gear diameter (mm)
151
Worm gear teeth (DEC) (piece)
248
Worm gear teeth (RA) (piece)
248
Encoder
yes
Precision of tracking
0,07
RA worm shaft diameter (mm)
55
DEC worm shaft diameter (mm)
55
Diameter of counterweight bar (mm)
28
Material of worm gear
Steel
Motor type
Stepper motors (128 micro-steps)
Cable-guide
internal

Special features


GoTo system
yes
GPS
yes
Handcontroller
yes

Equipment

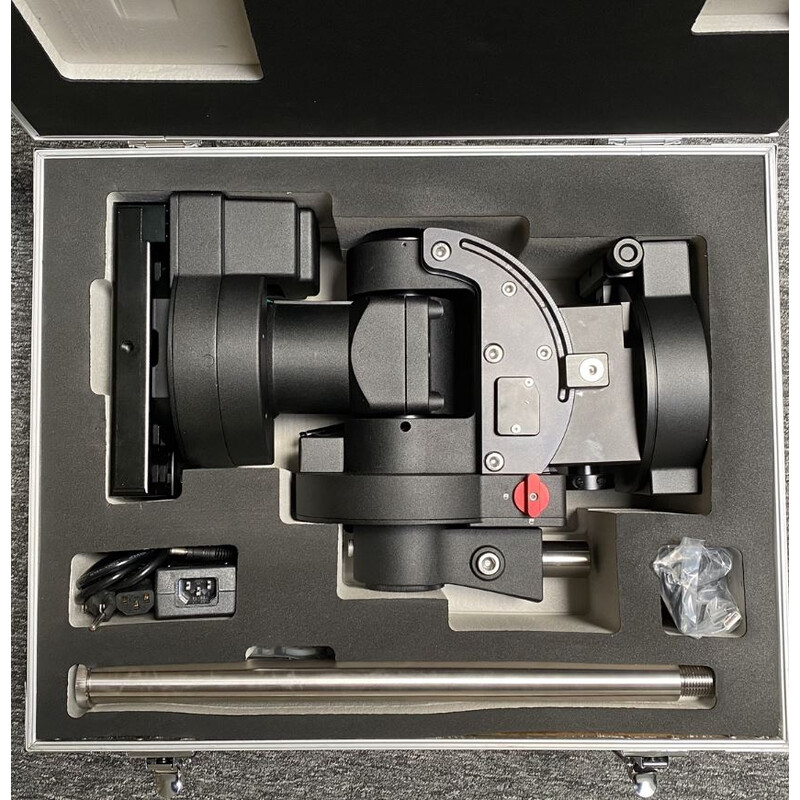

Transport cases
yes
Tripod <p>
without tripod
Pole finder
yes
Power pack
yes
Counterweights (piece)
1

General


Total weight (kg)
24
Series
CEM
Type
Mount
Type of build
Equatorial

Area of application


Useful for photographs
yes
Visually useful
yes

GoTo control


GPS
yes
with hand paddle
yes
WIFI
yes
Interfaces
Autoguider, USB
Autoguiding
yes
PEC correction
yes
Polar Alignment
iPolar
GoTo Language
English

Recommended accessories

Telescope accessories > Cables & power supplies (3)

Omegon Powerbank 38k 144Wh 12V

$ 189.00*
Mountings & accessories (1)
Tripod

iOptron Tripod LiteRoc CEM60/70

$ 550.00*

*All prices include VAT plus shipping costs.

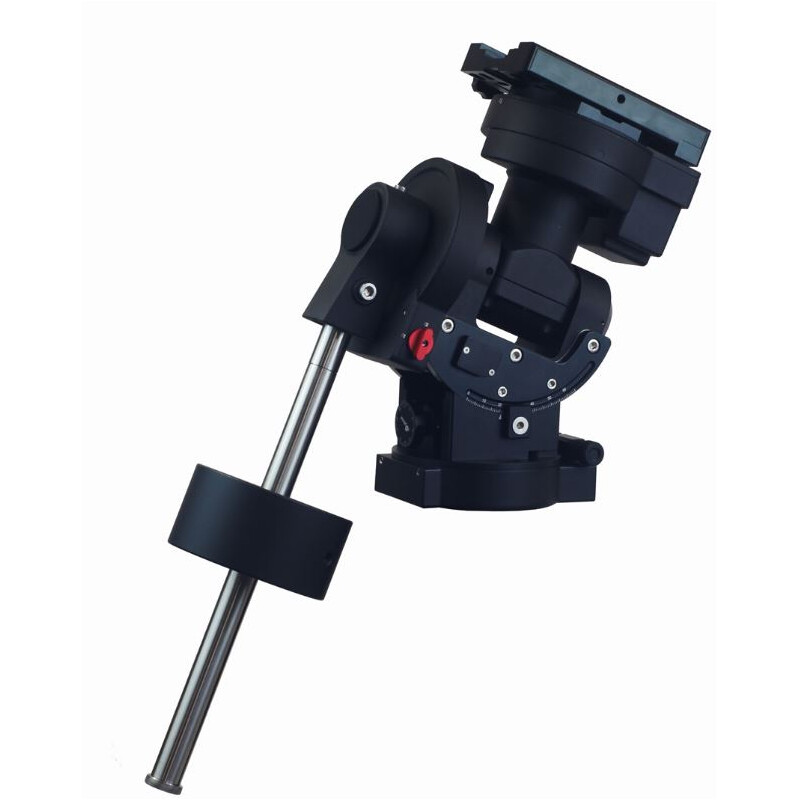

iOptron Mount CEM70 EC2W iPolar
