Mountings & accessories > Mountings > Equatorial with GoTo > iOptron > HEM > iOptron Mount HEM44 Hybrid EQ
Product no.: 77496

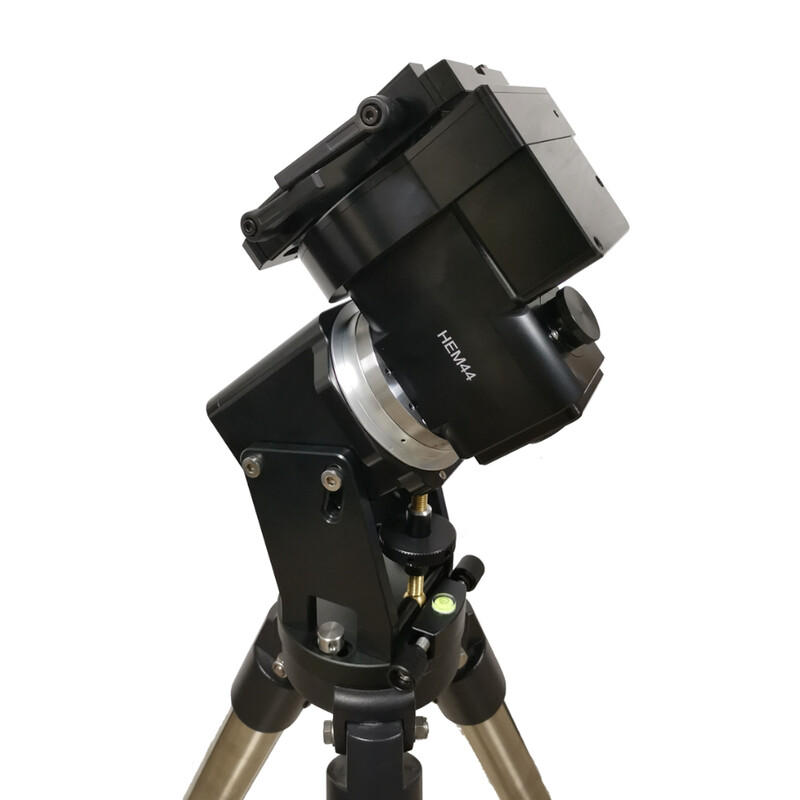

Mount HEM44 Hybrid EQ

$ 3,140.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

Product description

In short:

  • Load capacity of up to 20kg without counterweights
  • Built-in zero position and geolocation
  • Controllable using ASCOM & INDI drivers or on the go using iOptron Commander Lite, SkySafari and Raspberry Pi
  • Robust, durable full metal casing

Although the mount itself weighs only 6.2kg, you can mount telescopes weighing up to 20kg on this mount without the need for any counterweights.

The HEM44’s casing is made from CNC-machined metal which is not only aesthetically pleasing but also provides a robust foundation which will perform at a high level for many years.

Funitions such as an electronic brake and power-down storage enable the HEM44 to securely stop and start GoTo alignment, even after an unexpected power cut (no need for realignment and zero positioning). The mount can be controlled using a Windows PC (using the ASCOM or Commander drivers) or MacOS (using a third-party INDI driver), but also on the go using iOptron Commander Lite, SkySafari and a Raspberry Pi.

Our expert comment:

Please read the Quick Setup Guide (QSG) BEFORE setting up and operating the mount! Please also read the full online instruction manual for details. A HEM mount has an internal cable management system. To avoid cable damage, a mechanical stopper is implemented on the RA-axis in order to prevent rotation of more than 360 degrees. Due to the powerful torque of the strain wave gear in these mounts, damage to the stopper may occur, if

1.) “Site and Time” are incorrectly set and 2.) The mount is started from an incorrect Zero Position. Please perform these steps when initiating the HEM mount: “MENU => Zero Position => Searching Zero Position” in order to establish Zero Position. Then manually slew the mount past the meridian by 20 degrees.

Specifications

Capacity


Max. additional load capacity (kg)
20kg w/o counterweight
Interfaces
WiFi & USB
Language
English
Polar elevation setting (°)
15-65
Mounting saddle
Losmandy & Vixen
Weight mount head only (kg)
6,2 (mit Schiene)
Slow-motion azimuth adjustment (°)
+/- 6
Input voltage
12
Amperage (A)
5
Cable-guide
intern (2x12V 4A max., 1xUSB2.0
Encoder
no
declination axis material
Aluminium
right ascension axis material
Aluminium
Motor type
Stepper motors

Special features


GoTo system
yes
Handcontroller
yes
Level
yes

Equipment


Tripod <p>
without tripod
Transport cases
yes
Pole finder
no
Other contents
Power pack

General


Series
HEM
Type
Mount
Type of build
Equatorial

GoTo control


GPS
yes
WIFI
yes
PEC correction
yes
GoTo Language
English
Software
Go2Nova 8408
Autoguiding
yes
Interfaces
AutoGuider, Aux, RS232
Database
212.000
