Mountings & accessories > Mountings > Equatorial with GoTo > Skywatcher > CQ350 > Skywatcher Mount CQ350 Pro Synscan GoTo Tripod
Product no.: 77373

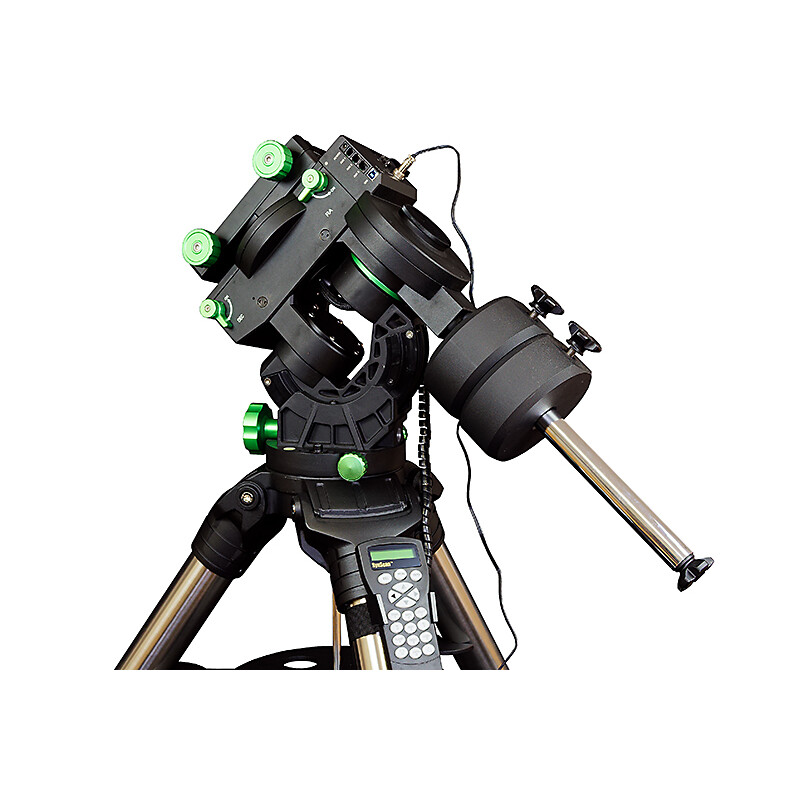

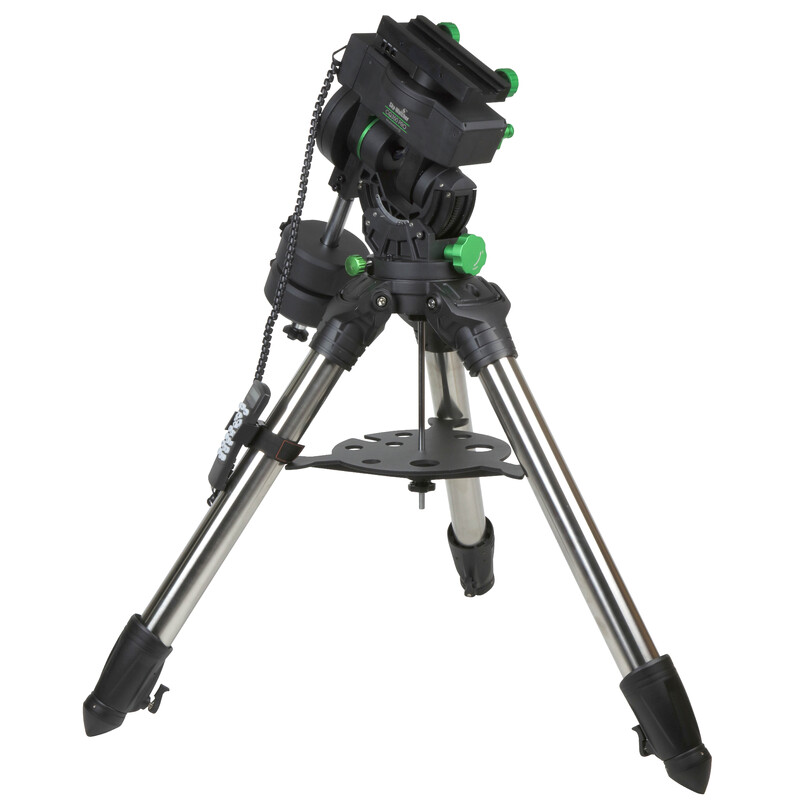

Mount CQ350 Pro Synscan GoTo Tripod

$ 4,200.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time
This product is available in the following variants:
Tripod <p> Price
Tripod $ 4,200.00
without tripod $ 3,420.00

Product description

Shortly:

  • Load capacity up to 35 kilograms
  • Database with 42,900 objects
  • Toothed belt drive for smooth running
  • SynScan V.5 hand control box
  • Dual prism rail

With the CQ350, Sky-Watcher presents a mount that sits between the EQ6-R and the EQ8-R . It can be used for mobile astrophotography, garden observatories or club observatories. It is therefore available both with and without a tripod.

The equatorial CQ350 Pro has the well-established SynScan™ computer control with 42,900 objects in the integrated database. These can be easily accessed using the Messier, NGC and other catalog numbers. With an optional WiFi dongle, it is possible to control the mount via an app with iOS or Android devices.

The mount was developed for the demanding astrophotographer , its maximum load is 35kg. The combined dovetail bar clamp for 45 and 75mm dovetail bars allows a large selection of telescope tubes and other accessories to be accommodated.

The quietly working mount is moved in both axes via belt drives with stepper motors (encoder resolution: 55,193,600 counts/rev., approx. 0.023 arc-second). The smooth running and the high panning speed make this mount very interesting for observatories with public tours.

The scope of delivery includes two counterweights, each weighing 10 kg. An external polar finder can optionally be connected for quick setup.

The CQ350 mount is compatible with the EQ8 column stand.

Specifications

Capacity


Max. additional load capacity (kg)
35
Mounting saddle
Losmandy & Vixen
Polar elevation setting (°)
0-70
Slow-motion azimuth adjustment (°)
+/-15
Worm gear teeth (DEC) (piece)
288
Worm gear teeth (RA) (piece)
308
RA worm gear diameter (mm)
155
Encoder
yes
Interfaces

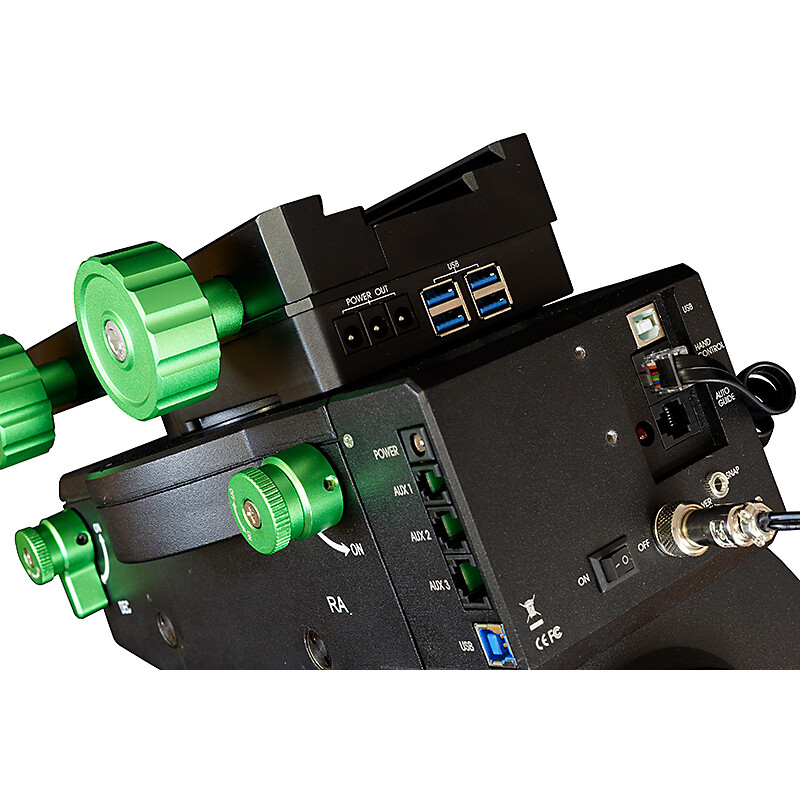

4xUSB, 1xShutter Release, 1xPower Input, 3xPower Output, 1xHandcontroller Port & 1xAutoguider Port
Cable-guide
internal
Power supply
16
Power consumption in open circuit (mA)
2000
Motor type
Stepper motors
Toothed belt drive<p>
yes
Weight mount head only (kg)
15
Slewing speeds
4

Special features


GoTo system
yes

Equipment


Pole finder
no
Motor-powered
yes
Tripod <p>
Tripod
Transport cases
no

Tripod


Tripod material
Aluminium
Max. tripod height (cm)
108
Min. tripod height (cm)
77,5
Tripod weight (kg)
15,7
Tripod pad
Synthetic material
Tripod leg diameter (mm)
70

General


Type
Mount
Type of build
Equatorial
Series
CQ350
Total weight (kg)
50,9

GoTo control


Database
42.900
with hand paddle
yes
Hand Controller
SynScan
GPS
optional
WIFI
optional
PEC correction
yes
Tracking speeds
sideral, solar and lunar
GoTo Language
multilingual
Software
SynScan
Autoguiding
yes

Recommended accessories

Telescope accessories > Cables & power supplies (6)

Celestron Powertank Lithium LiFePO4 84Wh

$ 245.00*
Mountings & accessories (2)

Skywatcher SynScan Wi-Fi

$ 119.00*

*All prices include VAT plus shipping costs.

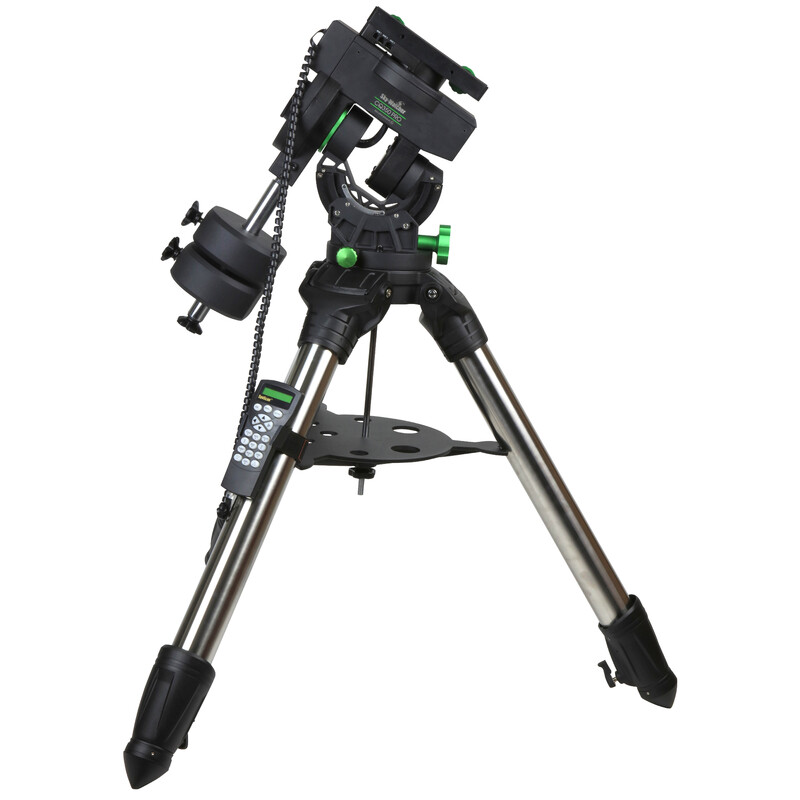

Skywatcher Mount CQ350 Pro Synscan GoTo Tripod

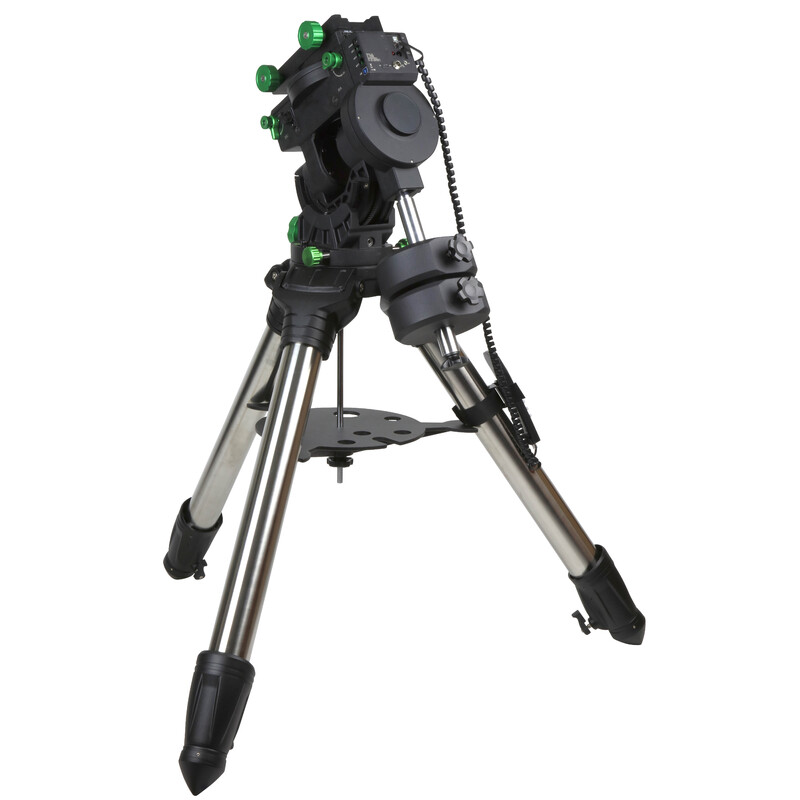

Skywatcher Mount CQ350 Pro Synscan GoTo Tripod
Skywatcher Mount CQ350 Pro Synscan GoTo Tripod

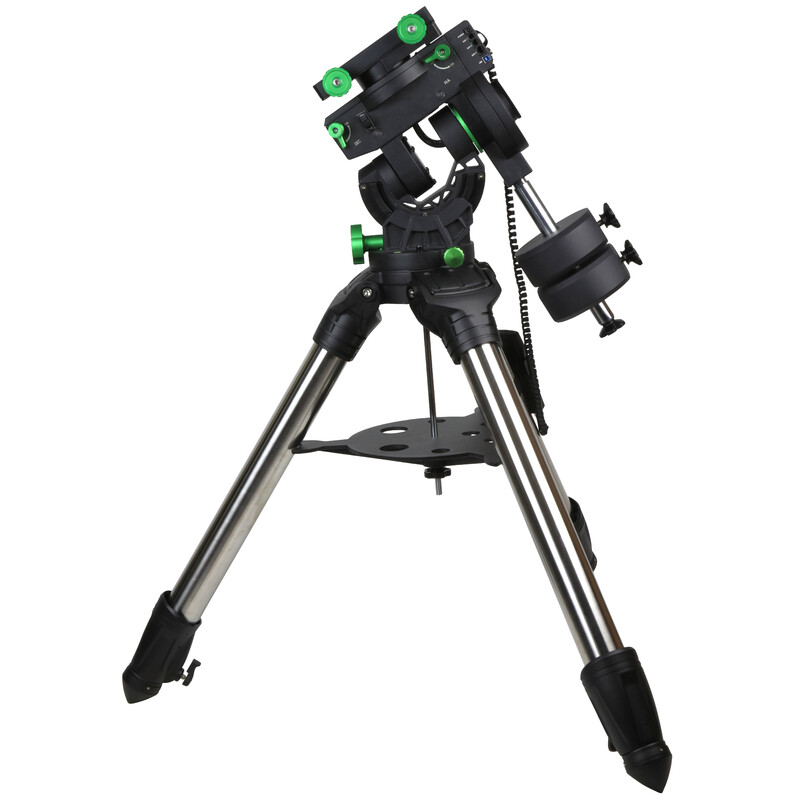

Skywatcher Mount CQ350 Pro Synscan GoTo Tripod

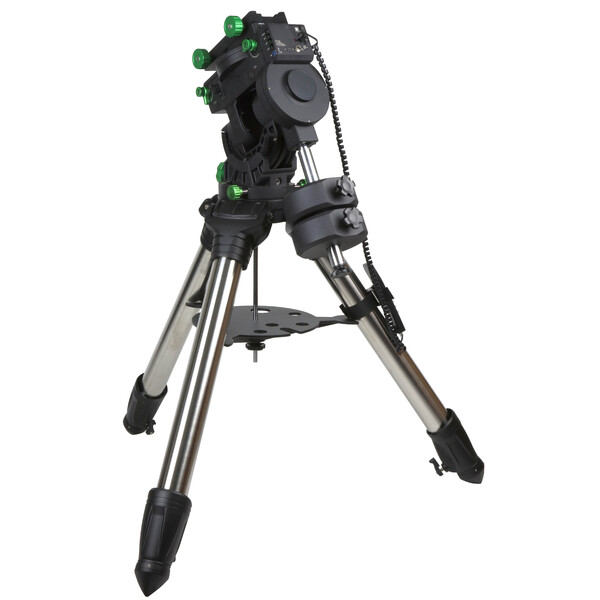

Skywatcher Mount CQ350 Pro Synscan GoTo Tripod

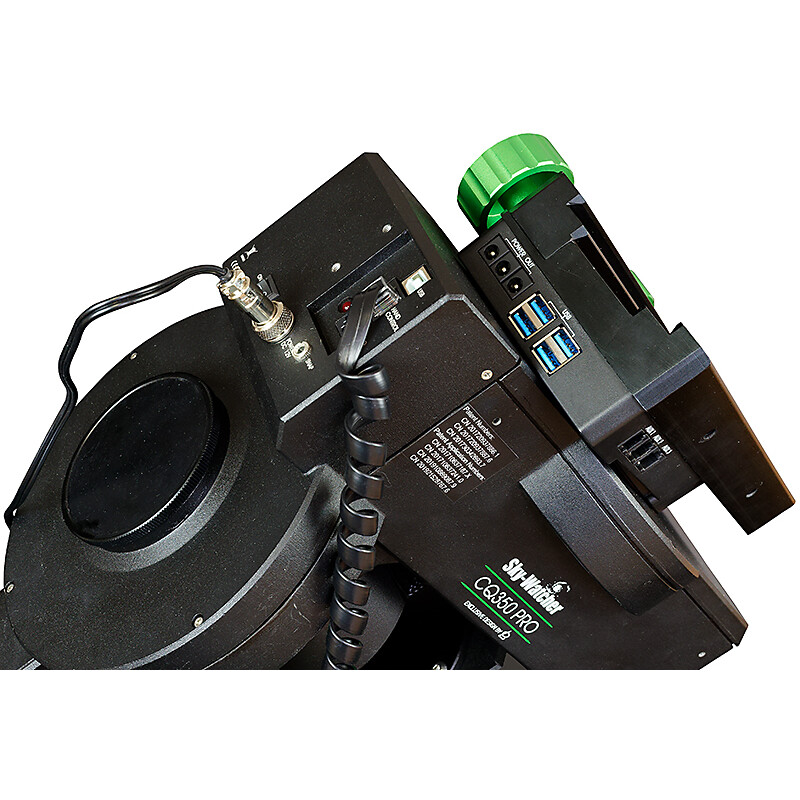

Skywatcher Mount CQ350 Pro Synscan GoTo Tripod

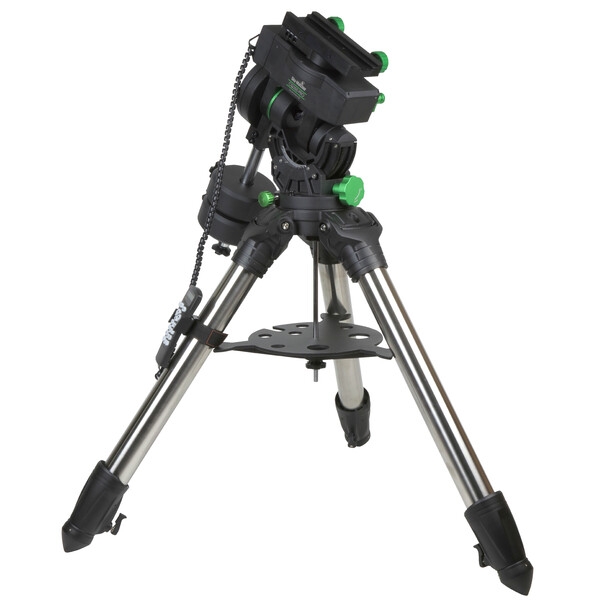

Skywatcher Mount CQ350 Pro Synscan GoTo Tripod

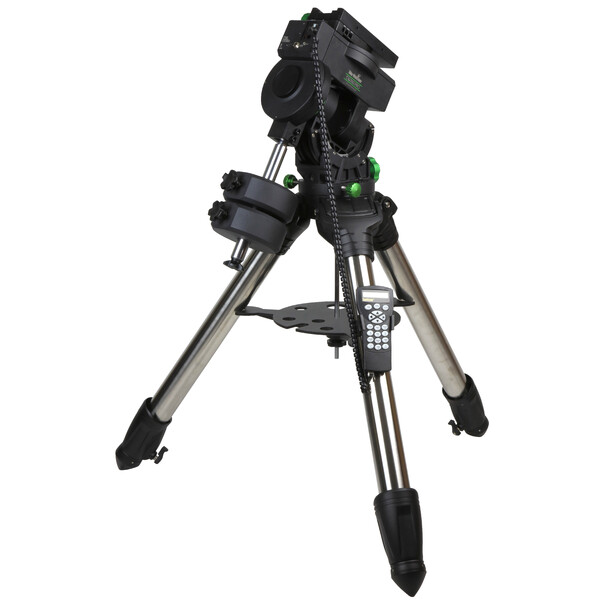

Skywatcher Mount CQ350 Pro Synscan GoTo Tripod
