Product description:

Please note that this product desciption was translated by a computer. For more information please contact our english speaking customer service.

Paramount MX + mount is a mount, which can be used both in transportablen- as well as firmly established insert completely in the remote operation.

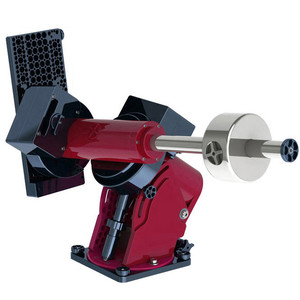

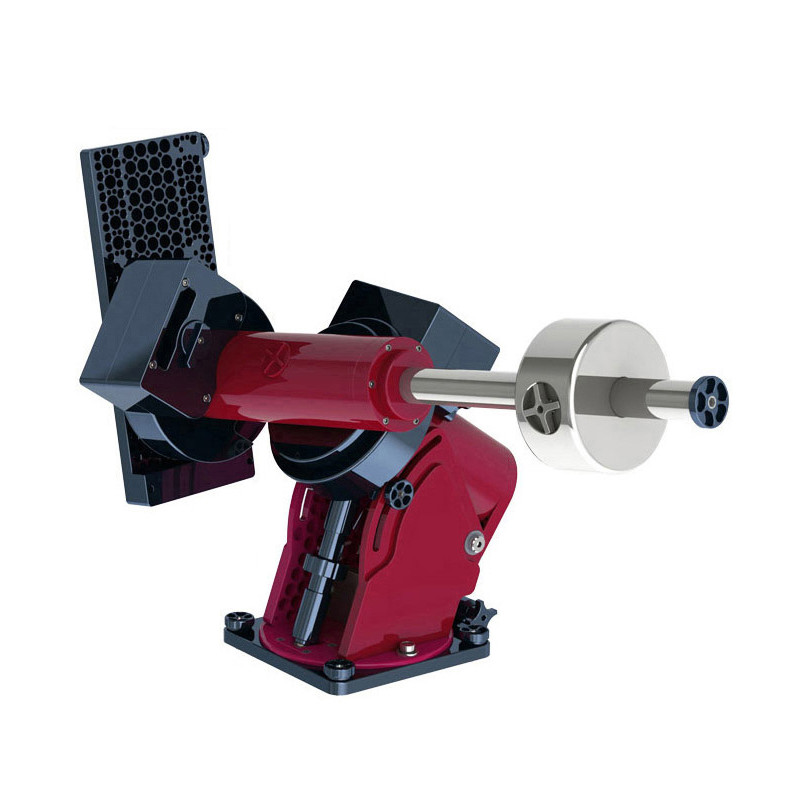

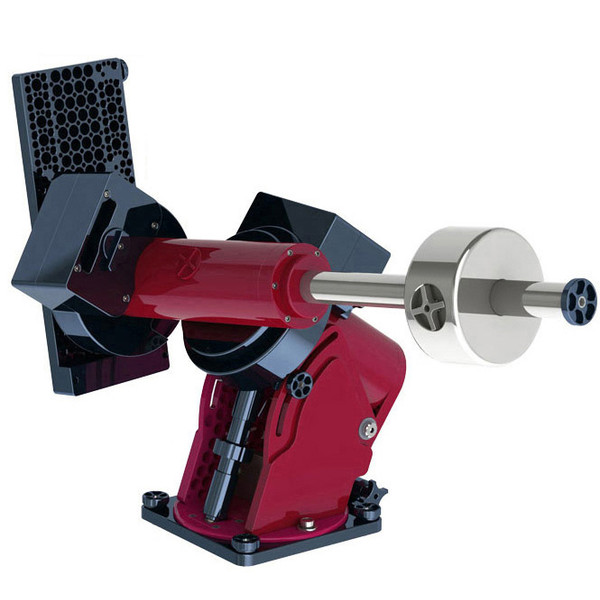

The Paramount MX +

carries telescopes up to a total weight of 45 kg (depending on the length)
at a weight of only 23 kg (Achskreuz)
It offers an internal wiring through the polar axis with plenty of room for other accessories Cable
The periodic error is max. 7 arc seconds (peak to peak, without further PEC correction by the control software)
The positioning accuracy is 30 arc seconds (with software support TPoint) in the middle
Both axes are absolutely backlash-free (Backlash) by a belt drive of the axis drives

The Paramount MX + is supplied with the following software:

TheSkyX Professional Edition (Mac and Windows)
TPoint Add On (including ProTrack and supermodel) for TheSkyX Professional Edition.
Camera Add On for TheSkyX Professional Edition.
Multi-OS and Six License add-on for up to six different computer

Recommended accessories:

Before buying this product, make sure to check our accessory recommendations.

accessory details

Specifications:

Capacity Capacity X Under the heading capacity you can find the technical properties of an accessory. Click to read more...
Max. additional load capacity (kg) Max. payload X For observing, the tube weight should not exceed the mount’s maximum payload. For a stable photographic combination of tube and mount, it is wise to also pay attention to the tube length and dimension, where appropriate, to stay below the maximum load, as the leverage effect on the mount must be taken into account. Click to read more...	45
Counterweight(s) (piece) Counterweight(s) X The counterweights are not taken into account when specifying the total weight, as the number of weights required depends on the optics used. Click to read more...	2 x 9kg
Material of worm gear	Brass
Material of worm wheel	Brass
Worm gear teeth (DEC) (piece)	320
Worm gear teeth (RA) (piece)	320
Diameter of counterweight bar (mm)	38,1
Long counterweight rod (mm)	410
Polar elevation setting (°)	0 - 64
Slow-motion azimuth adjustment	-+3,5
Interfaces Interfaces X The interface is the type of connection or cable between the device (e.g. a camera) and computer, such as: USB, RS232, firewire or analogue video. Click to read more...	USB 2.0
Software Software X Software included with the accessory. Click to read more...	TheSky X Professional Edition
Supported operating systems	Mac OS, Windows
Motor type	Servomotors
Material of counterweights	Stainless steel
Mounting saddle	Losmandy-Style
Weight (g)	23
Position precision	30
Special features
GoTo system GoTo system X An object can be selected using a hand-control box, the telescope will be automatically directed to it, and the object is positioned in the field of view. Click to read more...	yes
Equipment
Power pack	yes
Carrying case	no
Tripod <p>	without tripod
General
Total weight (kg)	45
Series	Paramount M
Type	Mount
Type of build	Equatorial
Area of application Areas of application X Information about areas of application serves as a rough orientation. Click to read more...
Useful for photographs	yes
