Mounts & accessories > Mounts > Equatorial with GoTo > WarpAstron > WarpAstron WD-17 Harmonic Mount
Product no.: 83946

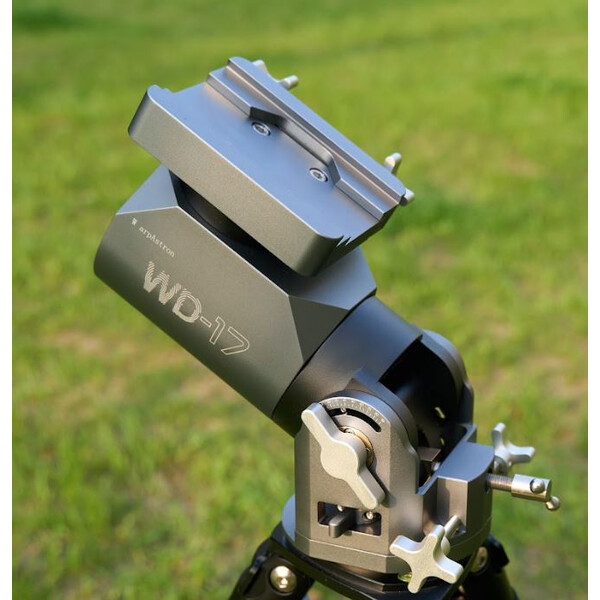

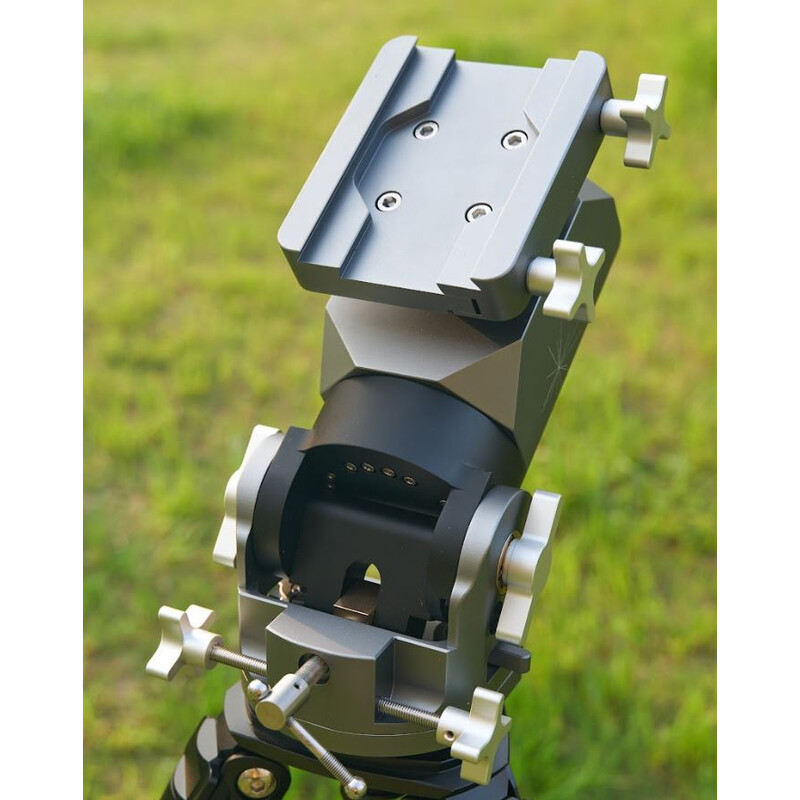

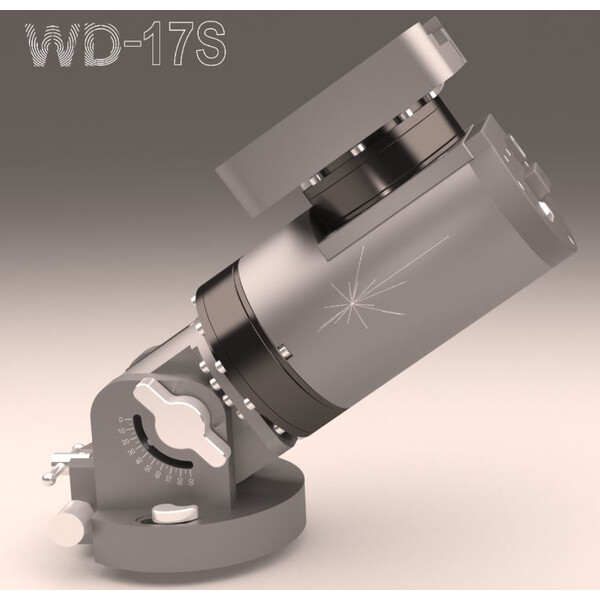

WD-17 Harmonic Mount

$ 3,520.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time
Product questions?
advice for Mounts & accessories

Product description

The WD-17 is a servo-direct drive harmonic mount. It offers a standard payload of up to 15 kg without counterweights. With an optional counterweight, the payload can be increased to up to 20 kg! Most telescopes, such as a 100 APO or a C8, can be handled with ease. The newly designed mount head with a high-power servo motor significantly increases the load capacity, while the actual mount weight remains at only 3.8 kg. Both axes are equipped with a home sensor, which makes astrophotography for remote control/observatory even more convenient.

Specifications

Capacity

Max. additional load capacity (kg)
15 (without counterweight)
Input voltage
12
Mounting saddle
Losmandy & Vixen

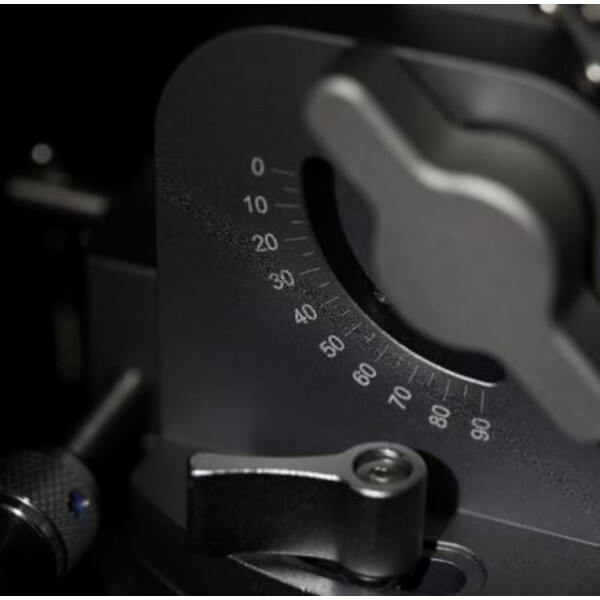

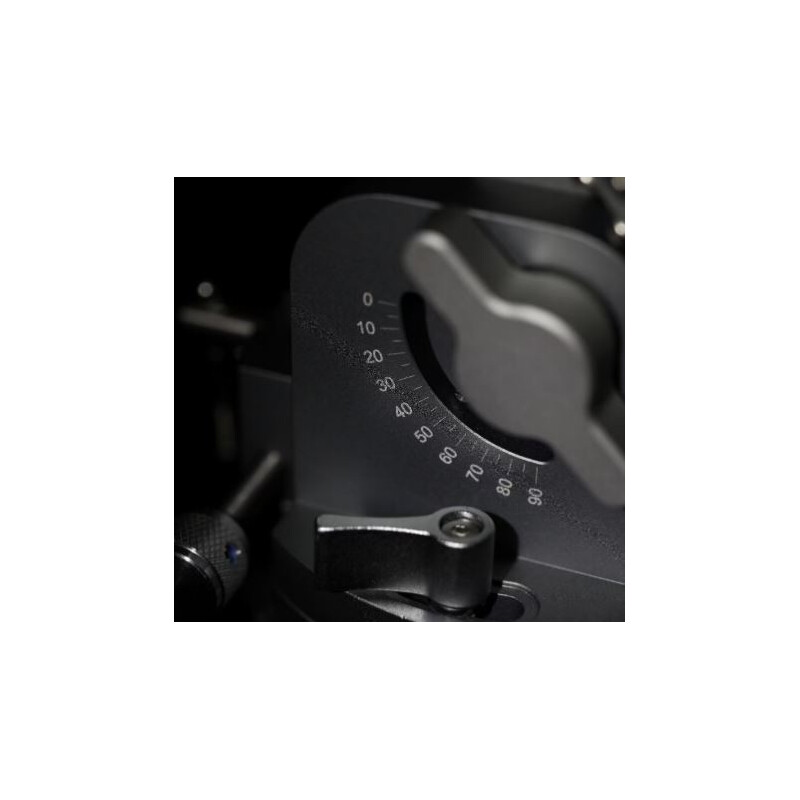

Polar elevation setting (°)
0-90
Cable-guide
internal
Drive type
Harmonic / Strainwave
Pre-drive
Direct drive
Counterweight(s) (piece)
0 (Optional)
Encoder
yes

Special features

Handcontroller
yes
Polar axis scale
yes
Autoguider interface
yes
GoTo system
yes
GPS
yes

Equipment

Pole finder
no
Tripod
without tripod
Other contents
Pier extension
Transport cases
yes
Cable
USB

General

Total weight (kg)
3,8
Type
Mount
Type of build
Equatorial
show more...

Product safety

Manufacturer: WarpAstron Optical Co., Ltd., Building No. 2 / Wanzhen Road, Jiading District, 201800 Shanghai, DE, [email protected]
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]
Product safety

Recommended accessories

Telescope accessories (2)

Omegon Pro Powerbank 48k LiFePO4 154Wh 12V

$ 199.00*
+ Show more accessories in this category: 1

*All prices include VAT plus shipping costs.

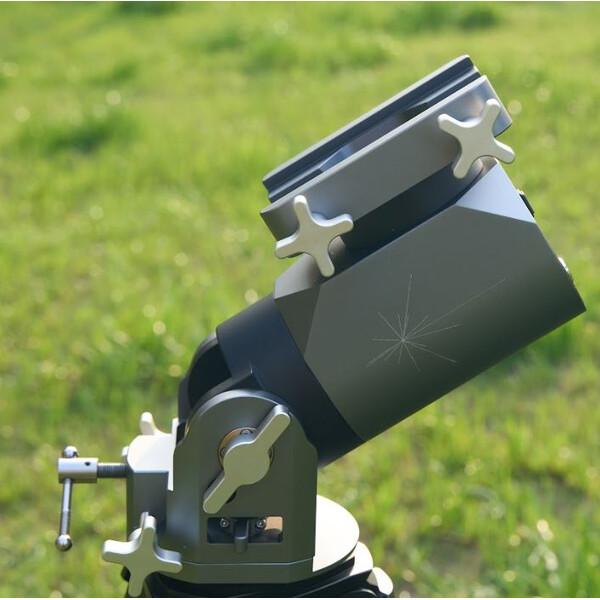

WarpAstron WD-17 Harmonic Mount

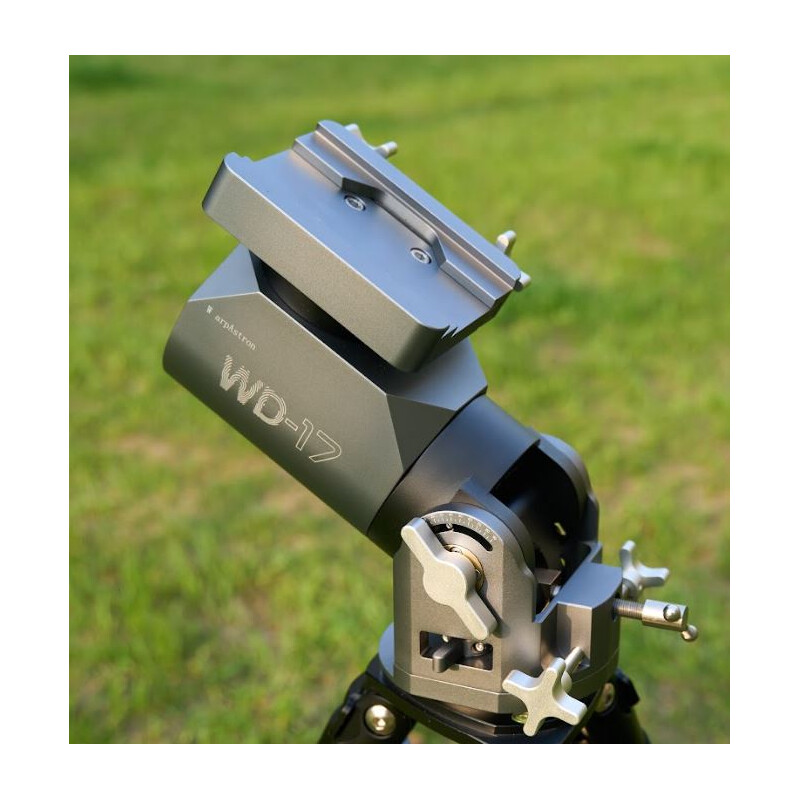

WarpAstron WD-17 Harmonic Mount

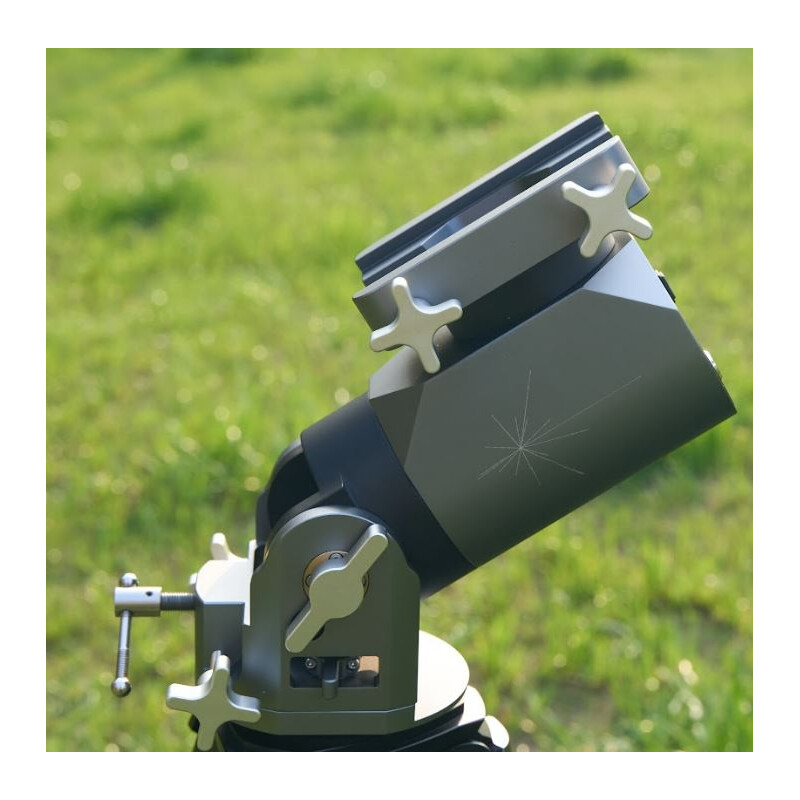

WarpAstron WD-17 Harmonic Mount

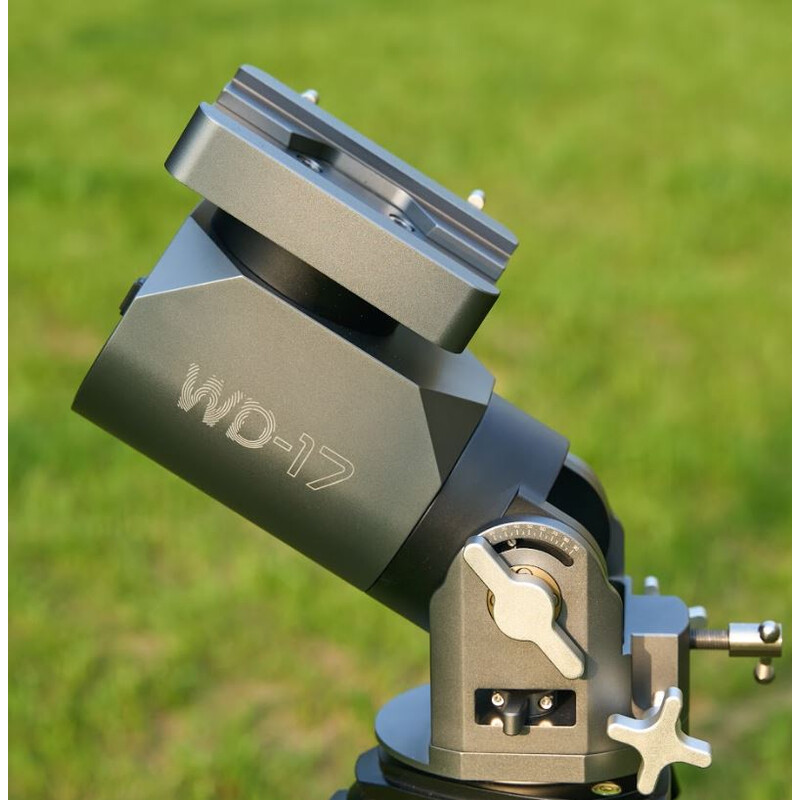

WarpAstron WD-17 Harmonic Mount

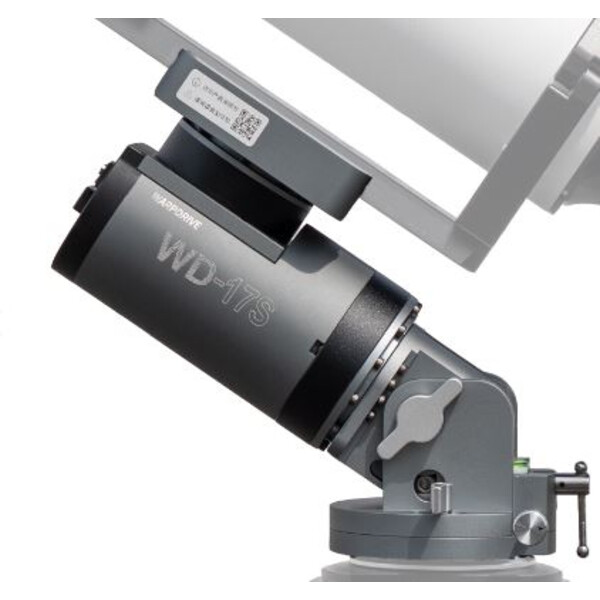

WarpAstron WD-17 Harmonic Mount

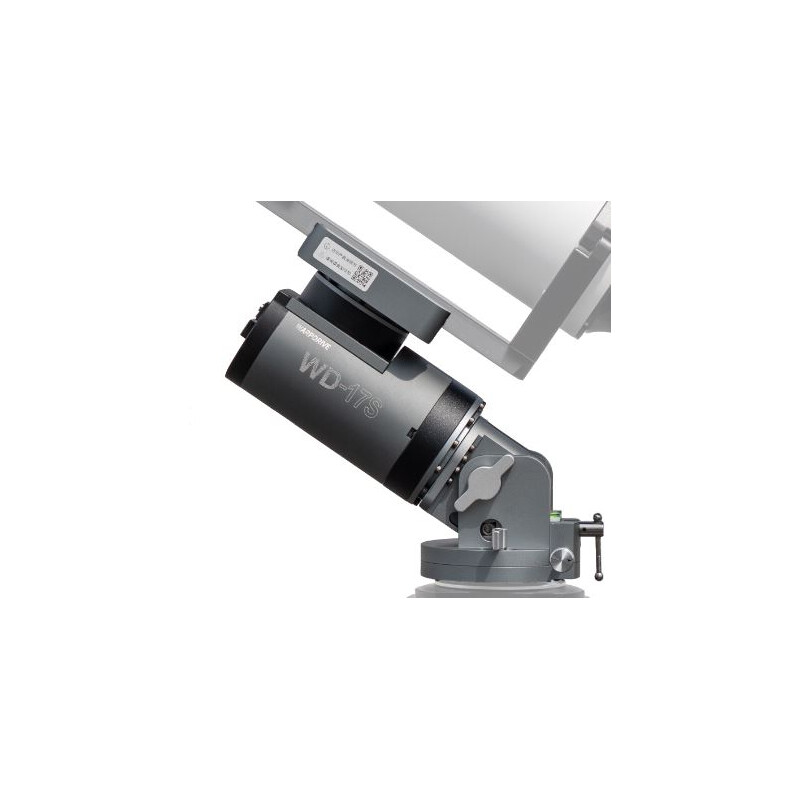

WarpAstron WD-17 Harmonic Mount

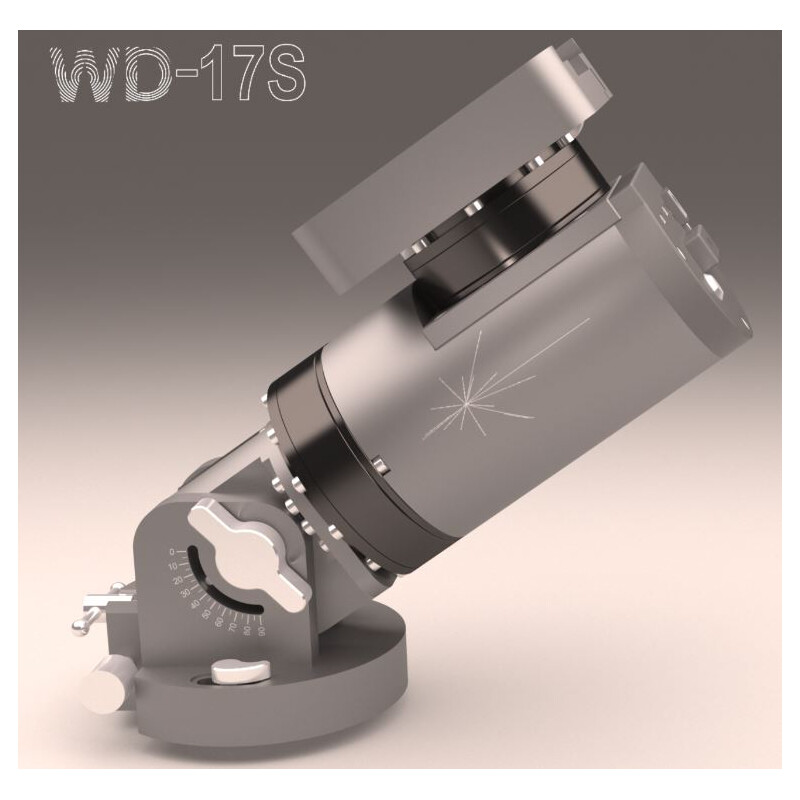

WarpAstron WD-17 Harmonic Mount
