Mountings & accessories > Mountings > Equatorial without GoTo > Vixen > Vixen GPD2 mount (without tripod)
Product no.: 5076

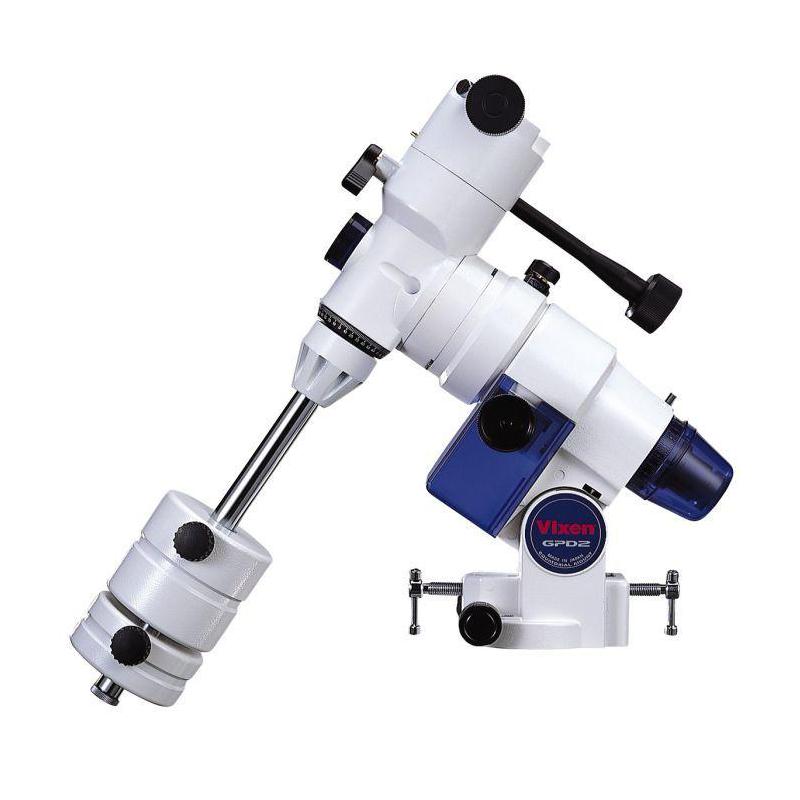

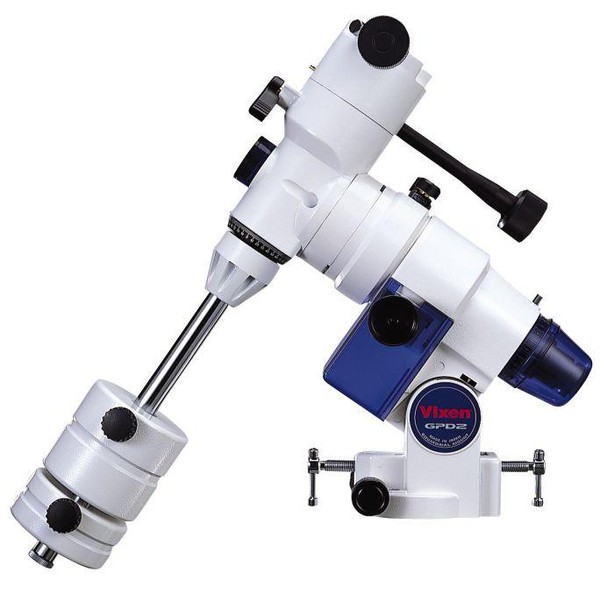

GPD2 mount (without tripod)

$ 970.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time
Product questions?
advice for Mountings & accessories

Product description

GPD2 mounting

The GPD2 equatorial mount is the stronger and heftier of the GP mounts. With its solid steel R. A. and Declination axes and brass worm gears, this mount will hold up to years of heavy use. In order to assure accurate tracking for astrophotography the worm gears are especially machined to a very high precision that minimizes periodic error. The GPD2 Mount is equipped with a polar axis scope with a built in variable intensity illuminator. Add the D2M Motor Set for accurate Tracking.

Specifications

Capacity

Type
Equatorial mount
Designation
GPD2
Max. additional load capacity (kg)
10
Polar elevation setting (°)
0-62
Motor speeds
Schrittmotorsteuerung optional erhältlich
Position precision
-
Precision of tracking
-
Worm gear teeth (RA) (piece)
144
Counterweight(s) (piece)
2 (1x 3,7 kg, 1x 1,9 kg)
Diameter of counterweight bar (mm)
-
Connection manual controller
-
Power supply
-
Power consumption in open circuit (mA)
-

Special features

Graduated circles
-
Accessory tray
-
Traveling mount
-
Size suitable for hand luggage
-
Polar axis scale
yes

Tripod

Stand column
-
Max. tripod height (cm)
-
Tripod weight (kg)
-
Tripod material
- (Tripod optionally available)

General

Colour
white
Length (mm)
-
Width (mm)
-
Height (mm)
-
Total weight (kg)
14,1
show more...
Vixen GPD2 mount (without tripod)
