Eyepieces > Explore Scientific > 82° > Explore Scientific Eyepiece 82° Ar 14mm 1.25"
( 5 / 5 )
Product no.: 22598

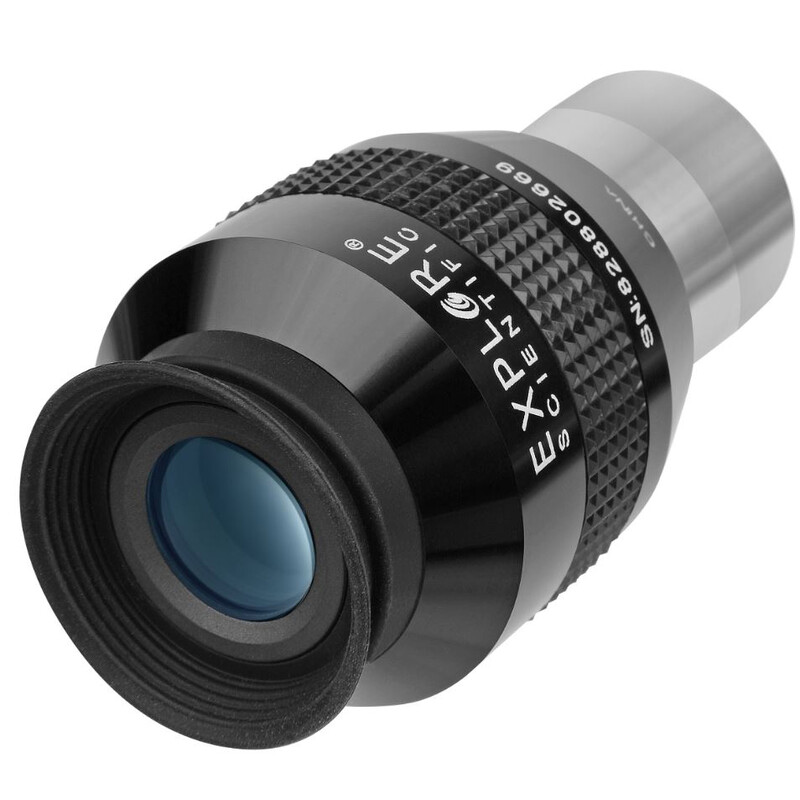

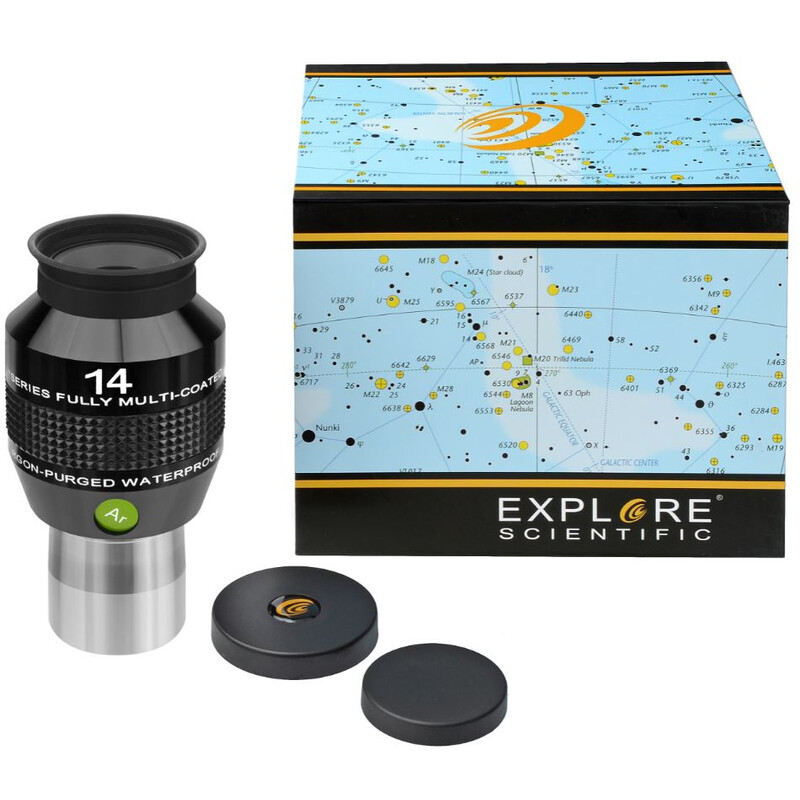

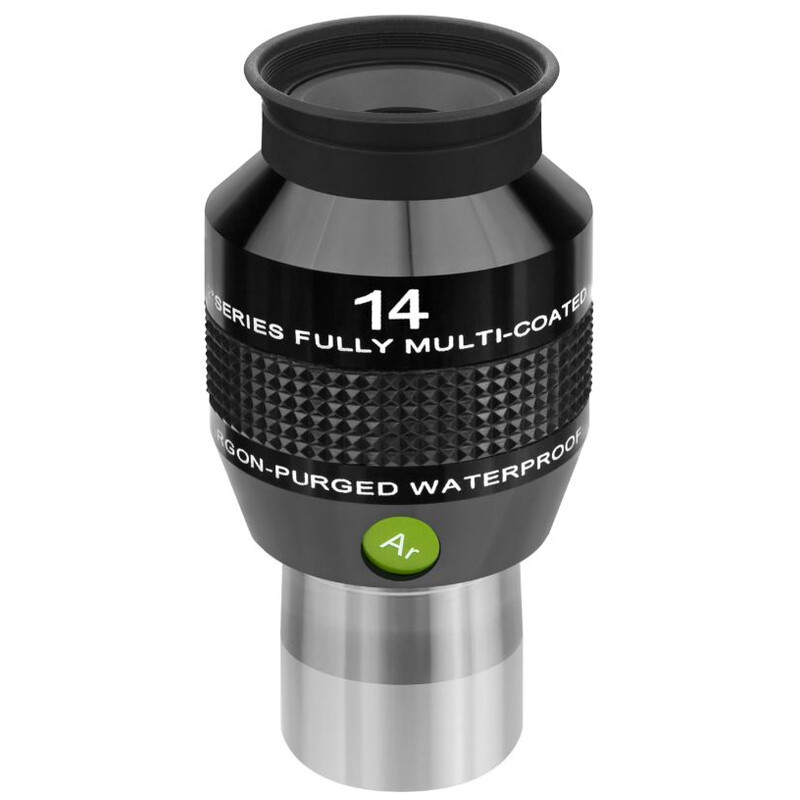

Eyepiece 82° Ar 14mm 1.25"

$ 203.00 incl. VAT, plus shipping costs
too expensive?
on stock
ready for shipping in 24 h + lead time

Product description

14mm waterproof ocular with 82° apparent field of view

Using advanced computer design, combinations of low dispersion and high refractive index optical glasses, and durable multilayer deposition coatings, Explore Scientific 82° Series extreme wide field eyepieces are optimized to produce high contrast, high resolution, and superior flat field characteristics.

The visual effect of these eyepieces with their long eye-relief and their 82° apparent field is truly a full-immersion experience. Your eye is relaxed, allowing you to easily use the "averted vision" technique to study faint details across a huge field-of-view.
Each eyepiece is meticulously assembled into precision machined metal lens barrels that maintain the perfect alignment of the optical train for years of rugged use in the field.The 82° Series eyepieces come with a fold-up rubber eye-guard that raise to the desired height for the comfort of the observer, and as experienced astronomers know, eye comfort is critical when trying to observe at the visual limits of the telescope.
To keep internal reflections to a minimum, all internal surfaces of the eyepiece barrel are flat black, as well as the edges of the lenses themselves to minimize the scattering of light within the lenses themselves.

Protection from the Outdoors:
By making the eyepiece body argon-purged and waterproof eyepiece internal elements will remain as pristine as the day they were assembled. The sealed, dry environment is impervious to internal fogging and contaminants such as fungus growing in between the lens elements. This waterproof eyepiece is easier to clean, and there is no risk of cleaning solution migrating from the top of the lens and seeping around edges to be trapped in between elements.

Specifications

Capacity


Focal length (mm)
14
Apparent field of view (°)
82
Eye relief (mm)
15,6
Coating of optical system
EMD multi-coating
Number of lenses
7
Number of groups
4
Connection (to the telescope)
1,25"

Special features


Adjustable eyepiece cup
yes (folding)
Homofocal
yes
Illuminated
no
Filter thread
yes
inert gas charge
yes

General


Length (mm)
83
Diameter (mm)
47
Weight (g)
305
Series
82°
Type
Eyepiece
Type of build
UWA

Recommended accessories

Telescope accessories (1)

Omegon aluminium case, large

$ 89.00*
Astronomy (2)
Carrying bag

Oklop Carrying bag for accessories

$ 55.00*

*All prices include VAT plus shipping costs.

Explore Scientific Eyepiece 82° Ar 14mm 1.25"

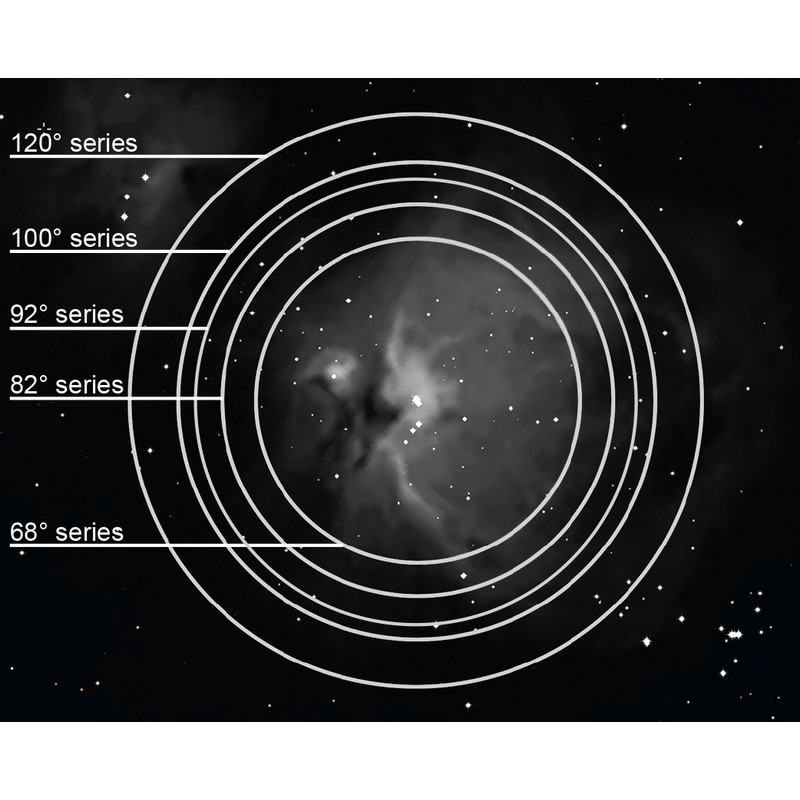

Comparison of the fields of view of different Explore Scientific eyepiece series

Customer reviews

Excellent

Review by M. G. on 26.07.2022 21:44:09

( 5 / 5 )

This a really fine eyepiece. The field of view is very wide and the stars are sharp from edge to edge (with coma corrector explore sci.). The optics is superb. M13 was resolved into individual stars, M57 was beautiful and well defined, M51 with arms, Albireo A and B colours very vivid. Material quality is superb.
