Eyepieces > Omegon > Redline > Omegon Redline SW 17mm Eyepiece 1.25" / 2"
( 5 / 5 )
Product no.: 33238

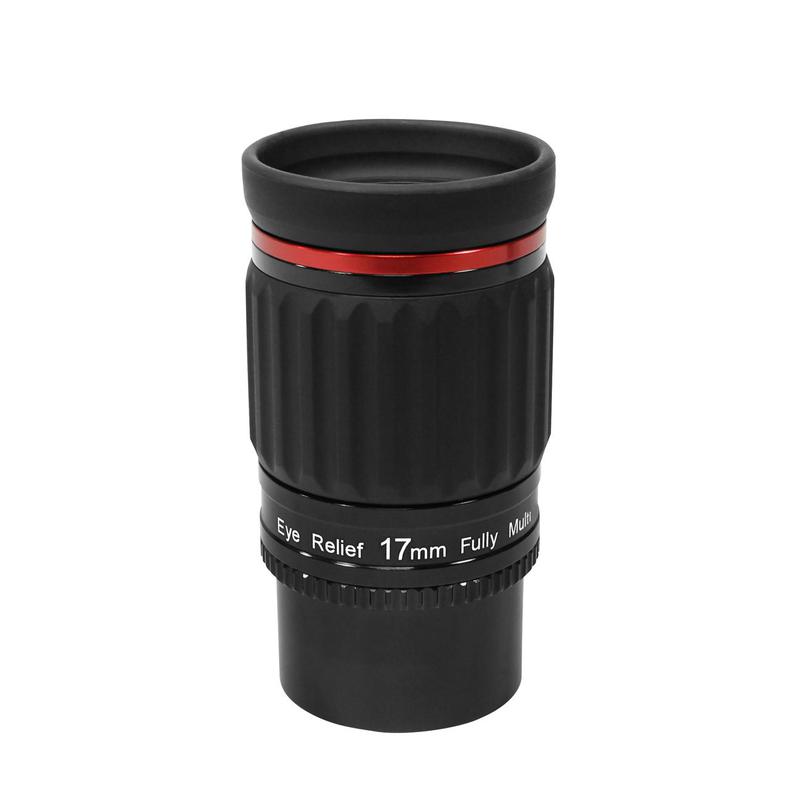

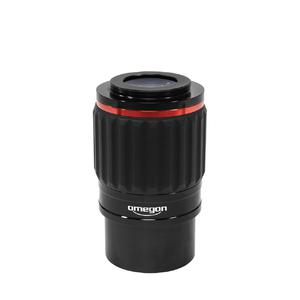

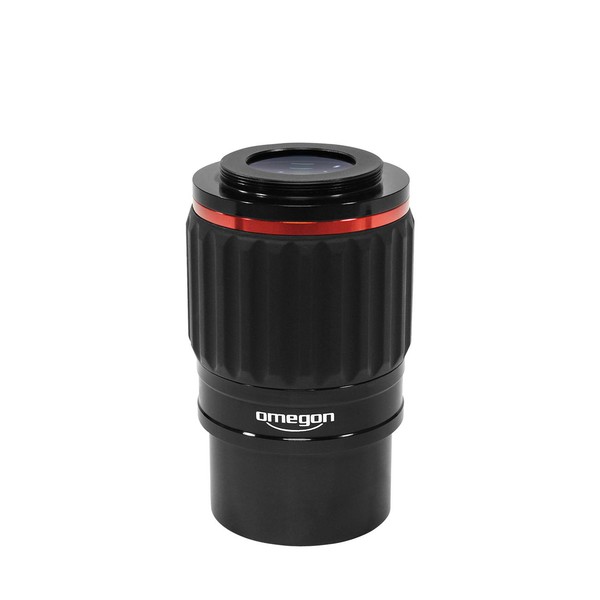

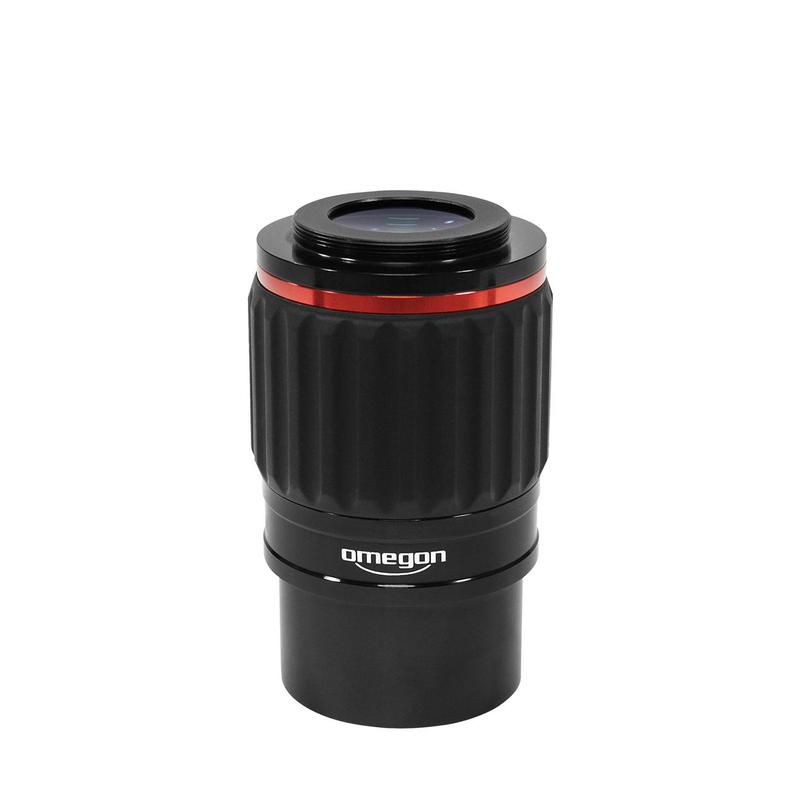

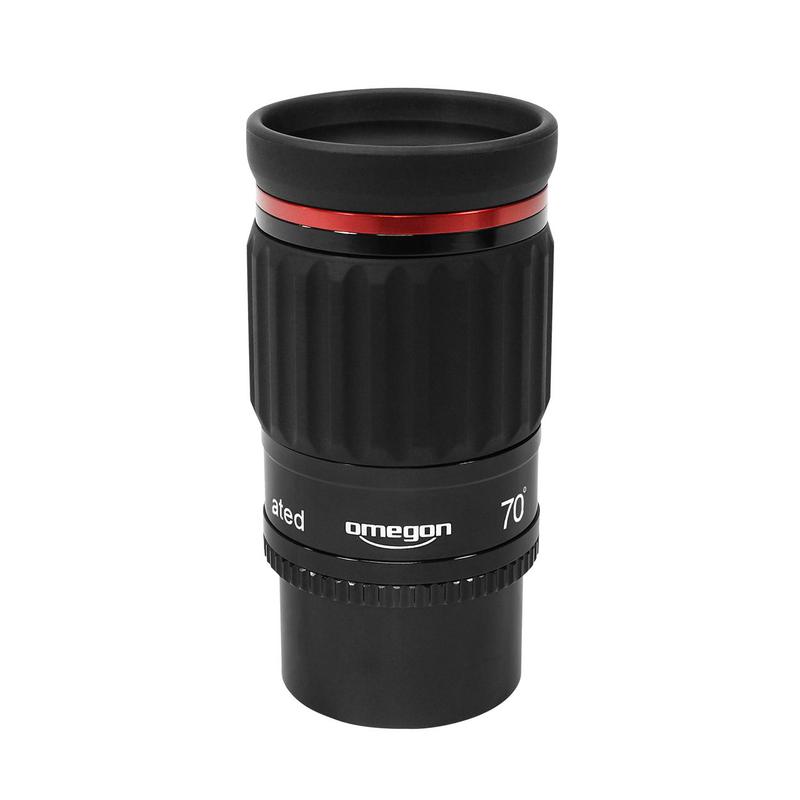

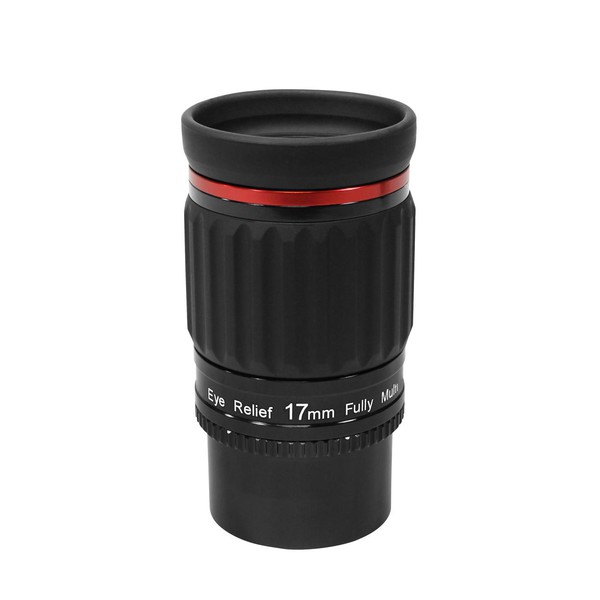

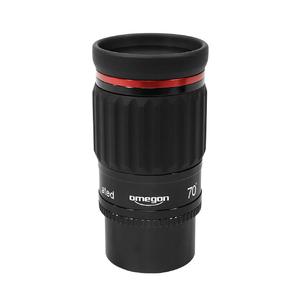

Redline SW 17mm Eyepiece 1.25" / 2"

$ 149.00 incl. VAT plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time

Delivery possible before Christmas (European destinations) - when you order by 18.12.!
Right of return up to January 31 2025!


Product description

More about the series Redline...

Omegon Redline SWA 70° eyepieces with ED optics

Perhaps you have experienced observing when objects just don't seem to be really sharp. This is often due to using the wrong eyepiece, as these important accessories often decide whether you suffer with or enjoy your observing.

Redline Omegon eyepieces provide a high contrast image at all times - the built-in ED element making this possible. The 70° wide angle optics mean you always enjoy a huge field of view.

ED element - high-contrast optics for planetary and deep-sky observing

The first time you observe an object through one of these eyepieces, you will almost certainly be struck by the brilliance, clarity, and depth of colour in the image. What you are seeing is the excellent contrast and sharpness produced by this eyepiece - you can make out fine detail, different shades of colour and fine swirls in the cloud bands on Jupiter for example.

Just like in the cinema - 70° wide angle

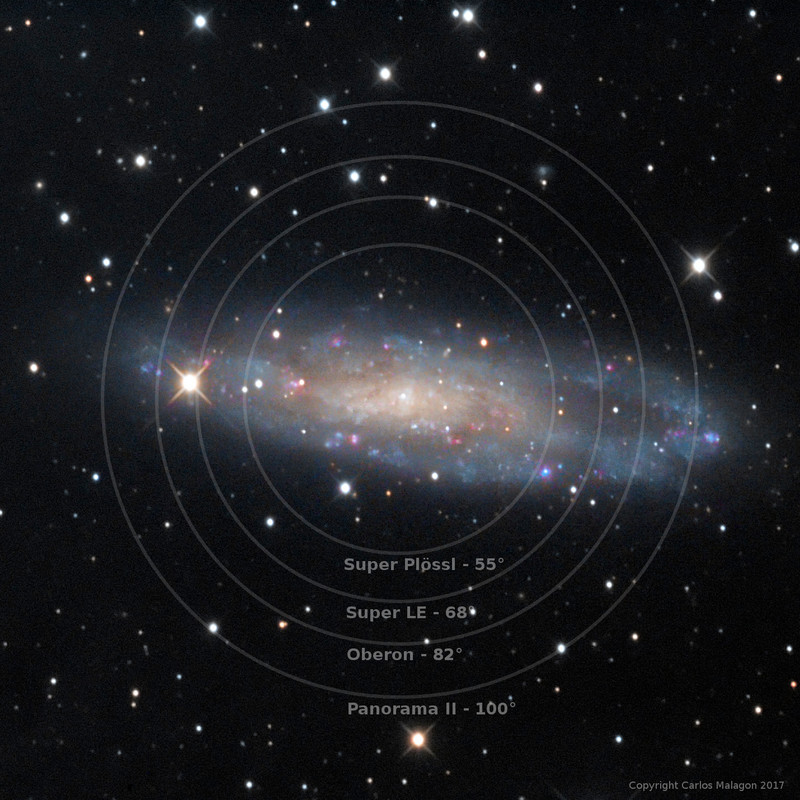

The Omegon Redline gives a 70° field of view, which lets you see a huge swathe of the night sky. No more looking down a thin tube - as was the case with some earlier types of eyepieces. You can observe extended objects in their entirety. A 70° field of view is a physiologically perfect match for the human eye, as your eye can then observe in a relaxed way, without having to strain.

Long eye relief - comfortable observing

The very generous 20mm of eye relief means your observing is always completely comfortable for all the focal lengths available in this eyepiece series.

Spectacle wearers can leave their glasses on, as the entire field of view remains visible even then. And if your spectacles correct for astigmatism, it is a definite advantage to be able to leave them on, as you can see a sharper image.

Astrophotography? It's easy!

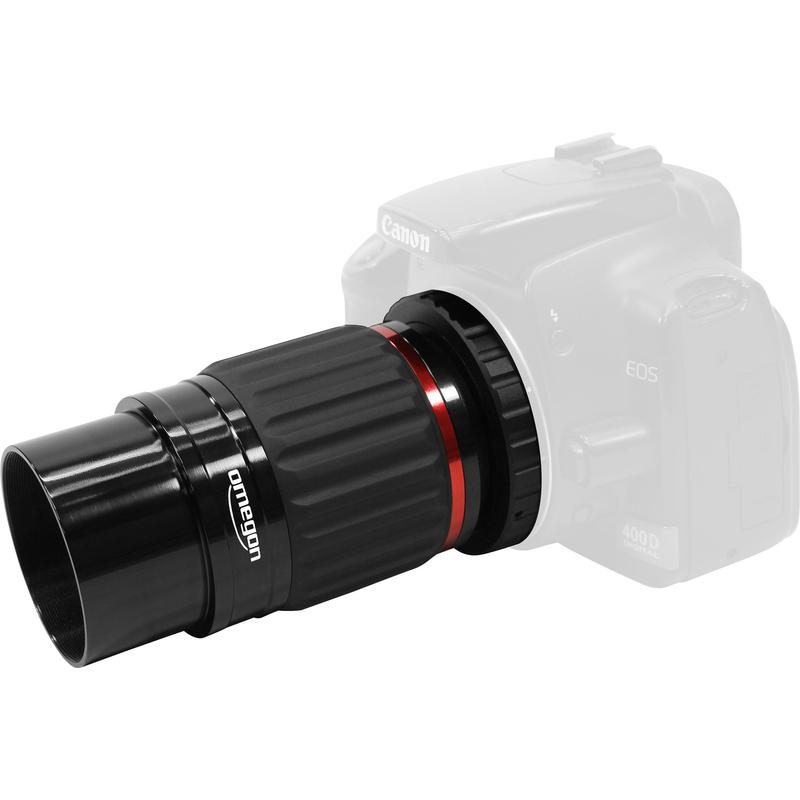

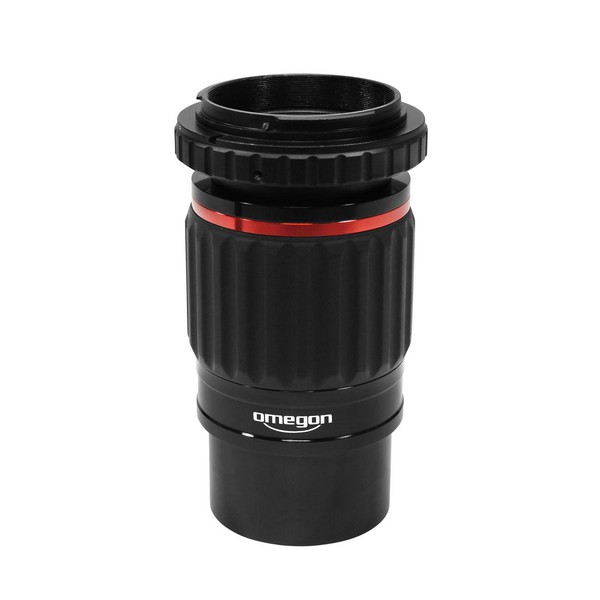

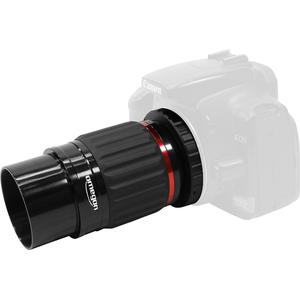

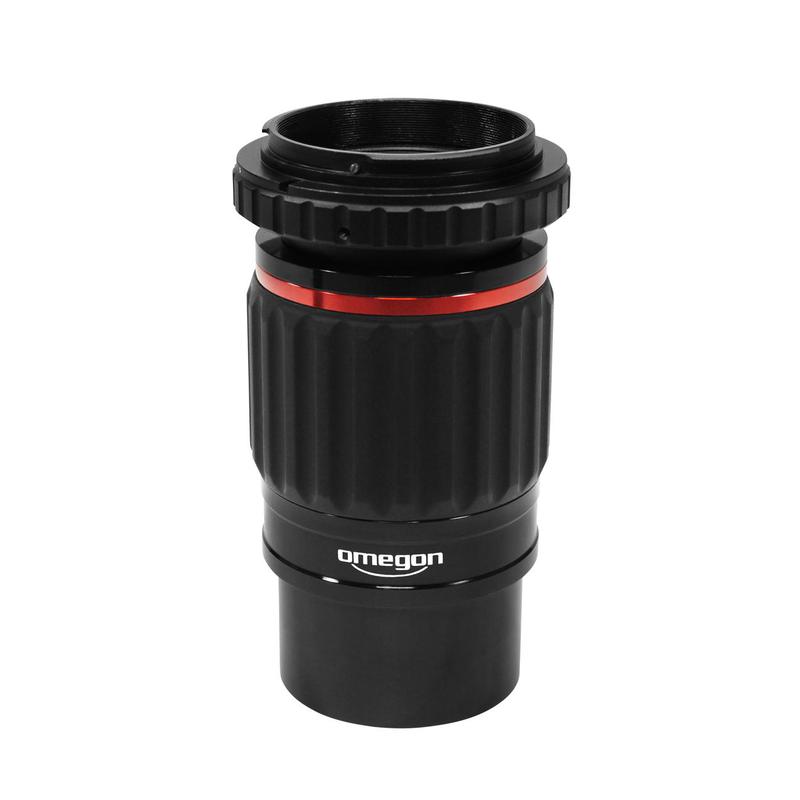

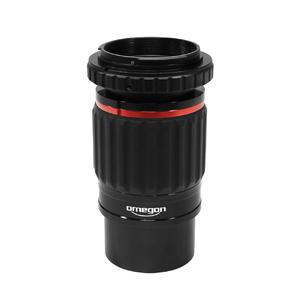

A thread under the rubber eyecup provides an opportunity for doing astrophotography. A suitable M43 to T-2 adapter will let you connect your SLR or compact camera and then you're all set for your astrophotography. An interesting possibility is, for example, not only imaging planets but also planetary nebulae. No other eyepiece series offers this.

1.25" and 2" connectors - no need to change adapters

The Omegon Redline eyepieces - from 17mm to 3.5mm in focal length - have both 1.25" and 2" barrels. A 2" barrel sits directly above the 1.25" barrel. This saves having to fiddle about with extra adapters - just use your 2" focuser for all the different focal lengths.

A series that covers everything

The Omegon Redline series includes 6 different focal lengths - 32mm, 22mm, 17mm, 13mm, 8mm, 5mm and 3.5mm. This covers an incredibly range of magnifications with just a single eyepiece series - all of which provide an excellent image.

The 6 eyepieces in the series are practically parfocal, meaning there is no need to re-focus when changing eyepieces.

The advantages in a nutshell:

  • a crisp image - even in fast F5 Newtonian telescopes
  • 20mm of eye relief - comfortable observing
  • suitable for spectacle wearers
  • the 70° field of view shows you a vast area of the night sky
  • M43 thread under the eyecup (for optional adapter) for astrophotography
  • eyepiece can be held securely, even with gloves on
  • anodized colour rings for easy identification of the different focal lengths
  • 1.25"and 2" barrels

No need to change adapters

The Omegon Redline eyepieces from 3.5mm and 17mm focal length have 1.25" and 2" barrels. A 2" adapter sits directly over the 1.25" barrel. This saves you having to fiddle with adapters. Simply use all the focal lengths in your 2" focuser. In addition, the 22mm and 32mm focal length eyepieces only have the 2" barrel in order to allow the full 2" light passage.

One eyepiece line that covers everything

The Omegon Redline series includes 6 different focal lengths: 3.5mm, 5mm, 8mm, 13mm, 17mm, 22mm and 32mm, in order to cover an enormous range of magnifications with a single series of eyepieces. Another advantage is that all eyepieces will provide you with excellent image quality.

6 eyepieces from one series also means very little re-focusing when switching eyepieces.

The advantages in a nutshell:

  • image is sharp right out to the edge of the field of view - even with f5 Newtonian telescopes
  • 20mm of eye relief - meaning comfortable observing
  • suitable for spectacle wearers
  • the 70° field of view covers a vast area of sky
  • astrophotography - M43 thread provided under the eyecup (for optional adapter)
  • eyepiece is easy to grip, even when wearing gloves
  • coloured anodized rings for easy recognition of the different focal lengths
  • 1.25" and 2" connectors (2" barrel only with 22mm and 32mm eyepieces)

Specifications

Capacity


Focal length (mm)
17
Connection (to the telescope)
1,25"
Apparent field of view (°)
70
Eye relief (mm)
20
Coating of optical system
multiple
Number of lenses
8

Special features


Adjustable eyepiece cup
yes
Optional camera adaptor
yes
Filter thread
yes
inert gas charge
no

General


Series
Redline
Type
Eyepiece
Type of build
SWA

Recommended accessories

Telescope accessories > Transport & storage (3)
Carry case

Oklop Carry case for accessories

$ 42.90*
Astrophotography (1)

Omegon M43 / T2 T-adapter

$ 19.90*

*All prices include VAT plus shipping costs.

Omegon Redline SW 17mm Eyepiece 1.25" / 2"
Omegon Redline SW 17mm Eyepiece 1.25" / 2"
Omegon Redline SW 17mm Eyepiece 1.25" / 2"
Omegon Redline SW 17mm Eyepiece 1.25" / 2"
Omegon Redline SW 17mm Eyepiece 1.25" / 2"
Omegon Redline SW 17mm Eyepiece 1.25" / 2"

Customer reviews

FANTASTIC for the price

Review by L. M. on 15.10.2024 11:55:29

( 5 / 5 )

FANTASTIC for the price

Honestly if you are considering this piece, stop considering, and buy it - its fantastic. Its wide, great eye relief, transmission, and a joy to use on most targets - go for it - you will not regret it!

Worth the price!

Review by K. A. on 03.06.2023 10:43:10

( 5 / 5 )

A really great eyepiece!
Similar to the 22mm version, this also satisfies all my needs, which I can expect from an eyepiece. In appearance and weight, it is almost exactly the same as its already mentioned "brother", the only difference is the unscrewable 2" sleeve.
Viewing is comfortable, the hard rubber holds the observer's head firmly in place. By unscrewing the eye cup, the field of vision can be seen even with glasses.
In F/5 refractors, I didn't think I could discover any unforgivable errors, the extreme, dull stars due to the curvature of the field (which is the fault of the telescope!) can be focused.
In F/6 Newton, using a coma corrector, the field of view offers a nice, even, enjoyable view.
Needless to say: a an eyepiece that meets all needs, at a good price. It's worth the invested amount. ?.
Astroshop, as always, was very fair, fast and cooperative. Thank you!
