Eyepieces > Vixen > SSW > Vixen 1.25" 7mm SSW eyepiece
Product no.: 47904

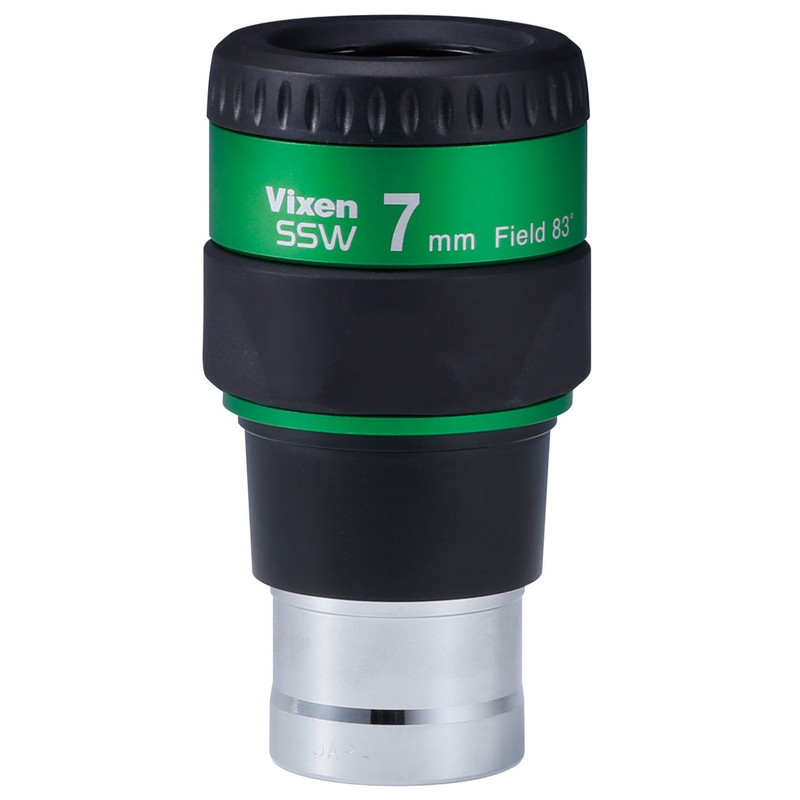

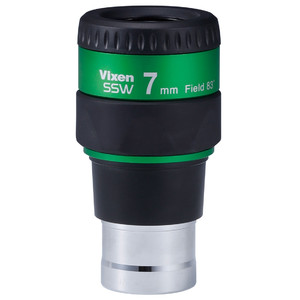

1.25" 7mm SSW eyepiece

$ 325.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

This high quality ultra wide angle eyepiece offers an enormous field of vision for your journeys through the universe: extremely sharp star images across the entire field of vision!

  • Material: the eyepiece is of high-quality glass with a high proportion of lanthanum, in order to achieve low dispersion.
  • Brightness: high-transmission multi-coating treatment on all lens surfaces in combination with a special coating on the connecting surfaces between the lenses provide extremely high contrast and a very bright field of view.
  • Light transmission: constant light intensity over the full 83 degrees field of vision without vignetting, even with very fast f/4 lenses. The eyepieces display outstanding image properties not only for fast lenses, but also for devices with larger apertures. Due to their slim design, they are also very well suited to powerful astronomical binoculars.
  • Comfort: retractable eye cups with non-slip rubber are especially comfortable in use. The eyepiece feels secure in your hand thanks to the flat rubber sleeve which also prevents it from rolling away.
  • Secure grip: a notch in the eyepiece sleeve ensures that it sits securely in your focuser. It may be clamped into place either using compression rings, or with the help of a simple screw.

With the SSW eyepieces you get the high quality of the Japanese manufacturer Vixen along with a really classy design.

Specifications

Capacity


Apparent field of view (°)
83
Number of lenses
7
Material
Aluminium
Eye relief (mm)
13
Connection (to the telescope)
1,25"
Coating of optical system
multiple
Focal length (mm)
7

Special features


Adjustable eyepiece cup
yes
inert gas charge
no
Filter thread
yes
Homofocal
yes

General


Series
SSW
Weight (g)
225
Type
Eyepiece
Type of build
UWA

Product safety

Manufacturer: Vixen Co. Ltd., 5-17-3 Higashi-Tokorozawa Tokorozawa-shi, 359-0021 Saitama, JP, www.vixen.co.jp
Responsible person: Bresser GmbH, Gutenbergstraße 2, 46414 Rhede, DE, [email protected]

Recommended accessories

Telescope accessories > Transport & storage (3)
Carry case

Oklop Carry case for accessories

$ 45.90*

*All prices include VAT plus shipping costs.

Vixen 1.25" 7mm SSW eyepiece
The image shows the difference: the Orion Nebula seen with an apochromatic refractor with a focal length of 625 mm. Using a 10 mm eyepiece in each case, the fields of view shown are obtained. The small circle represents an eyepiece from the SLV series by Vixen with a 50° field of view, and the significantly larger circle represents the SSW with 83°.
