Product no.: 48764

Reducer 0.63x / Corrector

$ 141.00 incl. VAT, plus shipping costs
too expensive?
Product not available anymore + lead time

Product description

For CCD, photographic, and visual applications.

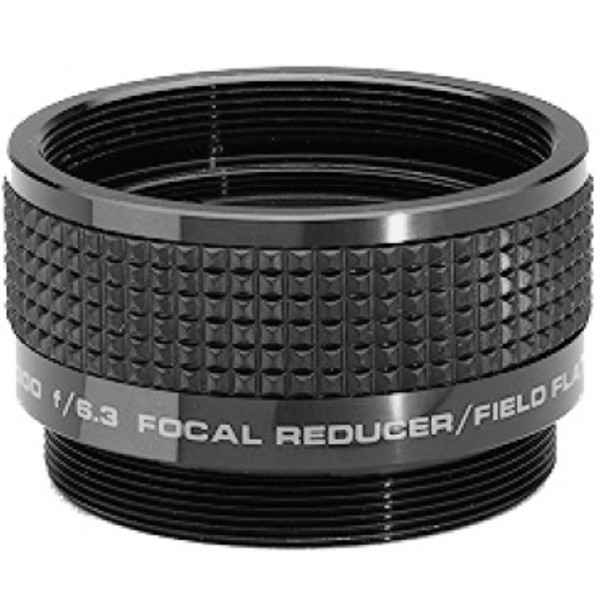

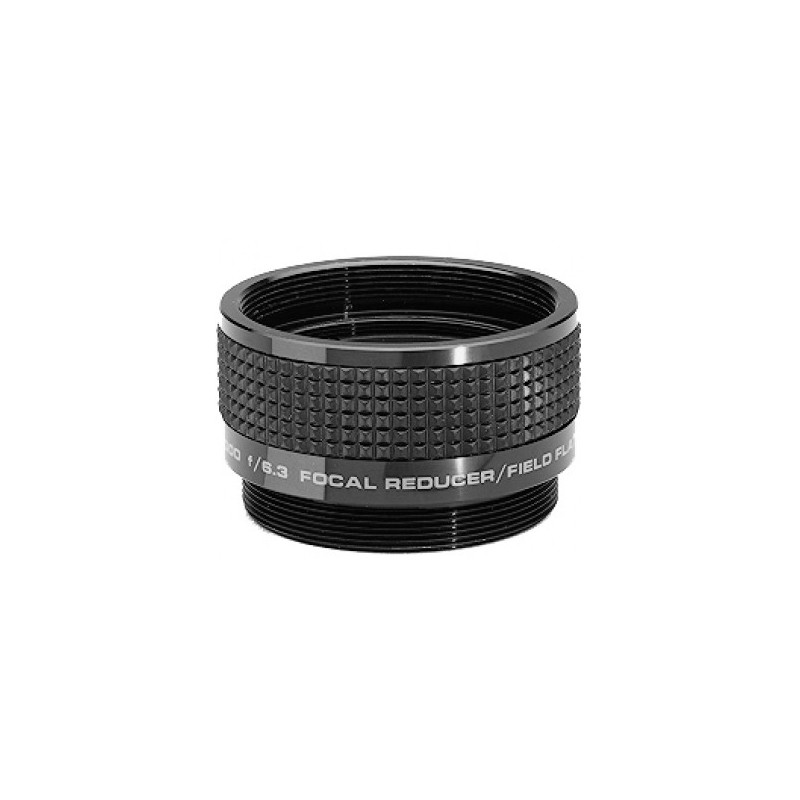

Series 4000 f/6.3 Focal Reducer/Field Flattener: An important advancement in high-resolution focal reduction systems, the Meade 4-element, multi-coated f/6.3 Focal Reducer (arrow) threads on to the rear cell of any Meade LX-Series mirror-lens telescope or to other Schmidt-Cassegrain telescope brands (followed by the Off-Axis Guider, shown, or T-Adapter) and reduces the telescopes focal ratio by a factor of 0.63: e.g., f/10 telescopes are converted to f/6.3. Simultaneously, the 41mm-diameter lens system helps to flatten the field, significantly improving edge-of-field corrections. The f/6.3 Focal Reducer enables a reduction of photographic exposure times by about 50%, while producing an actual field diameter of 38mm(1.5") at the film plane.



Focal length reduction
Lens diameter (mm)
Connection (to the telescope)
SC thread
Connector (at camera end)
SC thread
Number of lenses


Flatteners, Correctors, Reducers
Type of build
Meade Reducer 0.63x / Corrector
