Observatories > Instruments > NexDome > NexDome Complete Observatory 2.2m
Product no.: 50355

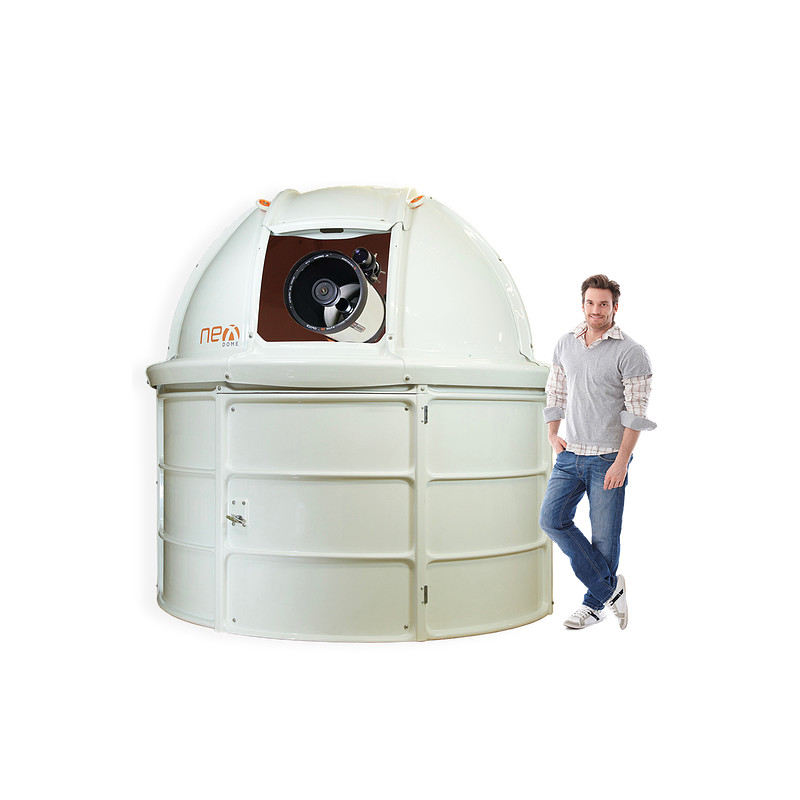

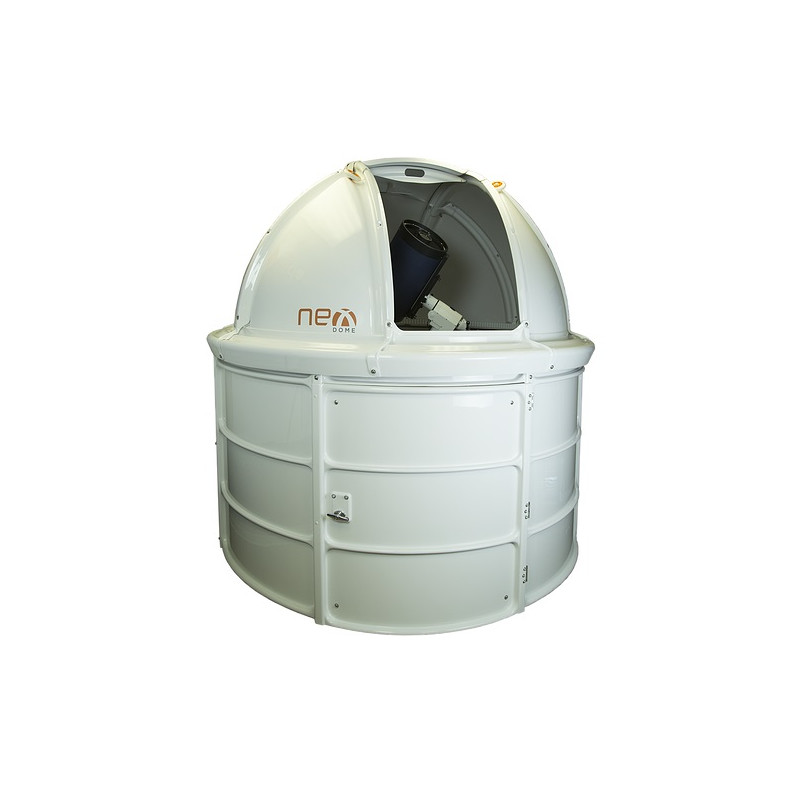

Complete Observatory 2.2m

RRP: $ 7,600.00 Our price:
$ 7,400.00 incl. VAT, plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time

If you are interested in this product, please contact our customer service:

Contact our service
This product is available in the following variants:
Number of Bays Price
0 $ 7,400.00
1 $ 7,600.00

Product description

NexDome provides a revolutionary design of observatories. The domes can be assembled in just a few hours.

We stock the domes in our German warehouse, ship fast and cost-effectively and provide multi-langual customer service.

Assembly service: We offer a complete turnkey installation service. For more information please use the "Contact Customer Service" button.

NexDome is the NexGeneration observatory that was designed with paying attention to problems and shortcomings of similar class observatories. To name a few, overall price due to shipping cost, cost of accessories to overcome faulty desing or make. We achieved our main goal which was a well priced, strong, inexpensive to ship, easily assembled and professional looking observatory by developing a modular design which addresses all our criteria.

Also, the other main advantage of this (patent pending) design is after sale support. The biggest support problem common observatories are the lack of possibility of returning the defective dome or walls hence the cost of shipping back can be more than the cost of the observatory itself and meanwhile you don't have any protection for your telescope and expensive gears. With NexDome if you manage to break a part or section, we will send you only that part without any hassels and you still have your observatory running. No repair!

The advantages in a nutshell:

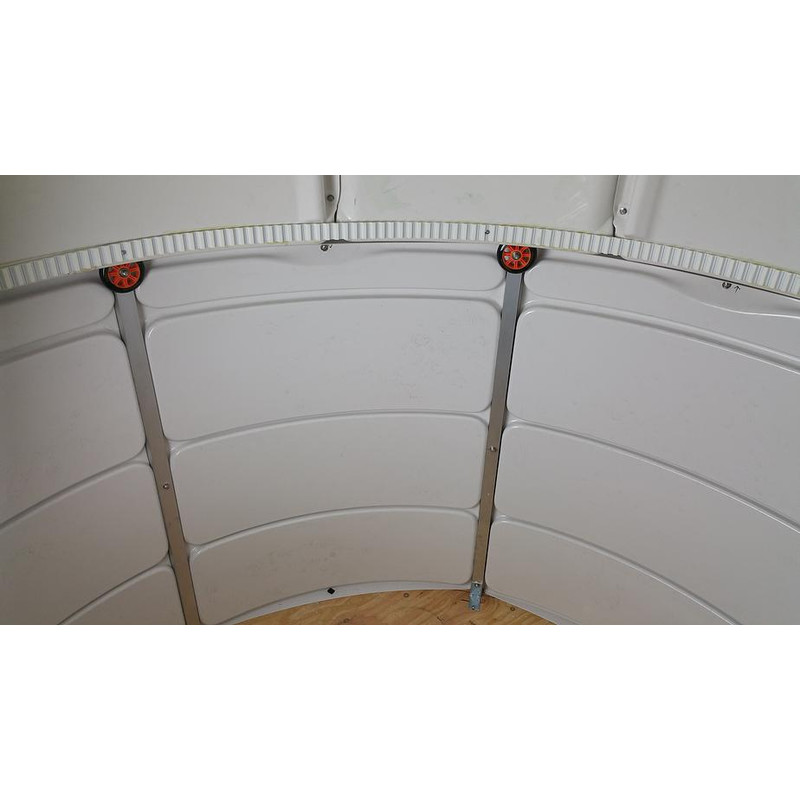

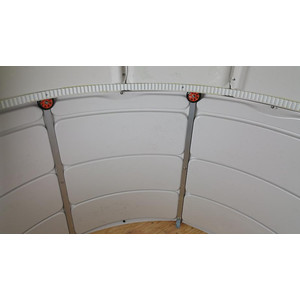

  • Nexdome’s unique dome wheels are installed at two different angles. An upright set of wheels bears the weight of the dome and provides for rotation, while a second set of wheels keeps the dome from shifting, resulting in smoother rotation. The second set of wheels, in conjunction with the dome’s angle lip, provides critical protection from uplift in high winds.

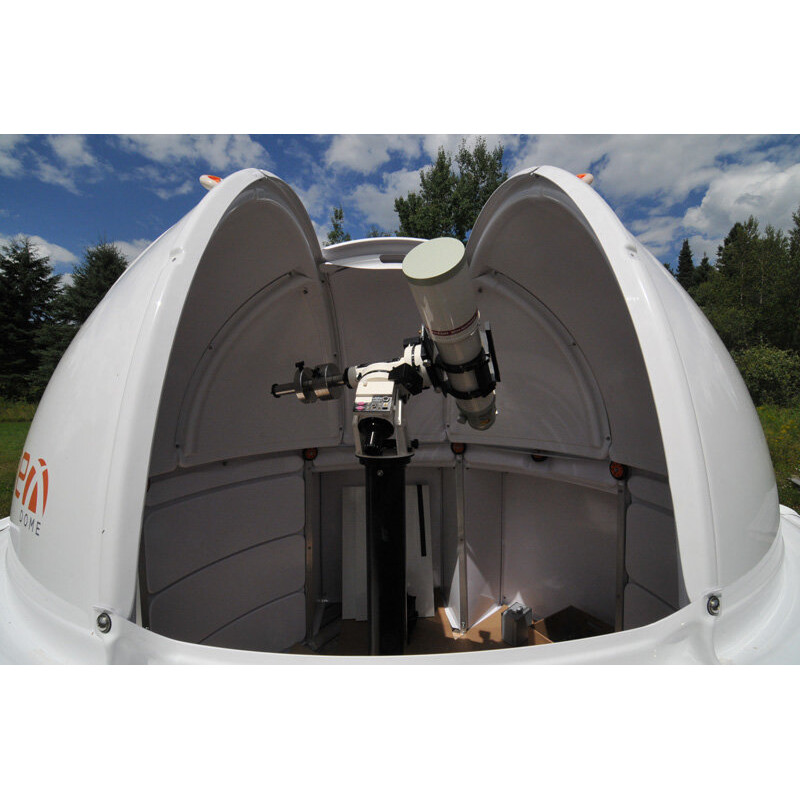

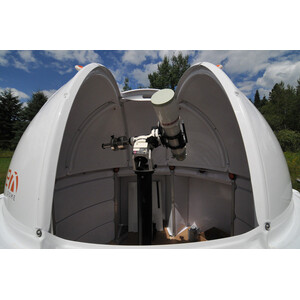

  • NexDome is a classic observatory dome with more than 100 degrees of shutter opening, allowing you to point your telescope to the zenith while the remaining shielded from stray light and wind.

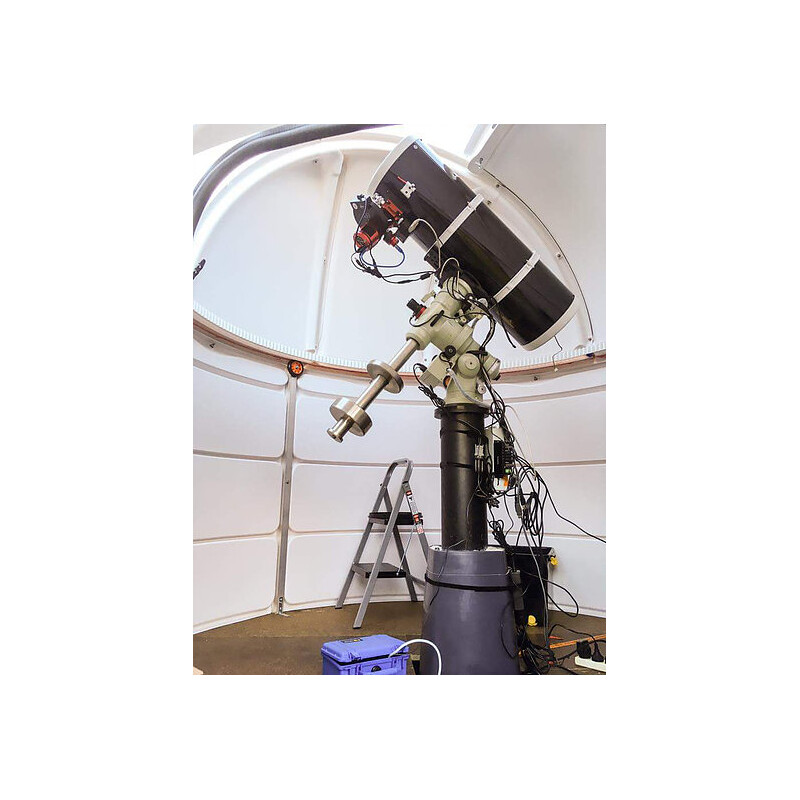

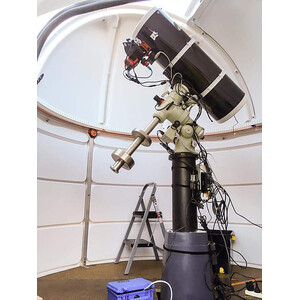

  • The 2.2 meter inside diameter provides plenty of space to operate up to a 12” Schmidt-Cassegrain or a refractor 1400mm long.

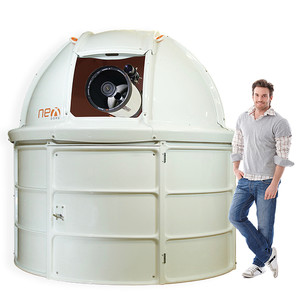

  • Nexdome’s higher walls make entry easier and provide more room for longer telescope tubes compared to conventional domes.
  • Shipping costs are reduced due to the nesting of parts, and thus smaller shipping packages.
  • The NexDome’s light weight makes motorizing the dome easier. NexDome offers open source dome and shutter full automation and remote control.
  • Structure and enclosure materials are combined, resulting in fewer parts.
  • Assembly is simple and easy. Thanks to the advanced design and low weight of NexDome, the observatory can be assembled in just a few hours. No special skills are required to assemble the modular NexDome.
  • Material: Extruded ABS with Solarkote® UV-Coating, tested temperatures -60ºC to 48º C. Solarkote® is high impact layer that is tailored for UV protection as well as surface hardness and wethearability.

Warranty: 5 years! NexDome products are warranted against material or manufacturing defects in ABS parts for 5 years from date of original purchase.

Specifications

Capacity


Diameter of the dome (m)
2,2
Total height (m)
2,3
Aperture Width (cm)
60
Height of the Wall (m)
1,2
Working temperature (max.)
48
Working temperature (min.)
-60
Number of Bays
0

General


Total weight (kg)
115

Recommended accessories

Mounts & accessories (1)

Baader Network cable with ColdTemp-specified CAT 7 cable, 5m

$ 80.00*
Observatories > Accessories (5)

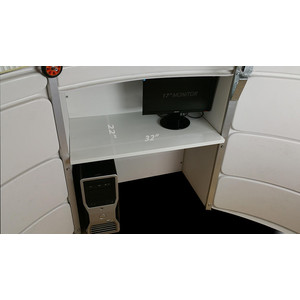

NexDome Bay, one shelf included

$ 810.00*

*All prices include VAT plus shipping costs.

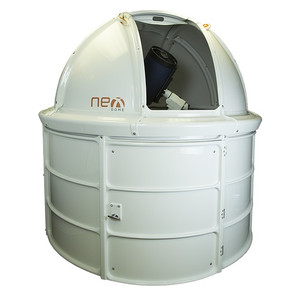

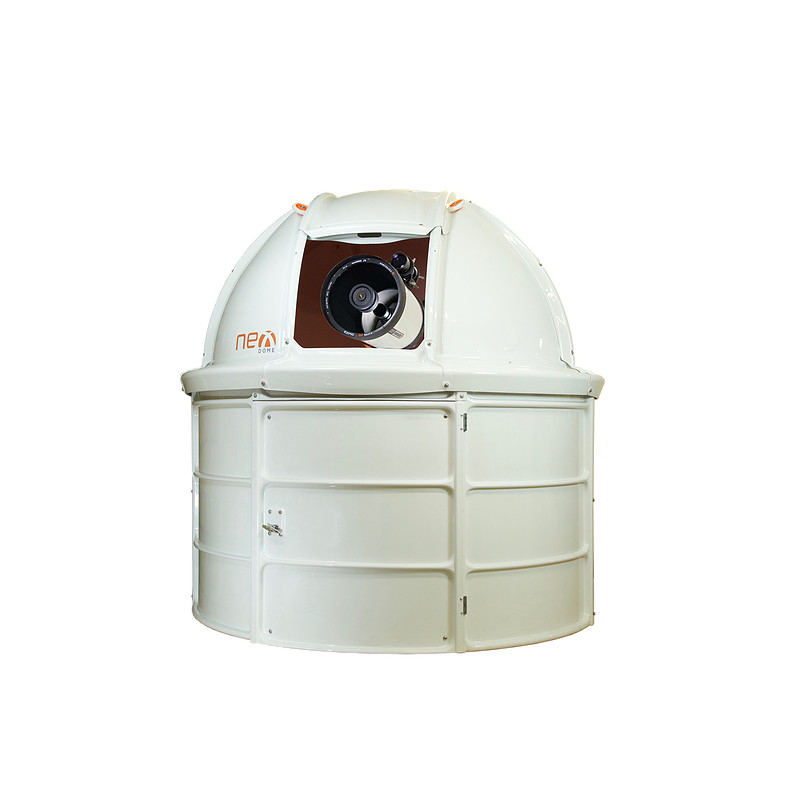

NexDome Complete Observatory 2.2m

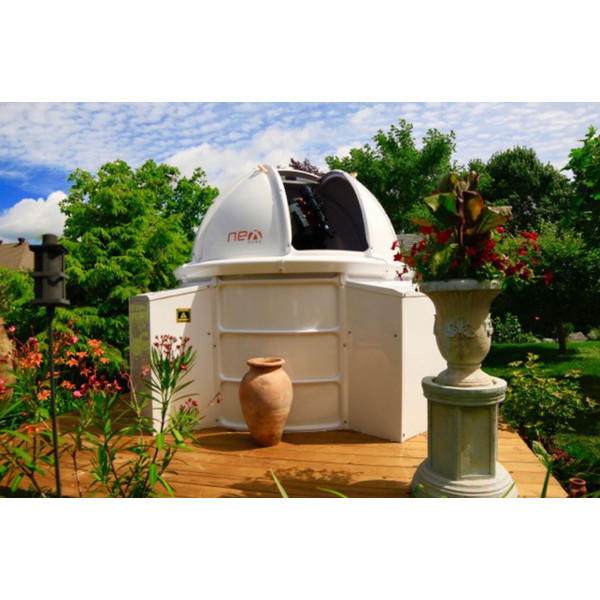

The dream of owning your own observatory.
NexDome Complete Observatory 2.2m

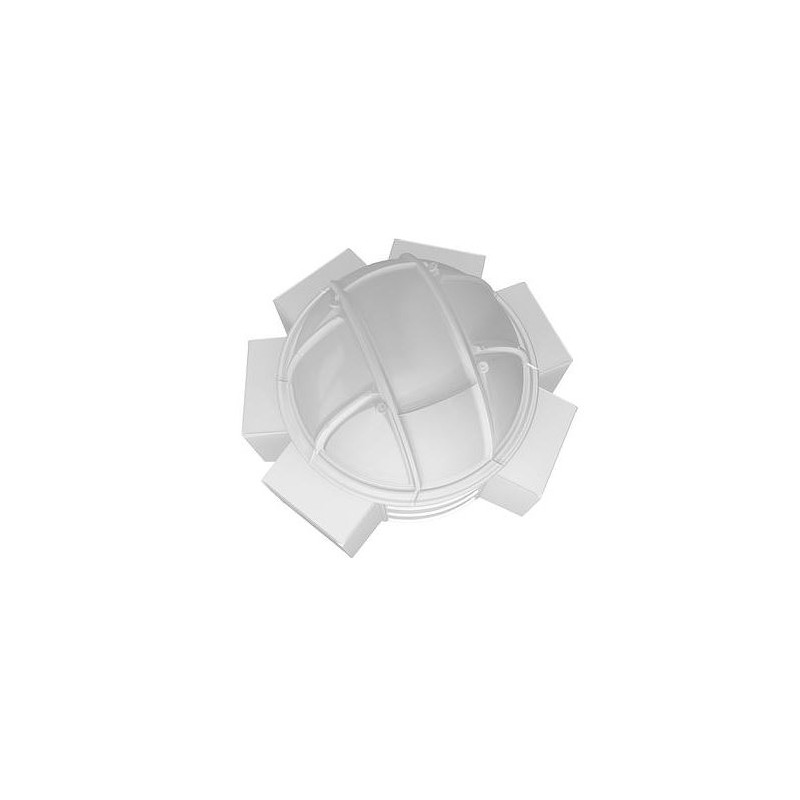

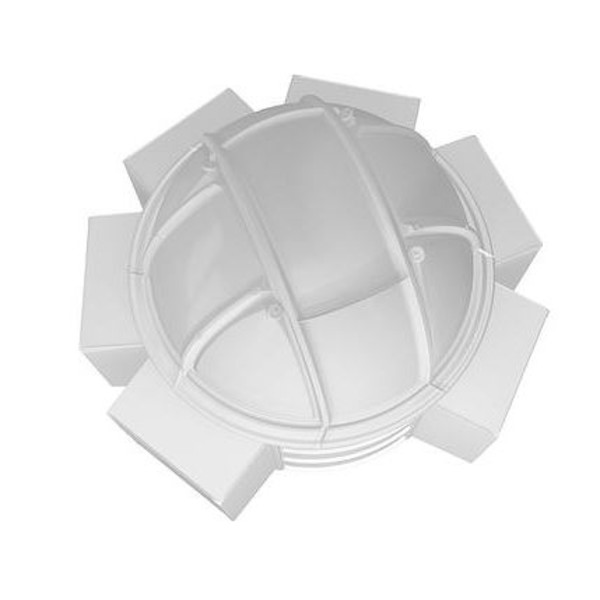

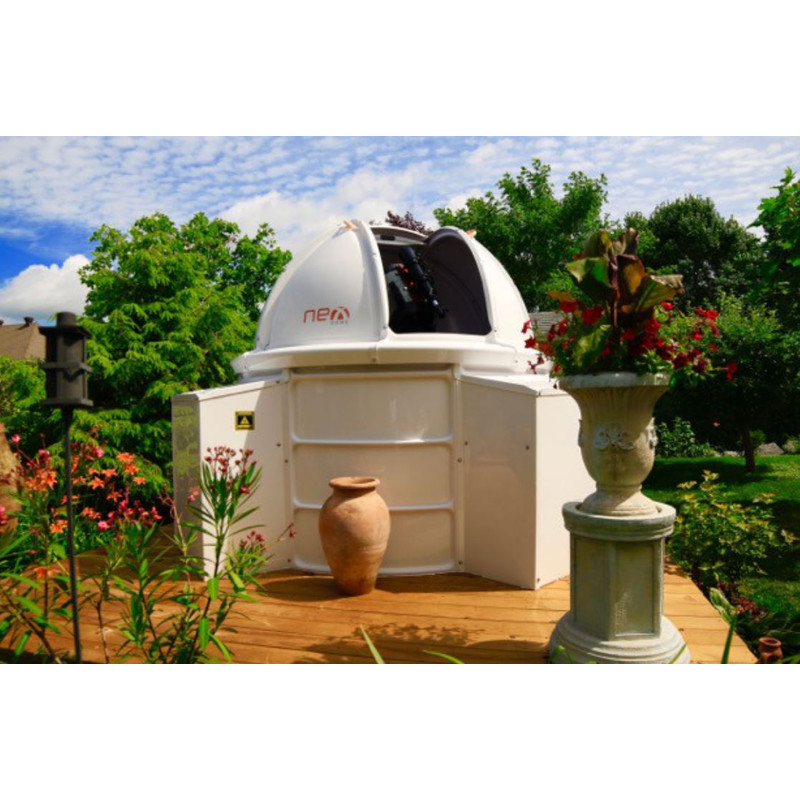

NexDome can accept 6 bays in total.
NexDome Complete Observatory 2.2m

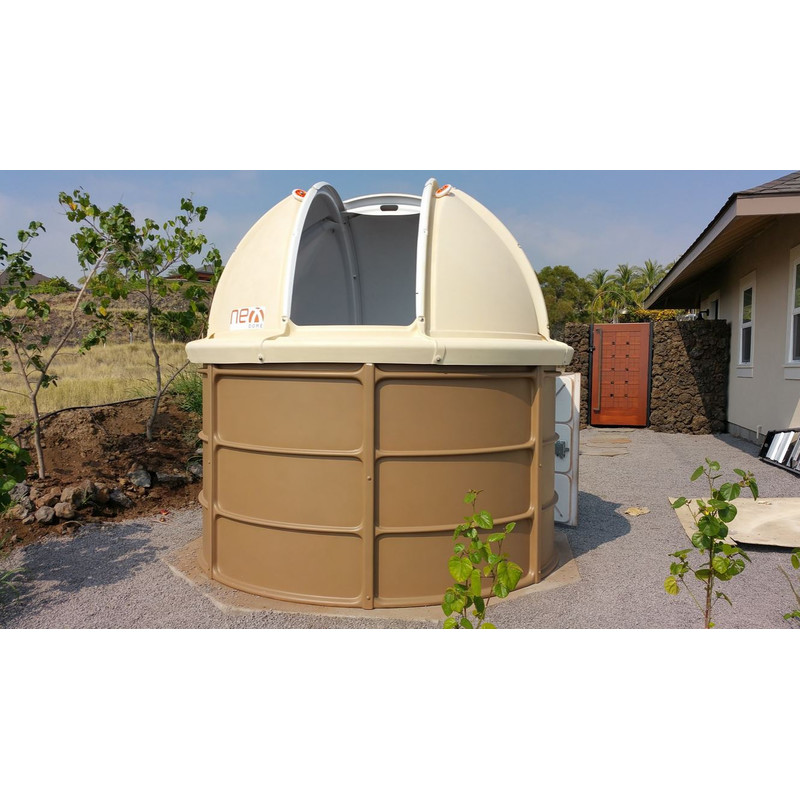

Also available in special painting
