Photo Tripods > Tripods > made of wood > Berlebach > Report > Berlebach Wooden tripod model 142/P
Product no.: 8051

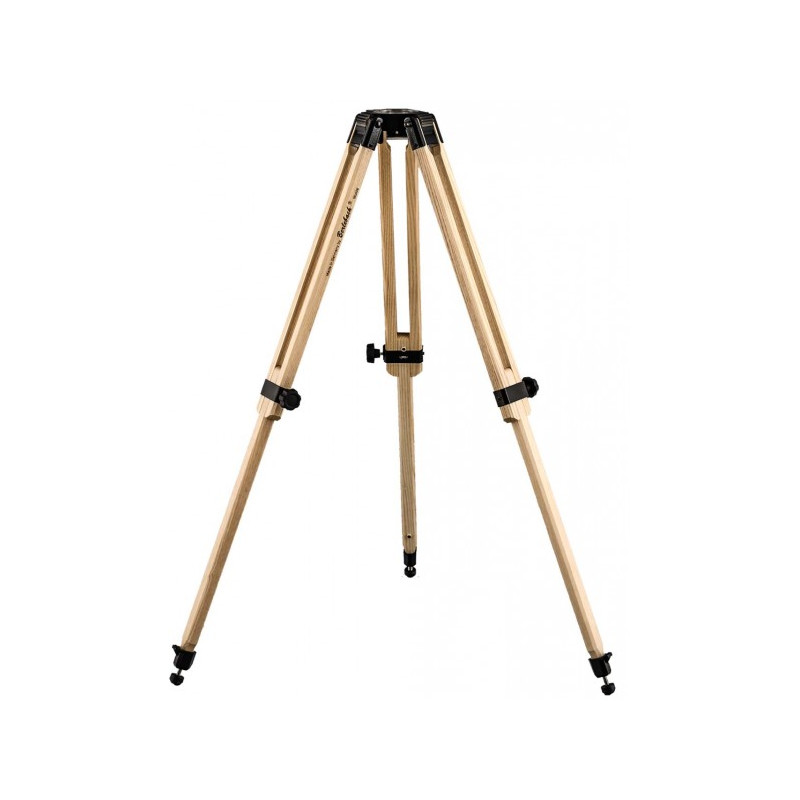

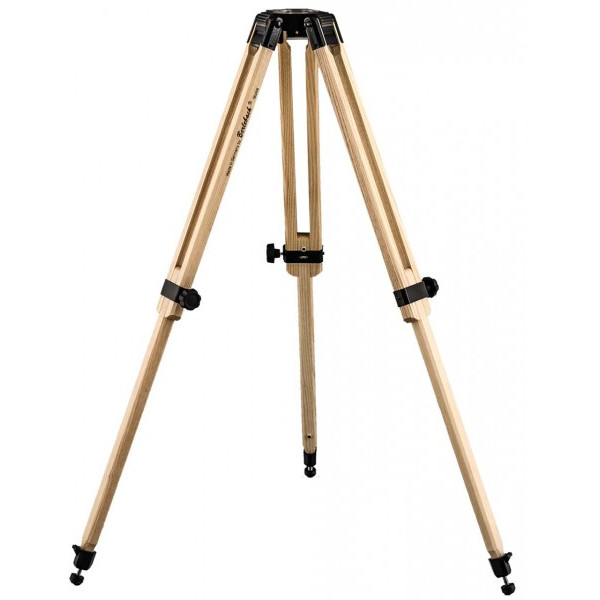

Wooden tripod model 142/P

$ 421.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

The Modular Report Tripod System: The light magnesium mounting head serves as module basis for 10 different inserts. The module insert can be changed at all times using a special wrench (included in the delivery of the changing module). The fixation in the cone ensures a positive-locking, clearance-free connection of the components.
Thanks to the new stop system, it is possible to set angles of spread at approx. 20°, 40°, 60°, 80° and 100° by means of a wing catch. The stop system is designed in such a way that the specified loads of the tripods are also guaranteed at a maximum inclination of the tripod legs.

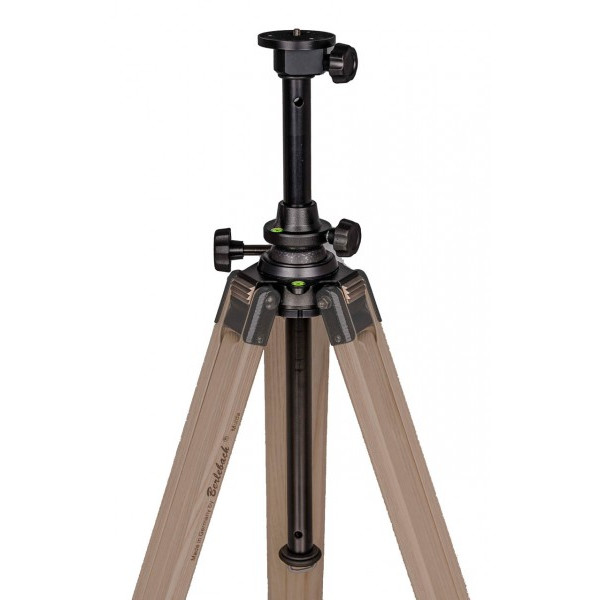

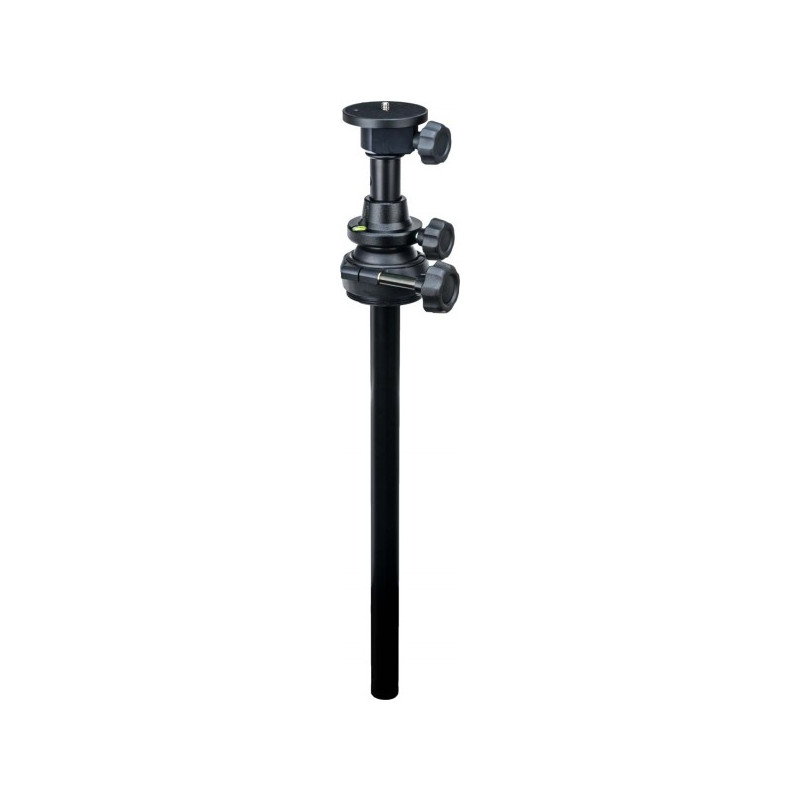

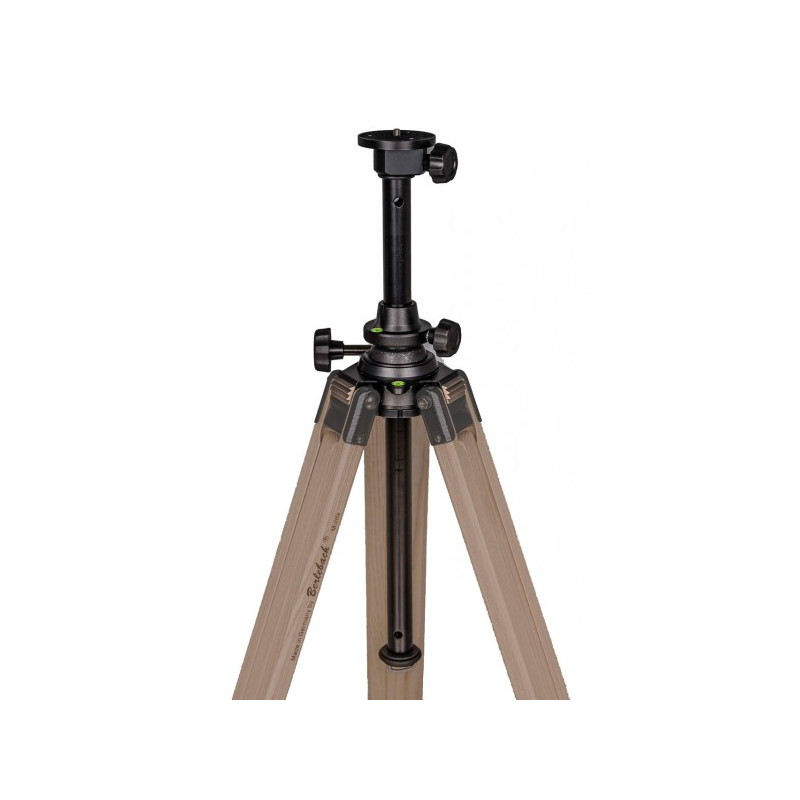

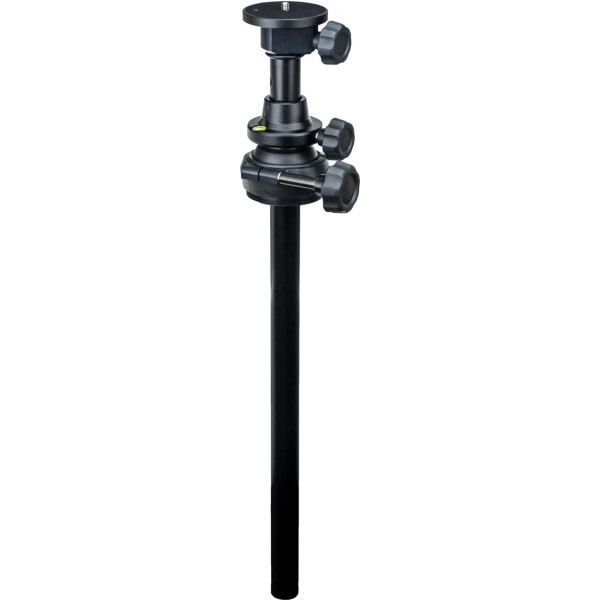

The tripod is equipped with the module insert 4, i.e. with a centre column which has a length of 50cm and a diameter of 25mm, made of precision-drawn light-metal tubing, and a levelling ball. The centre column is additionally equipped with a rotating panorama plate. By means of the centre column, the levelling ball can be tilted by 30° in all directions. The support plate made of aluminium has a diameter of 68 mm and is equipped with a fixed fastening screw (size to be selected) as well as three locking screws which secure the mounted system against unintentional loosening. The spirit level ensures a quick and precise adjustment.

When using an extra-short centre column (10cm), it is possible to work near ground level.

The specified maximum height applies if the centre column with a length of 50cm is extended.

Specifications

Capacity


Type of build
Tripod
Max. tripod height (cm)
146
Load capacity (kg)
14
Carrying length (cm)
67
Connector thread on tripod head
1/4
Type
Camera and video tripod
Number of levels
1
Tripod leg extension adjustment
Twist lock
Tripod pad
Rubber foot (Synthetic material)
Measures of accessory tray (cm)
- (without accessory tray)
Tripod leg extension
1
Material
Wood

Special features


Single-handed operation
yes
Tripod head included with product contents
no
Carrying bag included with product contents
-
Integrated wedge
-
Panorama scale
yes
Accessory plate
-
Central column
yes
Quick-release plate
-

General


Weight (kg)
2,74
Series
Report
Colour
Nature
Length (cm)
-
Width (cm)
-
Height (cm)
55 - 146
