Light-metal mounting head with geared centre column and circular bubble. Centre column length is 50 cm (39 cm adjustment range). Helical gearing on the centre column acts as an automatic column brake. Mounting plate diameter is 77 mm. Without leg spread stops. The maximum height given below are that at an approx. 20° leg spread and with the centre column fully extended.

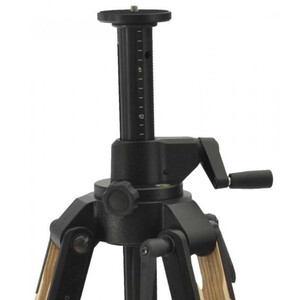

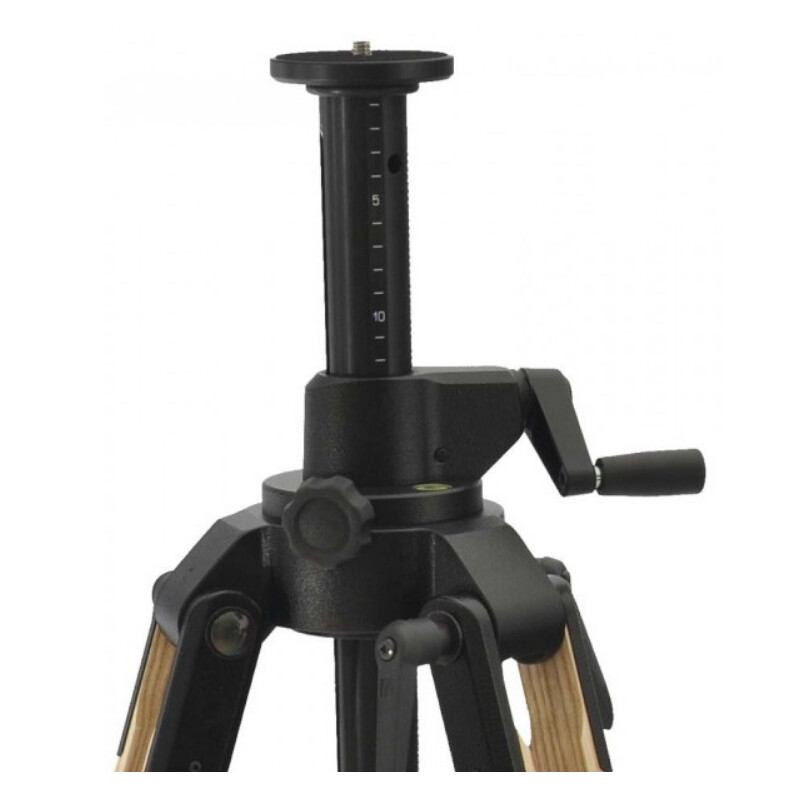

Light alloy pan-tilt head with crank-operated centre column and spirit level. Centre column 50 cm long (adjustment range 39 cm). The helical gear mechanism on the centre column acts as an automatic column brake.
By pulling back the crank arm, the centre column can be moved freely. This should be done without any equipment attached.
The diameter of the base plate’s contact surface is 89 millimetres. The maximum height specified refers to a leg spread of approx. 20° and a fully extended centre column.
Note: This tripod does not allow adjustment of the leg spread angle.
