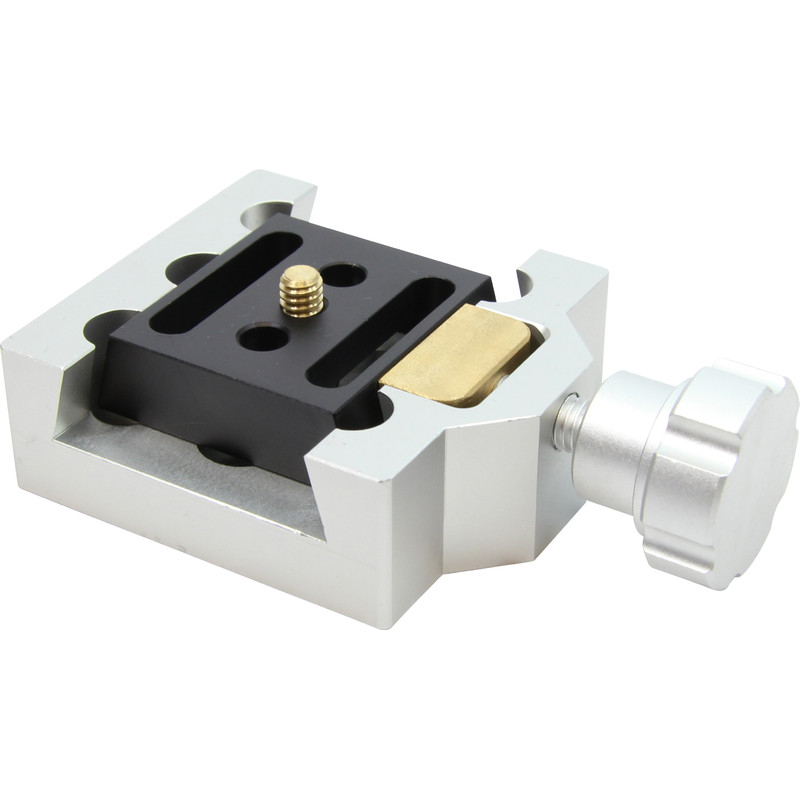

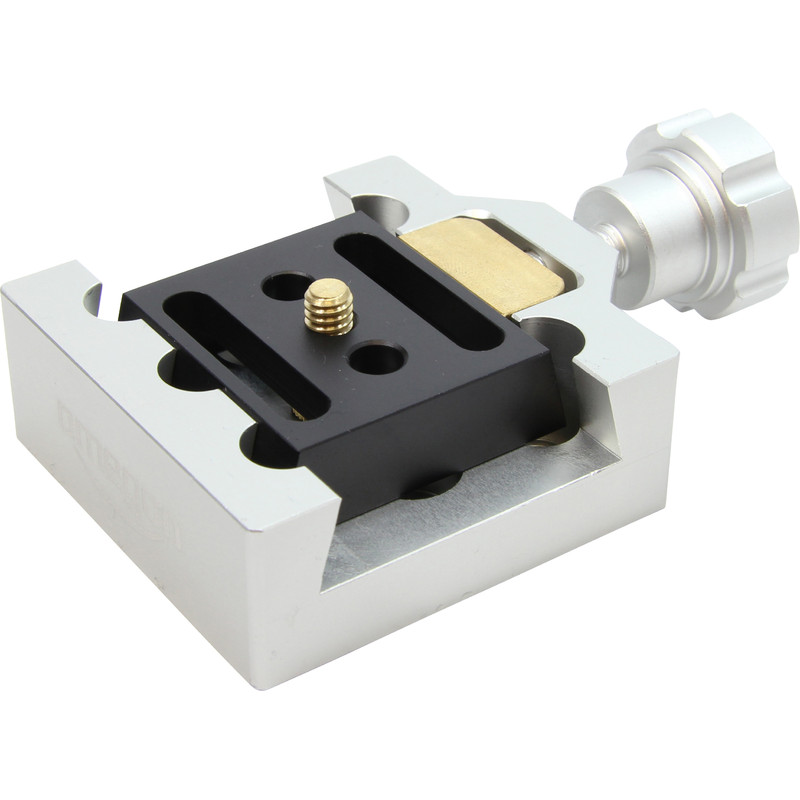

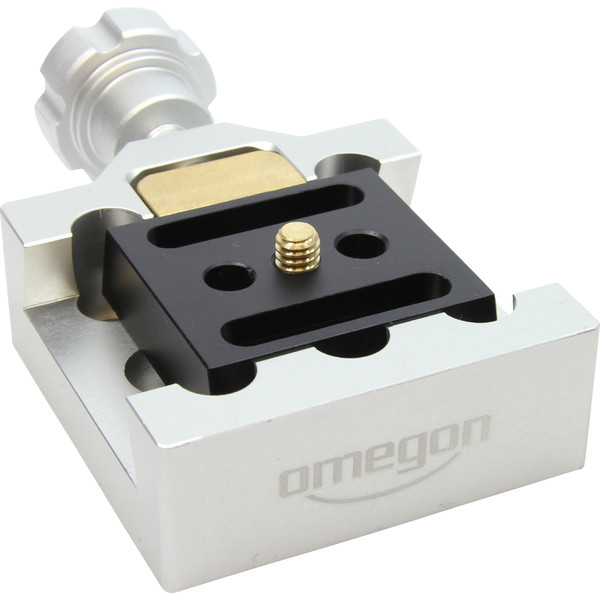

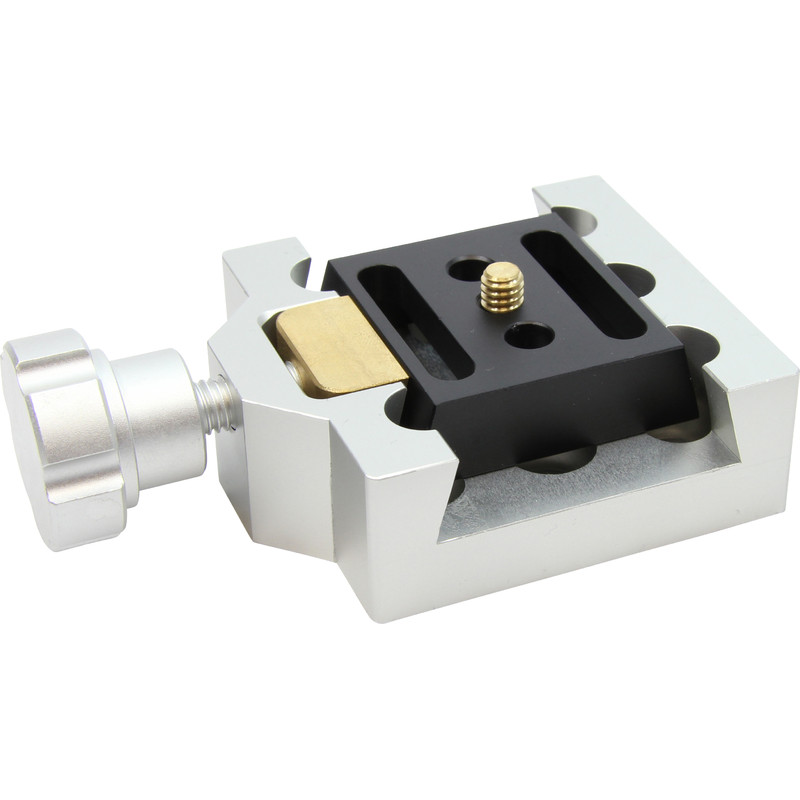

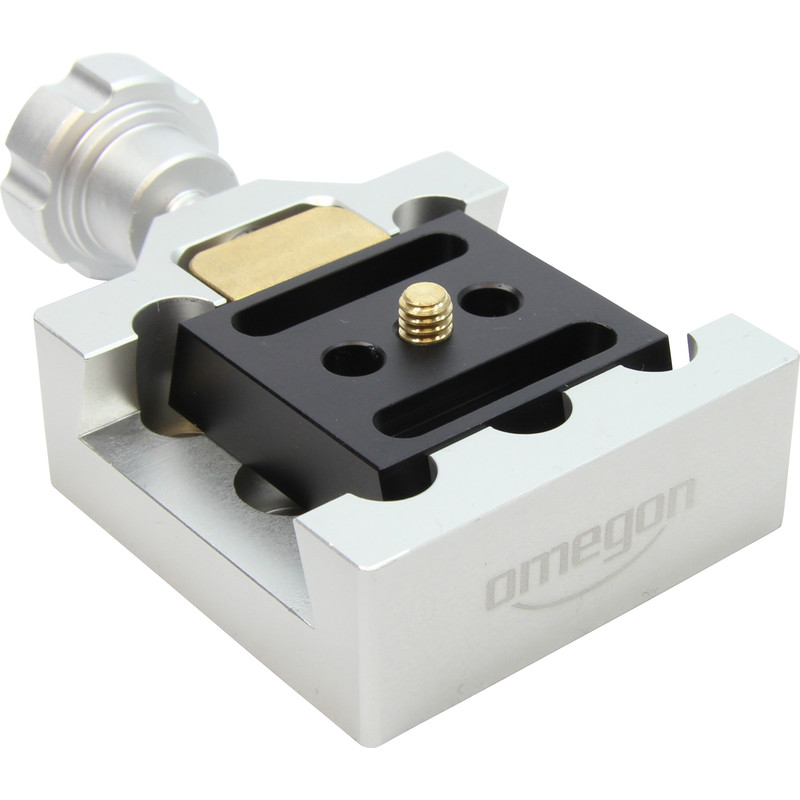

Omegon premium clamp - for telescopes and cameras
With this quick-release connector you can attach your telescope or camera to a mount, double mount or camera tripod. This prism rail is an excellent solution wherever secure attachment is needed. The flat plate has a high load capacity and protects your accessories.
The advantages in a nutshell:
- solid aluminium prism rail with aluminium locking screw (63mm in length)
- GP rail (42mm) with photo screw
- flat clamping mechanism to protect your accessories
- high load capacity for up to about 10kg
- photo thread and 7 additional fixing holes
The safe and rapid clamp for your telescopes
Whether you want to clamp a Vixen, Celestron, Skywatcher, Orion or Skywatcher telescope - you can attach any telescope with a GP rail. A central aluminium screw allows for super-fast assembly. The prism clamp itself can be used, for example, on a double mounting, on a counterweight bar or directly on a telescope. Many other clamps use one screw which leaves unsightly notches in the prism rail. But this coupling does not clamp at just one point, but over a large area with a diagonal of 25mm. This means the pressure is evenly distributed, which has a positive effect on the load capacity.
Built-in GP profile with photo screw
A small precision-fitting GP-rail with photo thread serves for mounting cameras or small telescopes with a ¼" thread.
Can be attached almost anywhere
All seven holes are available for attaching the premium clamp - five holes for M6 and two holes for M8 screws. In addition, you will find a 1.4" photo thread - which also extends the range of possible attachment, e.g. on tripods or OTAs.
