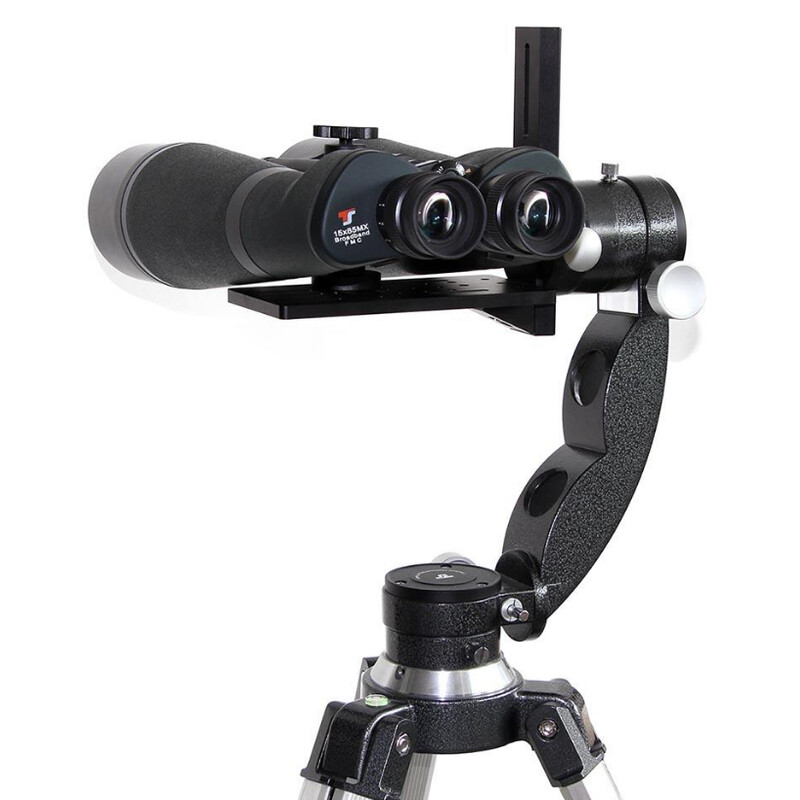

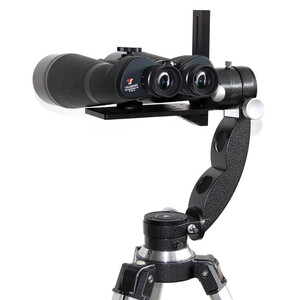

The L-bracket allows spotting scopes, binoculars or even small telescopes to be mounted on mounts with a fast coupling on the side.
Suitable for the following mounts, for example
- Vixen Porta
- Celestron NexStar
- GIRO mounts with fast coupling
- Skywatcher SkyTee and TS Optics AZ5
- Altair SABRE
- Berlebach Castor
- GSO GSAZ
- iOptron Minitower
- Skywatcher Merlin, Synscan Goto, AZ4
The L-bracket is attached to the mount via the 210 mm long prism rail in accordance with the Vixen standard. On the instrument side, the bracket supports
- binoculars with an aperture of up to 110 mm
- telescopes with apertures up to 200 mm
- All commercially available cameras and spotting scopes

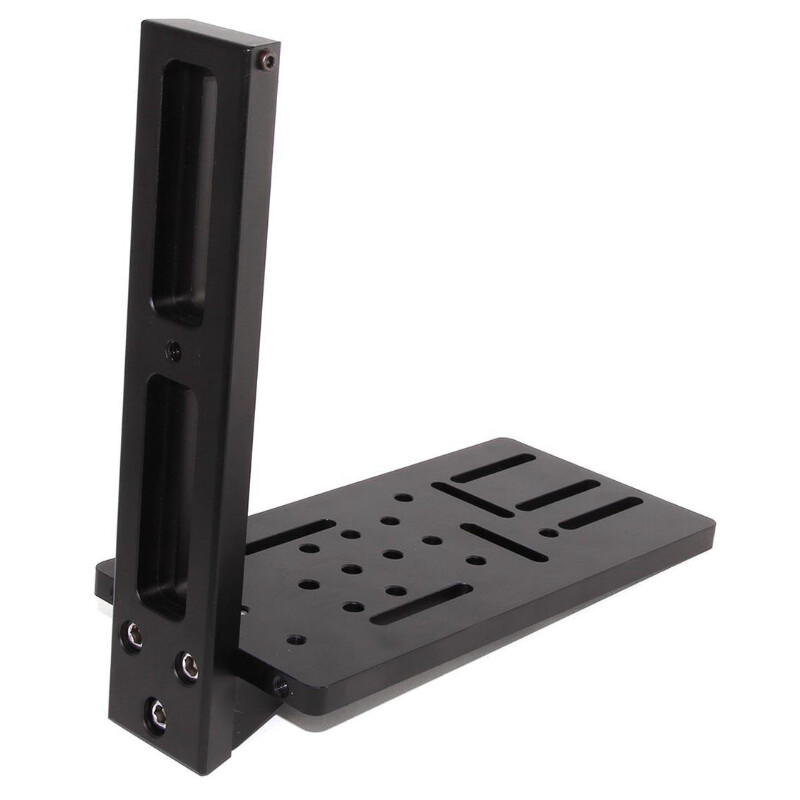

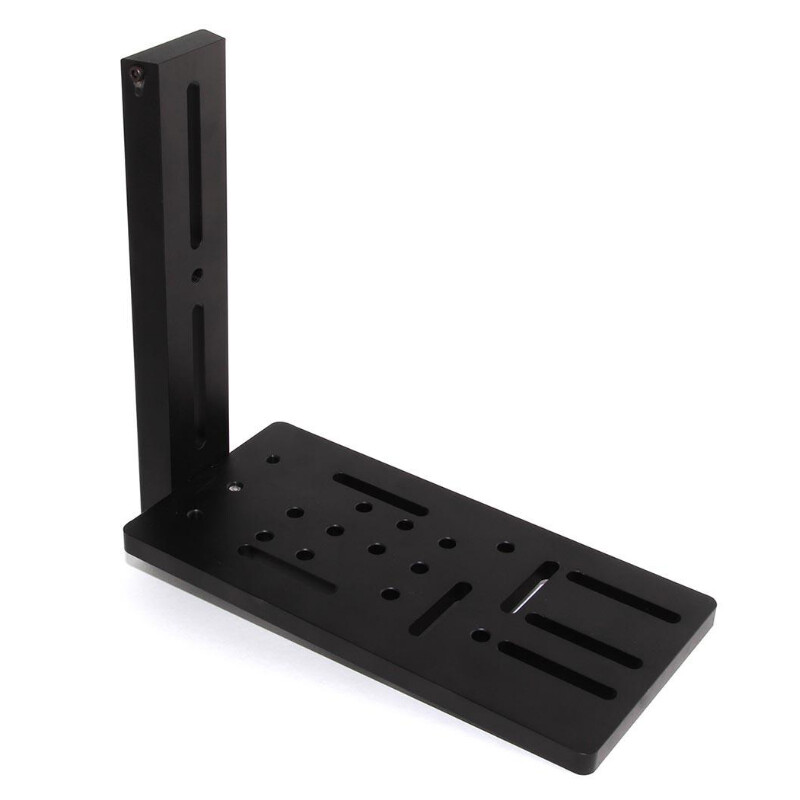

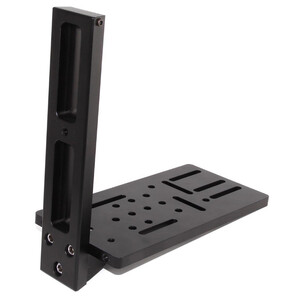

Long holes are available for mounting the optics. The maximum distance from the long holes to the prism rail is 190 mm. This means that you can attach binoculars, spotting scopes and telescopes with a width of 190 mm from the centre to the edge or with a diameter of 380 mm using the holder. The plate itself measures 200 x 100 x 9 millimetres.
The mounting screws are available as an option.
TS Optics is a brand of Teleskop-Service.
