Orion > Orion Deluxe off-axis guider
Product no.: 16736

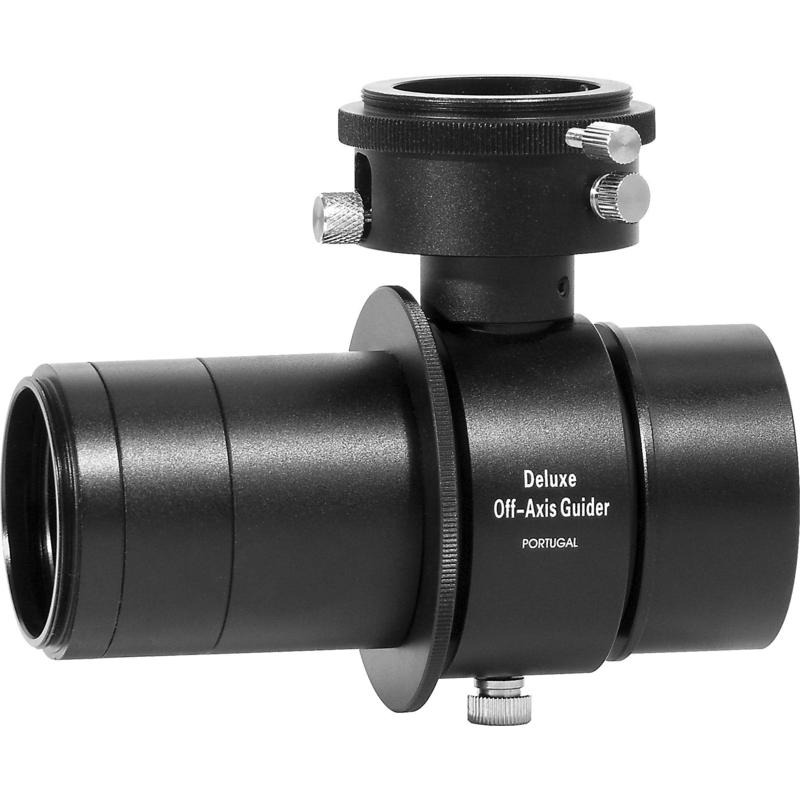

Deluxe off-axis guider

$ 185.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

  • The Orion Deluxe Off-Axis Guider lets you image and guide simultaneously through the same telescope
  • Eliminates the need for a separate guidescope while imaging, saving equipment weight and setup time
  • Imaging and guiding through a single telescope eliminates tracking problems such as differential flexure and mirror shift
  • Compatible with autoguiders featuring T-threads or 1.25" nosepiece, as well as 1.25" illuminated reticle eyepieces
  • Attaches to any 2" focuser via the included 2" nosepiece, or onto any T-thread equipped rear-cell
  • Includes T-extensions of three different lengths (7mm, 17mm, and 30mm) to accomodate different camera/guider combinations
  • Features prism tilt adjustment and more than 100 degrees of radial adjustment for easy guide star location
  • Built-in coarse and helical fine-focus adjustments allow focus of autoguider relative to camera
  • Requires a minimum of 59mm inward focus travel

  • The Orion Deluxe Off-Axis Guider lets you image and guide simultaneously through the same telescope
  • Eliminates the need for a separate guidescope while imaging, saving equipment weight and setup time
  • Imaging and guiding through a single telescope eliminates tracking problems such as differential flexure and mirror shift
  • Compatible with autoguiders featuring T-threads or 1.25" nosepiece, as well as 1.25" illuminated reticle eyepieces
  • Attaches to any 2" focuser via the included 2" nosepiece, or onto any T-thread equipped rear-cell
  • Includes T-extensions of three different lengths (7mm, 17mm, and 30mm) to accomodate different camera/guider combinations
  • Features prism tilt adjustment and more than 100 degrees of radial adjustment for easy guide star location
  • Built-in coarse and helical fine-focus adjustments allow focus of autoguider relative to camera
  • Requires a minimum of 59mm inward focus travel

Our expert comment:

To ensure that the guide camera/eyepiece and imaging camera are both in focus, it may be necessary to clamp one of them to the eyepiece barrel at a different position. A 'homo focal ring' (Product No. 10610) is useful here.

An extension tube is also sometimes required, e.g. from Lumicon.

(Bernd Gährken)

To ensure that the guide camera/eyepiece and imaging camera are both in focus, it may be necessary to clamp one of them to the eyepiece barrel at a different position. A 'homo focal ring' (Product No. 10610) is useful here.

An extension tube is also sometimes required, e.g. from Lumicon.

(Bernd Gährken)
