MOAG means Manual Off-Axis Guider, a non-moving part of your optical train.

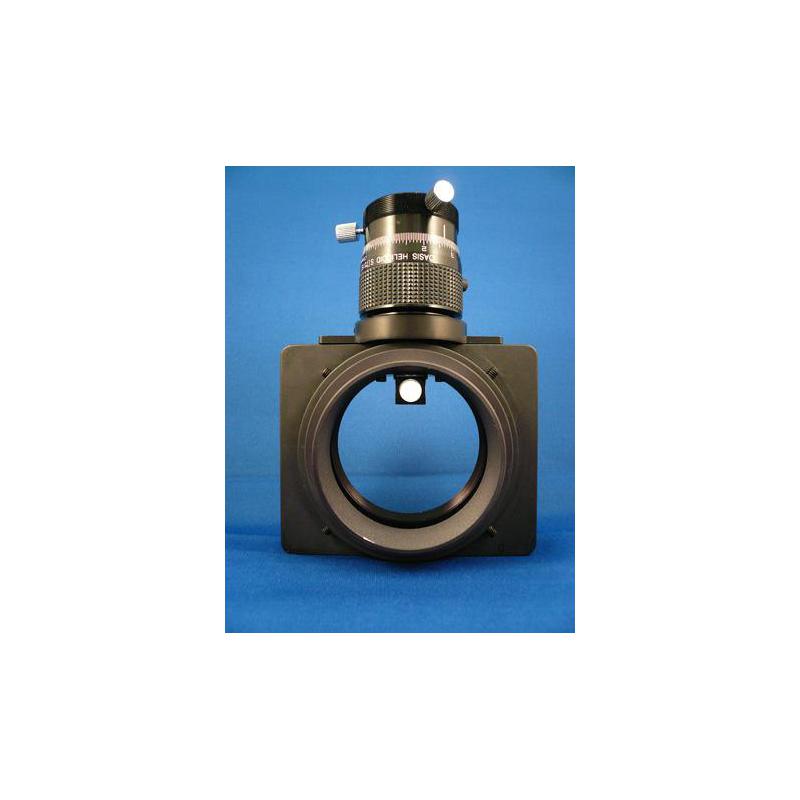

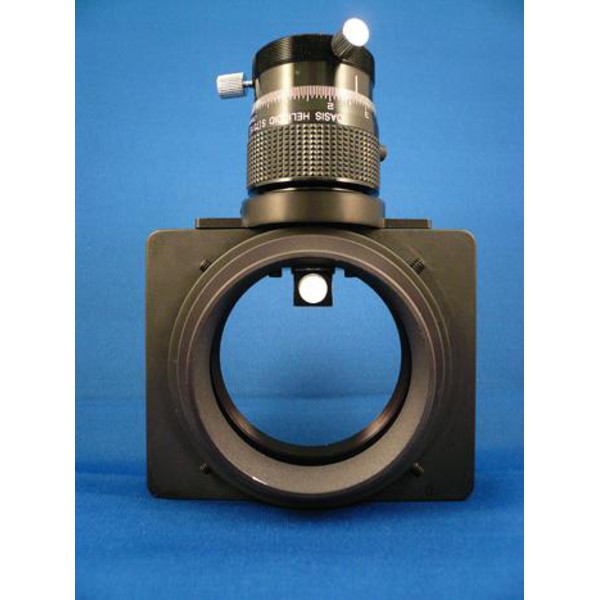

The MonsterMOAG is the intermediate member of our off-axis guider product line. It is specifically designed to accommodate the larger CCD detectors (36 x 36 mm), such as the Kodak KAF16803E and KAF9000E. Furthermore, at 1.25", it has thinnest backfocus for an OAG available, making MonsterMOAG an ideal choice for systems with minimal backfocus, such as the Takahashi FSQ refractor.
Goals
- For largest CCDs (KAF16803, KAF9000)
- Smallest backfocus 1.25"
- Large central opening of 2.55"
- Guide in front of your filters
- More guide stars with unfiltered light
- Guide in the main optical beam
- Avoid differential flexture and cost of guide scope
- Fixed guider position for automated data acquisition
Features
- Helical focuser for easy focusing of guide camera
- Short, manual 1.25" camera holder also included
- Additional prism spacers included
- These provide maximum flexibility to come to focus
- M/F AP 2.7"-24TPI dovetail adaptors included
- Female 2.7" also has 3" Male for CFWs
- Dovetail connectors to align with camera / telescope
- Low reflectivity inner surfaces
- Wide variety of adaptors
- Optional f/-250 lens to extend focus ~ 12 mm
