In brief:
- 6x USB 2.0
- 6x 12V DC outputs
- 1x always-on DC output
- Supply voltage: 11-14 V DC (max 8A)

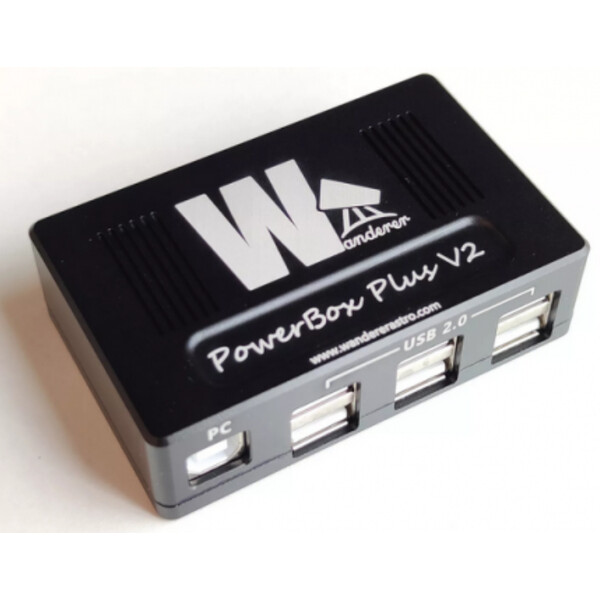

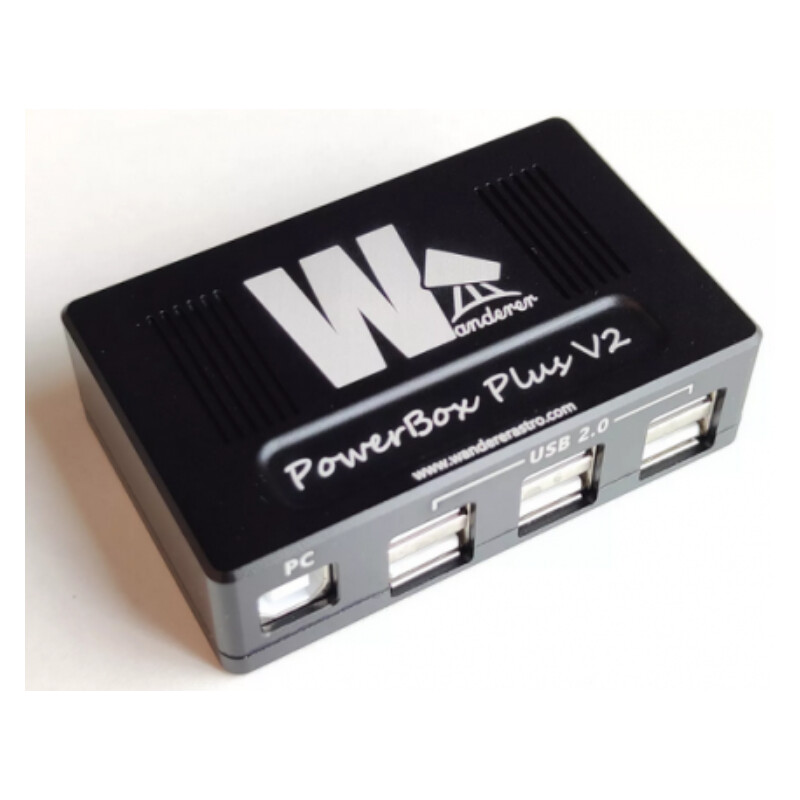

The Wanderer Box Plus V2 is equipped with 6x 12V DC outputs and 6 USB 2.0 ports. This box eliminates numerous cables on your telescope and keeps your system tidy.
All USB 2.0 ports can be switched on or off independently and are protected against moisture and electrostatic discharge.

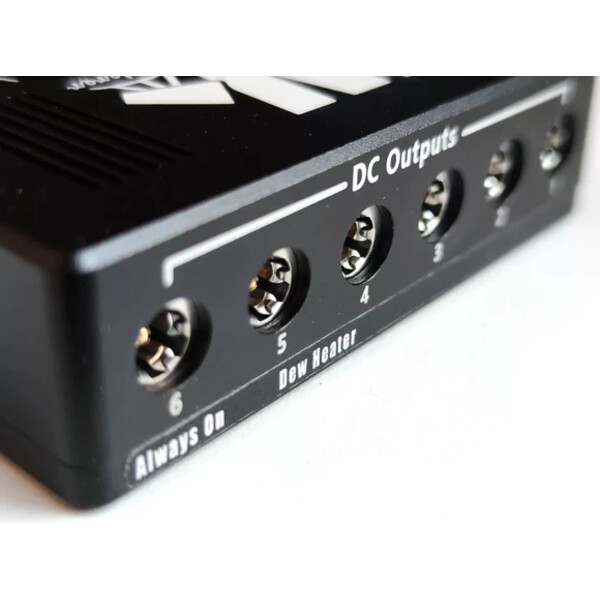

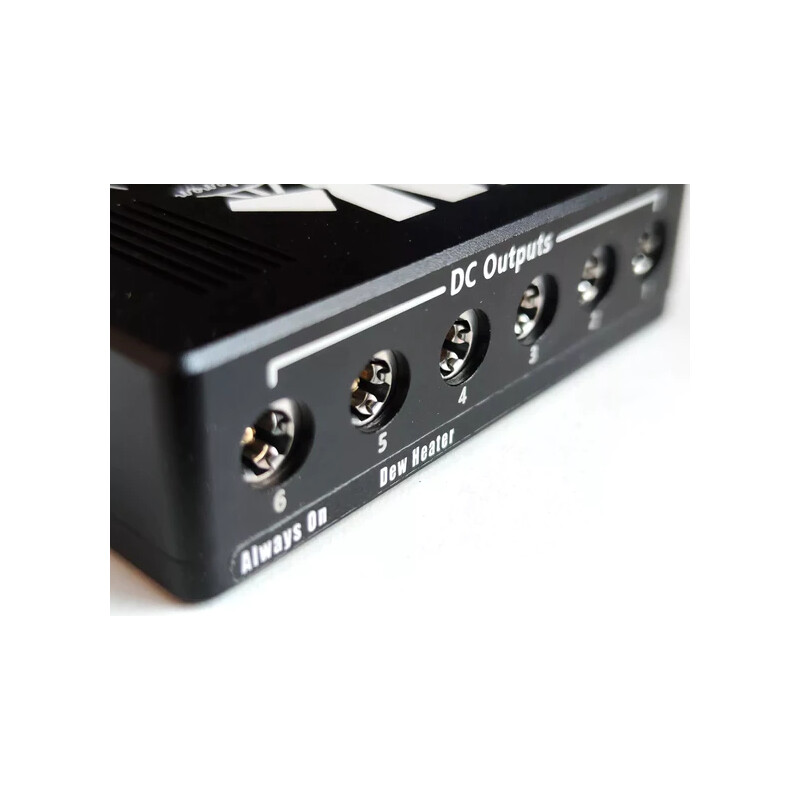

Port 6 is an always-on DC output, which is perfect for products that need to be switched on at all times when using your PC.
Ports 4 and 5 are PWM outputs that allow manual or automatic control of the dew shields.
Connections 1, 2 and 3 are DC outputs that can be used to power your camera, rotator or focuser. All three can be connected in parallel.
If you do not have anti-theft straps, you can switch ports 4 and 5 to switch mode, which will then behave like the other DC ports (1, 2, 3).

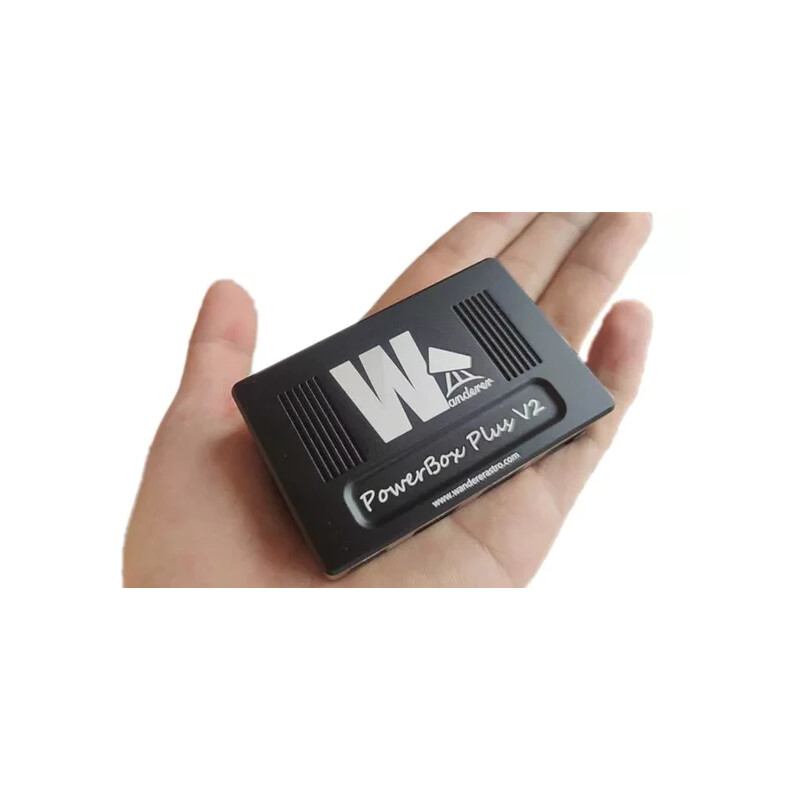

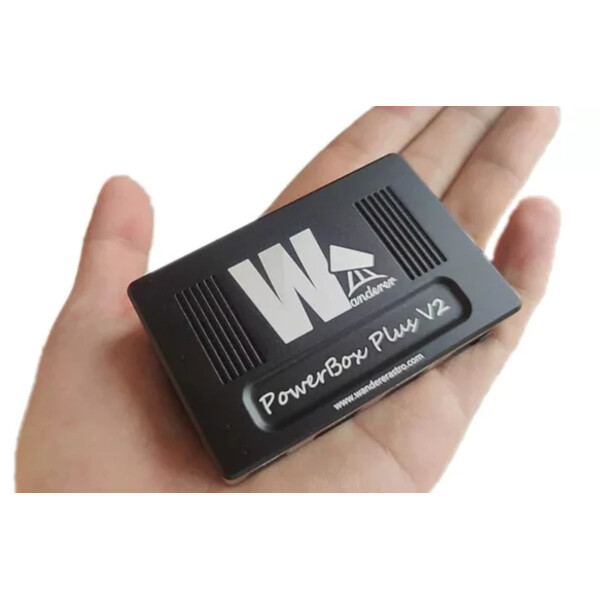

Weighing only 122g, the Wanderer Box Plus V2 is the ideal partner for all applications.
An integrated step-down module guarantees up to 3A of continuous power without latency.
Please note that for cameras that use USB 3.0 ports (e.g. planetary cameras), we recommend the Wanderer PowerBox Ultimate V2, which includes USB 3.1 ports.
