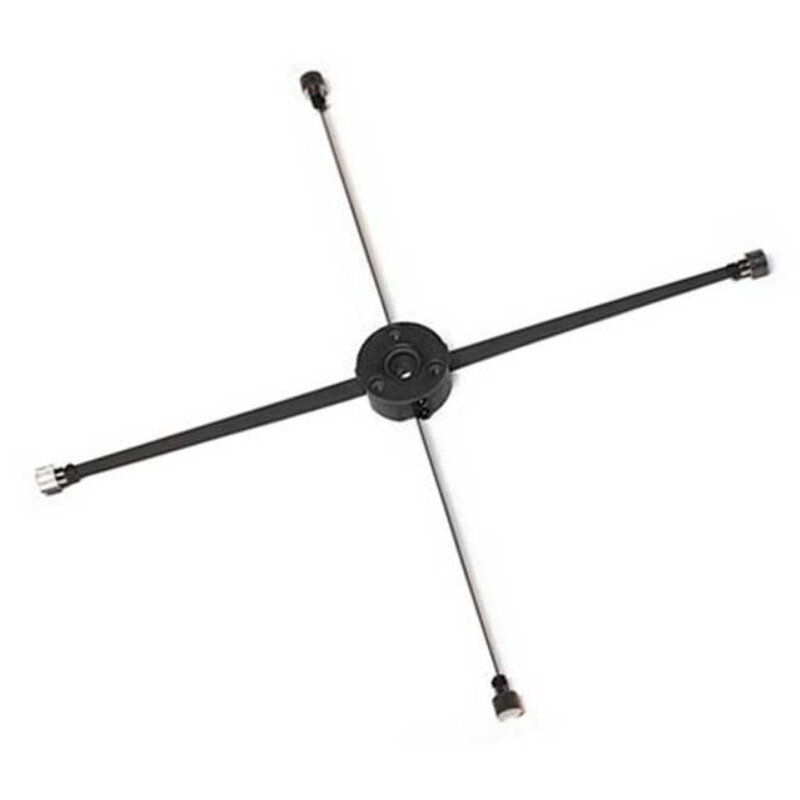

Secondary mirror mount Newton 10"

Metal spider (secondary mirror mount) for DIY projects and for upgrading standard Newtonian telescopes

• Suitable for tube inner diameters from 298 mm to 310 mm
• The diameter of the centre section (ring) is 45 mm.
• The spider arms are made of metal and are 1 mm thick, yet sturdy enough to support heavy secondary mirrors
• Three M4 internal threads for collimating the secondary mirrors, fitted with grub screws
• The central bore is suitable for M6 and M5 screws

The spider has an M5 thread on each outer side. It is attached to the tube using M5 knurled nuts, which are included in the scope of delivery.

TS Optics is a brand of Teleskop-Service.
