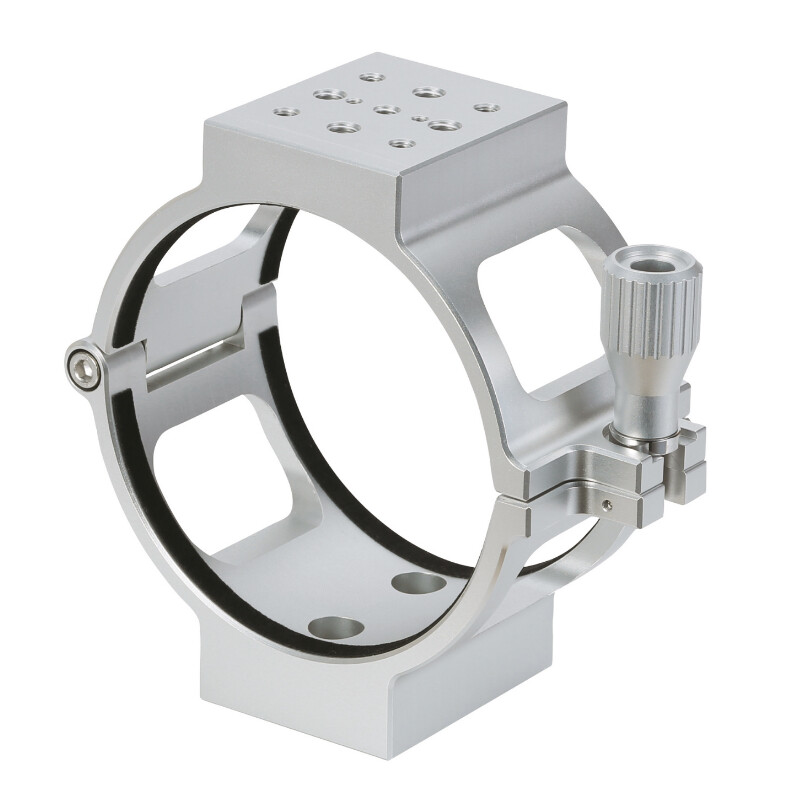

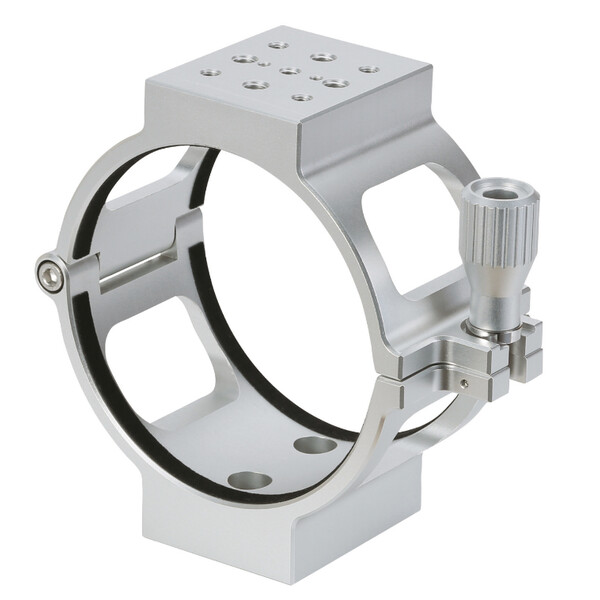

Tube clamps 115s VSD90ss

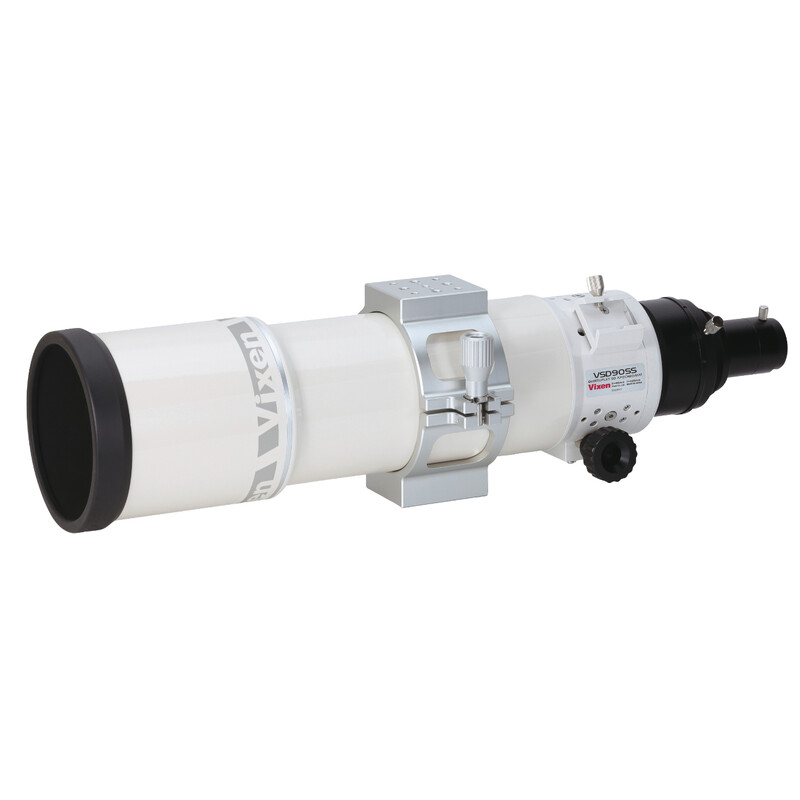

A tube clamp allows a telescope tube to be mounted on a prism rail.

Many tube clamps also allow a second rail to be mounted on the opposite side, to which further accessories can then be attached.

• Threaded screw holes on the underside: M8 holes x 2 (spacing 35 mm), M6 holes x 2 (spacing 35 mm) x 2 rows, 1/4 inch holes x 3 (inner 30 mm), 1/4 inch holes x 3 (spacing 30 mm)
• Threaded screw holes on top: M8 holes x 2 (spacing 35 mm) x 2 sets, M6 holes x 2 (spacing 35 mm) x 2 rows, 1/4 inch hole x 1 in the middle, M4 holes x 2 (spacing 20 mm)
• Dimensions: 162×71×155 mm
