iOptron mounting adapter for Pro column

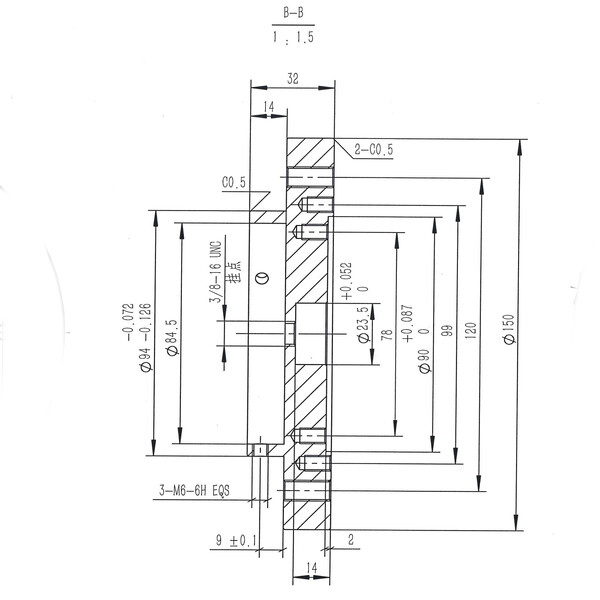

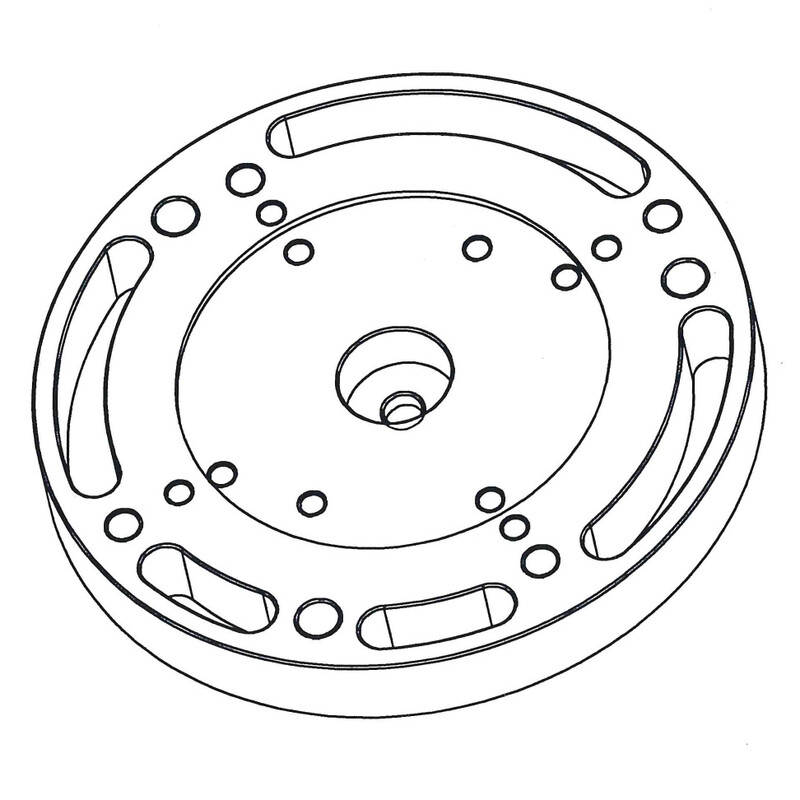

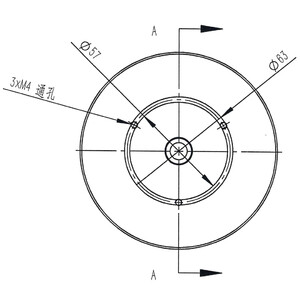

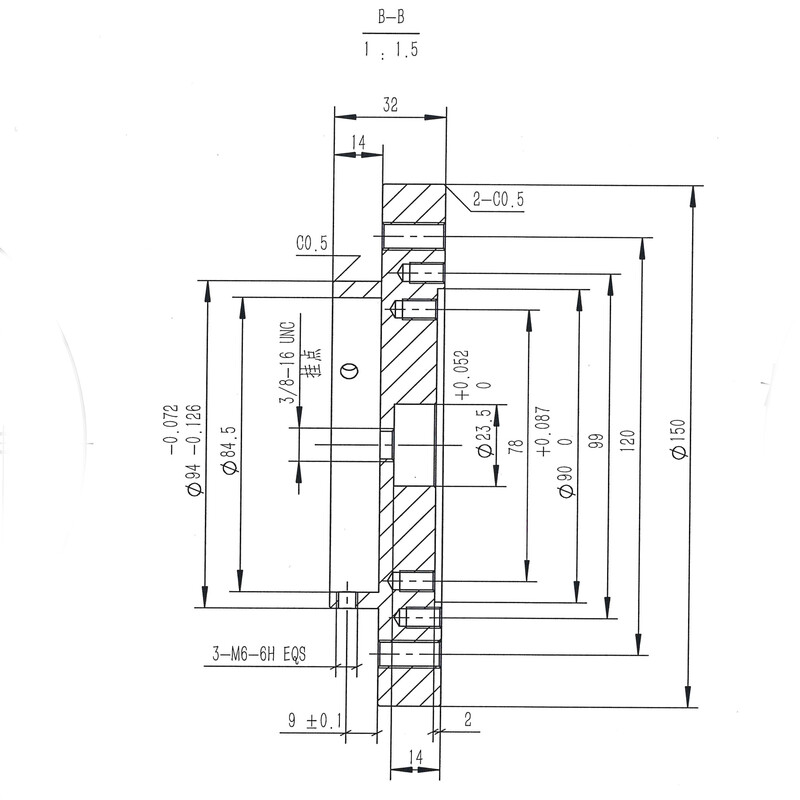

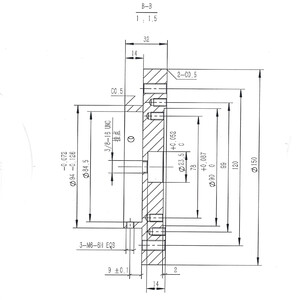

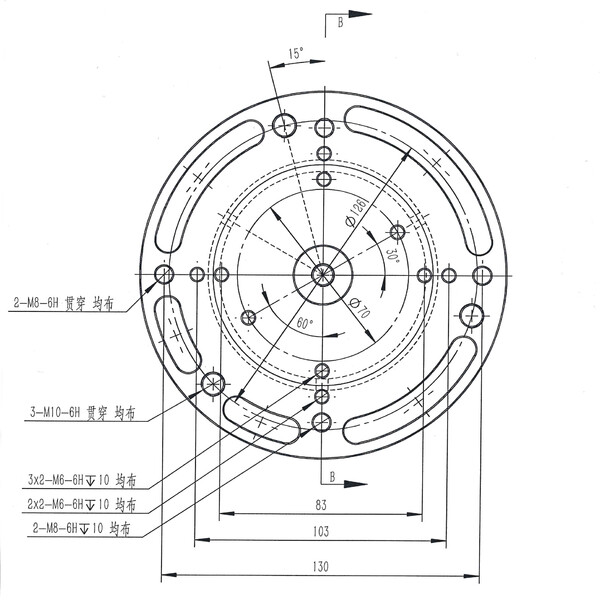

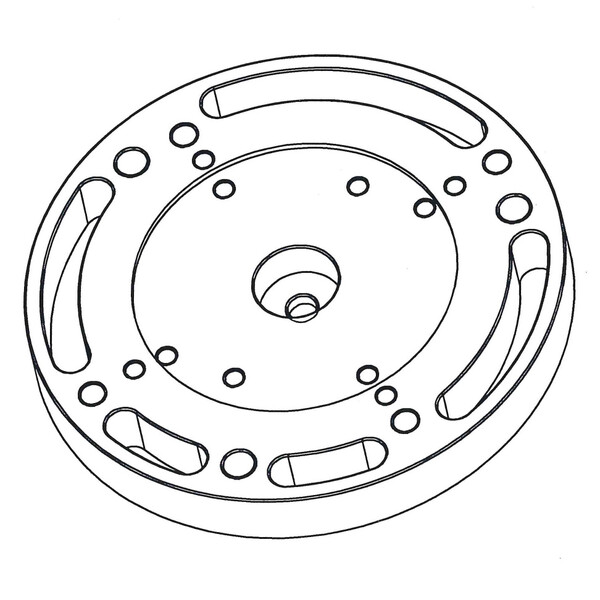

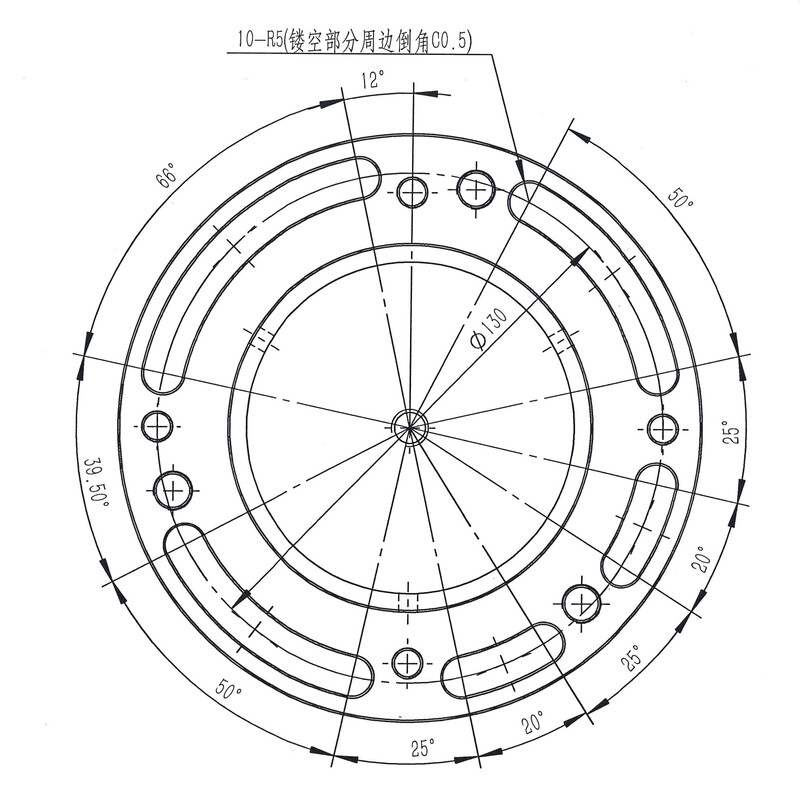

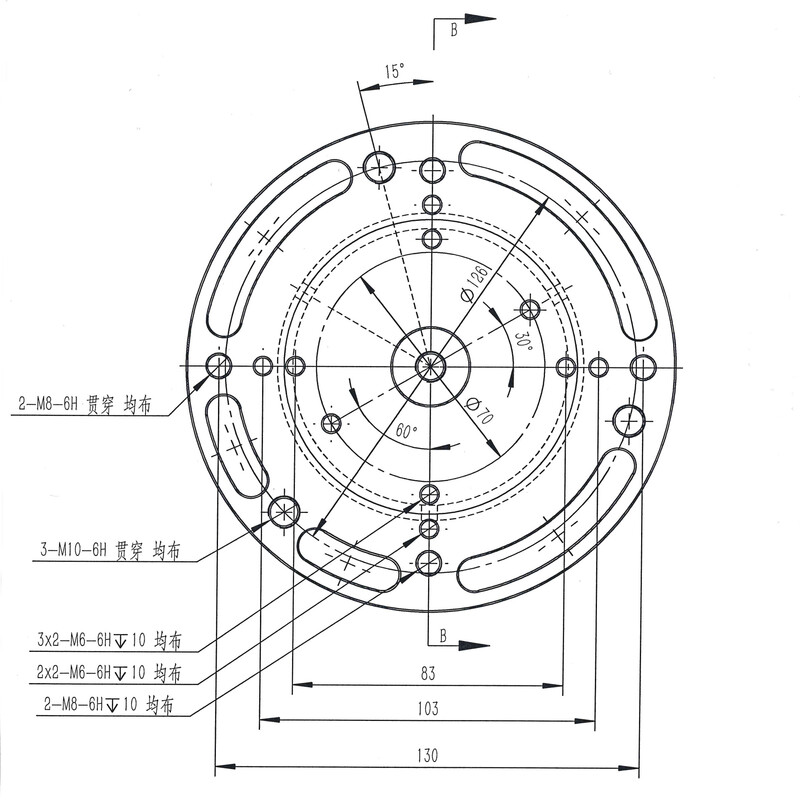

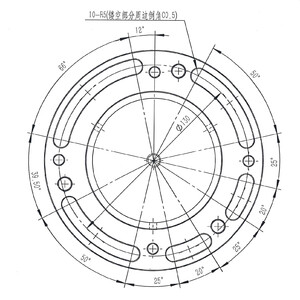

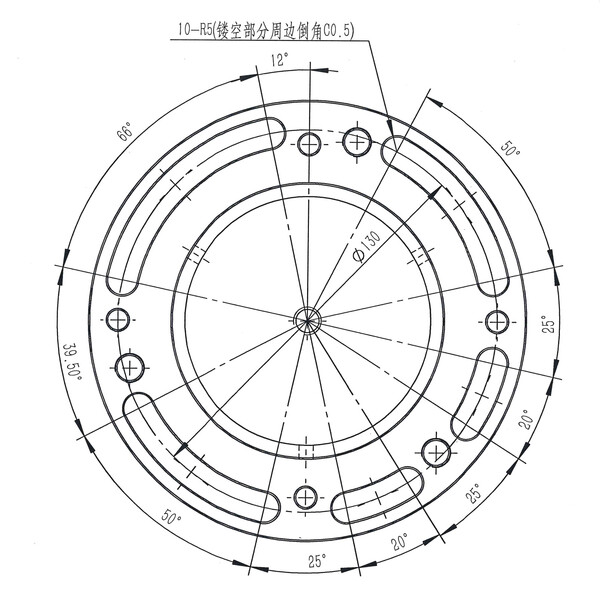

Adapter for Omegon Pro Column for Mounts and Binoculars. Dimensions as shown in the illustrations. The adapter also fits identically constructed telescopic columns if they have an inner diameter of 94mm and three recesses for M6 screws 9mm below the top edge are present.

The adaptors fits for these iOptron mounts:

• CEM25, GEM28, HEM27, HAE29
• CEM40, HAE43, HEM44, GEM45
• AZ Pro (iOptron Star Knobs with Center Post required, 3/8-inch threaded hole in the centre must be drilled out to 13mm)
• iEQ45, CEM60, CEM70, HAE69

Unfortunately, the CEM120 does not fit (but would also be too heavy for the column)

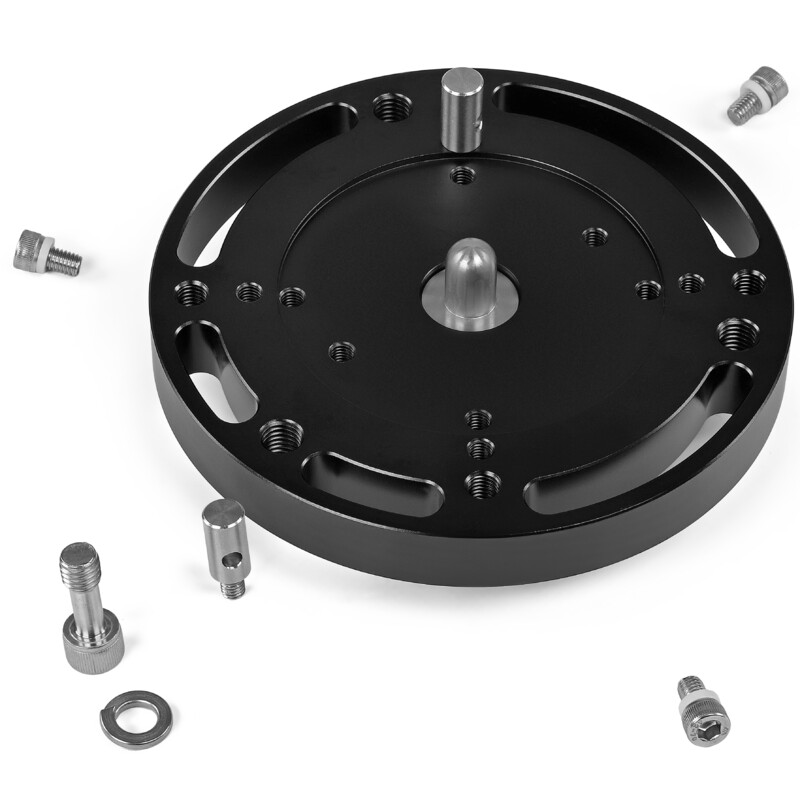

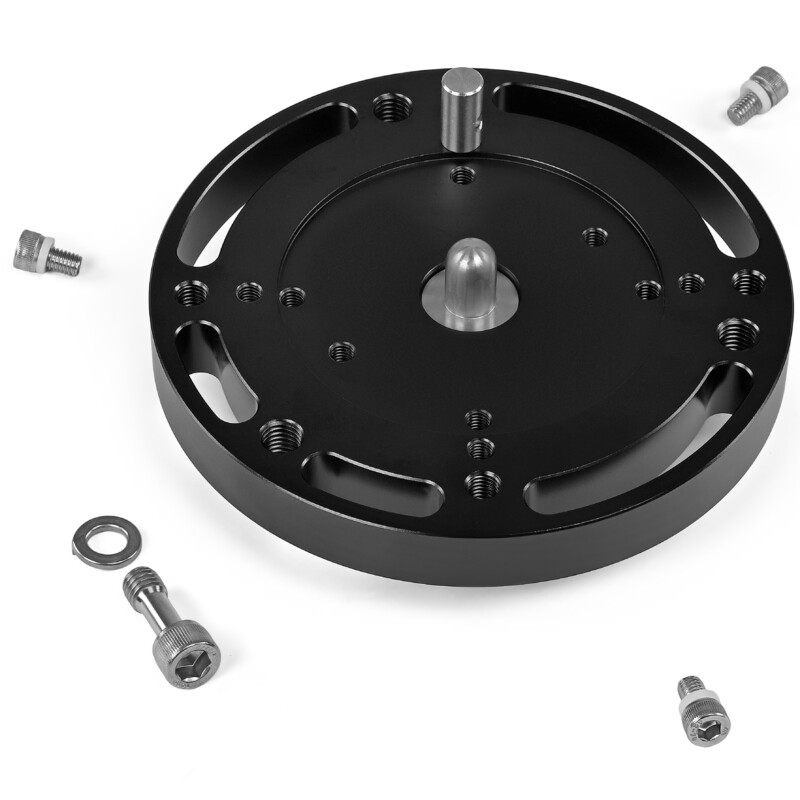

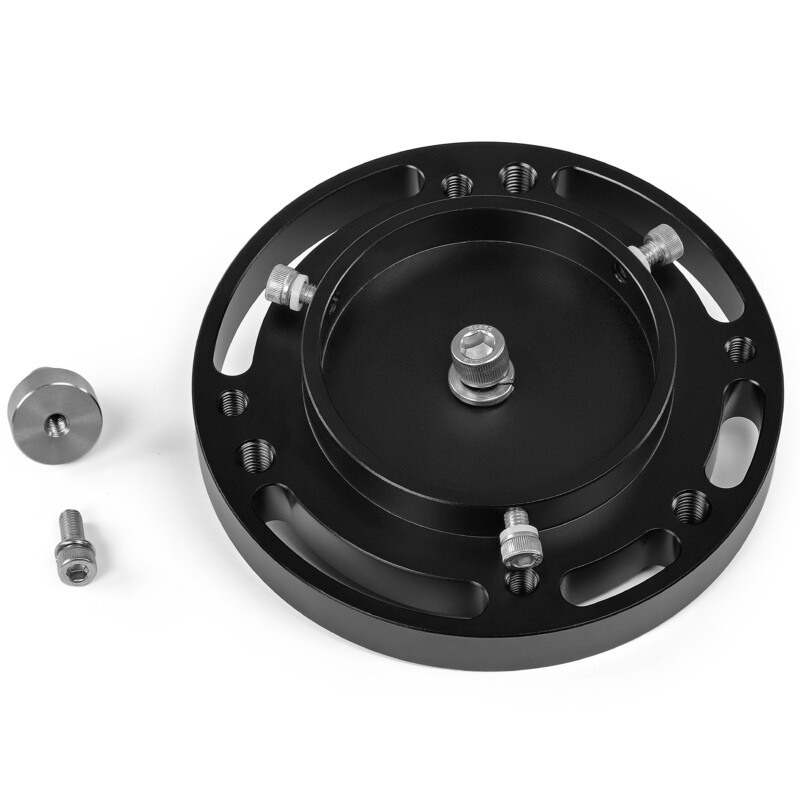

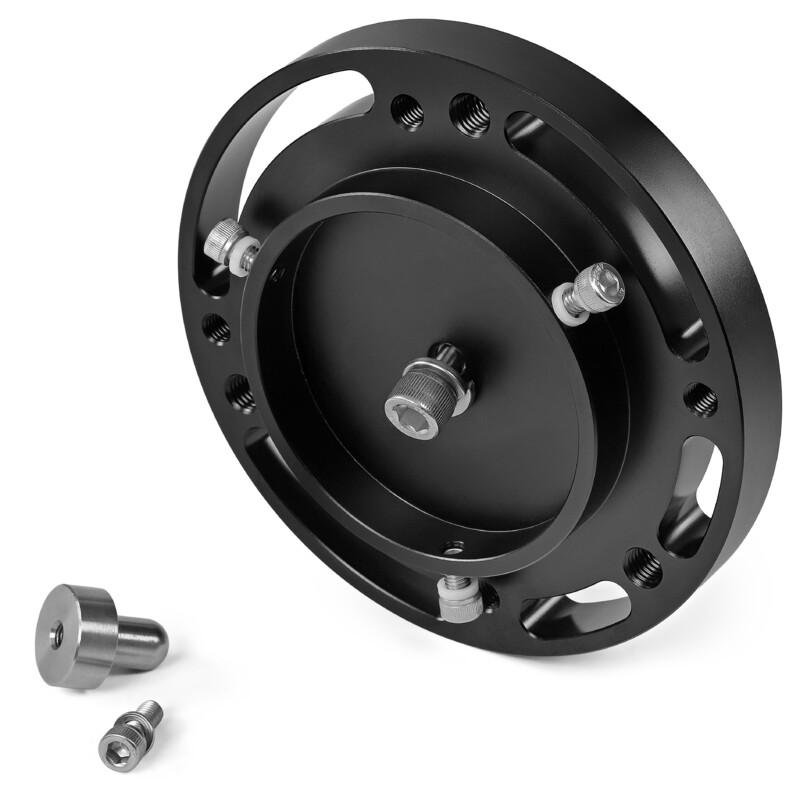

Supplied with the adaptors:

• 1x 3/8-inch screw with thin shank, 1 inch long, thread 9mm long, shank 15mm long
• 3/8-inch spring washer
• Centre pin, 17.8mm high, with 12mm diameter. In addition, an M6x15mm hexagon socket screw for securing, with spring washer.
• Pin for fine azimuth adjustment, 19.7mm high, 10mm diameter.
• 3x M6x10mm hexagon socket screws with plastic washers (for mounting the flange on the column)
