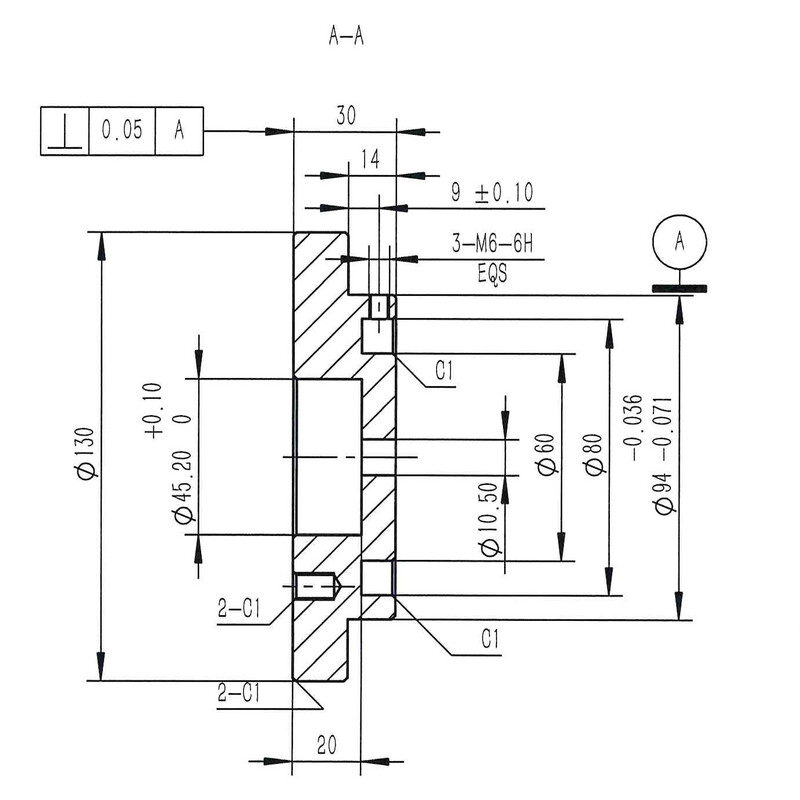

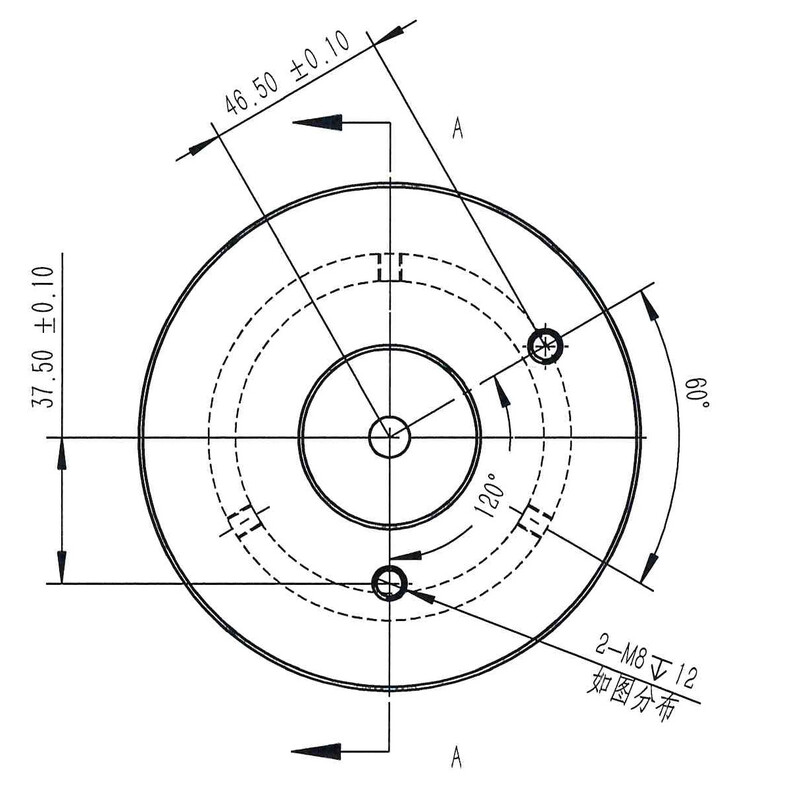

Adapter for Omegon Pro Column for Mounts and Binoculars. Dimensions as shown in the illustrations. The adapter also fits identically constructed telescopic columns if they have an inner diameter of 94mm and three recesses for M6 screws 9mm below the top edge are present.
The adaptors fits for mounts with 45mm spigot, e.g.: Vixen AP, GP2, GPD2, SX2, SXD2 - see images with knives.
The Omegon Skywatcher mounting adapter for Pro column is more suitable for traditional Vixen GP mounts.

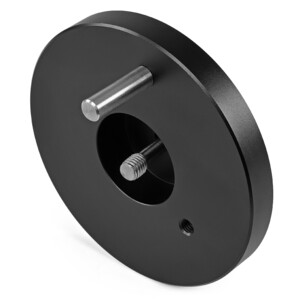

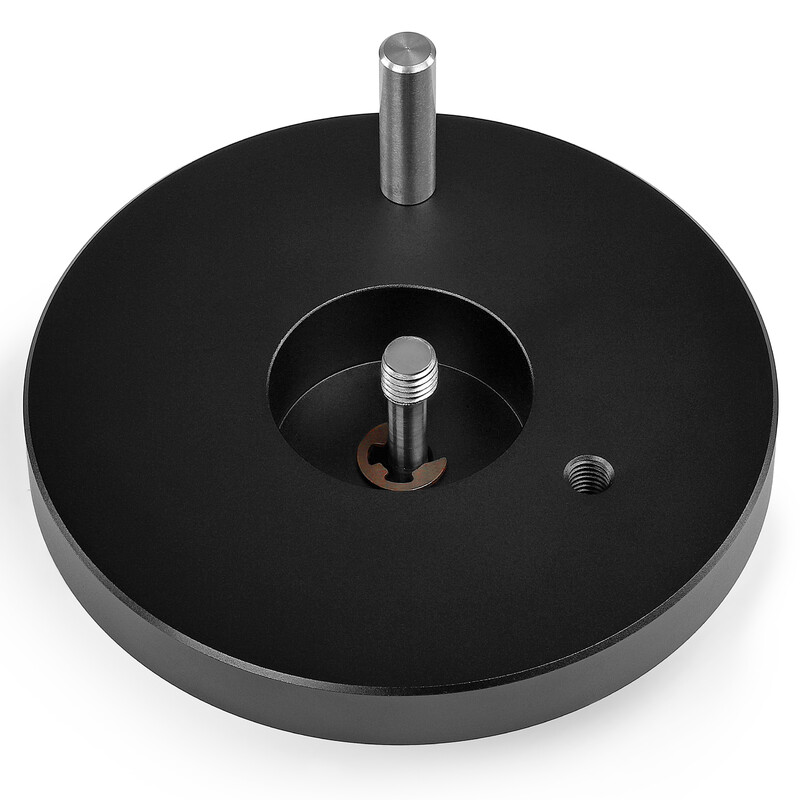

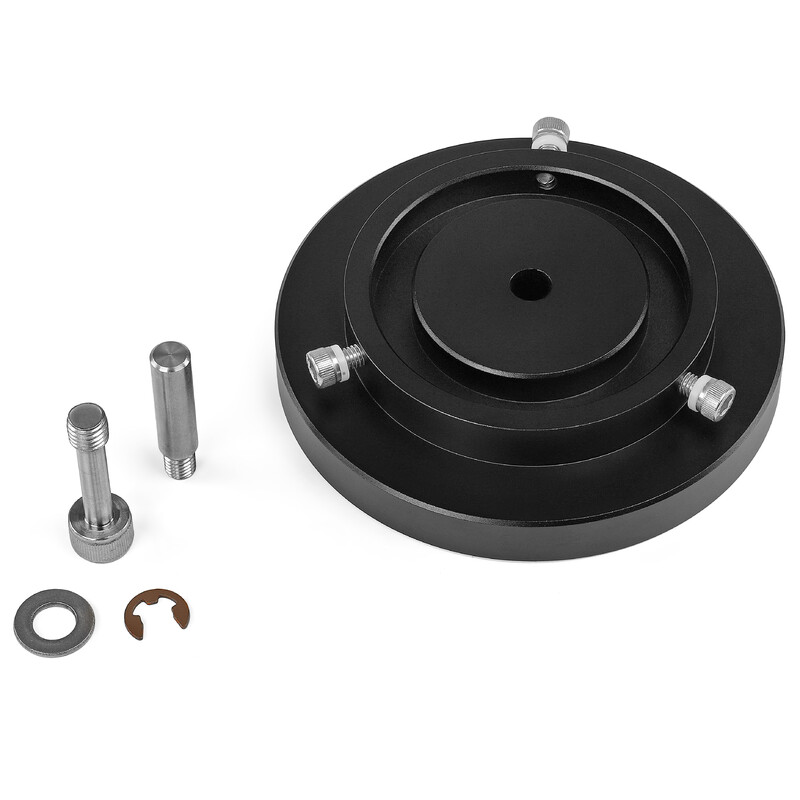

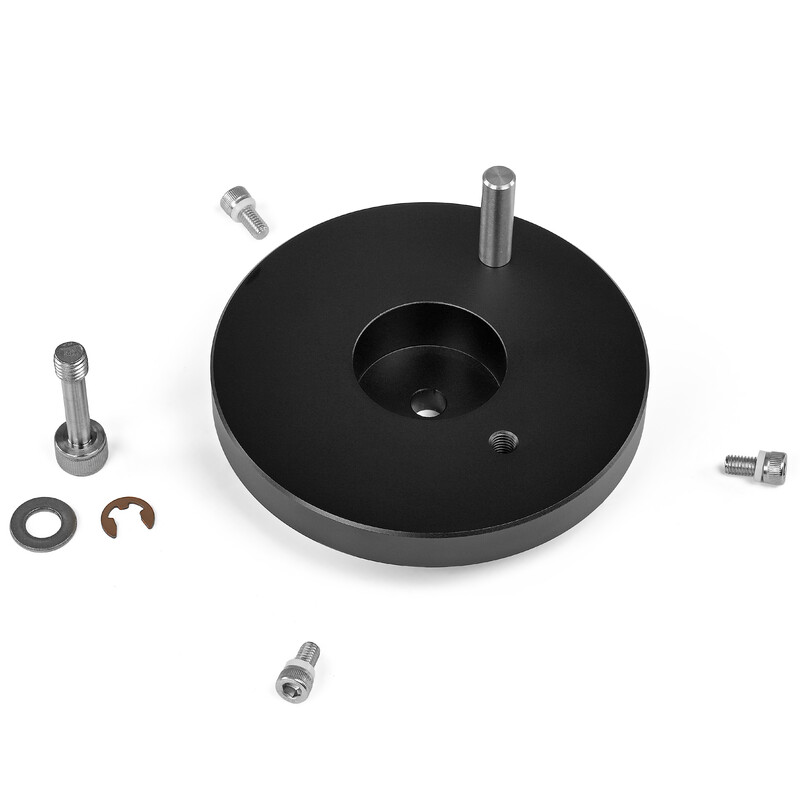

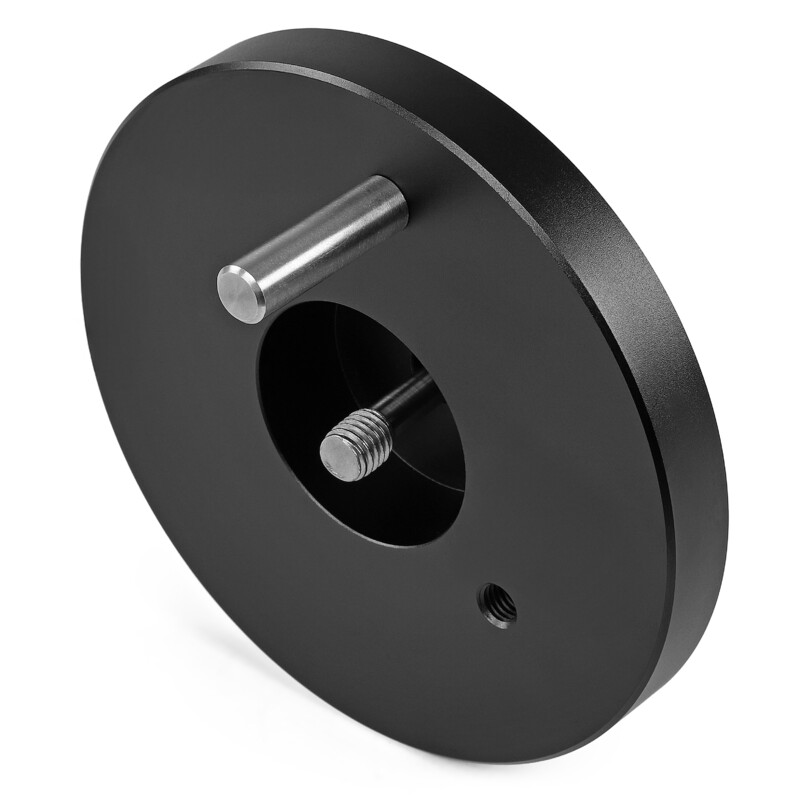

The adaptors are supplied with these parts:
- Pin for azimuth fine adjustment: 35mm high, 10mm diameter
- 2 hexagon socket thin-shaft screws 40mm long, M10x10mm thread, 30mm shaft
- M10 washer
- Lock washer for M10 thread
- 3x M6x11mm hexagon socket head screws (for attaching the flange to the column)
