More about the series Aspen...

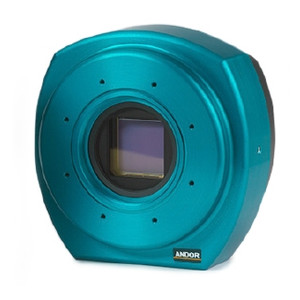

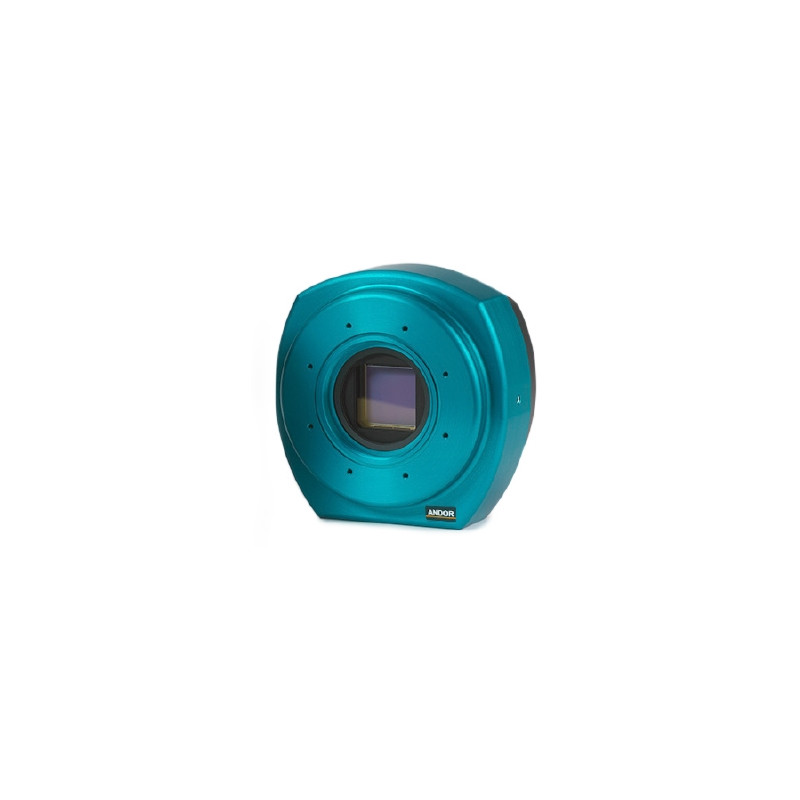

Ideally suited to challenging astronomy and physical science imaging applications, the Apogee Aspen family offers a range of popular full frame and interline CCD sensors, within a camera platform that is designed to push performance to the maximum.
- Deep thermoelectric cooling ensures optimal sensitivity for long exposure applications.

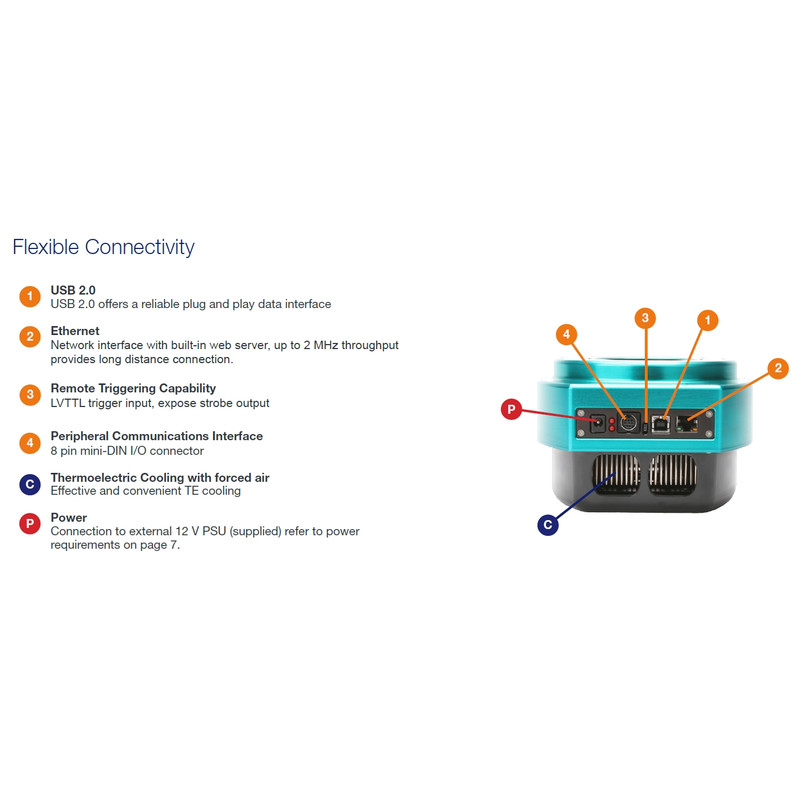

- The simple convenience of a USB 2.0 interface is accompanied by an Ethernet network interface with a built-in web server.
- The Apogee Aspen also utilizes a new extremely high reliability shutter, specified for >5 million shutter cycles.

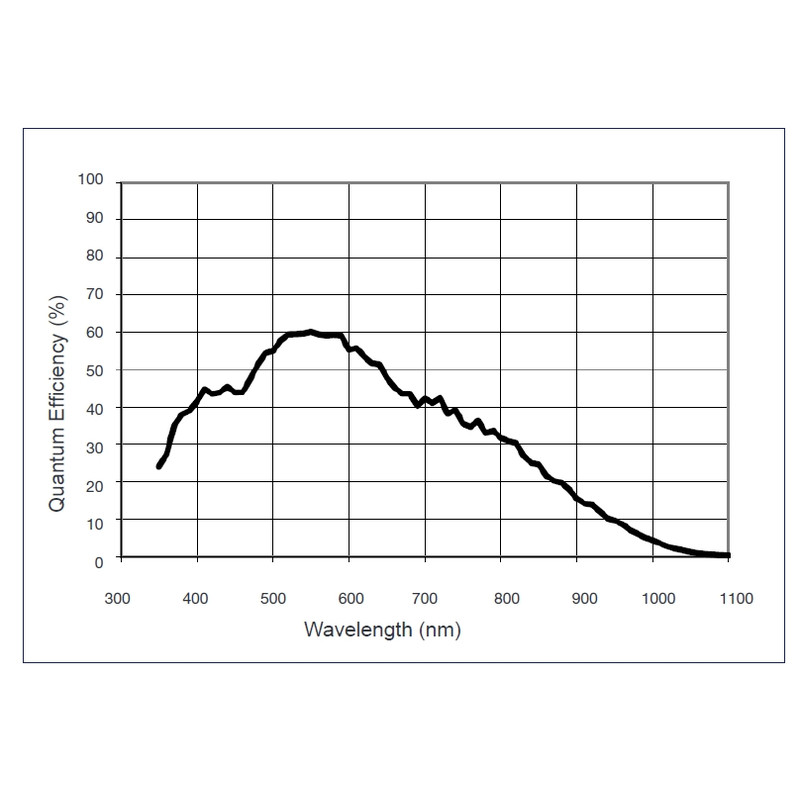

The Apogee Aspen CG16M uses a very large format 16.8 megapixel full frame sensor with 9 µm pixels. Microlenses and transparent gate electrodes maximize sensitivity, while also featuring an anti-blooming structure. Cooling down to 60°C below ambient results in a low dark current contribution.
These features make the Aspen CG16M an ideal solution for applications requiring both a large field of view and optimal signal to noise ratio, such as astrophotography, sky surveys and radiology.
