Astrophotography > Cameras > Astronomical Cameras > Apogee > Aspen > Apogee Camera Aspen CG8050 grade S Mono
Product no.: 53246

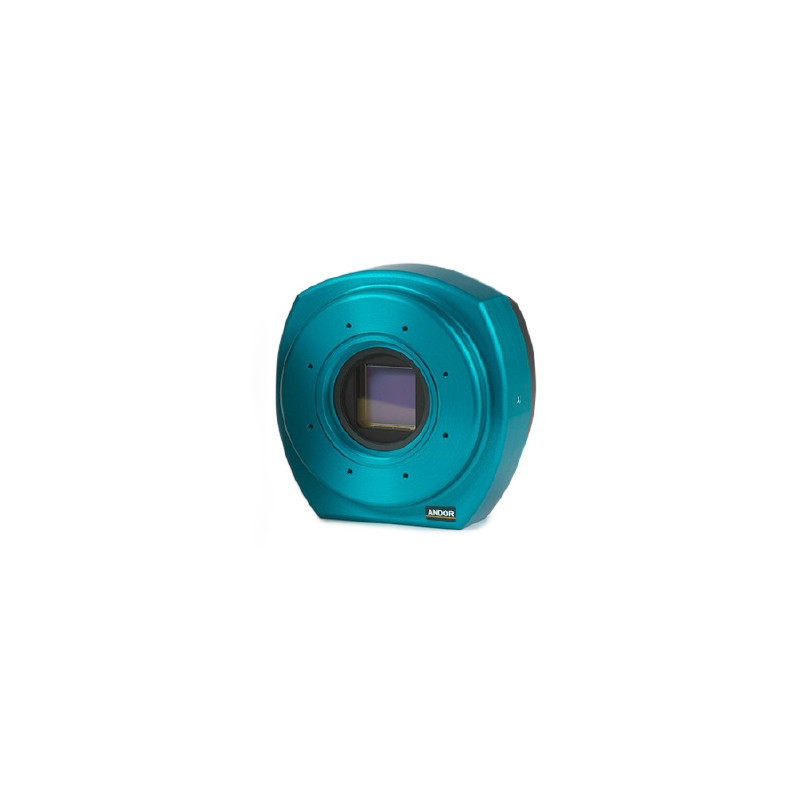

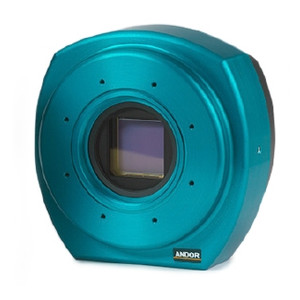

Camera Aspen CG8050 grade S Mono

$ 9,100.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

More about the series Aspen...

Ideally suited to challenging astronomy and physical science imaging applications, the Apogee Aspen family offers a range of popular full frame and interline CCD sensors, within a camera platform that is designed to push performance to the maximum.

  • Deep thermoelectric cooling ensures optimal sensitivity for long exposure applications.
  • The simple convenience of a USB 2.0 interface is accompanied by an Ethernet network interface with a built-in web server.
  • The Apogee Aspen also utilizes a new extremely high reliability shutter, specified for >5 million shutter cycles.

The Aspen CG8050 has a 8.2 megapixel format interline transfer CCD sensor with low noise and high quantum efficiency and small 5.5 µm pixels. Cooling down to 60°C below ambient results in a low dark current contribution.
These features combine to make the CG8050 ideal for microscopy applications requiring both high resolution and large field of view.

Specifications

Capacity


Antiblooming
yes
Active cooling
yes
Colour camera
no
Interfaces
USB 2.0
Sensor type
CCD-chip (Kodak KAF-08050)
Size of chip (mm)
36.8 x 36.8
Pixel size
5,5
Resolution Photograph (Pixel)
3298 x 2472
Full Well Capacity
18000
Bit depth (Bit)
16
Max. cooling difference below room temperature
60
Reading noise
10,8
Dark current
0,0061
Megapixel
8,2
Flange focal distance (mm)
17,2
Max. exposure time (min)
95
Chip - Diagonal (mm)
52
Images per second
0,11
Shutter
Electronic
Microlenses
yes
Quantal efficiency
60% @500nm

General


Overall size LxWxH (cm)
16.4 x 16.2 x 10
Weight (g)
1400
Series
Aspen
Outer material
Aluminium

Area of application


AllSky, Meteore
no
Autoguider
no
Moon & Planets
yes
Nebulae & galaxies
yes

Recommended accessories

Filters (2)
Blocking Filters

Omegon Blocking Filters 1.25''UV / IR cut-off filter

$ 79.00*
Spectroscopy & Photometry (1)
Spectroscope

Paton Hawksley Spectroscope Star Analyser 100

$ 203.00*

*All prices include VAT plus shipping costs.

Apogee Camera Aspen CG8050 grade S Mono

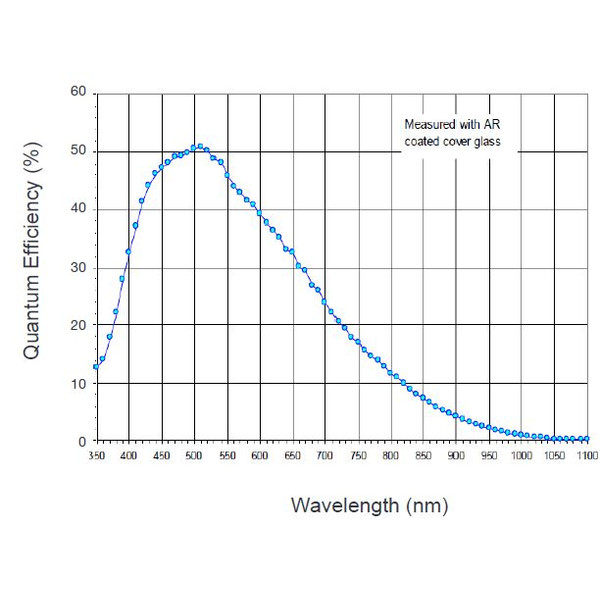

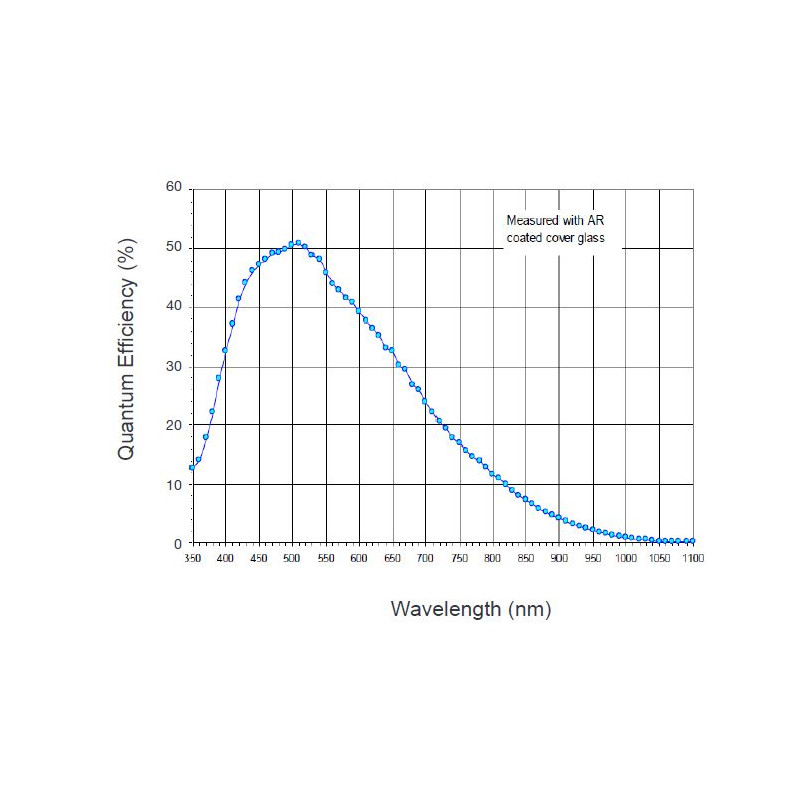

Quantum efficiency
