Astrophotography > Cameras > Astronomical Cameras > Atik > 4 > Atik Camera 420 Mono
Product no.: 44174

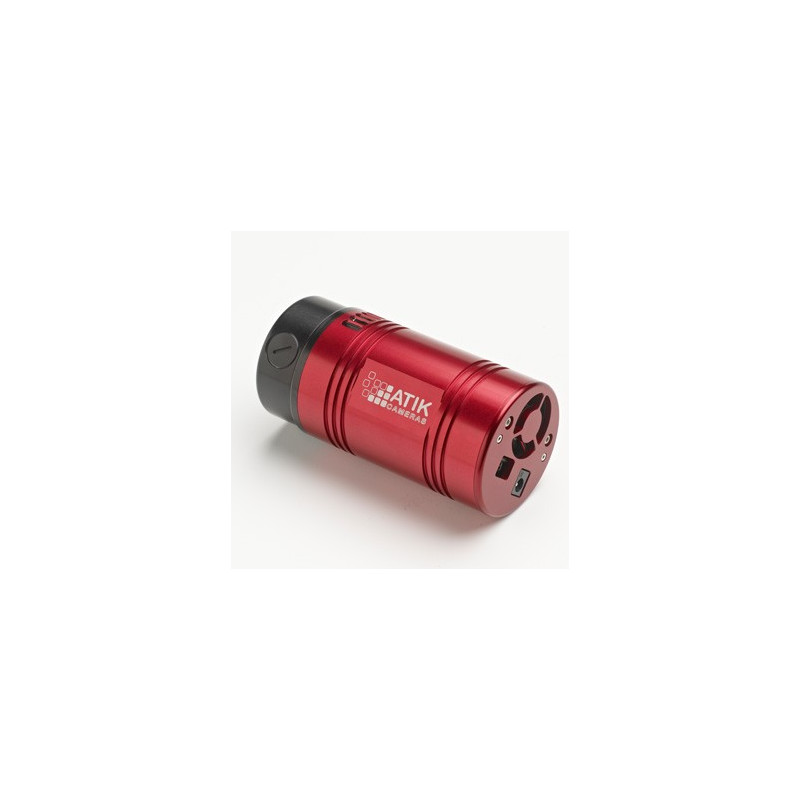

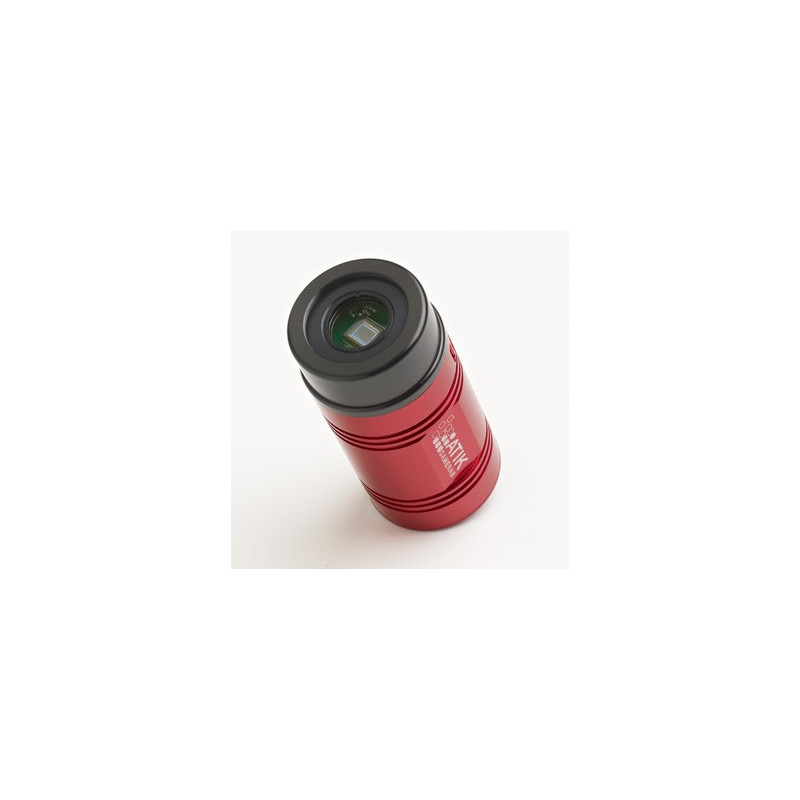

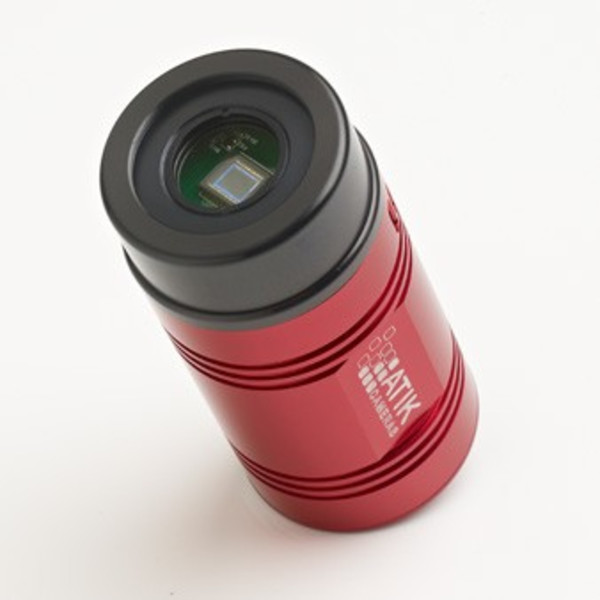

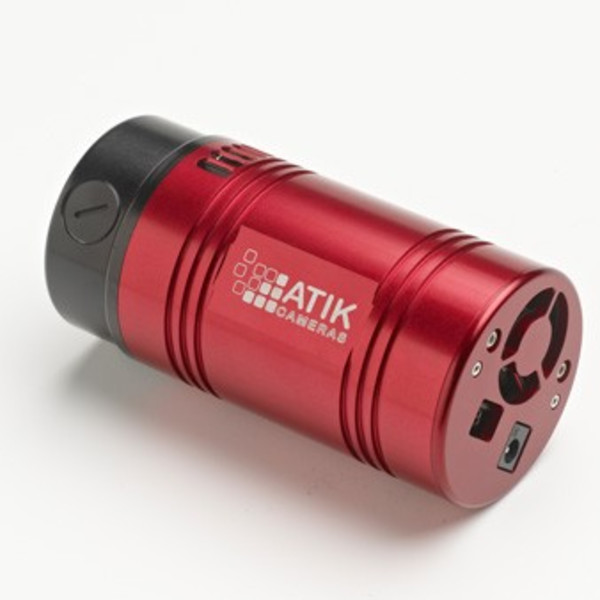

Camera 420 Mono

$ 1,140.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

The Atik 4-series of cameras combine electronically regulated cooling with low power consumption and a narrow, lightweight design.

  • The Atik 420 and Atik 450 are ideal for short focal length refractors. A combination of a fast apo and this Atik camera from the 4-series delivers high-resolution wide-angle images - at a good price!
  • The Atik 428EX is the lowest-cost Atik with EXview technology. It's perfect for deep sky photography and is an ideal fit for all common amateur telescopes. You can't go wrong with this 4-series model!
  • The models 460EX and 490EX are the best choice for larger SC or RC telescopes. If you already have some experience of astrophotography and are looking for an upgrade, these models are the perfect choice.


Due to their narrow body and low heat dissipation, all Atik cameras in this series are a good match for the Celestron

Hyperstar and Fastar systems, or for any system where the camera is the primary focus in front of the corrector plate.

Important features:

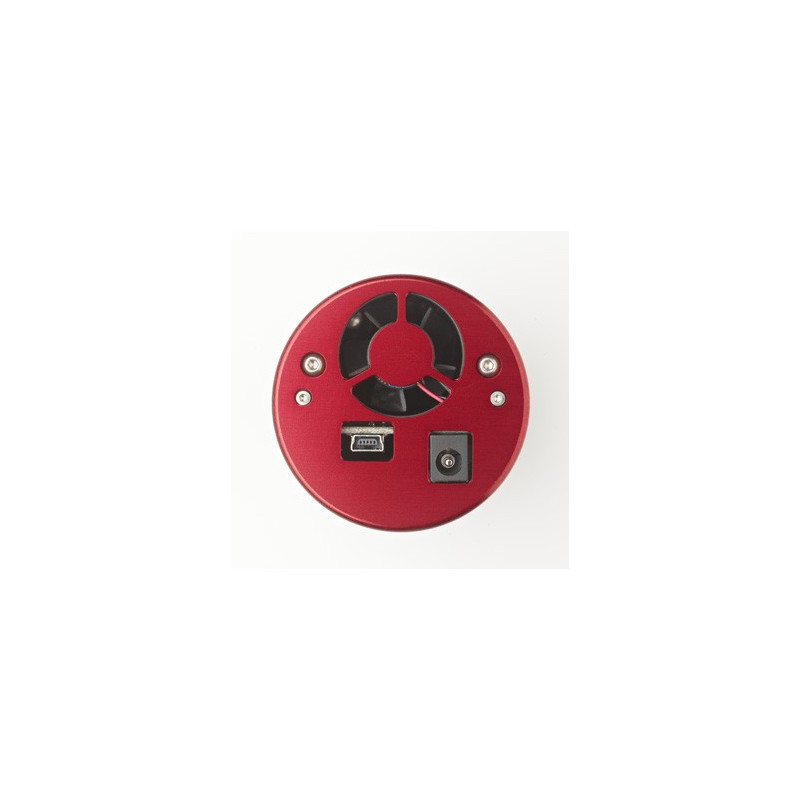

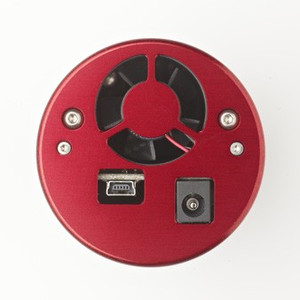

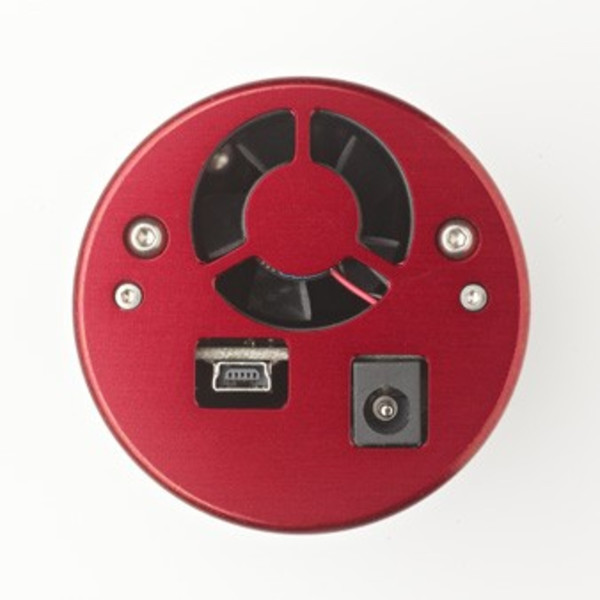

  • The camera is equipped with an efficient cooling system, which ensures low readout noise. Even taking dark frames is not necessary in many situations: more time to shoot, less time wasted with calibration.
  • The camera has a desiccant tablet to prevent the build-up of condensation in the sensor chamber. This can be removed using the screw opening on the side and dried in an oven (please read the operating instructions).
  • The optical window is made of BK7 glass which is coated on both sides (broadband anti-reflection (BBAR)). This ensures that reflections are prevented.

All Atik 4-series cameras have 13mm backfocus.

Scope of delivery includes:

  • Camera
  • USB cable, 3 metres
  • Power cable, 1.8 metres, with cigarette lighter connection
  • CD-ROM with drivers, software and instructions (PDF)
  • Quick start guide hard copy

The camera is available in both monochrome and colour versions. All cameras are compatible not only with Atik Capture software, but also with Astroart and Maxim DL. The minimum system requirement for Atik software is a Pentium III PC with 128MB RAM.

Specifications

Capacity


Sensor type

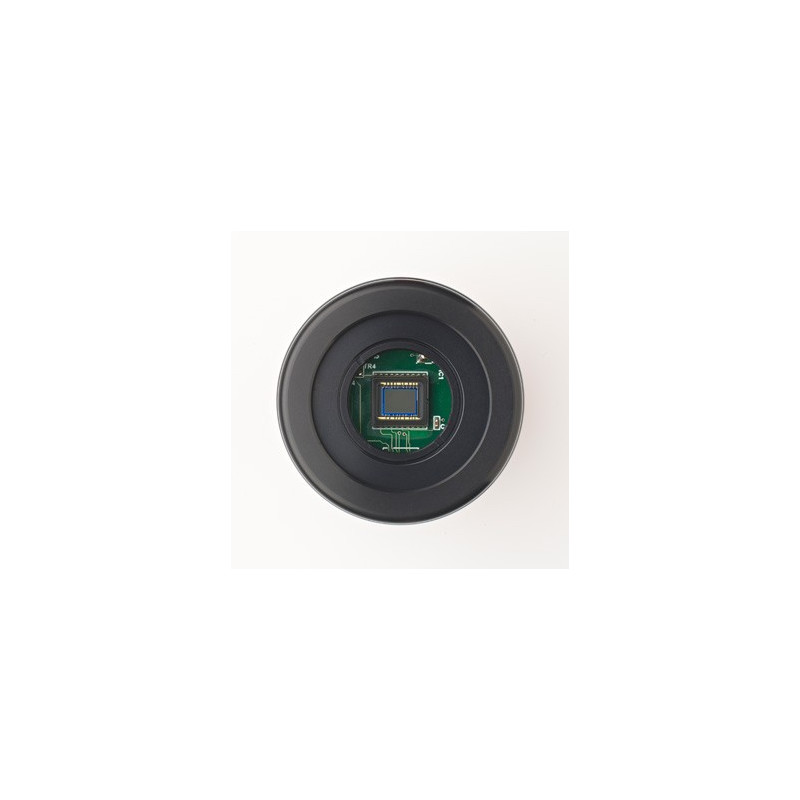

CCD-chip (Sony ICX274AL)
Pixel size
4,4
Resolution Photograph (Pixel)
1620x1220
Power supply
12 (DC)
Max. exposure time (min)
unlimited / unbegrenzt / sans limitation
Min. exposure time
1/1000
Reading noise
4
Active cooling
yes
Interfaces
USB 2.0
Colour camera
no
Cable length (m)
3
Supported operating systems
XP / Vista / Win7
Power consumption (mA)
1000
Max. cooling difference below room temperature
-30
Bit depth (Bit)
16
Connection (to the telescope)
T2 (M42 x 0,75)
Size of chip (mm)
7,2 x 5,4
Chip - Diagonal (mm)
8,5

Equipment


Filter wheel
no

General


Weight (g)
400
Series
4
Length (mm)
121
Width (mm)
60

Area of application


Autoguider
no
Moon & Planets
yes
Nebulae & galaxies
yes

Recommended accessories

Telescope accessories (1)
Power pack

Atik Universal AC Power Supply (90-240VAC)

$ 64.00*
Filters (2)
Blocking Filters

Omegon Blocking Filters 1.25''UV / IR cut-off filter

$ 79.00*
Astrophotography (2)

TS Optics SC/T2 adapter

$ 32.90*
Astronomy (1)
Spectroscope

Paton Hawksley Spectroscope Star Analyser 100

$ 203.00*

*All prices include VAT plus shipping costs.

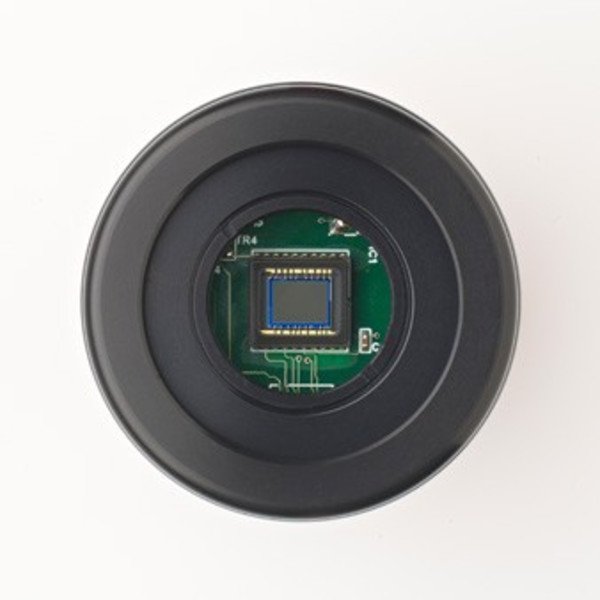

Atik Camera 420 Mono
