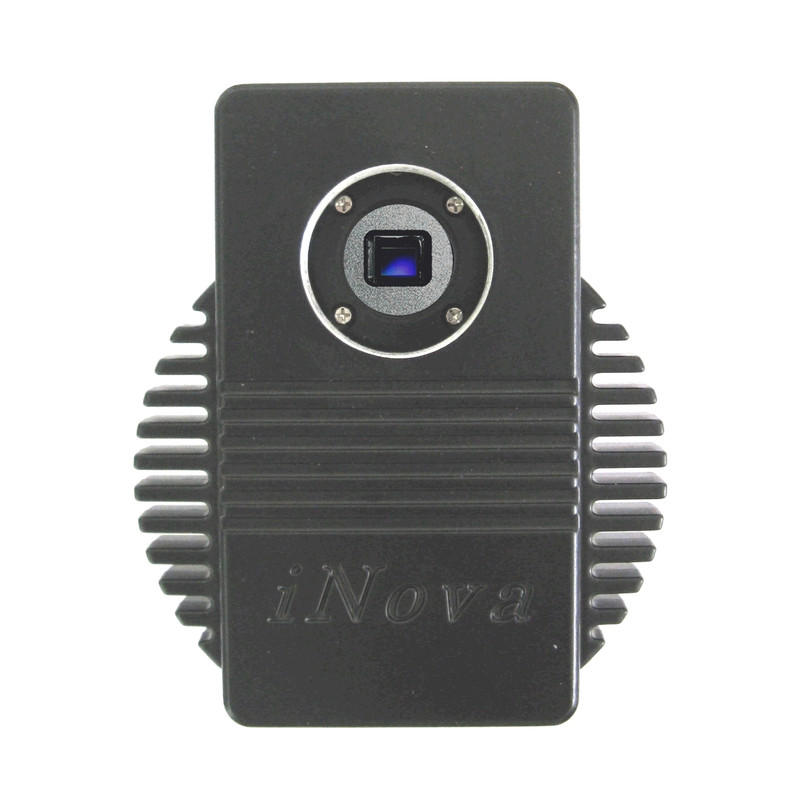

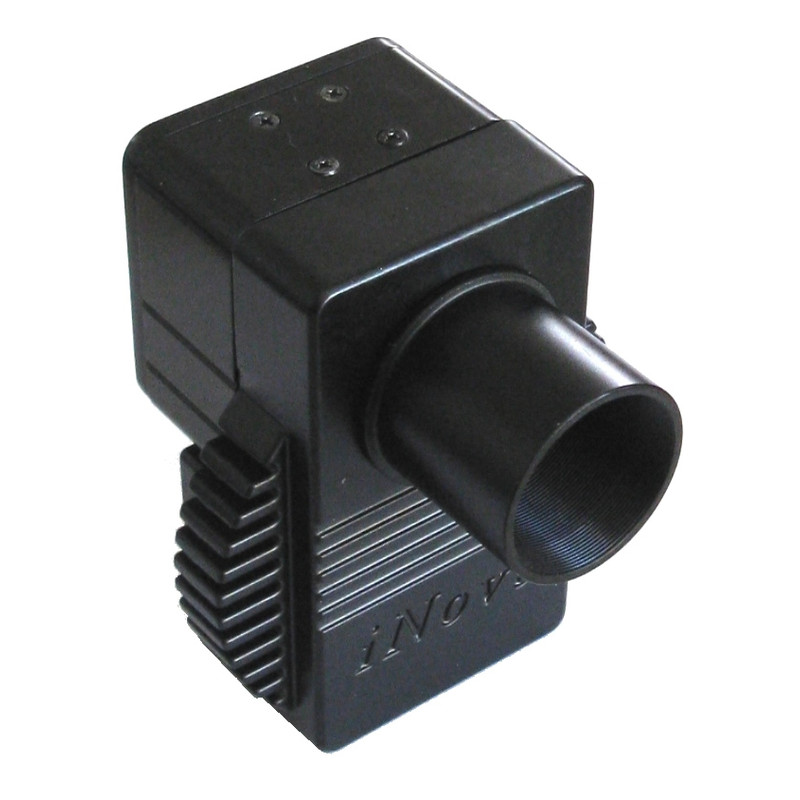

i-Nova Camera Nebula NBB-Cx Color

Product description

Specifications

Customer reviews

Recommended accessories

Downloads

Product description:

Cooled multi-purpose camera - Shoot the universe, from planets to galaxies!

DeepSky exposures: These Nebula series cameras allow long exposures times of faint objects. The cameras in this series hence open up the world of nebulae and galaxies at a price that is significantly lower than for specialised deep sky cameras.

active cooling to 30°C below ambient temperature
long exposures from several seconds to several minutes
suitable for short focal length telescopes
the lightweight and compact design only loads your instrument minimally

Diverse uses

high sensitivity with low noise for excellent image quality, especially useful for deep sky objects
high frame rate makes Nebula cameras very interesting for the Moon and planets
low luminosity stars can be used for auto guiding thanks to 2x2 binning

Image acquisition and auto guiding in one - The Visual Enhancement feature
The overall image of a faint object is generated by the multiple images produced at relatively short exposure times being superimposed (this is also called 'stacking'). A very useful feature of iNova cameras is that you can follow this process live on your PC or laptop. The astronomical object becomes more clearly visible on the monitor - minute by minute. This feature is not only fun, it is also ideal for public demonstrations. Moreover, this technique allows simultaneous auto guiding.

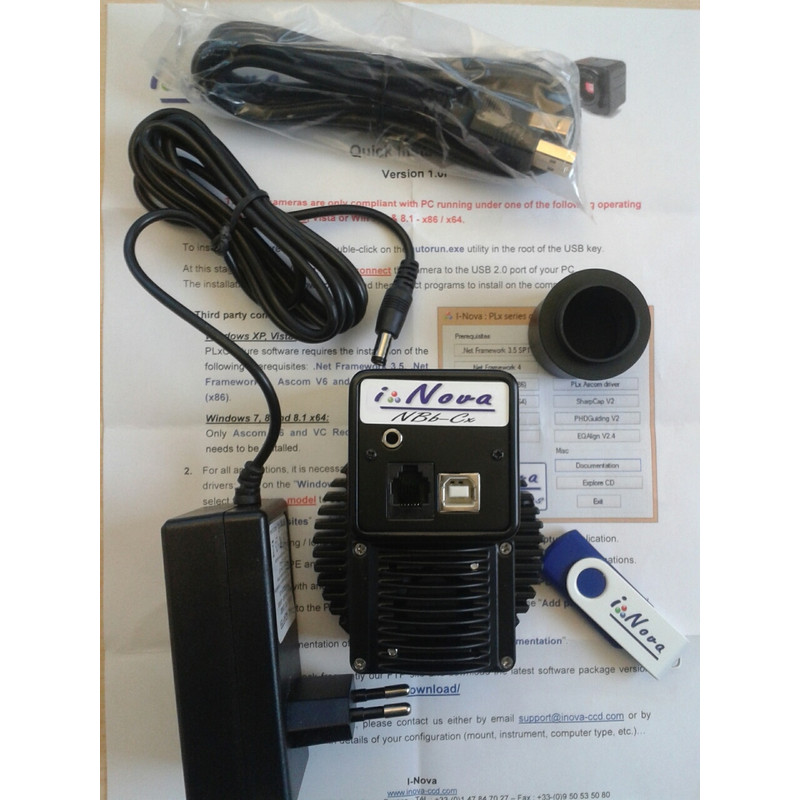

Included in delivery

C-mount to 1.25" adapter
USB cable
mains adapter for the cooling unit
colour cameras come equipped with a built-in IR filter
PLxCapture software is the trusted and well-documented control software from iNova, also including an ASCOM plugin

Their ease of use and excellent documentation makes Nebula-series cameras highly suitable for beginners. Their great functionality and performance means you will still find your Nebula series camera useful even after you have become more experienced. Once you have a Nebula camera from iNova you will not need any other camera!

Included in delivery

Recommended accessories:

Before buying this product, make sure to check our accessory recommendations.

accessory details

Specifications:

Capacity Capacity X Under the heading capacity you can find the technical properties of an accessory. Click to read more...
Sensor type Sensor type X Indicates the type or construction of the chip. Click to read more...	CMOS Chip (Aptina MT9M034)
Size of chip (mm) Chip size X The chip size comprises the outer dimensions of the chip. The larger the chip, the larger the image field produced. Click to read more...	4,8 x 3,6
Megapixel Megapixel X Specifies the total number of pixels. With this handy value you can compare the resolutions of different cameras. Click to read more...	1,2
Pixel size Pixel size X Specifies the edge length of the mostly square pixels that make up a camera sensor. Click to read more...	3,75
Colour camera Colour camera X Colour cameras produce quick results, monochrome cameras capture more detail. Click to read more...	yes
Image format Image format X The image format describes with which type of file the captured image can be saved. Click to read more...	BMP, AVI, RAW, FITS, SER
Resolution Photograph (Pixel) Resolution photo X The resolution of a sensor is expressed as the total number of pixels. In digital cameras it is usually specified in megapixels. However, the specification of the number of single pixels in a vertical and horizontal row is more precise, for example 2048x2048. Click to read more...	1280 x 960
Bit depth (Bit) Bit depth X The bit depth is also referred to as the dynamic range of a chip. The number of bits in a picture also determines how many different shades of grey can be displayed. The depth of the image information depends directly on it. In an image taken with 1 bit depth, you will only see black and white dots. In this case, you can hardly call it a picture. Many details that the naked eye can discern are missing. 16 bits means the presentation of more than 65.000 shades of grey. Click to read more...	12
Min. exposure time Min. exposure time X The minimum exposure time, in seconds, that is possible with this camera. Click to read more...	1/10000
Max. exposure time (min) Max. exposure time X The maximum exposure time in minutes that is possible with this camera. Click to read more...	infinity
Active cooling Active cooling X For long exposure times, many CCD cameras are cooled to reduce thermal noise and achieve higher image quality. CCD cameras are grouped into three categories: - no cooling - passive cooling via cooling fins - active cooling (e.g. using a fan and Peltier element) Click to read more...	yes
Power supply	- (USB)
Interfaces Interfaces X The interface is the type of connection or cable between the device (e.g. a camera) and computer, such as: USB, RS232, firewire or analogue video. Click to read more...	USB 2.0
Autoguider Autoguider X A camera that takes over the automatic tracking control during exposure, and corrects it independently. Click to read more...	yes
Supported operating systems	ab Windows XP
Connection (to the telescope) Connection (to the telescope) X Specifies the product's connection or connection thread on the telescope connection end. The same adapter dimension must always be available on the telescope. Click to read more...	1,25"
Images per second Images per second X This camera takes not just one picture, but a certain number per second. Often this value is given the abbreviation "fps" or frames per second. With a high number of images, you can use the advantage of "freezing" the image and the seeing and thus later creating the perfect image. Click to read more...	30 (at full resolution)
Chip - Diagonal (mm)	6
Equipment
Filter wheel Filter wheel X This refers to whether a filter wheel is integrated in the camera housing, or is included in the scope of delivery as an external filter wheel. Click to read more...	no
General
Length (mm)	90
Width (mm)	76
Height (mm)	48
Weight (g)	260
Series	Nebula
Colour	black
Area of application Areas of application X Information about areas of application serves as a rough orientation. Click to read more...
Autoguider	yes
Moon & Planets	yes
Nebulae & galaxies	yes
AllSky, Meteore	no
