Product no.: 54418

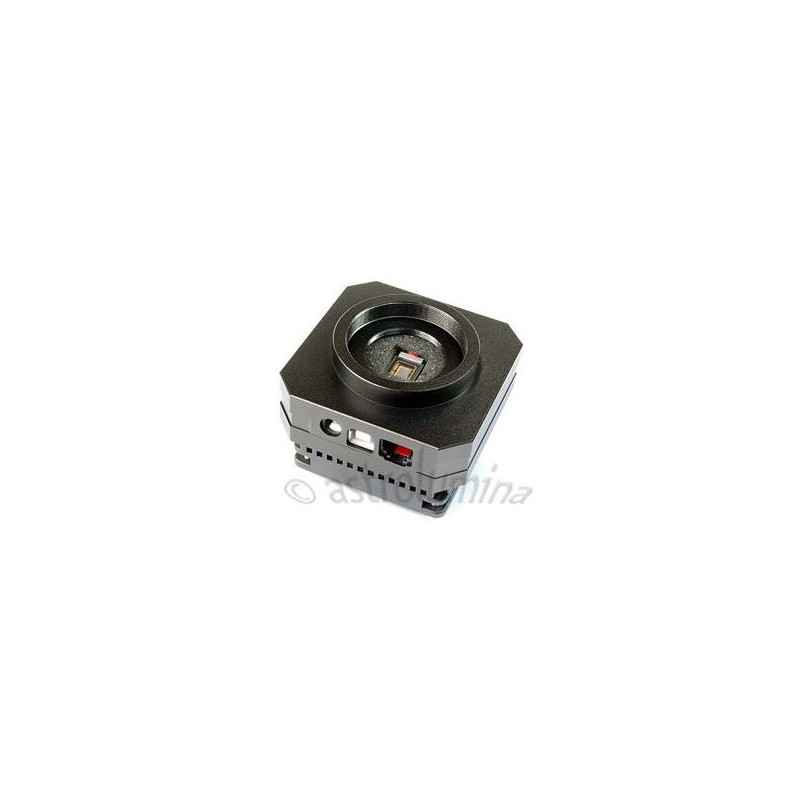

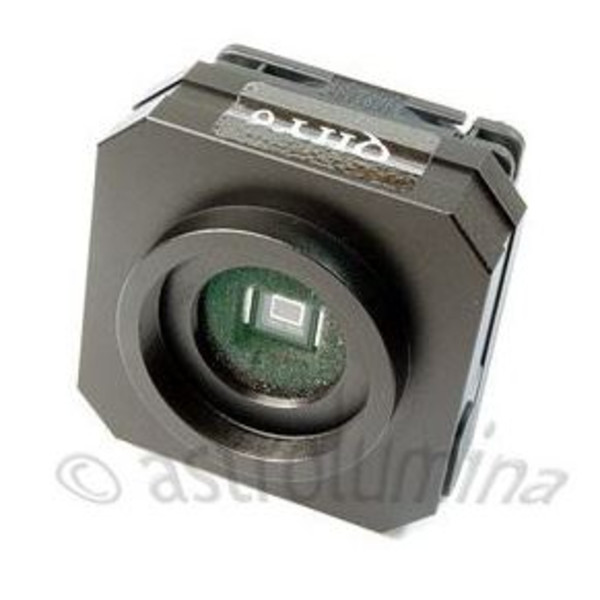

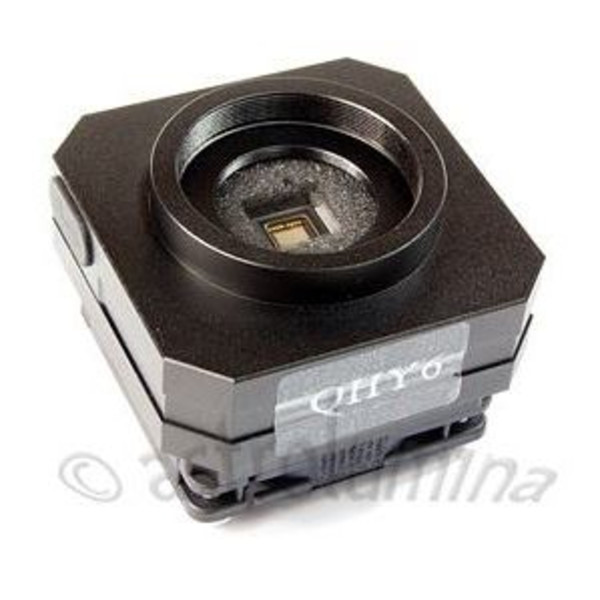

Camera 6 Mono

$ 462.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

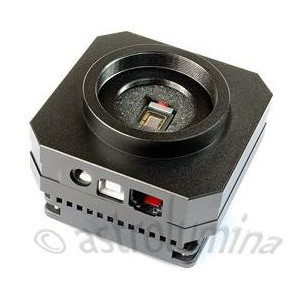

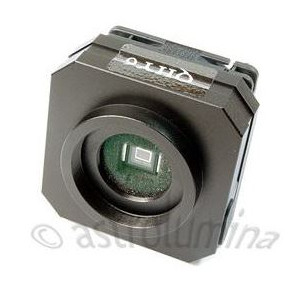

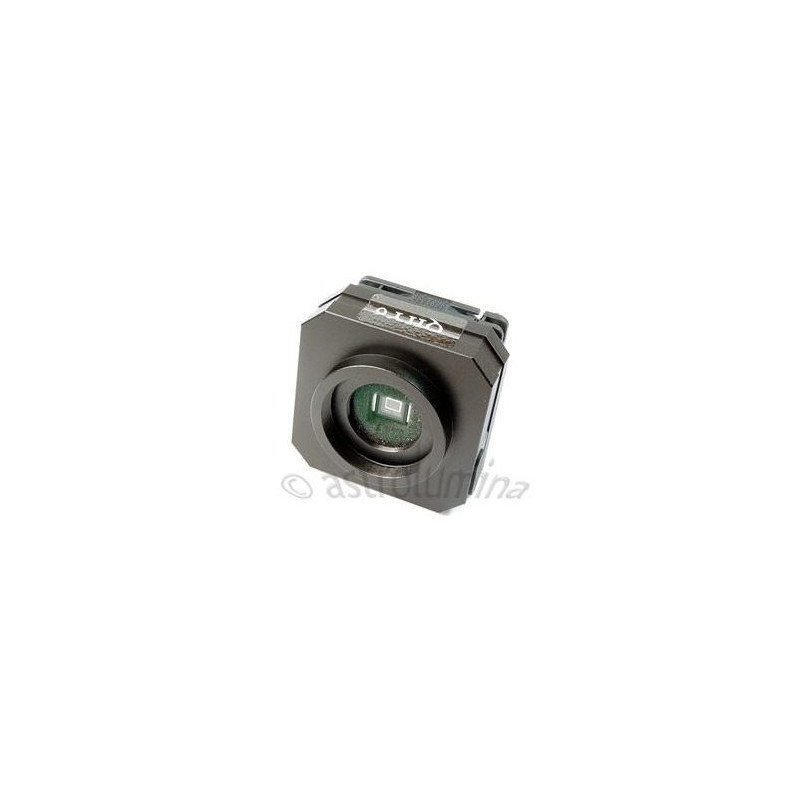

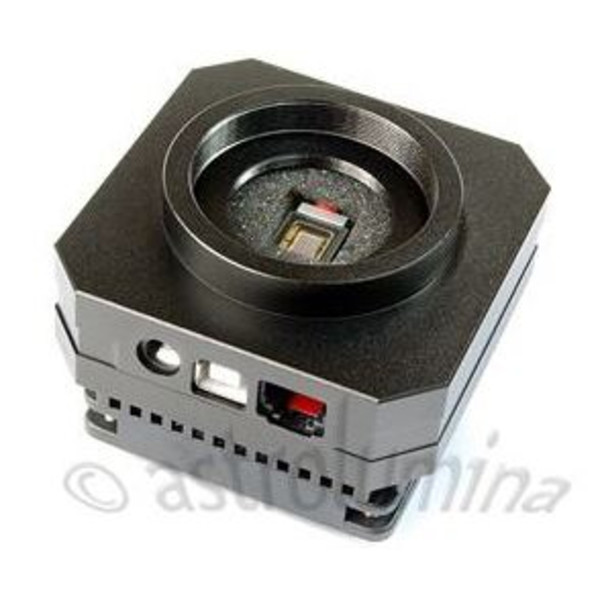

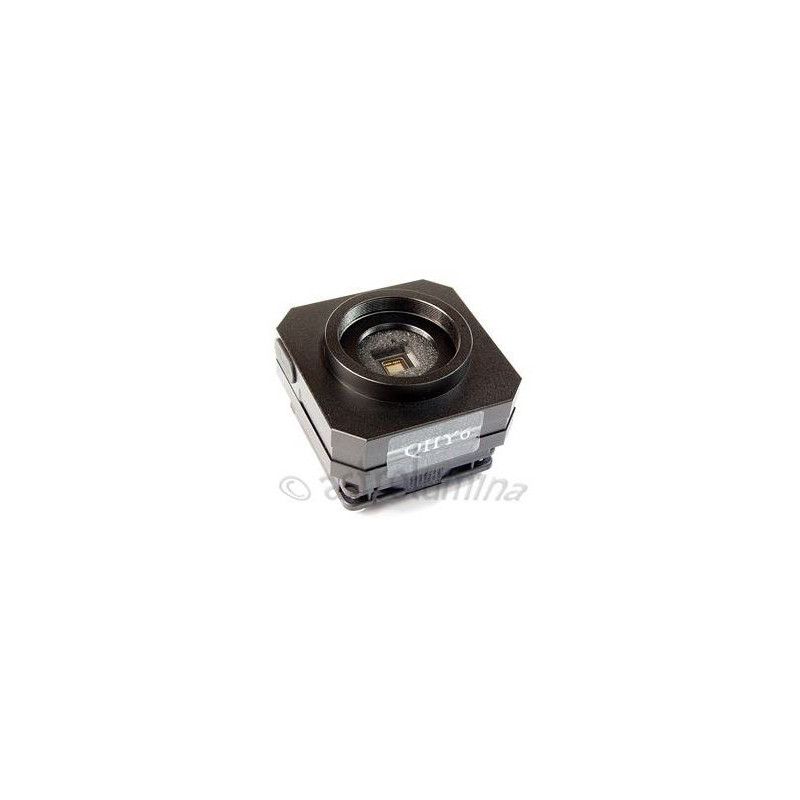

The ALccd-QHY 6 is the guiding camera par excellence and is very well suited as an inexpensive entry-level camera for deep sky astrophotography.

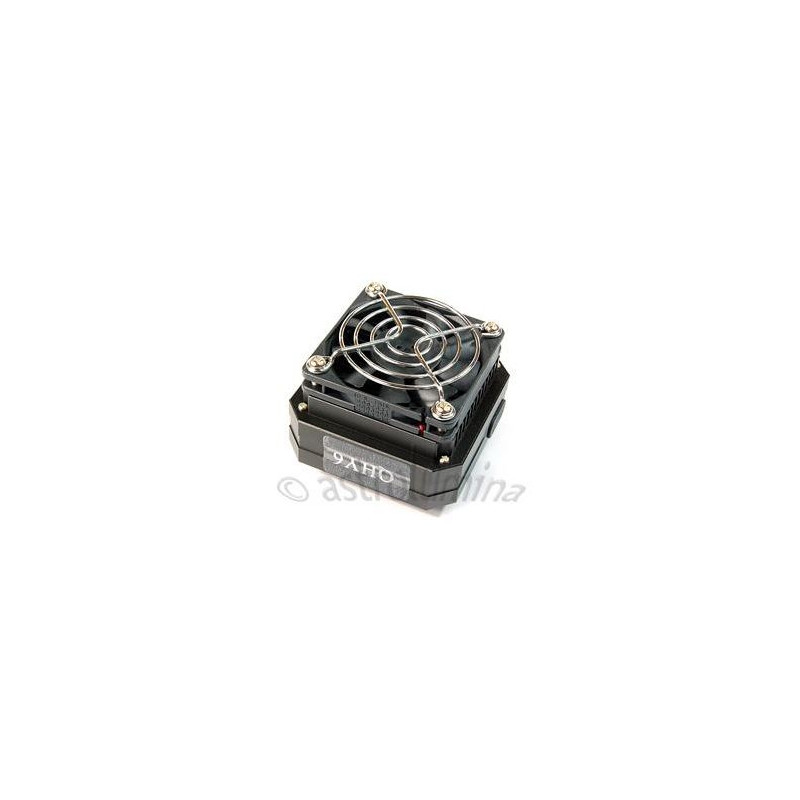

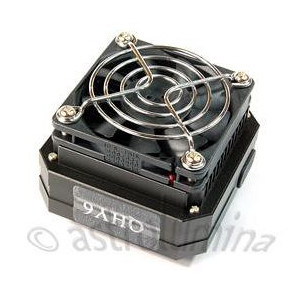

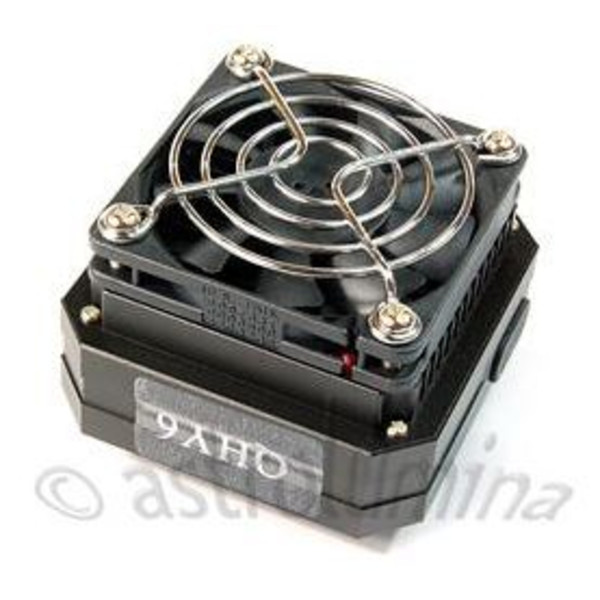

This camera can also be cooled with an optional 12V power supply. No cooling is necessary for guiding itself, but for long exposure shots of deep sky objects, the single-stage cooling significantly reduces thermal noise.

The sensitivity of the camera is at the highest level. With a standard SC 200/2000 telescope, you can easily reach magnitude 13 under moderate city skies. That is a good 2 magnitudes more than you would achieve with the same equipment and anALccd-QHY5. A good webcam, on the other hand, is another 1-2 magnitudes behind theALccd-QHY 5.

The scope of delivery includes a USB cable, an RJ-12 cable and a T2/1.25" adaptor.

Specifications

Capacity


Sensor type
CMOS Chip (Sony ICX259AL)
Megapixel
0,43
Resolution Photograph (Pixel)
752 x 582
Pixel size
6,5
Interfaces
USB 2.0
Bit depth (Bit)
16
Active cooling
yes
Connection (to the telescope)
T2 (M42 x 0,75)
Colour camera
no
Max. exposure time (min)
160
Min. exposure time
0,02
Images per second
5 (at full resolution)
Supported operating systems
Windows XP (SP2), Vista, Windows 7, 8, 10
Size of chip (mm)
6,0 x 4,96
Flange focal distance (mm)
9 (16mm with T2)
Quantal efficiency
65% @600nm
Chip - Diagonal (mm)
7,8

Special features


Autoguider interface
yes (RJ-12)
Filter thread
yes

Equipment


Filter wheel
no
Power pack
no
Other contents
T2 to 1.25" adapter

General


Weight (g)
280
Outer material
Aluminium
Overall size LxWxH (cm)
7x7x5
Series
Cooled CCD Mono

Area of application


AllSky, Meteore
no
Autoguider
yes
Moon & Planets
yes
Nebulae & galaxies
yes

Product safety

Manufacturer: Astrolumina, Alfred-Wirth-Straße 12, 41812 Erkelenz, DE, http://www.astrolumina.de
