Astrophotography > Cameras > Astronomical Cameras > Starlight Xpress > Trius > Starlight Xpress Camera Trius PRO-694C Color
Product no.: 33555

Camera Trius PRO-694C Color

$ 3,020.00 incl. VAT, plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time
Express shipment possible for delivery tomorrow, 20.03.2024!

Product description

Trius: top-quality cameras from Starlight Xpress

Starlight Xpress is best known for its compact, innovative designs and outstanding quality. The new Trius series is entirely in keeping with this tradition. The cooled cameras from Starlight Xpress for deep sky photography surpass their predecessors in terms of noise performance while still maintaining fast download times of around two million pixels per second.

Some of the innovative features of the new Trius cameras include:

  • An integrated USB hub allows you to connect up to three peripheral devices to the camera (5V DC at a maximum of 200 mA). This means that you avoid a lot of tangled cables on the telescope. A guider can be connected via the RJ11 output.
  • The high-quality Trius cameras have a multi-coated quartz glass optical window.
  • The Peltier cooling system is the best possible available for such compact cameras. A built-in fan on the back of the camera pulls air through small holes in the front. An additional fan is attached to the side to keep the outer body of the camera cool in warmer weather.
  • The chamber in which the CCD sensor is housed is filled with argon to ensure that no moisture can condense on the sensor. Argon's low thermal conductivity also supports cooling.
  • The adjustable adapter plate on the front of the camera allows the sensor to be aligned parallel to the telescope focal plane.

Starlight Xpress uses only high-quality grade 1 or better CCDs: no dead pixels, no defective columns!

You are stepping into the world of high-end astrophotography with a Trius camera from Starlight Xpress

Specifications

Capacity


Colour camera
yes
Type of camera
Astro CCD camera
Sensor type
CCD-chip (Sony ICX694AL Exview)
Size of chip (mm)
12,5x10
Megapixel
6,1
Resolution Photograph (Pixel)
2750x2200
Antiblooming
yes
Pixel size
4,54
Active cooling
yes
Max. cooling difference below room temperature
-40
Dark current
0,003
Interfaces
USB 2.0
Reading noise
5
Bit depth (Bit)
16
Connection (to the telescope)
T2
Power consumption (mA)
1500
Power supply
12
Flange focal distance (mm)
17
Full Well Capacity
20000
Chip - Diagonal (mm)
16

Equipment


Filter wheel
no

General


Diameter (mm)
75
Length (mm)
70
Weight (g)
400
Series
Trius
Outer material
Aluminium

Area of application


Autoguider
yes
Moon & Planets
yes
Nebulae & galaxies
yes

Recommended accessories

Filters (1)
Blocking Filters

Omegon Blocking Filters 1.25''UV / IR cut-off filter

$ 79.00*
Astronomy (2)
Spectroscope

Paton Hawksley Spectroscope Star Analyser 100

$ 204.00*

*All prices include VAT plus shipping costs.

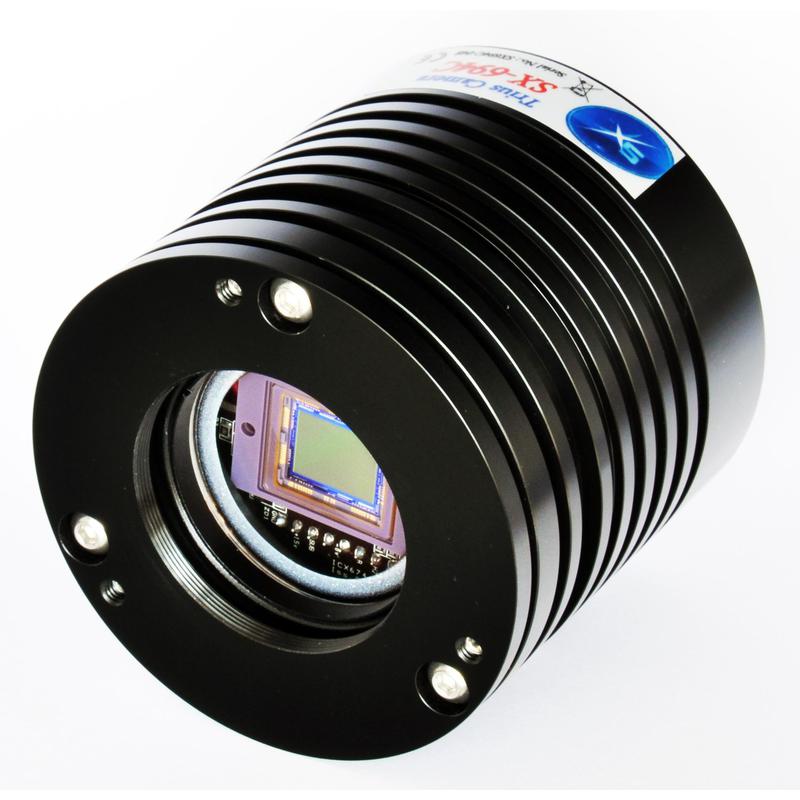

Starlight Xpress Camera Trius PRO-694C Color

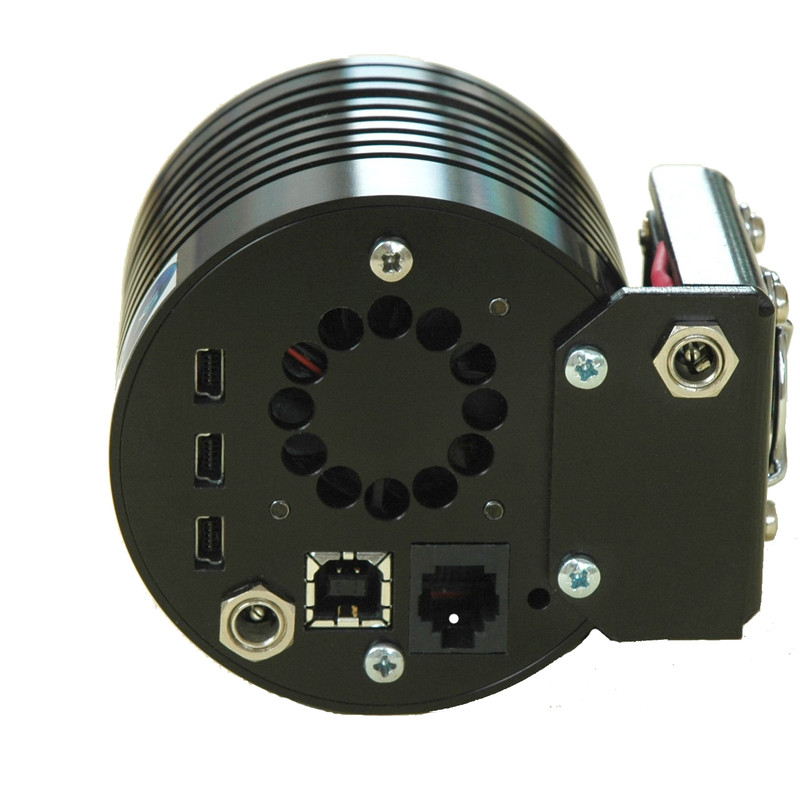

Rear view
